Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

Ask Lasest Price
Brand Name :	Honghua, BOMCO, NATIONAL, OILWELL, GARDNER DENVER, SOUTHWEST
Model Number :	3NB-800F
Certification :	API
Payment Terms :	T/T, L/C, D/A, D/P, T/T, Western Union
Supply Ability :	10 per month
Delivery Time :	In stock
Price :	1 to 500 usd

Add to Cart

Product Details
Company Profile

Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

www.premiumrigparts.com

HongHua Group(HH), which is a world-leading company in designing and manufacturing oilfield equipment. HH manufactures Drilling Rig Packages, Mud Pumps, Drawworks, Top Drives, Hydraulic Catwalk, and other oilfield equipment and Parts.

Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

Description	F500	F800	F1000	F1300/1600
Liner of Crosshead Upper	NB500G.04.02	NB800M.04.02	GH3101.04.02	GH3161-04.02
Liner of Crosshead Lower	NB500G.04.02	NB800M.04.13	GH3101-04.12	GH3161-04.15
Pin of Crosshead	NB500G.04.08	NB800M.04.18	GH3101-04.10	GH3161-04.13
Extension Rod	NB500G.04.15	NB800M.04.09	GH3101-04.09	GH3161-04.12
Sub Rod
Crosshead	NB500G.04.01	NB800M.04.01	GH3101.04.01	GH3161-04.01

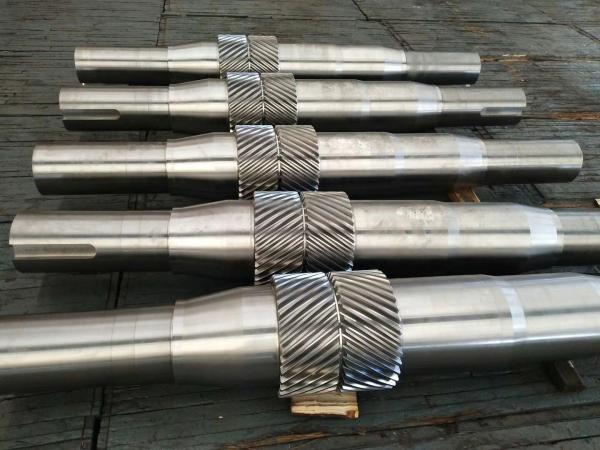

Pinion Shaft	NB500G.03.02	NB800M.03.02A	GH3101-03.02B	GH3161-03.02
Wear Ring of Pinion shaft	NB500G.03.02	NB800M.03.03	GH3101-03.03	GH3161-03.03
Carrier, Bearing Left	NB500G.02.14	NB800M.02.16	GH3101-02.14	GH3161-02.13
Carrier, Bearing Right	NB500G.02.02	NB800M.02.02	GH3101-02.02	GH3161-02.02
Connecting Rod	NB500G.02.06	NB800M.02.06	GH3101-02.06	GH3161-02.06
Bull Gear	NB500G.02.10A	NB800M.02.10.00	GH3101-02.10B	GH3161-02.10.00
Stuffing Box	NB500G.04.06	NB800M.04.06	GH3101-03.03	GH3161-04.05
Bolt, Main Bearing	NB500G.02.18	NB800M.02.14	GH3101-02.18	GH3161-02.16
Bearing, Crosshead	NB500G.04.07	NB800M.03.13	GH3101-04.17	GH3161-04.17
Bearing, Pinion Shanft	NB500G.03.12	NB800M.03.13	GH3101-03.12	GH3161-03.12
Bearing, Eccentric	NB500G.02.22	NB800M.02.22	GH3101-02.21	GH3161-02.21
Bearing, Main	NB500G.02.23	NB800M.02.23	GH3101-02.22	GH3161-02.22
Crankshaft	NB500G.02.08.00	NB800M.02.08.00	GH3101-02.08.00	GH3161-02.08.00

Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

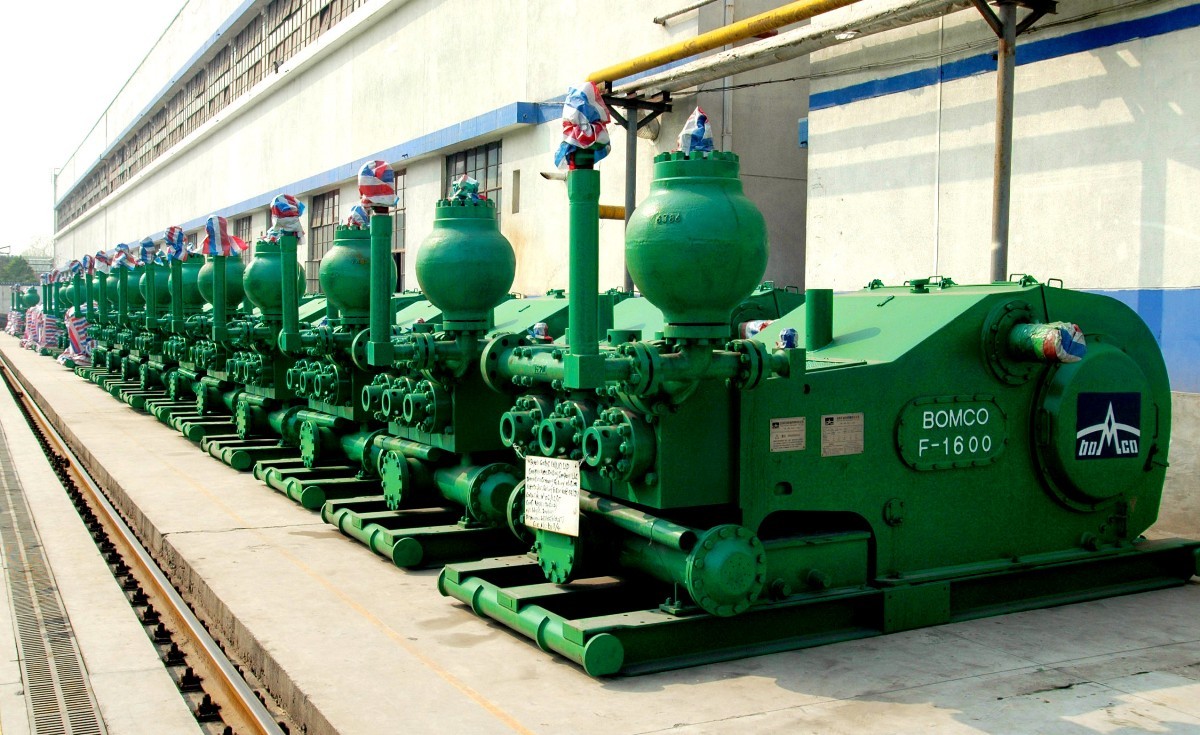

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600

Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,

National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,

Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32

WEATHERFORD/Ellis Williams: E-447, E-2200

Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800

Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000

And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

Description	F500	F800	F1000	F1300/1600	F1600HL	F2200HL
Liner of Crosshead Upper	AH0501010402	AH0801010402	AH1001010402	AH1301010402	AH1301010402	AH2202010402
Liner of Crosshead Lower		AH0801010408	AH1001010409	AH1301010412	AH1301010412	AH2202010403
Pin of Crosshead	AH0501010404	AH0801010407	AH1001010408	AH1301010410	AH1301010410	AH2202010410
Extension Rod	AH0501010410	AH0801010406	AH1001010407	AH1301010409	AH1301010409	AH2202010409
Crosshead	AH0501010401	AH0801010401	AH1001010401	AH1301010401	AH1301010401	AH2202010401
Pinion Shaft	AH0501010302	AH0801010302	AH1001010302	AH1601010201	AH1601010201
Wear Ring of Pinion shaft	AH0501010303	AH0801010303	AH1001010303	AH1301010303	AH1301010303	AH2202010306
Carrier, Bearing Left	AH0501010212	AH0801010213	AH1001010212	AH1601010105	AH1601010105	AH2202010212
Carrier, Bearing Right	AH0501010202	AH0801010202	AH1001010202	AH1601010101	AH1601010101	AH2202010202
Connecting Rod	AH0501010206	AH0801010206	AH1001010206	AH1601010103	AH1601010103	AH2202010206
Bull Gear	AH0501010210	AH0801010210	AH1001010219	AH16010101040 0	AH16010101040 0	AH220201021000
Bolt, Main Bearing	AH051020207	AH0801020206	AH1001010215	AH1301010215	AH1301010215	AH2202010215
Bearing, Crosshead	5G354920Q	4G254735Q	5G254936Q	AH1301010414	AH1301010414
Bearing, Pinion Shanft	4G32828H	4G32836H	4G32840H	AH1301010312	AH1301010312	AH2202010315
Bearing, Eccentric	92984QU	928/508QU	929/558.8QU	AH16010101070 0	AH16010101070 0	AH2202010217
Bearing, Main	3053738U	3053748H	4053156H	AH16010101080 0	AH16010101080 0	AH2202010218

Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

Description	7P50 mud pump	8P80 mud pump	9P100 Mud pump	10P130 Mud pump	12P160 Mud pump	14P220 Mud pump
Liner of Crosshead Upper		1291017	1293017	1290017	1292017	1295017
Liner of Crosshead Lower
Pin of Crosshead	1294028	1291028	1293028	1290028	1292028	1295028
Extension Rod	1294083	1291083	1293083	1290083	1292083	1295083
Crosshead		1291090	1293090	1290015	1292090	1295015
Crosshead	1294015	1291015	1293015	1290090	1292015	1295090
Pinion Shaft	1294010	1291010	1293010	1290358	1292010	1295010
Cage, Main Bearing	1294011	1291011	1293011	1290011	1292011	1295011
Cap, Bearing Right	1294012	1291012	1293012	12960012	1292012	1295012
Connecting Rod	1294007	1291007	1293007	1290007	1292007	1295007
Bull Gear	1294008	1291008	1293008	1290008	1292008	1295008
Crankshaft		1291005	1293005	1290005	1292005	1295005
Bearing, Crosshead	ZB-5620	ZB-6751	ZB-7120	ZB-7370	ZB-8253	ZB-9005
Bearing, Pinion Shanft	ZB-6292	ZB-7081	ZB-7873	ZB-8662	ZB-10236
Bearing, Eccentric	ZB-22000	ZB-23500	ZB-25500	ZB-26250	ZB-28515	ZB-32000
Bearing, Main	ZT-10003	ZT-11812	ZT-13127	ZT-14500	ZT-15000	ZT-16125

Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

NATIONAL				10-P-130					6-3/4 x 10
	LINERS		LINER GASKETS		PISTONS				PISTON REPLACEMENT RUBBERS
SIZE	CERAMIC	SUPREME	RUBBER	URETHANE	WHITE LIGHTNING	SUPREME	GREEN DUO	FLEXLIP	WHITE LIGHTNING	SUPREME
4"	07465400	05465400				012180170	1502052	011102926		015180102
4 1/4"
4 1/2"	07465450	05465450	07923265		012180197	012180196	1502054	011102928	015180145	015180144
4 3/4"
5"	07465500	05465500	07923265		012180254	012180253	1502056	011103033	015180186	015180185
5 1/4"
5 1/2"	07465550	05465550	07923263		012180338	012180337	1502058	011103132	015180228	015180227
5 3/4"
6"	07465600	05465600*	07923261		012180395	012180394	1502060	011103629	015180269	015180268
6 1/4"		05465625*				012180493	1502061	011103322	015180285	015180284
6 1/2"	07465650	05465650*	07923283		012180536	012180535	1502062	011103827	015180301	015180300
6 3/4"
7"
7 1/4"
7 1/2"
7 3/4"
8"
* For HP style liner, add "HP" to end of part no.
VALVES, SEATS, SPRINGS & INSERTS						GASKETS
	ROUGHNECK	ROUGHNECK HP	SUPREME	FKN		OEM	URETHANE	L STYLE	URETHANE
VALVE-White Lightning Insert	9700367	9700359	060152809	N/A	Valve Cover	07916768	07916468	07207128
VALVE-Urethane Insert	9700285	9700353	060152808	1560995	Cylinder Head
VALVE-Rubber Insert	9702601	N/A	060122702	1560994	Plug Seal
SEAT	9702555	9702555	061102604	1561450	HYDRA-LOK		OEM		MISSION L
SPRING	8201684	8201684	055413421	1560701	Complete Assembly		80500101		80500101
SPRING-Stainless			055402945
INSERT-Urethane	9705090	9700363	062400106	1560587	MODULES		OEM		MISSION L
INSERT-Rubber	9705155	N/A	062400056	1560588	Complete Assembly		FEMNAT10PCA		FEM10PASSYSW
SEAT PULLER ASSEMBLIES					Discharge Module Studded		FEMNATDIS10P		FEM10PDISSW
Puller Assembly 1	M 1060	M 1060	M 1060	M 1060	Suction Module Studded		FEMNATSUC8P9P		FEM10PSUCSW
Puller Head	8401977	8401977	181235052	M 1089	One Piece OEM Style Studded

Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods
Crosshead Rod	Quick Connect	Self Aligning Rod Assembly	Pony Rod Baffle	Piston Rod	Sub Rod	Stud	Rod Nut	Clamp	Covered Rod Nut	Pony Rod Seal
1602560		1095210	1290194	1290347	1290346		005402052	005417803	CRN-1

Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

SOUTHWEST 8488-1A FLUID END FOR OILWELL A-1700-PT/A-1400-PT

FLUID END TYPE	MODEL OF PUMP	SIZE OF PUMP
SOUTHWEST 5000 PSI	A-1700-PT / A-1400-PT	7-1/2” X 12” / 10”

ITEM	P/ N	DESCRIPTION	QTY. REQ’D
	8488-1A	FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3, 4, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 28A, 29, 30, 33, 34, 35,36,39)
1	1388-XX	LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX)	3
2	2974-XX	LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)	3
3	8488-4	WEARPLATE	3
4	2974-1	WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2974-1U)	6
5	XX-BYY	PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)	3
5A	2932	PISTON BUSHING (FROM 1 5/8” TO 1 ½” STRAIGHT BORE)	3
6	568-225	PISTON O-RING	3
7	1290HW25	PISTON ROD (WITH ELASTIC STOP NUT)	3
8	API-4ESN	PISTON ROD ELASTIC STOP NUT	3
9	1290W2	PISTON ROD CONNECTING STUD (WITH WATER HOLE)	3
10	1290HW1	SUB ROD	3
11	1290CW	ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 1290C)	3
11A	1200H30	HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS)	3
11B	1200120	PIPE (3/8” X 12” GALVANIZED AND THREADED ON ONE END)	3
11C	4018-94	ROD CLAMP BOLT (5/8-11 GRADE 8 BOLT WITH LOCK NUT AND WASHER)	6
12	1200G90	PONY ROD	3
13		VALVE	6
14		VALVE INSERT (IF REQUIRED)	6
15		VALVE SPRING	6
16		VALVE SEAT	6
	SWTM1700	HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG FOR DETAILS)	1
	4475-1A	SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSISTS OF ITEM 17-24)
17	4475	THREADED FLANGE	6
18	4575	SCREW GLAND	6
19	4675-1A	PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS)	6
20	P129	HP VALVE COVER PLUG SEAL (AVAILABLE IN URETHANE PART# P129U)	6
21	4775R	VALVE GUIDE (COMPLETE WITH BUSHING #4700I)	6
22	4700I	VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU)	6
23	4018-88	VALVE GUIDE SCREW	12
24	4015-2	VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT)	72
25	4016-96	POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT)	12
26	4017-4	LINER RETAINER FERRY HEAD CAP SCREW	24
27	6488-1	LINER RETAINER FLANGE	3
28	6588-1	LINER RETAINER NUT (FOR LARGE BODY LINER)	3
28A	8488-7	LINER RETAINER SET SCREW	9
29	4016-97	SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2”-8 HEAVY HEX NUT)	18
30	4018-70	SUCTION MANIFOLD CAPSCREW (WITH LOCK WASHER)	24
31	8588-50	SUCTION MANIFOLD (FRONT OR SIDE INLET)	1
32	80102003	SUCTION MANIFOLD GASKET	3
33	8488-2S	SUCTION MODULE (STUDDED ONLY)	3
34	8488-1D	DISCHARGE MODULE (STUDDED ONLY)	3
35	8488-5	DOWEL PIN	6
36	2988	MODULE GASKET	1
37	8388A	DISCHARGE MANIFOLD	3
38	568-345	DISCHARGE MANIFOLD GASKET	12
39	4016-3	DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1375-8 1-3/8”-8 HEAVY HEX NUT)

Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

GARDNER DENVER PZ-7, PZ-8, PZ-9
FLUID END MODULE & ACCESSORIES
ITEM	OEM PART	MISSION PART	DESCRIPTION	QTY
#	#	#	RETURN TO GARDNER DENVER INDEX
1		FEMPZ789CA	FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-23)	3
1A	200PZL029F	FEMPZ789	FLUID END MODULE STUDDED - (INCLUDES 1-9 & 24)	3
	205PZL029D
02	79L188	PZ789LCS	STUD, FRAME & LINER CLAMP	24
03	50B36	PZ789LCSN	NUT (FOR ABOVE)	24
04	79L73	PZ789GPFS	STUD, FRAME	12
05	50AQ30	PZ789GPFSN	NUT (FOR ABOVE)	12
06	79AL6	PZ789TRS	STUD, VALVE COVER	48
07	50B34	PZ789TRSN	NUT (FOR ABOVE)	48
08	202PZL110	PZ789DMS	STUD, DISCHARGE MANIFOLD	12
09	50B34	PZ789TRSN	NUT (FOR ABOVE)	12
10	2011861	PZ789EXPR	RING, VALVE COVER GASKET EXPANDER	6
11	2011862	077670074900	GASKET, VALVE COVER	6
12	2007674	PZ789VGI	BUSHING, VALVE GUIDE	6
13	2011860	PZ789VC	COVER, VALVE	6
14	2011699	PZ789FLG	RING, VALVE COVER THREADED	6
15	2011857	PZ789CAP	CAP, VALVE COVER LOCK	6
16	2011701	PZ789PL	PLATE, RETAINER	6
17	2011700	PZ789LVG	GUIDE, VALVE SUCTION	3
19	95W2	PZLVGAWASHER	WASHER, LOCK 1/2" 316SS	6
19	655EE06S	PZLVGABOLT	SCREW 1/2"x1 3/4" 316SS HX HD C/S	6
20	25AL35	077070074701	GASKET, DISCHARGE MANIFOLD	3
21	25G41	078070028300	GASKET, SUCTION MANIFOLD	3
22	1PV14	PZ789LC	CLAMP, LINER	3
23	2011706	PZ789LVGA	ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19)	3
24			CAPSCREW, SUCTION MANIFOLD - NOT SHOWN

Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600

Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,

National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,

Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32

WEATHERFORD/Ellis Williams: E-447, E-2200

Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800

Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000

And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

SOUTHWEST “NEW STYLE” 8476-4A FLUID END

FOR NATIONAL 12-P-160

FLUID END TYPE	MODEL OF PUMP	SIZE OF PUMP
SOUTHWEST 5000 P.S.I.	NATIONAL 12-P-160	7-1/2” X 12”

ITEM	P/N	DESCRIPTION	QTY. REQ’D
	8476-4A	FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3,4,16,17,18,19, 20, 21,22,23,24,25,26,27,28,29,31,32,33,34,&47)
1	1376YXX	LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX))	3
2	2930-XX	LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX))	3
3	8476-3	WEARPLATE	3
4	2988	WEARPLATE AND MODULE SEAL (2988U URETHANE AVAILABLE)	6
5	XX-BYY	PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY))	3
6	568-225	PISTON O-RING	3
7	1286-32	PISTON ROD (WITH ELASTIC STOP NUT)	3
8	API-4ESN	PISTON ROD ELASTIC STOP NUT	3
9	1286-1	SUB ROD	3
10	1286CWY	ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C)	6
10A	1200H30	HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS)	3
10B	1286CWYFP14	DUAL SPRAY PIPE	3
10C	4020-29	ROD CLAMP BOLT (7/8 X 5” GRADE 8 BOLT WITH LOCK NUT AND WASHER)	12
11	1200G86	PONY ROD	3
12	SEE PAGE	VALVE	6
13	SEE PAGE	VALVE INSERT (IF REQUIRED)	6
14	SEE PAGE	VALVE SPRING	6
15	SEE PAGE	VALVE SEAT	6
	SWTM1700	HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS)
	4476-6A	SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY (CONSISTS OF ITEMS 16-23)	6
16	4476	THREADED FLANGE	6
17	4597	SCREW GLAND	6
18	4676-6A	PLUG (COMPLETE WITH VALVE GUIDE, SCREWS, AND BUSHING)	6
19	P119	HP VALVE COVER PLUG SEAL	6
20	4776R	VALVE GUIDE (COMPLETE WITH BUSHING #4700I)	6
21	4700I	VALVE GUIDE BUSHING (4700I URETHANE AVAILABLE)	6
22	4016-98	VALVE GUIDE SCREW	12
23	4015-54	VALVE COVER STUD (WITH SW PART# HHN1500-6 1-1/2-6” HEAVY HEX NUT)	72
24	4015-95	POWER END STUD (WITH SW PART# HHN1375-6 1-3/8”6 HEAVY HEX NUT)	30
25	4017-65	LINER RETAINER FERRY HEAD CAP SCREW	18
26	6476	LINER RETAINER FLANGE	3
27	6576	LINER RETAINER NUT	3
28	4018-17	SUCTION MODULE STUD (WITH SW PART# HHN1750-6 1-3/4”-6 HEAVY HEX NUT)	18
29	4018-19	SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER)	24
30	8576-50	SUCTION MANIFOLD (FRONT OR SIDE INLET)	1
31	AJO419R	SUCTION MANIFOLD GASKET	3
32	8476-6S	SUCTION MODULE (STUDDED ONLY)	3
33	8476-5D	DISCHARGE MODULE (STUDDED ONLY)	3
34	8488-5	DOWEL PIN	6
		*ITEMS NUMBERS 35 THRU 46 ARE NOT SHOWN INTENTIONALLY*
47	4018-18	DISCHARGE CONNECTOR CAP SCREW (WITH LOCK WASHER)	16
48	4018-39	DISCHARGE SPACER FLANGE SOCKET HEAD CAP SCREW	16
49	8376-1	DISCHARGE CONNECTOR	2
50	8376-2	DISCHARGE ADAPTER	2
51	8376-3	BACK-UP RING	4
52	8376-4	DISCHARGE SPACER FLANGE	2
53	2976-3	DISCHARGE SPACER FLANGE SEAL	2
54	2976-1	DISCHARGE CONNECTOR / ADAPTER PACKING	2
55	2976-2	DISCHARGE CONNECTOR / ADAPTER PACKING	4
56	R44D	RING JOINT GASKET	2
57	4017-22	DISCHARGE SPACER FLANGE STUD (WITH SW PART# HHN1500-6 1-1/2”-6 HEAVY HEX NUT)	16
58	5000-5BFLANGE	BLIND FLANGE 5"	1
59	9070012	PONY ROD SEAL	12
60	80491292	SPLASH GUARD	3
61	8376-50A	COMPLETE STRAINER CROSS	1
62	8376-50	STUDDED STRAINER CROSS ONLY	1

Honghua 3NB800F mud pump power end spares, HHF 1600 MUD PUMP, HHF1300 MUD PUMP, HHF-1000 MUD PUMP liner, pistons, Valves

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Qingdao National Premium Oilwell Machinery Co.,Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Explore more National Mud Pumps products from this supplier

Find Similar Products By Category:

Textiles & Leather Products

Hot Searches:
