CONTINENTAL EMSCO FB-1300, FB-1600 FLUID END MODULE

ITEM #	OEM PART #	MISSION PART #	DESCRIPTION
-		-	ASSY, COMPLETE FLUID END (INCLUDES MANIFOLDS)
1	-	EMSFEMFB1300CA	ASSY, COMPLETE FLUID END MODULE (ITEMS 1A-22, 24-28)
1A	0-6316-0357-00	EMSFEMFB1300	MODULE, STUDDED FLUID END(ITEMS 1A-9)
2	0-7507-2201-00	EMSFB13PFS	STUD, POWER FRAME
3	0-7601-0630-17	EMSF1000PFSN	NUT, POWER FRAME STUD
4	0-7507-2210-00	EMSFB13TRS	STUD, CYLINDER HEAD THREADED RING
5	0-7601-0630-17	EMSF1000PFSN	NUT, CYLINDER HEAD THREADED RING STUD
6	0-7507-2108-00	EMSF1000DMS	STUD, DISCHARGE MANIFOLD
7	0-7601-0630-24	IDT800TRSN	NUT, DISCHARGE MANIFOLD STUD
8	0-7507-2013-00	EMSFB13LCS	STUD, LINER THREADED RING
9	6300160	PEP53	NUT, LINER THREADED RING STUD
8	0-6316-0354-00	EMSFB13LVGA	GUIDE, LOWER VALVE (WITH BUSHING)
9	0-6316-0096-00	EMSF1000LVGB	BUSHING, LOWER VALVE GUIDE
10	0-6316-0360-00	EMSFB13BOLT	LOCKBOLT, LOWER VALVE GUIDE
11	0-6316-0363-00	EMSFB13AR	ALIGNMENT RING
12	0-6316-0369-00	7916801	GASKET, HEAD SEAL
13	0-6316-0364-90	EMSFB13CYHPLG	PLUG, CYLINDER HEAD
14	0-6316-0361-00	EMSFB13CYHFLG	RING, THREADED CYLINDER HEAD
15	0-6316-0362-90	EMSFB13CYHCAP	CAP, THREADED CYLINDER HEAD
16	0-6316-0092-00	7916741	GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)
17	0-7501-0051-00	PEP79	SCREW, RETAINER UPPER)
18	0-6397-0603-00	EMSRETAINER	PLATE, RETAINER (UPPER)
19	0-6397-0575-00	EMSF1000UVGB	GUIDE, UPPER VALVE
20	0-6316-0039-90	EMSFB13CAP	COVER, VALVE POT
21	0-6316-0373-00	7916800	GASKET, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)
22	0-6316-0365-00	EMSFB13WP	PLATE, WEAR
23	0-6316-0373-00	7916800	GASKET, LINER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS)
24	0-6316-0366-00	EMSFB13LTR	RING, LINER THREADED
25	0-6316-0367-20	EMSFB13LL	LINER LOCK
26	0-7602-1600-25	99609343	GASKET, DISCHARGE MANIFOLD
27	0-7602-1600-61	99609442	GASKET, SUCTION MANIFOLD
28	0-7601-0333-30	0-7601-0333-30	SUCTION MANIFOLD CAPSCREW (NOT SHOWN)
		7924504	MODULE SEAL KIT: CONSISTING OF SUCTION MANIFOLD O RING, DISCHARGE MANIFOLD O RING, CYLINDER HEAD GASKET, VALVE COVER GASKET, & WEAR PLATE GASKET

EMSCO
FB-1300 & FB-1600
Item	P/N	Description	产品名称	Qty.
1	0-6316-0357-00	Fluid Module Studded, (incl. Items 2-9)	阀箱带栓带母(包括2-9)	3
2	0-6316-0356-00	Fluid Module, Only	阀箱	3
3	0-7507-2210-00	Stud, 1 1/2 - 8 X 8 5/8	螺栓	30
4	0-7507-2201-00	Stud, 1 1/2 - 8 X 6 7/8	螺栓	18
5	0-7601-0630-17	Nut, 1 1/2 - 8 Hvy. Hex	六角螺母	48
6	0-7507-2013-00	Stud, 1 - 8 X 9	螺栓	36
7	0-7601-0610-18	Nut 1 - 8 Stud. Hex	六角螺母	36
8	0-7507-2108-00	Stud, 1 1/4 - 8 x 9 1/2	螺栓	12
9	0-7601-0630-24	Nut, 1 1/4 - 8 Hvy. Hex	六角螺母	12
10	0-6397-0603-00	Retainer, Valve Guide	上水阀导向体挡板	3
11	0-6397-0575-00	Upper Valve Guide	上水阀导向体	3
12	0-6316-0039-00	Valve Cover	阀盖	3
13	0-6316-0362-00	Cylinder Head	缸盖	3
14	0-6316-0361-00	Cylinder Thread Ring	丝扣圈	3
15	0-6316-0360-00	Lock Bolt, Valve Guide	导向体紧固螺栓	3
16	0-6316-0364-00	Cylinder Head Plug	缸盖压筒	3
17	0-6316-0354-00	Low Valve Guide & Bushing	下水阀导向体和衬套	3
18	0-6316-0363-00	Alignment Ring	定位圈	3
19	0-6316-0367-00	Liner Lock	缸套压筒	3
20	0-6316-0366-00	Liner Thread Ring	丝扣圈	3
21	0-6316-0373-00	Seal	缸套密封圈	3
22	0-7602-1600-25	Seal, Discharge Manifold	排出口密封圈	3
23	0-7602-1600-61	Seal, Suction Manifold	吸入口密封圈	3
24	0-7501-0051-00	Retainer Screw	导向体挡板螺丝	12
25	0-6316-0369-00	Head Seal	缸盖密封圈	3
26	0-6316-0092-00	Seal, Valve Pot Cover	阀盖密封圈	3
27	0-6316-0096-00	Valve Guide Bushing	导向体衬套	3
28	0-6316-0365-00	Wear Plate	耐磨垫	3

EMSCO
F-800 & F-1000
Item	P/N	Description	产品名称	Qty.
1	0-6999-0086-02	Fluid Module Studded, (incl. Items 2-8)	阀箱带栓带母(包括2-8)	3
2	0-6999-0086-02	Fluid Module , Only	阀箱	3
3	0-7507-2108-00	Stud, 1 1/4	螺栓	12
4	0-7601-0630-24	Nut, 1 1/4 - 8 Hvy. Hex	六角螺母	12
5	0-7507-2205-00	Stud, 1 1/2	螺栓	18
6	0-7601-0630-17	Nut, 1 1/2 - 8 Hvy. Hex	六角螺母	18
7	0-7507-2150-00	Stud, 1 3/8	螺栓	30
8	0-7601-0630-26	Nut, 1 3/8 - 8 Hvy. Hex	六角螺母	30
9	0-6319-0026-00	Liner Cage	顶缸器	3
10	0-6999-0089-00	Thread Ring	丝扣圈	3
11	0-6319-0031-00	Cylinder Head	缸盖	3
12	0-6319-0027-00	Valve Cover	阀盖	3
13	0-6319-0090-00	Cylinder Head Plug	缸盖压筒	3
14	0-6397-0575-00	Valve Guide, Upper	上水阀导向体	3
15	0-6397-0603-00	Retainer, Valve Guide	导向体挡板	3
16	0-7602-1610-46	O-Ring, AN 6230-19	O型圈	3
17	0-6319-0076-00	Seal, Valve Cover	阀盖密封圈	3
18	0-7501-0051-00	Screw, Valve Guide Retainer	导向体挡板螺丝	3
19	0-7602-1600-61	O-Ring, Suction Manifold	吸入口O型圈	3
20	0-6319-0096-00	Bushing, Lower Valve Guide	下水阀导向体衬套	3
21	0-6319-0089-00	Locking Clip, Lower Valve	下水阀导向体锁紧夹	3
22	0-6319-0087-00	Lower Valve Guide	下水阀导向体	3
23	0-7602-2200-32	Liner Seal	缸套密封圈	3

EMSCO
F-350,F-500 & F-650
Item	OEM P/N	Description	产品名称	Qty.
1	0-6318-0150-00	Fluid Module Studded	阀箱带栓带母	3
2	0-7507-2205-00	Stud, Frame	阀箱紧固螺栓	18
3	0-7601-0630-17	Nut Stud Frame	阀箱紧固螺母	18
4	0-7507-3402-00	Stud, Threaded Ring	丝扣圈螺栓	30
5	0-7601-0630-26	Nut Threaded Ring	丝扣圈螺母	30
6	0-7507-3407-00	Stud, Discharge Manifold	排出口螺栓	12
7	0-7601-0630-26	Nut Discharge Manifold	排出口螺母	12
8	0-6318-0148-00	Liner Cage	顶缸器	3
9	0-6318-0177-00	Guide, Lower Valve (with Bushing)	下水阀导向体(带衬套)	3
10	0-6318-0153-00	Clip, Locking (for Lower valve Guide)	下水阀导向体锁紧夹	3
11	0-7602-2200-34	Gasket, Liner	缸套垫圈	6
12	0-6318-0158-00	Cylinder Head Plug	缸盖压筒	3
13	0-6318-0130-00	Ring, Threaded Cylinder Head	缸盖法兰	3
14	0-6318-0157-00	Cap, Threaded Cylinder Head	缸盖	3
15	0-6310-0084-00	Gasket, Valve Cover	阀盖垫圈	3
16	0-7501-0057-00	Screw, Retainer (Upper)	紧固螺丝(上水阀导向体)	12
17	0-6310-0133-00	Retainer Plate (Upper)	扶正板(上水阀导向体)	3
18	0-6397-0602-00	Guide, Upper Valve	上水阀导向体	3
19	0-6310-0016-01	Cover, Valve Pot	阀盖压筒	3
20	0-7602-1600-23	Gasket, Discharge Manifold	排出口垫圈	3
21	0-7602-1600-33	Gasket, Suction Manifold	吸入口垫圈	3
22	0-6318-0155-00	Bushing, Lower Valve Guide	下水阀导向体衬套	3

SOUTHWEST 7500 P.S.I. BOMCO F-1600 GUIDE TO ORDERING
PISTONS LINERS						LINER SEALS
SIZE	FAIL-SAFE	DUAL-DURO®	BLACK CAT	GRAYLOY®	ZIRCONIA	RUBBER	URETHANE
4"	76BFS	76BDD	76BBC	1376G06		2930-06	2930-06U
4 1/4"	77BFS	77BDD	77BBC	1376G07		2930-07	2930-07U
4 1/2"	78BFS	78BDD	78BBC	1376G08	1376ZIR08	2930-08	2930-08U
4 3/4"	79BFS	79BDD	79BBC	1376G09	1376ZIR09	2930-09	2930-09U
5"	81BFS	81BDD	81BBC	1376G1	1376ZIR1	2930-1	2930-1U
5 1/4"	82BFS	82BDD	82BBC	1376G2		2930-2	2930-2U
5 1/2"	83BFS	83BDD	83BBC	1376G3	1376ZIR3	2930-3	2930-3U
5 3/4"	84BFS	84BDD	84BBC	1376G4	1376ZIR4	2930-4	2930-4U
6"	85BFS	85BDD	85BBC	1376G5	1376ZIR5	2930-5	2930-5U
6 1/4"	86BFS	86BDD	86BBC	1376G6	1376ZIR6	2930-6	2930-6U
6 1/2"	87BFS	87BDD	87BBC	1376G7	1376ZIR7	2930-7	2930-7U
6 3/4"	88BFS	88BDD	88BBC	1376G8		2930-8	2930-8U
7"	89BFS	89BDD	89BBC	1376G9	1376ZIR9	2930-9	2930-9U
7 1/4"	91BFS	91BDD	91BBC	1376G10	1376ZIR10	2974-11	2974-11U
7 1/2"	92BFS	92BDD	92BBC	1376G11		2974-11	2974-11U
NOTE: DUAL-DURO® AND GRAYLOY® ARE REGISTERED TRADEMARKS OF SOUTHWEST OILFIELD PRODUCTS, INC.

VALVES & SEATS (BOMCO F-1600)
TYPE	VALVE	INSERT	SPRING	STAINLESS SPRING	SEAT	PULLER HEAD	PULLER HEAD STYLE
SOUTHWEST (Full Open)	773-1B	N/A	SW5710-110L	N/A	873-1	SWTM3750	SPLIT JAW
FULL OPEN-ROUGHNECK (Cast N Place Insert)	SWND-6V2	N/A	SW5710-115	N/A	SWND-6S4	SWTM27SXN SWND-6PH	SPLIT JAW PANCAKE
FULL OPEN-ROUGHNECK (High Temp)	SWND-6V2H	N/A	SW5710-115	N/A	SWND-6S4	SWTM27SXN SWND-6PH	SPLIT JAW PANCAKE
FULL OPEN-ROUGHNECK (w/Replaceable Urethane Insert)	SWND-6V1	SWND-6I	SW5710-115	N/A	SWND-6S4	SWTM27SXN SWND-6PH	SPLIT JAW PANCAKE
3 WEB DOUBLE ANGLE O-RING	SWR0500119	SWR0515845	SWR0513744	SWR0514790	SWR0512436	SWTM3-7D	3 J HOOK
3 WEB (High Temp)	SWR0520586	SWR0520585	SWR0513744	SWR0514790	SWR0512436	SWTM3-7D
3 WEB STANDARD PLATE	SWR0505038	SWR0504890	SWR0515575	SWR0514790	SWR0512436	SWTM3-7D
4 WEB	SWU5B-EH	SWUDD-6AB	SW5710-115	N/A	SW6ADD-B4	SWTM4-6	4 J HOOK

SOUTHWEST 8494-25A FLUID END FOR

EMSCO FC-2200

FLUID END TYPE	MODEL OF PUMP	SIZE OF PUMP
SOUTHWEST 7500 PSI	FC-2200	9” X 15”

ITEM	P/ N	DESCRIPTION	QTY. REQ’D
	8494-25A	FLUID END ASSEMBLY: (CONSISTS OF ITEMS:2,3,4,5,18,19,20,21,22,23,24,25,26,27,28,29,30,31,33,34,35,36,37,38,40)
1	6394GXX	LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX)	3
2	AJO524S	LINER & WEARPLATE SEAL (ALSO AVAILABLE IN URETHANE)	6
3	8494-54-1	LINER WEARPLATE BASE	3
4	8494-54-2	LINER WEARPLATE	3
5	4020-36	LINER WEARPLATE CAPSCREW	18
6	XX-BYY	PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)	3
7	568-225	PISTON SEAL	3
8	6293-33	PISTON ROD (WITH ELASTIC STOP NUT)	3
9	API-4ESN	PISTON ROD NUT	3
10	6293-3	SUB ROD	3
11	6293-4	PISTON ROD CONNECTING STUD	3
12	6293CW	ROD CLAMP	3
12A	1200H30	HOSE	3
12B	1200160	PIPE	3
12C	4019-92	ROD CLAMP CAPSCREW WITH HI-COLLAR LOCK WASHERS	6
13	6200G93	PONY ROD	3
14	SEE PAGE	VALVE COMPLETE	6
15	SEE PAGE	VALVE INSERT	6
16	SEE PAGE	VALVE SPRING	6
17	SEE PAGE	VALVE SEAT	6
	SWTM1700	HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG)	1
18	4476	VALVE COVER FLANGE	6
19	4597	SCREW GLAND	6
20	4609-25A	PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 21, 22, 23, & 24	6
21	P119	HP VALVE COVER PLUG NITRILE SEAL	6
22	4776R	VALVE GUIDE (COMPLETE WITH BUSHING #4700I)	6
23	4700I	VALVE GUIDE BUSHING	6
24	4016-98	VALVE GUIDE SCREW	12
25	4015-54	VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT)	72
26	4020-42	POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT)	24
27	6494-25	LINER RETAINER FLANGE	3
28	4020-43	LINER RETAINER STUD (WITH SW PART# HHN1125-8 1 1/8-8 HEAVY HEX NUT)	48
29	6594-25	LINER RETAINER NUT	3
30	4020-6	SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT)	18
31	4020-27	SUCTION MANIFOLD CAPSCREW	18
32		SUCTION MANIFOLD	1
33	568-442	SUCTION MANIFOLD O-RING	3
34	8494-26S	SUCTION MODULE	3
35	8494-27D	DISCHARGE MODULE	3
36	8488-5	DOWEL PIN	6
37	2988	MODULE SEAL	3
38	4020-44	DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1500-8 1 ½-8 HEAVY HEX NUT)	12
39		DISCHARGE MANIFOLD	1
40	568-349	DISCHARGE MANIFOLD O-RING	3

MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160
FLUID END MODULE & ACCESSORIES
ITEM	OEM PART	MISSION PART	DESCRIPTION	QTY
#	#	#	RETURN TO: NATIONAL INDEX
		FEM12PASSYSWNS	FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1,-23)	3
1	8476-6S	FEM12PSUCSWNS	SUCTION MODULE-STUDDED (ITEMS 1, 7,13,14, 22)	3
2	8476-5D	FEM12PDISSWNS	DISCHARGE MODULE-STUDDED - (INCLUDES ITEMS 2-6, 8, 13, 14)	3
3	4018-17	12P160DSUCS	STUD, DISCHARGE TO SUCTION MODULE	18
4		PEP55	NUT, DISCHARGE TO SUCTION STUD 1 3/4"-8 2H	18
5	4015-95	NAT12P160PFS	STUD, POWER END	30
6		NAT8P80TRSN	NUT, POWER END STUD (1 3/8"-6 2H)	30
7	8488-5	PEP70	DOWELL PIN	6
8	4017-65	PEP75	LINER RETAINER CAPSCREW, SOCKET HEAD	18
9	8476-3	PP6021260SW	LINER WEAR PLATE	3
10	2988	1290344	WEAR PLATE AND MODULE GASKET	6
11	6476	12PLASW	LINER RETAINER FLANGE (LINER BUSHING)	3
12	6576	12PLANSW	LINER RETAINER NUT	3
13	4015-54	12PTRSSW	STUD, THREADED RING	72
14		12P160TRSN	NUT, THREADED RING STUD (1 1/2"-6 2H)	72
15	4676-6A	12PVGASWNS	PLUG (INCLUDES ITEMS 15, 19, 20, & 21)	6
16	4476	12PFLGSW	THREADED RING (THREADED FLANGE)	6
17	4597	12PCAPSW	THREADED CAP (SCREW GLAND)	6
18	P-119	07207119	VALVE COVER PLUG SEAL	6
19	4776R	12PVGSWNS	VALVE GUIDE (INCLUDES ITEMS 19-21)	6
20	4700-I	PZ789VGI	VALVE GUIDE BUSHING	6
21	4016-98	PEP73	VALVE GUIDE SCREW	12
22	4018-19	700048511	SUCTION MANIFOLD CAPSCREW W/LOCKWASHER	24
23	AJO-419R	1540851	SUCTION MANIFOLD GASKET	3
24	8376-2	NAT12PDSMA	DISCHARGE ADAPTER	2
25	2976-2	2410031437	DISCHARGE ADAPTER SEAL	4
26	8376-1	NAT12PDSMC	DISCHARGE CONNECTOR	2
27	2976-1	2410031433	DISCHARGE CONNECTOR TO DISCHARGE ADAPTER SEAL	2
28	80852292	1292258	DISCHARGE SPACER FLANGE SEAL	2
29	4018-18	700030711	DISCHARGE CONNECTOR CAPSCREW (W /LOCKWASHER)	16
30	8376-3	1292175	BACKUP RING-(DISCHARGE CONNECTOR)	4
31	4018-39	7006685	CAPSCREW, SOCKET HEAD 1 1/2" X 3	16

SOUTHWEST 8490-2A FLUID END FOR

EMSCO FB1300/1600

FLUID END TYPE	MODEL OF PUMP	SIZE OF PUMP
SOUTHWEST 5000 PSI	FB1300/1600	7-1/2” X 12”

ITEM	P/ N	DESCRIPTION	QTY. REQ’D
	8490-2A	FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,33, 34,35,36,38,39)	3

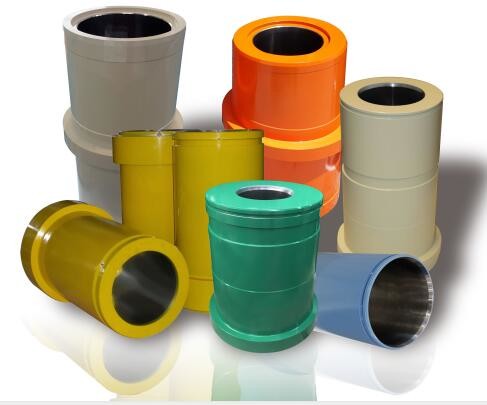

1	6390YXX	LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX)	3
2	AJO428S	LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX) (AJO428SU Also available in urethane)	3
3	8490-3	WEARPLATE	3
4	2988	WEARPLATE AND MODULE SEAL (2988U Also available in urethane)	6
5	XX-BYY	PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)	3
5A	2932	PISTON BUSHING (FROM 1-5/8” TO 1-1/2” STRAIGHT BORE)	3
6	568-225	PISTON O-RING	3
7	6278-25	PISTON ROD (WITH ELASTIC STOP NUT)	3
8	API-4ESN	PISTON ROD NUT	3
9	1290-2	PISTON ROD CONNECTING STUD	3
10	6284-1	SUB ROD	3
11	6274CWY	ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 6274C)	3
11A	1200H30	HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS)	3
11B	1286-CWYFP14	PIPE (1/2” X 14” GALVANIZED AND THREADED ON ONE END)	3
11C	4020-29	BOLT (5/8” X 8” GRADE 8 BOLT WITH LOCK NUT AND WASHER)	6
12	1200G74	PONY ROD	3
13		VALVE	6
14		VALVE INSERT (IF REQUIRED)	6
15		VALVE SPRING	6
16		SEAT	6
	SWTM1700	HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION OF CATALOG FOR DETAILS.)
	4475-2A	SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSIST OF ITEMS NO. 17-24)	6
17	4475	THREADED FLANGE	6
18	4575	SCREW GLAND	6
19	4675-2A	PLUG (COMPLETE WITH VALVE GUIDE; SCREWS; AND BUSHING)	6
20	P129	HP VALVE COVER PLUG SEAL (P129U Also available in urethane)	6
21	4775-2R	VALVE GUIDE (complete with bushing #4700I)	6
22	4700I	VALVE GUIDE BUSHING	6
23	4016-99	VALVE GUIDE SCREW	12
24	4015-2	VALVE COVER STUD (WITH SW PART# HHNHHN1250-7 1-1/4:-7” HEAVY HEX NUT)	72
25	4016-9	POWER END STUD (WITH SW PART# HHN1500-8 1-1/2-”8 HEAVY HEX NUT)	18
27	6490-3	LINER RETAINER FLANGE	3
28	8422-3	LINER RETAINER PILOT RING	3
29	6590-1	LINER RETAINER NUT	3
30	4016-97	SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2”-8 HEAVY HEX NUT)	18
31	4018-19	SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER)	18
32	8590-6	SUCTION MANIFOLD (FRONT OR SIDE INLET)	1
33	568-442	SUCTION MANIFOLD SEAL	3
34	8490-2S	SUCTION MODULE (STUDDED ONLY)	3
35	8490-1D	DISCHARGE MODULE (STUDDED ONLY)	3
36	8488-5	DOWEL PIN	6
37	8390-50	DISCHARGE MANIFOLD	1
38	568-343	DISCHARGE MANIFOLD SEAL	3
39	4017-46	DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-8 1-1/4”-8 HEAVY HEX NUT)	12
40	ESN500	ELASTIC STOP NUT	12
41	LW875	LOCKWASHER 7/8	36
42	9070004	SINGLE LIP PONY ROD SEAL	3
43	9070005	DOUBLE LIP PONY ROD SEAL	3
44	9060012	SPLASH GUARD
	8590-6BFA	BLIND FLANGE IS AVAILABLE FOR CAPPING UNUSED FLANGES ON 8590-6 SUCTION MANIFOLD – (8590-6BFA INCLUDES 8590-6BF BLIND FLANGE AND 568-456 O-RING) SEE SEPARATE PG. FOR DETAILS
	6278-74	PISTON ROD PULLER FOR 6278-25 ROD & 1200G74 PONY
		THE FOLLOWING PARTS ARE USED WITH THE SOUTHWEST FB-1600 / FB-1300 HYDRAULIC LINER RETAINER
45	1388XX	LINER	3
46	2974XX	LINER SEAL	3
47	8490-20	LINER WEARPLATE / USE 2988 WEARPLATE GASKET SAME AS ORIGINAL	3
48	8488-7	SET SCREW	12
49	6588-22-2	LINER NUT	3

Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts

Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL

Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000

National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A

National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160

Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P

Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT

Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT

OPI Mud Pumps

350-D | 700-HDL | 1000-HDL

Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036

Wilson Mud Pumps

600 | 900

Qingdao National Premium Oilwell Machinery Co.,Ltd
