BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
SOUTHWEST 8477-25A FLUID END FOR GARDNER DENVER PZ-11/PZ-10
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | GARDNER DENVER PZ11/10 | 6 ¾” X 11” |
| ITEM | P/N | DESCRIPTION | QTY. REQ’D |
| | 8477-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39) | |
| 1 | 1367Y-XX 1367AY-XX | LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (Y); AND FOR BORE SIZE (XX) LINER 6 ¼” THRU 6 ¾” | 3 |
| 2 | 2930-XXU** 2974-XXU** | LINER SEAL LINER SEAL FOR LINERS 6 ¼” THRU 6 ¾” | 3 |
| 3 | 8477-29 | ALIGNMENT RING | 3 |
| 4 | 8477-30 | WEARPLATE (REPLACES WEARPLATE NO. 8477-28) | 3 |
| 5 | 2988U** | WEARPLATE, MODULE, AND DISCHARGE MANIFOLD SEAL | 9 |
| 6 | XX-BYY | PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) | 3 |
| 7 | 568-225 | PISTON O-RING | 3 |
| 8 | 6278-25 | PISTON ROD (WITH 1 ½-8-UN ELASTIC STOP NUT) | 3 |
| 9 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 10 | 1290-2 | PISTON ROD CONNECTING STUD | 3 |
| 11 | 6279-1 | SUB ROD (CLAMP TYPE; SCREW TYPE SUB ROD IS PART NO. 6280-1) | 3 |
| 12 | 1277CW | ROD CLAMP (WITH WATER JACKET) (CONSIST OF 12A, 12B, 12C) | 3 |
| 12A | 1200120 | SPRAY PIPE (3/8” x 12” GALVANIZED AND THREADED ON ONE END) | 3 |
| 12B | 4018-96 | BOLT (5/8”-11UN GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12C | 1200H30 | HOSE (1/2” x 30” WITH 1/2” MALE AND 3/8” MALE CONNECTIONS) | 3 |
| 13 | 1200G77 | PONY ROD (CLAMP TYPE; SCREW TYPE PONY ROD IS PART NO. 1200G88) | 3 |
| 14 | | VALVE | 6 |
| 15 | | VALVE INSERT | 6 |
| 16 | | VALVE SPRING | 6 |
| 17 | | VALVE SEAT | 6 |
| | SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) | 1 |
| 18 | 4488-25 | VALVE COVER FLANGE | 6 |
| 19 | 4588-25 | SCREW GLAND | 6 |
| 20 | 4688-25 | PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 22, 23, & 24) | 6 |
| 21 | P115 | HP VALVE COVER PLUG NITRILE SEAL (P115U URETHANE SEAL AVAILABLE) | 6 |
| 22 | 4788-25R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 23 | 4700I | VALVE GUIDE BUSHING | 6 |
| 24 | 4018-18 | VALVE GUIDE SCREW | 12 |
| 25 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 72 |
| 26 | 4019-46 | POWER END STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 24 |
| 27 | 6477-25 | LINER RETAINER FLANGE | 3 |
| 28 | 4019-45 | LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 24 |
| 29 | 6577-25 | LINER RETAINER NUT | 3 |
| 30 | 4019-44 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) | 18 |
| 31 | 4017-77 | SUCTION MANIFOLD CAP SCREW | 24 |
| 32 | 8577-25 | SUCTION MANIFOLD | 1 |
| 33 | AJO245 | SUCTION MANIFOLD SEAL | 3 |
| 34 | 8477-26 | SUCTION MODULE | 3 |
| 35 | 8477-27 | DISCHARGE MODULE | 3 |
| 36 | 8488-5 | DOWEL PIN | 6 |
| 37 | 8377-27 | DISCHARGE MANIFOLD (For serial numbers 9222 & below, use 8377-25 to keep from relocating discharge piping) | 1 |
| 38 | 4019-45 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 12 |
| EMSCO | | | F-1000 | | | | 7 x 10 | |
| | LINERS | LINER GASKETS | PISTONS | PISTON REPLACEMENT RUBBERS |
| SIZE | CERAMIC | SUPREME | RUBBER | URETHANE | WHITE LIGHTNING | SUPREME | GREEN DUO | FLEXLIP | WHITE LIGHTNING | SUPREME |
| 4" | | | | | | 012180170 | 1502052 | 011102926 | | 015180102 |
| 4 1/4" | | | | | | | | | | |
| 4 1/2" | 07495450 | 05495450 | 07918282 | | 012180197 | 012180196 | 1502054 | 011102928 | 015180145 | 015180144 |
| 4 3/4" | | | | | | | | | | |
| 5" | 07495500 | 05495500 | 07918282 | | 012180254 | 012180253 | 1502056 | 011103033 | 015180186 | 015180185 |
| 5 1/4" | | | | | | | | | | |
| 5 1/2" | 07495550 | 05495550* | 07918282 | | 012180338 | 012180337 | 1502058 | 011103132 | 015180228 | 015180227 |
| 5 3/4" | | | | | | | | | | |
| 6" | 07495600 | 05495600* | 07918282 | | 012180395 | 012180394 | 1502060 | 011103629 | 015180269 | 015180268 |
| 6 1/4" | | 05495625* | 07918282 | | | 012180493 | 1502061 | 011103322 | 015180285 | 015180284 |
| 6 1/2" | 07495650 | 05495650* | 07918282 | | 012180536 | 012180535 | 1502062 | 011103827 | 015180301 | 015180300 |
| 6 3/4" | | | | | | | | | | |
| 7" | | | | | 012180619 | 012180618 | 1502064 | 011103926 | 015180343 | 015180342 |
| 7 1/4" | | | | | | | | | | |
| 7 1/2" | | | | | | | | | | |
| 7 3/4" | | | | | | | | | | |
| 8" | | | | | | | | | | |
| * For HP style liner, add "HP" to end of part no. | | | | | | | | | | |
| VALVES, SEATS, SPRINGS & INSERTS | | GASKETS | |
| | ROUGHNECK | ROUGHNECK HP | SUPREME | | | OEM | URETHANE | L STYLE | URETHANE | |

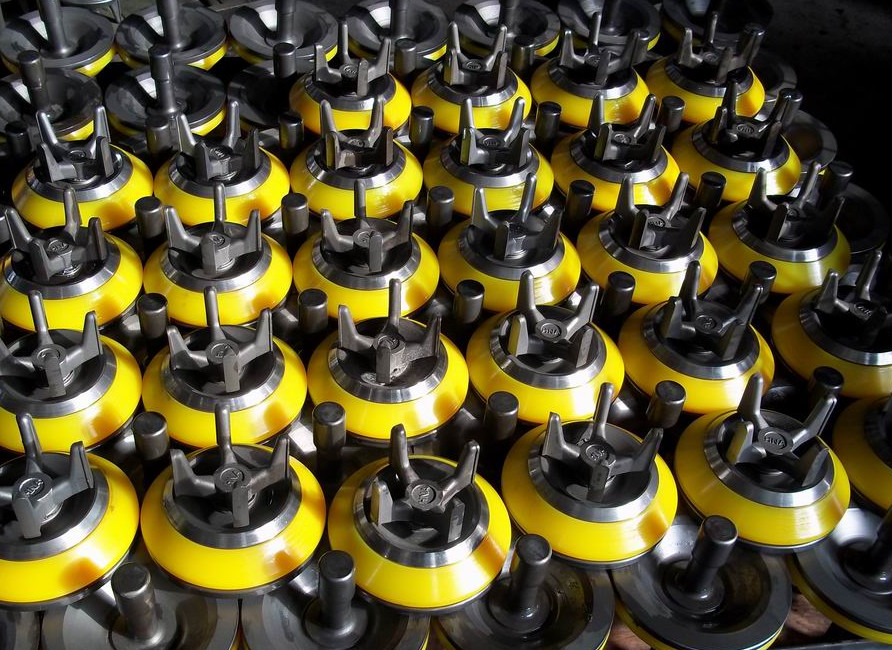

| VALVE-White Lightning Insert | 9700367 | 9700359 | 060152809 | | Valve Cover | 07916740 | | 07207129 | | |
| VALVE-Urethane Insert | 9700285 | 9700353 | 060152808 | | Cylinder Head | 07918282 | | | | |
| VALVE-Rubber Insert | 9702601 | N/A | 060122702 | | Plug Seal | | | | | |
| SEAT | 9702547 | 9702547 | 061102653 | | HYDRA-LOK | OEM | MISSION L |
| SPRING | 8201650 | 8201650 | 055413371 | | Complete Assembly | | |
| SPRING-Stainless | | | 055402952 | | | | |
| INSERT-Urethane | 9705090 | 9700363 | 062400106 | | MODULES | OEM | MISSION L |
| INSERT-Rubber | 9705155 | N/A | 062400056 | | Complete Assembly | EMSFEMF1000CA | FEMF1000ASSYSW |
| SEAT PULLER ASSEMBLIES | Discharge Module Studded | | FEMF1000DISSW |
| Puller Assembly 1 | M 1060 | M 1060 | M 1060 | | Suction Module Studded | | FEMF1000SUCSW |
| Puller Head | 8401977 | 8401977 | 181235052 | | One Piece OEM Style Studded | EMSFEMF1000 | |
| | | | | | | | | | | |
| Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods |
| Crosshead Rod | Rod Type | Self Aligning Rod Assembly | Pony Rod Baffle | Piston Rod | Sub Rod | Stud | Rod Nut | Clamp | Covered Rod Nut | Pony Rod Seal |
| 07913070 | 1 Piece | | 07208501 | 1551702 | | | 005402052 | PP601000 | CRN-1 | |
| 07913070 | 2 Piece | 1095000 | 07208501 | 07109906* | 07109904 | 10305203 | 005402052 | PP601000 | CRN-1 | |
Premium can produce the spare parts of Gardner Denver PZ7 MUD PUMP , PZ8 MUD PUMP, PZ9 MUD PUMP, PZ10 MUD PUMP, PZ11 MUD PUMP, PX-11 2000 HP MUD PUMP.
| Gardner Denver PZ-11 & PZ-10 FLUID END MODULE & ACCESSORIES (All Parts are Aavailable) | |
| | | | | | |
| ITEM # | OEM PART # | MISSION PART # | DESCRIPTION | QTY PER PUMP | AVAILABLE |
| | | FEMPZ1011CA | ASSY, COMPLETE FLUID END MODULE (INCLUDES ITEMS 1-21) | 3 | OK |
| 1 | 202PZL029B | FEMPZ1011 | MODULE, STUDDED FLUID END (INCLUDES ITEMS 1-8) | 3 | OK |
| 1B | | 80721022 | MODULE, STUDDED FLUID END MADE FROM 4135 MATERIAL (INCLUDES ITEMS 1B-8) | | OK |
| 2 | 201PZL110 | PZ1011LCS | STUD, FRAME & LINER CLAMP LONG | 24 | OK |
| 3 | 205PZL110 | PZ1011GPFS | STUD, FRAME & LINER CLAMP SHORT | 24 | OK |
| 4 | 50B36 | 6300200 | NUT, FRAME & LINER CLAMP STUD | 72 | OK |
| 5 | 204PZL110 | PZ1011TRS | STUD, THREADED RING | 72 | OK |
| 6 | 50B34 | PZ789TRSN | NUT, THREADED RING STUD | 72 | OK |
| 7 | 202PZL110 | PZ789DMS | STUD, DISCHARGE MANIFOLD | 12 | OK |
| 8 | 50B34 | PZ789TRSN | NUT, DISCHARGE MANIFOLD STUD (SAME AS ITEM 6) | 12 | OK |
| 9 | 200PZL387 | PZ1011FLG | RING, VALVE COVER THREADED | 6 | OK |
| 10 | 204PZL715 | 7916780 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 | OK |
| 11 | 2007674 | PZ789VGI | BUSHING, VALVE GUIDE | 6 | OK |
| 12 | 200PZL147 | PZ1011VC | COVER, VALVE | 6 | OK |
| 13 | 200PZL587 | PZ1011CAP | CAP, VALVE COVER LOCK | 6 | OK |
| 14 | 2011701 | PZ789PL | PLATE, RETAINER | 3 | OK |
| 15 | 200PZL483 | PZ1011LVG | GUIDE, VALVE SUCTION | 3 | OK |
| 16 | 655EE065 | PZLVGABOLT | SCREW, VALVE GUIDE TO RETAINER PLATE | 6 | OK |
| 17 | 95W2 | PZLVGAWASHER | WASHER, VALVE GUIDE LOCK | 6 | OK |
| 18 | 25AL35 | 7916747 | GASKET, DISCHARGE MANIFOLD | 3 | OK |
| 19 | 25BE41 | 7923283 | GASKET, SUCTION MANIFOLD | 3 | OK |
| 20 | 200PZL455 | PZ1011LC | CLAMP, LINER | 3 | OK |
| 21 | 200PZL483A | PZ1011LVGA | ASSY, LOWER VALVE GUIDE ( INCLUDES ITEMS 11, 14-17) | 3 | OK |
| 22 | 655EG08N | 700044111 | CAPSCREW, SUCTION MANIFOLD - NOT SHOWN | 24 | OK |
| 23 | | 7619066 | WASHER, SUCTION MANIFOLD CAPSCREW 3/4" REGULAR SPRING LOC-NOT SHOWN | 24 | OK |
| | | 7924509 | MODULE SEAL KIT: (KIT INCLUDES CYLINDER HEAD, VALVE COVER GASKET, LINER GASKET, DISCHARGE MANIFOLD GASKET, SUCTION MANIFOLD GASKET) | 3 | OK |
| Gardner Denver PZ-11 & PZ10 POWER END SPARES |
| 1 | 200PZL4065 | | PLUNGER COUPLING ASSEMBLY | 3 | OK |
| 2 | 200PZL060 | | PISTON ROD | 3 | OK |
| 3 | 200PZL839 | | ROD–EXTENSION | 3 | OK |
| 4 | 200PZL005 | | CROSSHEAD | 3 | OK |
| 5 | 200PZL189 | | PIN–CROSSHEAD | 3 | OK |
| 6 | 200PZL051 | | HEAD–OIL STOP | 3 | OK |
| 7 | CONNECTING ROD | | CONNECTING ROD | 3 | OK |
| 8 | 200PZK280 | | GEAR–DRIVEN | 1 | OK |
| 9 | 200PZK255 | | ECCENTRIC | 1 | OK |
| 10 | 200PZK371 | | JACKSHAFT | 1 | OK |
| 11 | 201PZL071 | | MANIFOLD–DISCHARGE | 1 | OK |
| 12 | 200PZL069 | | MANIFOLD–SUCTION | 1 | OK |
| 13 | 12BA5 | | BEARING–ROLLER, Crosshead Pin | 3 | OK |
| 14 | 12BA6 | | BEARING, Connecting Rod to Eccentric | 3 | OK |
| 15 | 12BA4 | | BEARING–ROLLER, Eccentric | 3 | OK |
| 16 | 12W73 | | BEARING–ROLLER, Jackshaft | 3 | OK |
| Description | PZ-7 mud pump | PZ-8 mud pump | PZ-9 mud pump | PZ-10 and PZ-11 mud pump |
| Liner of Crosshead Upper | 200PZG309 | 2012509 | PZ222 | 200PZL309 |
| Liner of Crosshead Lower | 200PZG309 | 2012509 | PZ222 | 200PZL309 |
| Pin of Crosshead | 200PZG189 | 200PZH189 | PZ189 | 200PZL706 |
| Extension Rod | 200PZH839 | 1PO183 | PZ183 | 200PZL839 |
| Sub Rod | | | | |
| Crosshead | 200PZG005 | 200PZH005 | PZ175 | 200PZL005 |
| Pinion Shaft | 200PZG371 | 2012507 | 1PZ371 | 200PZK371 |
| Connecting Rod | 200PZG003 | 2012506 | PZ417 | 200PZL003 |
| Bull Gear | 200PZG280 | 2012508 | 1PZ180 | 200PZK280 |
| Bearing, Crosshead | 97A29 | 12BA44 | 12AM3 | 12BA5 |
| Bearing, Pinion Shanft | 12W75 | 12W58 | 12W60 | 12W73 |
| Bearing, Eccentric | 12BA18 | 12W85 | 12W84 | 12BA6 |
| Bearing, Main | 12BA20 | 12GF38 | 12GF36 | 12BA4 |
Since creating the first drilling mud pump more than 100 years ago, Gardner Denver Pumps has had a reputation for setting new industry standards for high-performance mud pumps for drilling rigs. Our customers prefer our drilling pumps because of the field-tested durability and ease of maintenance.
All Gardner Denver triplex pumps are machined for extreme applications and built for resilience. Our sub-assemblies, including our power ends and long-lasting fluid ends, maximize the efficiency and productivity of each Gardner Denver mud pump.
www.gardnerdenverpumps.com
SOUTHWEST 8482-25A FLUID END
FOR NATIONAL 14-P-220
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | NATIONAL 14-P-220 | 9” X 14” |
| ITEM | P/N | DESCRIPTION | QTY. REQ’D |
| | 8482-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,32,33,34) | |
| 1 | 6382G-XX | LINER REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 |
| 2 | 2930-XX | LINER SEAL | 3 |
| 3 | 8482-5 | WEARPLATE | 3 |
| 4 | 2988 | WEARPLATE & MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) | 6 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 6282W32 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 6282-1 | SUB ROD | 3 |
| 10 | 6282CWY | ROD CLAMP (CONSIST OF 10A, 10B, 10C)(FOR CLAMP ONLY, USE 6282C) | 6 |
| 10A | 1200H30 | HOSE | 3 |
| 10B | 1200160 | PIPE | 3 |
| 10C | 4019-77 | ROD CLAMP BOLT | 12 |
| 11 | 6200G82 | PONY ROD | 3 |
| 12 | SEE PAGE | VALVE | 6 |
| 13 | SEE PAGE | VALVE INSERT (IF REQUIRED) | 6 |
| 14 | SEE PAGE | VALVE SPRING | 6 |
| 15 | SEE PAGE | VALVE SEAT | 6 |
| | SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 |
| 16 | 4476 | THREADED FLANGE | 6 |
| 17 | 4597 | SCREW GLAND | 6 |
| 18 | 4609-25 | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, & 22 | 6 |
| 19 | P119 | HP VALVE COVER PLUG SEAL | 6 |
| 20 | 4776R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 21 | 4700I | VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU) | 6 |
| 22 | 4016-98 | VALVE GUIDE SCREW | 12 |
| 23 | 4015-54 | VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) | 84 |
| 24 | 4019-24 | POWER END STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) | 30 |
| 25 | 6482 | LINER RETAINER FLANGE | 3 |
| 26 | 4015-52 | LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 18 |
| 27 | 6582 | LINER RETAINER NUT | 3 |
| 28 | 4020-6 | SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) | 18 |
| 29 | 4018-19 | SUCTION MANIFOLD CAP SCREW | 24 |
| 30 | 8582 | SUCTION MANIFOLD | 1 |
| 31 | AJO326 | SUCTION MANIFOLD SEAL | 3 |
| 32 | 8482-26 | SUCTION MODULE | 3 |
| 33 | 8482-27 | DISCHARGE MODULE | 3 |
| 34 | 8488-5 | DOWEL PIN | 6 |
| 35 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 18 |
| 36 | 8382-25 | DISCHARGE MANIFOLD | 1 |
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
| EMSCO | | | FB-1600 | | | | 7 x 12 | |
| | LINERS | LINER GASKETS | PISTONS | PISTON REPLACEMENT RUBBERS |
| SIZE | CERAMIC | SUPREME | RUBBER | URETHANE | WHITE LIGHTNING | SUPREME | GREEN DUO | FLEXLIP | WHITE LIGHTNING | SUPREME |
| 4" | 07499400 | 05499400 | 07916800 | | | 012180170 | 1502052 | 011102926 | | 015180102 |
| 4 1/4" | | | | | | | | | | |
| 4 1/2" | 07499450 | 05499450 | 07916800 | | 012180197 | 012180196 | 1502054 | 011102928 | 015180145 | 015180144 |
| 4 3/4" | | | | | | | | | | |
| 5" | 07499500 | 05499500* | 07916800 | | 012180254 | 012180253 | 1502056 | 011103033 | 015180186 | 015180185 |
| 5 1/4" | | | | | | | | | | |
| 5 1/2" | 07499550 | 05499550* | 07916800 | | 012180338 | 012180337 | 1502058 | 011103132 | 015180228 | 015180227 |
| 5 3/4" | | | | | | | | | | |
| 6" | 07499600 | 05499600* | 07916800 | | 012180395 | 012180394 | 1502060 | 011103629 | 015180269 | 015180268 |
| 6 1/4" | | 05499625* | 07916800 | | | 012180493 | 1502061 | 011103322 | 015180285 | 015180284 |
| 6 1/2" | 07499650 | 05499650* | 07916800 | | 012180536 | 012180535 | 1502062 | 011103827 | 015180301 | 015180300 |
| 6 3/4" | | | | | | | | | | |
| 7" | 07499700 | 05499700* | 07916800 | | 012180619 | 012180618 | 1502064 | 011103926 | 015180343 | 015180342 |
| 7 1/4" | | | | | | | | | | |
| 7 1/2" | | | | | | | | | | |
| 7 3/4" | | | | | | | | | | |
| 8" | | | | | | | | | | |
| * For HP style liner, add "HP" to end of part no. | | | | | | | | | | |
| VALVES, SEATS, SPRINGS & INSERTS | | GASKETS | |
| | ROUGHNECK | ROUGHNECK HP | SUPREME | | | OEM | URETHANE | L STYLE | URETHANE | |
| VALVE-White Lightning Insert | 9700368 | 9700356 | 060155042 | | Valve Cover | 07916741 | | 07207129 | | |
| VALVE-Urethane Insert | 9700250 | 9700354 | 060155041 | | Cylinder Head | 07916801 | | | | |
| VALVE-Rubber Insert | 9700293 | N/A | 060155033 | | Plug Seal | | | | | |
| SEAT | 9702504 | 9702504 | 061101507 | | HYDRA-LOK | OEM | MISSION L |
| SPRING | 8201684 | 8201684 | 055413421 | | Complete Assembly | 80500105 | 80500106 |
| SPRING-Stainless | | | 8201820 | | | | |
| INSERT-Urethane | 9705228 | 9700360 | 062400338 | | MODULES | OEM | MISSION L |
| INSERT-Rubber | 9705244 | N/A | 062400239 | | Complete Assembly | EMSFEMFB1300CA | FEMFB13ASSYSW |
| SEAT PULLER ASSEMBLIES | Discharge Module Studded | | FEMFB13DISSW |
| Puller Assembly 1 | M 1060 | M 1060 | M 1060 | | Suction Module Studded | | FEMFB13SUCSW |
| Puller Head | 8401985 | 8401985 | 181235300 | | One Piece OEM Style Studded | EMSFEMFB1300 | |
| | | | | | | | | | | |
| Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods |
| Crosshead Rod | Quick Connect | Self Aligning Rod Assembly | Pony Rod Baffle | Piston Rod | Sub Rod | Stud | Rod Nut | Clamp | Covered Rod Nut | Pony Rod Seal |
| 07913077 | 1 Piece | | 07208502 | 1551703 | | | 005402052 | PP601316 | CRN-1 | |
| 07913077 | 2 Piece | 1095002 | 07208502 | PPHT204A | PPHT2145B | 10305203 | 005402052 | PP601316 | CRN-1 | |
| Part Inquiry for LEWCO-W2215 Cameron Mud Pump |
| Item | Part Number | Description | Qty. | Unit |
| 1 | ES331 | LINER WASH PUMP PACKING | 18 | Ea |
| 2 | EG199 | API ring gasket (BX-169SS) | 27 | Ea |
| 3 | EG197 | API ring gasket (BX-152SS) | 3 | Ea |
| 4 | EG163 | suction manifold gasket | 15 | Ea |
| 5 | B105281 | suction dampener/desurger | 3 | Ea |
| 6 | 108-0609 | stroke counter | 12 | Ea |
| 7 | 108-1054 | heat exchanger-liner wash | 3 | Ea |
| 8 | 108-1055 | heat exchanger-lube oil | 3 | Ea |
| 9 | 108-0764 | low presure switch | 3 | Ea |
| 10 | ES452 | low presure switch | 3 | Ea |
| 11 | 108-1324 | low presure switch | 3 | Ea |
| 12 | 108-1225 | v-belt | 6 | Ea |
| 13 | EG195 | mud pressure gauge | 3 | Ea |
| 14 | EG170 | crank case cover gasket | 888 | inch |
| 15 | A162209 | inspection cover gasket | 3 | Ea |
| 16 | A164103 | main bearing cover gasket | 6 | Ea |
| 17 | C164404 | cross head cover gasket | 6 | Ea |
| 18 | A164185 | inspection cover gasket (large) | 3 | Ea |
| 19 | 108-1095 | breather cap | 3 | Ea |
| 20 | A164191 | stroke counter bracket gasket | 3 | Ea |
| 21 | B164202 | eccentric bearing | 9 | Ea |
| 22 | EB119 | main (spherical roller) bearing | 6 | Ea |
| 23 | B164206 | main bearing shim set | 6 | Ea |
| 24 | A167244 | eccentric bearing shims | 6 | Ea |
| 25 | EB120 | pinion (cylinderical roller) bearing | 6 | Ea |
| 26 | ES194 | oil seal | 6 | Ea |
| 27 | A164505 | pinion bearing carrier gasket | 6 | Ea |
| 28 | B164402 | wrist pin bearing | 6 | Ea |
| 29 | C164323 | piston rod clamp | 18 | Ea |
| 30 | B164407 | baffle disc | 9 | Ea |
| 31 | A164453 | crosshead shim set | 9 | Ea |
| 32 | B164425 | diaphragm plate gasket | 9 | Ea |
| 33 | ES211 | stuffing box seal | 36 | Ea |
| 34 | A164415 | stuffing box gasket | 9 | Ea |
| 35 | E0175 | o-ring ( 2/343) | 9 | Ea |
| 36 | E0301 | o-ring ( 2/442) | 9 | Ea |
| 37 | A164705 | valve cover seal | 18 | Ea |
| 38 | A167708 | valve guide bushing | 36 | Ea |
| 39 | A167702 | wear plate seal | 18 | Ea |
| 40 | 816406 | wear plate seal | 9 | Ea |
| 41 | EV116 | valve spring | 36 | Ea |
| 42 | EV190 | valve seat | 36 | Ea |
| 43 | EV178 | valve | 36 | Ea |
| 44 | EL238 | liner (5") | 36 | Ea |
| 45 | EL220 | liner (5 1/2") | 36 | Ea |
| 46 | EL221 | liner (6") | 36 | Ea |
| 47 | EL222 | liner (6 1/2") | 36 | Ea |
| 48 | EL223 | liner (7") | 36 | Ea |
| 49 | EL224 | liner (7 1/2") | 36 | Ea |
| 50 | EL240 | liner (8") | 36 | Ea |
| 51 | EP159 | piston (5") | 36 | Ea |
| 52 | EP160 | piston (5 1/2") | 36 | Ea |
| 53 | EP117 | piston (6") | 36 | Ea |
| 54 | EP118 | piston (6 1/2") | 36 | Ea |
| 55 | EP150 | piston (7") | 36 | Ea |
| 56 | EP151 | piston (7 1/2") | 36 | Ea |
| 57 | EP152 | piston (8") | 36 | Ea |
| 58 | EP165 | piston (5") | 36 | Ea |
| 59 | EP114 | piston rubber(5 1/2") | 36 | Ea |
| 60 | EP115 | piston rubber (6") | 36 | Ea |
| 61 | EP116 | piston rubber (6 1/2") | 36 | Ea |
| 62 | EP147 | piston rubber (7") | 36 | Ea |
| 63 | EP148 | piston rubber(7 1/2") | 36 | Ea |
| 64 | EP149 | piston rubber (8") | 12 | Ea |
| 65 | EG132 | liner gasket (5") | 36 | Ea |
| 66 | EG138 | liner gasket (5 1/2") | 12 | Ea |
| 67 | EG139 | liner gasket(6") | 36 | Ea |
| 68 | EG140 | liner gasket(6 1/2") | 36 | Ea |
| 69 | EG136 | liner gasket(7") | 36 | Ea |
| 70 | EG142 | liner gasket (7 1/2") | 36 | Ea |
| 71 | EG144 | liner gasket (8") | 12 | Ea |
| 72 | EP194 | lube oil pump | 3 | Ea |
| 73 | 108-0054 | relief valve, 15 psi | 3 | Ea |
| 74 | 108-1088 | relief valve, 65 psi | 3 | Ea |
| 75 | 108-0135 | check valve | 3 | Ea |
| 76 | 108-1257 | flow switch | 6 | Ea |
| 77 | EG105 | pressure gauge, 0-60 psi | 6 | Ea |
| 78 | EG145 | pressure gauge | 6 | Ea |
| 79 | EV215 | charging valve | 6 | Ea |
| 80 | ES175 | stud 2.25 8UN 8.50 B7 | 36 | Ea |
| 81 | EM132 | heavy hex nut 8UN A194-2H | 36 | Ea |
| 82 | 002-1666 | hex bolt 1.000 8NC 2.00 G8 | 3 | Ea |
| 83 | 002-1544 | lock washer 1.000" | 3 | Ea |
| 84 | 108-0620 | stabilizer plate L-2010 | 3 | Ea |
| 85 | 108-0619 | stabilizer L-20 | 3 | Ea |
| 86 | EN137 | havy hex nut 1.125 7NC A194-2H | 24 | Ea |
| 87 | EC181 | bottom flange cap screw | 24 | Ea |
| 88 | 108-0656 | seal 429 BUNA 70 | 3 | Ea |
| 89 | ES174 | stud 1.125 7NC 6.5 B7 | 24 | Ea |
| 90 | EO190 | charging valve o-ring | 6 | Ea |
| 91 | 108-0065 | ring gasket BX-155S | 3 | Ea |
| 92 | B310066 | charging valve hose assembly | 3 | Ea |
| 93 | 108-0618 | buna-N bladder ( standard) | 6 | Ea |
| 94 | 108-1194 | hydrogenated nitrile bladder
(high temperature mud) | 6 | Ea |
| 95 | 108-1195 | Urthane bladder ( oil based mud) | 6 | Ea |
| 1 | MODULE-DISCHARGE, W2200 SW PART# 9L-D164720 | |
| 2 | MODULE-SUCTION, W2200 SW PART# 9L-D164721 | |
| 3 | SEAL-WEAR PLATE & MODULE 300ºF PART# 9L-A167769 | |
| 4 | PLATE-WEAR, W2200 SW 14P 7.5K PART# 9L-B164706 | |
| 5 | SEAL-VALVE COVER, 300ºF PART# 9L-A167770 | |
| 6 | COVER-VALVE POT, W2200 SW PART#9L-C164704 | |
| 7 | GUIDE-VALVE, W2200 SW 12P 5K PART# 9L-C164718 | |
| 8 | INSERT VALVE GUIDE PART# 9L-A167708 | |
| 9 | O-RING 2-343 70 DUROMETER PART# 9L-EO396 | |
| 10 | O-RING 2-442 70 DUROMETER PART#9L-EO395 | |
| 14 | 9L-EP237 | PUMP, WASH, LINER, 1 X 1-1/2C, 3HP |
| 15 | 9L-108-1225 | V-BELT, WEDGE, 8V, 12 RIBS, 1IN W X 7/8IN D X 224IN L, KEVLAR |
| 16 | 9L-EG130 | GAUGE, PRESSURE, 60 PSI, 4.1 BAR |
| 17 | 9L-C164404 | GASKET, CROSSHEAD COVER, W-3000 |
| 18 | 9L-A164103 | GASKET, MAIN BEARING COVER |
| 19 | 9L-EG170 | GASKET, CLOSED-CELL, 3/4IN X 1-3/4IN X 296IN, NEOPRENE |
| 20 | 9L-A162209 | GASKET, INSPECTION COVER |
| 21 | 9L-108-1095 | CAP, BREATHER, FILLER, 10 MICRON |
| 22 | 9L-A164185 | GASKET, INSPECTION COVER |
| 23 | 9L-ES194 | SEAL, OIL |
| 24 | 9L-A164505 | GASKET, PINION CARRIER |
| 25 | 9L-A164415 | GASKET, STUFFING BOX |
| 26 | 9L-EW108 | WASHER, FLAT, 3/4IN, 1.322IN, 0.064IN, STEEL |
| 27 | ES211 | SEAL, STUFFING, BOX |
| 28 | 9L-002-5762 | BOLT, MACHINE, HEXAGONAL, 5/8IN, 11TPI, UNC, 1-1/2IN, STEEL, 8 |
| 29 | 002-1541 | WASHER, LOCK, 0.625IN |
| 30 | 9L-EP194 | PUMP, LUBE, B AND S, NO. 3, FOOT MOUNTED |
| 31 | 9L-D164401 | CROSSHEAD - D164401 |
| 32 | 9L-D164408 | GUIDE, CROSSHEAD/SLIDE |
| 33 | B164402 | BEARING, WRIST, PIN, W2200 |
| 34 | 9L-C164409 | WRIST-PIN, CMP2200 |
| 35 | 9L-B164441 | PIN,SHIM SET WRIST - B164441 |
| 36 | 9L-A164453 | SET, SHIM, XHEAD, W2215 |
| 37 | 9L-EW109 | WIRE, SAFETY SS .047 |
| 38 | B164202 | BEARING, ECCENTRIC |
| 39 | EB119 | BEARING, MAIN - EB 119 |
| 40 | 9L-B164206 | SHIM SET, BEARING/MAIN |
| 41 | 9L-A167244 | SHIM SET, ECCENTRIC INNER |
| 42 | EB120 | BEARING |
| 43 | E0175 | O-RING .210 3.725 70D BU N |
| 44 | A164705 | SEAL, VALVE COVER, URETHANE |
| 45 | C164718 | GUIDE, VALVE, W2200 SW 12P 5K |
| 46 | E0301 | O-RING, .275, 7.725, 70D, BU N, F/ LEWCO-W2215 MUD PUMP PARTS |
| 47 | A167708 | BUSHING, VALVE GUIDE, URETHANE |
| 48 | EC220 | SCREW, CAP, FLAT SK, 0.500IN 13UNC, X 1.00IN L |
| 49 | 9L-B164706 | PLATE, WEAR, W2200 SW 1, 4P, 7.5K |
| 50 | 9L-002-5784 | NUT, HEX, HVY, 1.500 6 NC A194-2H |
| 51 | EV116 | SPRING, VALVE, FULL OPEN |
| 52 | EV142 | INSERT, RUBBER, FOR EV178 FULL OPENING VALVE (ND-7-I) |
| 53 | 9L-C105866 | TOOL-ALIGNMENT, PISTON ROD 2200 (FOR P-QUIP ROD SYSTEM) |
| 54 | 9L-A105615 | BOX, STUFFING, ALIGNMENT TOOL, W-2200 MUD PUMP |
| 55 | 9L-B300536 | BUSHING, QD SDS 3/4IN BORE |
| 56 | EG195 | Mud Pressure Gauge |
| 57 | A164191 | Stroke Counter Bracket Gasket |
| 58 | EG145 | Pressure Gauge |
| 59 | ES175 | Stud 2.25 8UN 8.50 B7 |
| 60 | EN137 | Heavy Hex Nut 1.125 7NC A194-2H |
| 61 | EC181 | Bottom Flange Capscrew |
| 62 | 108-0656 | Seal -429 BUNA 70 |
| 63 | ES174 | Stud 1.125 7NC 6.50 B7 |
| 64 | EL328 | RETENTION-PQUIP LINER, W2214 |
| 65 | EN114 | NUT-HEX,HVY 2.000 8 UN A194-2H |
