BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
Premium can produce the spare parts of National 7P50 MUD PUMP , 8P80 MUD PUMP, 9P100 MUD PUMP, 10P130 MUD PUMP, 12P160 MUD PUMP, 14P220 MUD PUMP.
| NATIONAL 12-P-160 W/ TAPR-LOK VALVE COVERS FLUID END MODULE & ACCESSORIES | |
| ITEM # | OEM PART # | MISSION PART # | DESCRIPTION | QTY PER PUMP | AVAILABLE |
| | | FEMNAT12PCA | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1, 2, 3-10, 29-35) | 3 | OK |
| 1 | 1292240 | FEMNATDIS12P | MODULE, STUDDED FLUID END DISCHARGE (INCLUDES ITEMS 1, 3-10) | 3 | OK |
| 1A | 1292601 | FEMNATDIS12PA | MODULE, STUDDED FLUID END DISCHARGE W/ AUTOFRETTAGE (INCLUDES ITEMS 1A, 3-10) | 3 | OK |
| 2 | 1292243 | FEMNATSUC12P | MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEMS 2, 3-4) | 3 | OK |
| 2A | 1292604 | FEMNATSUC12PA | MODULE, STUDDED FLUID END SUCTION W/ AUTOFRETTAGE (INCLUDES ITEMS 2A, 3-4) | 3 | OK |
| 3 | 2408027 | 12P160TRS | STUD, THREADED RING | 72 | OK |
| 4 | 6300240 | 12P160TRSN | NUT, THREADED RING STUD | 72 | OK |
| 5 | 2408029 | 12P160PFS | STUD, POWER FRAME | 30 | OK |
| 6 | 6300220 | 8P80TRSN | NUT, POWER FRAME STUD | 30 | OK |
| 7 | 2408028 | 12P160LCS | STUD, LINER BUSHING | 18 | OK |
| 8 | 6300180 | 12P160LCSN | NUT, LINER BUSHING STUD | 18 | OK |
| 9 | 2408033 | 12P160DSUCS | STUD, DISCHARGE MODULE TO SUCTION MODULE | 18 | OK |
| 10 | 6300281 | PEP55 | NUT, DISCHARGE TO SUCTION MODULE STUD | 18 | OK |
| 11 | 2408015 | 12P160DMS | STUD, SPACER FLANGE | 16 | OK |
| 12 | 6300240 | 12P160TRSN | NUT, SPACER FLANGE STUD | 16 | OK |
| 13 | 6511416 | PEP70 | PIN, DOWELL | 6 | OK |
| 14 | 1292141 | NATVGB | BUSHING,VALVE GUIDE | 6 | OK |
| 15 | 1292140 | 12PVGBR | RETAINER, VALVE GUIDE BUSHING | 6 | OK |
| 16 | 1540127 | 1540127 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 | OK |
| 17 | 1292174 | NAT12PRETSEAL | RETAINER, VALVE & SEAL | 6 | OK |
| 18 | 1292178 | NAT12PAWS | SCREW, ADJUSTING WEDGE | 6 | OK |
| 19 | 6300182 | 12P160AWSN | NUT, WEDGE ADJUSTING SCREW | 6 | OK |
| 20 | 1292171 | 12P160AWSW | WASHER, WEDGE ADJUSTING SCREW | 6 | OK |
| 21 | G1292268 | 12P160LW | ASSEMBLY, WEDGE (INCLUDES ITEM # 20 WEDGE SPRING) | 6 | OK |
| 22 | 1292181 | 12P160WS | SPRING, WEDGE | 6 | OK |
| 23 | 1292176 | NAT12PFLG | RING, THREADED | 6 | OK |
| 24 | 1292172 | NAT12PCAP | CAP, VALVE COVER (THREADED) | 6 | OK |
| 25 | 2410031437 | 2410031437 | SEAL, DISCHARGE CONNECTOR & DISCHARGE ADAPTER | 4 | OK |
| 26 | 1292253 | NAT12PDSMA | ADAPTER, DISCHARGE CONNECTOR | 2 | OK |
| 27 | 2410031433 | 2410031433 | SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER | 2 | OK |
| 28 | 1292252 | NAT12PDSMC | CONNECTOR, DISCHARGE | 2 | OK |
| 28A | 1292717 | 1292717 | BACK UP RING, DISCHARGE CONNECTOR | 2 | OK |
| 29 | 7006685 | 7006685 | CAPSCREW, DISCHARGE SPACER FLANGE | 16 | OK |
| 30 | 700030711 | 700030711 | CAPSCREW, DISCHARGE CONNECTOR | 16 | OK |
| 31 | 7919050 | 7919050 | WASHER, DISCHARGE CONNECTOR SCREW | 16 | OK |
| 32 | 1292266 | PP6021260 | PLATE, WEAR | 3 | OK |
| 33 | 1292165 | 12PLCA | BUSHING, LINER | 3 | OK |
| 34 | 1292166 | 12PLC | ASSEMBLY, LINER CLAMP (INCLUDES ITEMS 33A, 33B, 33C, 33D, 33E, & 33F) | 3 | OK |
| 34A | 700049110 | 700049110 | CAPSCREW, LINER CLAMP | 6 | OK |
| 34B | | | ** (OPTIONAL) LOCK WASHER 5/8" | 6 | OK |
| 34C | 6309140 | 6309140 | NUT, LINER CAPSCREW | 6 | OK |
| 34D | 1292169 | 1292169 | PIN, CONNECTOR | 6 | OK |
| 34E | G1292168P | G1292168P | CONNECTOR, LINER CLAMP | 6 | OK |
| 34F | 6571620 | 6571620 | PIN, SPRING | 12 | OK |
| 35 | 1292257 | 1292257 | SEAL, MODULE & WEARPLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 | OK |
| 36 | 1540851 | 1540851 | SEAL, SUCTION MANIFOLD | 3 | OK |
| 37 | 700048511 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 24 | OK |
| 38 | 1292246 | | SPACER, STUDDED DISCHARGE | 2 | OK |
| 39 | 1292258 | | SEAL, SPACER TO FLUID END | 2 | OK |
| National 12P160 POWER END PARTS |
| 1 | 1292017 | | LINER, CROSSHEAD UPPER | 3 | OK |
| 2 | 1292007 | | CONNECTING ROD | 3 | OK |
| 3 | 1292017 | | LINER, CROSSHEAD LOWER | 3 | OK |
| 4 | 1292370 | | SUCTION MANIFOLD | 3 | OK |
| 5 | 1292371 | | SUCTION MANIFOLD | 3 | OK |
| 6 | 1292090 | | CROSSHEAD, LEFT HAND | 3 | OK |
| 7 | 1292015 | | CROSSHEAD, MIDDLE AND RIGHT HAND | 3 | OK |
| 8 | 1292010 | | PINION SHAFT | 1 | OK |
| 9 | 1292005 | | CRANKSHAFT | 1 | OK |
| 10 | 1292008 | | BULL GEAR | 1 | OK |
| 11 | 1292028 | | PIN, CROSSHEAD | 3 | OK |
| 12 | 1292147 | | PISTON ROD | 3 | OK |
| 13 | 1292083 | | PONY ROD | 3 | OK |
| 14 | 1292146 | | SUB ROD | 3 | OK |
| 15 | 1292085 | | CLAMP, PISTON ROD | 6 | OK |
| 16 | 1289327 | | Q.D. hub | 1 | OK |
| 17 | 1260318 | | BONNET | 1 | OK |
| 18 | 1260044 | | SPROCKET | 1 | OK |
| 19 | X13-2058 | | SPROCKET | 1 | OK |
| 20 | X13-2068 | | SPROCKET | 1 | OK |
| 21 | 1290268 | | BODY STRAINER CROSS | 1 | OK |
| 22 | ZB-8253 | | BEARING, CROSSHEAD | 3 | OK |
| 23 | ZB-10236 | | BEARING, PINIONSHAFT | 3 | OK |
| 24 | ZT-15000 | | BEARING, MAIN | 3 | OK |
| 25 | ZB-28515 | | BEARING, ECCENTRIC | 3 | OK |
NOV offer a full line of triplex mud pumps to handle any drilling requirement.
These tough field-proven models cover input horse power ratings in the 500 to 2,200 range. Our extensive product line include the National P-Series and Continental Emsco FD-Series and F-Series pumps.
National Oil well Varco (NOV) is an American multinational corporation based in Greater Sharps town, Houston, Texas. It is a leading worldwide provider of equipment and components used in oil and gas drilling and production operations, oilfield services, and supply chain integration services to the upstream oil and gas industry. The company conducts operations in more than 1,200 locations across six continents.
Products include all the heavy hardware for oil well drilling as well as drilling instrumentation and controls and drilling power generation and control. A partial list of heavy hardware includes top drives, rotary, draw works, derricks, BOPs (blowout preventers), mud pumps, riser equipment, and complete drilling rigs. Products also include instruments and controls required on the rig floor for the drilling operation. This includes sophisticated electronics for precise control, such as the control system Cyber base. NOV also produces control electronics for power generation and control of drilling motors and motor control centers for AC motor control.
NOV is the Houston area’s largest energy employer, with more than 14,500 workers in the region
SOUTHWEST “OLD STYLE” 8476-A FLUID END
FOR NATIONAL 12-P-160
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST (OLD STYLE) | NATIONAL 12-P-160 | 7-1/2” X 12” |
| ITEM . | P/N | DESCRIPTION | QTY. REQ’D |
| | 8476-A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3,4,16,17,18,19, 20, 21,22,23,24,25,26,27,28,29,31,32,33,34,&47) | |
| 1 | 1376YXX | LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX)) | 3 |
| 2 | 2930-XX | LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) | 3 |
| 3 | 8476-3 | WEARPLATE | 3 |
| 4 | 2988 | WEARPLATE AND MODULE SEAL | 6 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 1286-32 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 1286-1 | SUB ROD | 3 |
| 10 | 1286CWY | ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) | 6 |
| 10A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 10B | 1200140 | PIPE | 3 |
| 10C | 4018-92 | ROD CLAMP BOLT (7/8 X 5” GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 12 |
| 11 | 1200G86 | PONY ROD | 3 |
| 12 | | VALVE | 6 |
| 13 | | VALVE INSERT (IF REQUIRED) | 6 |
| 14 | | VALVE SPRING | 6 |
| 15 | | VALVE SEAT | 6 |
| | SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) | |
| | 4476-2A | SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY (CONSISTS OF ITEMS 16-23) | 6 |
| 16 | 4476 | THREADED FLANGE | 6 |
| 17 | 4597 | SCREW GLAND | 6 |
| 18 | 4676-2A | PLUG (COMPLETE WITH VALVE GUIDE, SCREWS, AND BUSHING) | 6 |
| 19 | P107 | HP VALVE COVER PLUG SEAL | 6 |
| 20 | 4776R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 21 | 4700I | VALVE GUIDE BUSHING | 6 |
| 22 | 4016-98 | VALVE GUIDE SCREW | 12 |
| 23 | 4015-54 | VALVE COVER STUD (WITH SW PART# HHN1500-6 1-1/2-6” HEAVY HEX NUT) | 72 |
| 24 | 4015-95 | POWER END STUD (WITH SW PART# HHN1375-6 1-3/8”6 HEAVY HEX NUT) | 30 |
| 25 | 4017-65 | LINER RETAINER FERRY HEAD CAP SCREW | 18 |
| 26 | 6476 | LINER RETAINER FLANGE | 3 |
| 27 | 6576 | LINER RETAINER NUT | 3 |
| 28 | 4018-17 | SUCTION MODULE STUD (WITH SW PART# HHN1750-6 1-3/4”-6 HEAVY HEX NUT) | 18 |
| 29 | 4018-19 | SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) | 24 |
| 30 | 8576-50 | SUCTION MANIFOLD (FRONT OR SIDE INLET) | 1 |
| 31 | AJO419R | SUCTION MANIFOLD GASKET | 3 |
| 32 | 8476-2S | SUCTION MODULE (STUDDED ONLY) | 3 |
| 33 | 8476-1D | DISCHARGE MODULE (STUDDED ONLY) | 3 |
| 34 | 8488-5 | DOWEL PIN | 6 |
| | | ITEMS NUMBERS 35 THRU 46 ARE NOT SHOWN INTENTIONALLY | |
| 47 | 4018-18 | DISCHARGE CONNECTOR CAP SCREW (WITH LOCK WASHER) | 16 |
| 48 | 4018-39 | DISCHARGE SPACER FLANGE SOCKET HEAD CAP SCREW | 16 |
| 49 | 8376-1 | DISCHARGE CONNECTOR | 2 |
| 50 | 8376-2 | DISCHARGE ADAPTER | 2 |
| 51 | 8376-3 | BACK-UP RING | 4 |
| 52 | 8376-4 | DISCHARGE SPACER FLANGE | 2 |
| 53 | 2976-3 | DISCHARGE SPACER FLANGE SEAL | 2 |
| 54 | 2976-1 | DISCHARGE CONNECTOR / ADAPTER PACKING | 2 |
| 55 | 2976-2 | DISCHARGE CONNECTOR / ADAPTER PACKING | 4 |
| 56 | R44D | RING JOINT GASKET | 2 |
| 57 | 4017-22 | DISCHARGE SPACER FLANGE STUD (WITH SW PART# HHN1500-6 1-1/2”-6 HEAVY HEX NUT) | 16 |
| EMSCO | | | FC-2200 | | | | | |
| | LINERS | LINER GASKETS | PISTONS | PISTON REPLACEMENT RUBBERS |
| SIZE | CERAMIC | SUPREME | RUBBER | URETHANE | WHITE LIGHTNING | SUPREME | GREEN DUO | FLEXLIP | WHITE LIGHTNING | SUPREME |
| 4" | | | | | | 012180170 | 1502052 | 011102926 | | 015180102 |
| 4 1/4" | | | | | | | | | | |
| 4 1/2" | | | | | 012180197 | 012180196 | 1502054 | 011102928 | 015180145 | 015180144 |
| 4 3/4" | | | | | | | | | | |
| 5" | | | | | 012180254 | 012180253 | 1502056 | 011103033 | 015180186 | 015180185 |
| 5 1/4" | | | | | | | | | | |
| 5 1/2" | 07551550 | 05551550* | 07916882 | | 012180338 | 012180337 | 1502058 | 011103132 | 015180228 | 015180227 |
| 5 3/4" | | | | | | | | | | |
| 6" | 07551600 | 05551600* | 07916882 | | 012180395 | 012180394 | 1502060 | 011103629 | 015180269 | 015180268 |
| 6 1/4" | | 05551625 | 07916882 | | | 012180493 | 1502061 | 011103322 | 015180285 | 015180284 |
| 6 1/2" | 07551650 | 05551650* | 07916882 | | 012180536 | 012180535 | 1502062 | 011103827 | 015180301 | 015180300 |
| 6 3/4" | | | | | | | | | | |
| 7" | 07551700 | 05551700* | 07916882 | | 012180619 | 012180618 | 1502064 | 011103926 | 015180343 | 015180342 |
| 7 1/4" | | | | | | | | | | |
| 7 1/2" | 07551750 | 05551750* | 07916882 | | 012180685 | 012180683 | | | 015180369 | 015180367 |
| 7 3/4" | | | | | | | | | | |
| 8" | | | | | | | | | | |
| * For HP style liner, add "HP" to end of part no. | | | | | | | | | | |

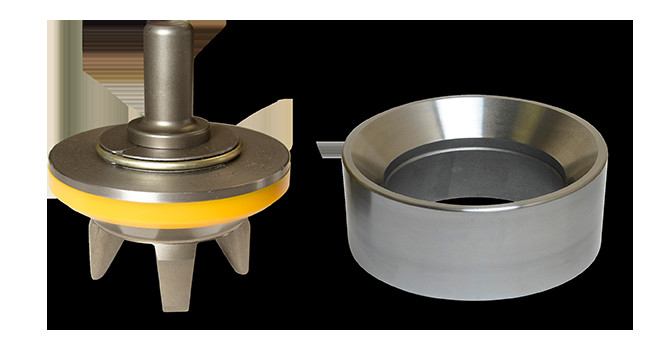

| VALVES, SEATS, SPRINGS & INSERTS | | GASKETS | |
| | ROUGHNECK | ROUGHNECK HP | SUPREME | | | OEM | URETHANE | L STYLE | URETHANE | |
| VALVE-White Lightning Insert | 9700369 | | | | Valve Cover | 07916850 | | | | |
| VALVE-Urethane Insert | 9700382 | | 060140100 | | Cylinder Head | | | | | |
| VALVE-Rubber Insert | N/A | | 060112059 | | Plug Seal | | | | | |
| SEAT | 9702652 | | 061100608 | | HYDRA-LOK | OEM | MISSION L |
| SPRING | 055413421 | | 055413690 | | Complete Assembly | | |
| SPRING-Stainless | 055402945 | | | | | | |
| INSERT-Urethane | 9705236 | | 062400536 | | MODULES | OEM | MISSION L |
| INSERT-Rubber | N/A | | 062400437 | | Complete Assembly | EMSFEMFC2200CA | |
| SEAT PULLER ASSEMBLIES | Discharge Module Studded | EMSFEMFC2200DIS | |
| Puller Assembly 1 | M 1060 | M 1060 | M 1060 | | Suction Module Studded | EMSFEMFC2200SUC | |
| Puller Head | 8402256 | | 181235706 | | One Piece OEM Style Studded | | |
| GARDNER DENVER | | PZ-9 | | | | 7 x 9 | |
| | LINERS | LINER GASKETS | PISTONS | PISTON REPLACEMENT RUBBERS |
| SIZE | CERAMIC | SUPREME | RUBBER | URETHANE | WHITE LIGHTNING | SUPREME | GREEN DUO | FLEXLIP | WHITE LIGHTNING | SUPREME |
| 4" | | | | | | 012180170 | 1502052 | 011102926 | | 015180102 |
| 4 1/4" | | | | | | | | | | |
| 4 1/2" | 07493450 | 05493450 | 07916692 | | 012180197 | 012180196 | 1502054 | 011102928 | 015180145 | 015180144 |
| 4 3/4" | | | | | | | | | | |
| 5" | 07493500 | 05493500 | 07916692 | | 012180254 | 012180253 | 1502056 | 011103033 | 015180186 | 015180185 |
| 5 1/4" | | | | | | | | | | |
| 5 1/2" | 07493550 | 05493550* | 07916692 | | 012180338 | 012180337 | 1502058 | 011103132 | 015180228 | 015180227 |
| 5 3/4" | | | | | | | | | | |
| 6" | 07493600 | 05493600* | 07916692 | | 012180395 | 012180394 | 1502060 | 011103629 | 015180269 | 015180268 |
| 6 1/4" | | 05493625* | 07916692 | | | 012180493 | 1502061 | 011103322 | 015180285 | 015180284 |
| 6 1/2" | 07493650 | 05493650* | 07916692 | | 012180536 | 012180535 | 1502062 | 011103827 | 015180301 | 015180300 |
| 6 3/4" | | | | | | | | | | |
| 7" | | 05493700* | 07916692 | | 012180619 | 012180618 | 1502064 | 011103926 | 015180343 | 015180342 |
| 7 1/4" | | | | | | | | | | |
| 7 1/2" | | | | | | | | | | |
| 7 3/4" | | | | | | | | | | |
| 8" | | | | | | | | | | |
| * For HP style liner, add "HP" to end of part no. | | | | | | | | | | |
| VALVES, SEATS, SPRINGS & INSERTS | | GASKETS | |
| | ROUGHNECK | ROUGHNECK HP | SUPREME | | | OEM | URETHANE | L STYLE | URETHANE | |
| VALVE-White Lightning Insert | 9700368 | 9700356 | 060155042 | | Valve Cover | 07916749 | 6309143 | | | |
| VALVE-Urethane Insert | 9700250 | 9700354 | 060155041 | | Cylinder Head | 07916749 | 6309143 | | | |
| VALVE-Rubber Insert | 9700293 | N/A | 060155033 | | Plug Seal | | | | | |
| SEAT | 9702504 | 9702504 | 061101507 | | HYDRA-LOK | OEM | MISSION L |
| SPRING | 8201650 | 8201650 | 055413371 | | Complete Assembly | | |
| SPRING-Stainless | | | 055402952 | | | | |
| INSERT-Urethane | 9705228 | 9700360 | 062400338 | | MODULES | OEM | MISSION L |
| INSERT-Rubber | 9705244 | N/A | 062400239 | | Complete Assembly | FEMPZ789CA | |
| SEAT PULLER ASSEMBLIES | Discharge Module Studded | | |
| Puller Assembly 1 | M 1060 | M 1060 | M 1060 | | Suction Module Studded | | |
| Puller Head | 8401985 | 8401985 | 181235300 | | One Piece OEM Style Studded | FEMPZ789 | |
| | | | | | | | | | | |
| Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods |
| Crosshead Rod | Quick Connect | Self Aligning Rod Assembly | | Piston Rod | Sub Rod | Pony Rod Baffle | Rod Nut | Clamp | Covered Rod Nut | Pony Rod Seal |
| 07913056 | | 1095035 | CLAMP | 1551510 | | 07208503 | 005402052 | PP601022 | CRN-1 | 07931171 |
| 07913063 | | 1095033 | THREAD | 1551512 | | 07208503 | 005402052 | | CRN-1 | 07931171 |
| GARDNER DENVER | | PZ-8 | | | | 7 x 8 | |
| | LINERS | LINER GASKETS | PISTONS | PISTON REPLACEMENT RUBBERS |
| SIZE | CERAMIC | SUPREME | RUBBER | URETHANE | WHITE LIGHTNING | SUPREME | GREEN DUO | FLEXLIP | WHITE LIGHTNING | SUPREME |
| 4" | | | | | | 012180170 | 1502052 | 011102926 | | 015180102 |
| 4 1/4" | | | | | | | | | | |
| 4 1/2" | 07493450 | 05493450 | 07916692 | | 012180197 | 012180196 | 1502054 | 011102928 | 015180145 | 015180144 |
| 4 3/4" | | | | | | | | | | |
| 5" | 07493500 | 05493500 | 07916692 | | 012180254 | 012180253 | 1502056 | 011103033 | 015180186 | 015180185 |
| 5 1/4" | | | | | | | | | | |
| 5 1/2" | 07493550 | 05493550* | 07916692 | | 012180338 | 012180337 | 1502058 | 011103132 | 015180228 | 015180227 |
| 5 3/4" | | | | | | | | | | |
| 6" | 07493600 | 05493600* | 07916692 | | 012180395 | 012180394 | 1502060 | 011103629 | 015180269 | 015180268 |
| 6 1/4" | | 05493625* | 07916692 | | | 012180493 | 1502061 | 011103322 | 015180285 | 015180284 |
| 6 1/2" | 07493650 | 05493650* | 07916692 | | 012180536 | 012180535 | 1502062 | 011103827 | 015180301 | 015180300 |
| 6 3/4" | | | | | | | | | | |
| 7" | | 05493700* | 07916692 | | 012180619 | 012180618 | 1502064 | 011103926 | 015180343 | 015180342 |
| 7 1/4" | | | | | | | | | | |
| 7 1/2" | | | | | | | | | | |
| 7 3/4" | | | | | | | | | | |
| 8" | | | | | | | | | | |
| * For HP style liner, add "HP" to end of part no. | | | | | | | | | | |
| VALVES, SEATS, SPRINGS & INSERTS | | GASKETS | |
| | ROUGHNECK | ROUGHNECK HP | SUPREME | | | OEM | URETHANE | L STYLE | URETHANE | |
| VALVE-White Lightning Insert | 9700368 | 9700356 | 060155042 | | Valve Cover | 07916749 | 6309143 | | | |
| VALVE-Urethane Insert | 9700250 | 9700354 | 060155041 | | Cylinder Head | 07916749 | 6309143 | | | |
| VALVE-Rubber Insert | 9700293 | N/A | 060155033 | | Plug Seal | | | | | |
| SEAT | 9702504 | 9702504 | 061101507 | | HYDRA-LOK | OEM | MISSION L |
| SPRING | 8201650 | 8201650 | 055413371 | | Complete Assembly | | |
| SPRING-Stainless | | | 055402952 | | | | |
| INSERT-Urethane | 9705228 | 9700360 | 062400338 | | MODULES | OEM | MISSION L |
| INSERT-Rubber | 9705244 | N/A | 062400239 | | Complete Assembly | FEMPZ789CA | |
| SEAT PULLER ASSEMBLIES | Discharge Module Studded | | |
| Puller Assembly 1 | M 1060 | M 1060 | M 1060 | | Suction Module Studded | | |
| Puller Head | 8401985 | 8401985 | 181235300 | | One Piece OEM Style Studded | FEMPZ789 | |
| | | | | | | | | | | |
| Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods |
| Crosshead Rod | Quick Connect | Self Aligning Rod Assembly | | Piston Rod | Sub Rod | Pony Rod Baffle | Rod Nut | Clamp | Covered Rod Nut | Pony Rod Seal |
| 07913056 | | 1095034 | CLAMP | 1551510 | | 07208503 | 005402052 | PP601022 | CRN-1 | 07931171 |
| 07913063 | | 1095033 | THREAD | 1551512 | | 07208503 | 005402052 | | CRN-1 | 07931171 |
| 1- Does not include puller head | | | | | | | | | | |
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900
| CONTINENTAL EMSCO FC-1600 |
| FLUID END MODULE & ACCESSORIES | | | |
| ITEM # | OEM PART # | MISSION PART # | |
| | | EMSFEMFC1600CA | FLUID END MODULE COMPLETE ASSEMBLY |
| 1 | 0-6316-0610-01 | EMSFEMFC1600DIS | DISCHARGE MODULE-STUDDED |
| 2 | 0-6316-0611-00 | EMSFEMFC1600SUC | SUCTION MODULE-STUDDED |
| 3 | 0-6316-0614-00 | | THREADED RETAINER |
| 4 | 0-6316-0615-00 | | THREADED RING |
| 5 | 0-6316-0616-00 | | VALVE POT COVER |
| 6 | 0-6316-0585-00 | | VALVE GUIDE |
| 7 | 0-7601-0040-11 | | EYEBOLT, 3/4 X 4.50 |
| 8 | 0-6316-0523-00 | | SUCTION MANIFOLD |
| 9 | 0-6316-0524-90 | | FLANGE, SUCTION |
| 10 | 0-6317-0074-90 | | FLANGE, BLIND |
| 11 | 0-6316-0566-01 | | DISCHARGE MANIFOLD |
| 12 | 0-6316-0668-00 | | WEAR PLATE |
| 13 | 0-6316-0613-00 | | SPACER FLANGE |
| 14 | | | |
| 15 | 0-6316-0367-20 | | LINER LOCK |
| 16 | 0-7601-0820-10 | | DOWEL PINS |
| 17 | | | |
| 18 | 0-6323-0093-00 | | RETAINER, VALVE GUIDE |
| 19 | 0-6316-0565-00 | | SEAL, F. E. MODULE |
| 20 | 0-7601-0342-29 | | HX SOCKET HD CAPSCREW 1 1/2 - 6 X 5.00 |
| 21 | 0-6316-0583-00 | | BUSHING, VALVE GUIDE |
| 22 | 0-7602-1600-52 | | O-RING (SUCTION MANIFOLD) |
| 23 | 0-7602-1600-61 | | O-RING (SUCTION MANIFOLD TO F. E.) |
| 24 | 0-7602-1600-25 | | O-RING (DISCHARGE TO F. E.) |
| 25 | 0-7501-0051-00 | | SCREW RETAINER |
