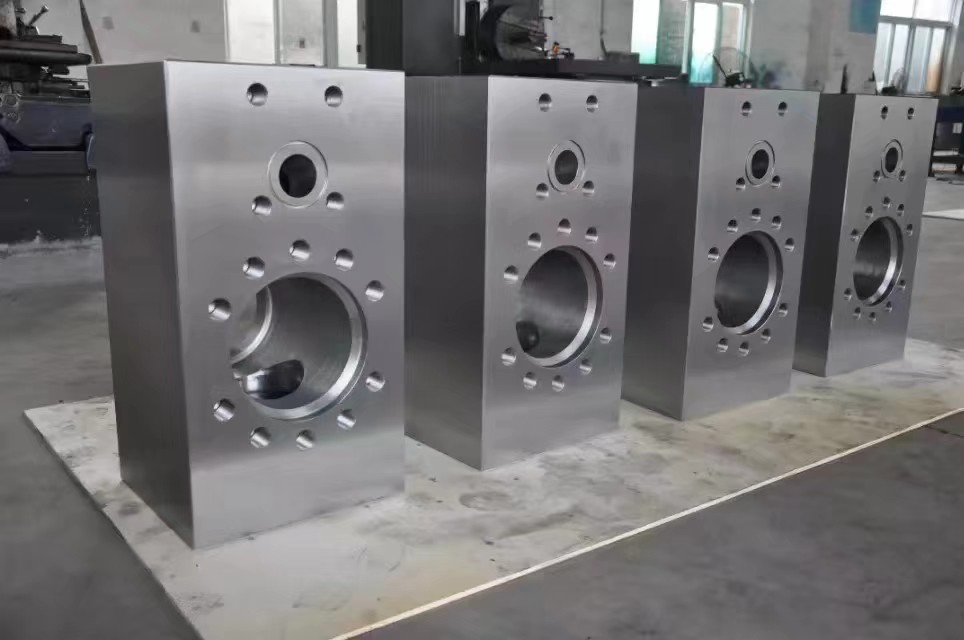

    TSC PZ7/8/9 mud pump fluid end module for GARDNER DENVER mud pump,PZ10 MUD PUMP, PZ11 MUD PUMP, PAH MUD PUMP

    Ask Lasest Price
    Brand Name : TSC, NATIONAL, OILWELL, GARDNER DNEVER, DRILLMEC
    Model Number : PZ7/8/9 MUD PUMP, GARDNER DENVER
    Certification : API
    Supply Ability : 200 sets per month
    Delivery Time : SOME IN STOCK
    Price : 1 to 500 usd
    Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union
    • Product Details
    • Company Profile

    TSC PZ7/8/9 mud pump fluid end module for GARDNER DENVER mud pump,PZ10 MUD PUMP, PZ11 MUD PUMP, PAH MUD PUMP

    TSC PZ7/8/9 mud pump fluid end module for GARDNER DENVER mud pump,PZ10 MUD PUMP, PZ11 MUD PUMP, PAH MUD PUMP

    GARDNER DENVER PZ-7, PZ-8, PZ-9
    FLUID END MODULE & ACCESSORIES
    ITEM #TSC PART #DESCRIPTION
    01TS-205PZL029DFLUID END MODULE STUDDED (INCLUDES 1-9 )
    02TS-79L188STUD, FRAME & LINER CLAMP
    03TS-50B36NUT (FOR ABOVE)
    04TS-79L73STUD, FRAME
    05TS-50AQ30NUT (FOR ABOVE)
    06TS-79AL6STUD, VALVE COVER
    07TS-50B34NUT (FOR ABOVE)
    08TS-202PZL110STUD, DISCHARGE MANIFOLD
    09TS-50B34NUT (FOR ABOVE)
    10TS-2011861RING, VALVE COVER GASKET EXPANDER
    11TS-2011862(G-749)GASKET, VALVE COVER
    12TS-2007674BUSHING, VALVE GUIDE
    13TS-2011860COVER, VALVE
    14TS-2011699RING, VALVE COVER THREADED
    15TS-2011857CAP, VALVE COVER LOCK
    16TS-2011701PLATE, RETAINER
    17TS-2011700GUIDE, VALVE SUCTION
    18TS-95W2WASHER, LOCK 1/2" 316SS
    19TS-655EE06SSCREW 1/2"x1 3/4" 316SS HX HD C/S
    20TS-25AL35GASKET, DISCHARGE MANIFOLD
    21TS-25G41GASKET, SUCTION MANIFOLD
    22TS-1PV14CLAMP, LINER
    23TS-2011706ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19)

    TSC PZ7/8/9 mud pump fluid end module for GARDNER DENVER mud pump,PZ10 MUD PUMP, PZ11 MUD PUMP, PAH MUD PUMP


    GARDNER DENVER PZ-10, PZ-11
    FLUID END MODULE & ACCESSORIES
    ITEM #TSC PART #DESCRIPTION
    01TS-202PZL029BFLUID END MODULE STUDDED (INCLUDES 1-8)
    02TS-201PZL110STUD, FRAME & LINER CLAMP LONG
    03TS-205PZL110STUD, SHORT
    04TS-50B36NUT, FRAME & LINER CLAMP STUD
    05TS-204PZL110STUD
    06TS-50B34NUT (FOR ABOVE)
    07TS-202PZL110STUD, DISCHARGE MANIFOLD
    08TS-50B34NUT (FOR ABOVE STUD) (SAME AS ITEM 6)
    09TS-200PL387RING, VALVE COVER THREADED
    10TS-204PZL715(G-798Z)GASKET, VALVE COVER
    11TS-2007674BUSHING, VALVE GUIDE
    12TS-200PZL147COVER, VALVE
    13TS-25AL37(G-692)LINER GASKET
    14TS-200PZL587CAP, VALVE COVER LOCK
    15TS-2011701PLATE, RETAINER
    16TS-200PZL483GUIDE, VALVE SUCTION
    17TS-95W2WASHER, LOCK 1/2" 316SS
    18TS-655EE065SCREW 1/2" x 1 3/4" 316SS HX HD C/S
    19TS-25AL35GASKET, DISCHARGE MANIFOLD
    20TS-25G41GASKET, SUCTION MANIFOLD
    21TS-200PZL455CLAMP, LINER
    22TS-200PZL483AASSY., LOWER VALVE GUIDE ( INCLUDES ITEMS 15-18.)

    GARDNER DENVER PAH
    FLUID END MODULE & ACCESSORIES
    ITEM #TSC PART #DESCRIPTION
    1TS-200PJH029BFLUID END MODULE STUDDED
    2TS-3PA587THREADED CAP (COVER LOCK)
    3TS-79L142DISCHARGE MANIFOLD STUD
    3ANUT, DISCHARGE MANIFOLD STUD
    4TS-200PJH147VALVE COVER PAH
    5TS-2013547PAH DISCHARGE VALVE GUIDE BUSHING
    6TS-1PA217PAH LINER CLAMP
    7TS-200PJH205PAH SUCTION VALVE GUIDE RETAINER
    8TS-79AJ2LINER CLAMP STUD
    9TS-50B35LINER CLAMP STUD NUT
    10TS-200PJH715VALVE COVER GASKET
    11TS-200PJH483VALVE GUIDE, SUCTION
    12RETAINER PLATE, SUCTION VALVE GUIDE
    13GASKET, CYLINDER HEAD
    14GASKET, DISCHARGE MANIFOLD
    15GASKET, SUCTION MANIFOLD

    TSC PZ7/8/9 mud pump fluid end module for GARDNER DENVER mud pump,PZ10 MUD PUMP, PZ11 MUD PUMP, PAH MUD PUMP

    TSC Fluid end module of mud pumps:


    Mud Pump ModelsModule with StudMud Pump ModelsModule with Stud

    Continental Emsco F-800 / 10006999-0086-02National 12-P-160 Discharge1292240
    Continental Emsco FB-1300 / 16006316-0357-00National 12-P-160 Suction1292243
    Gardner Denver TEE200PJH029BNational 14-P-220 Discharge1295601
    Gardner Denver PAH200PJH029BNational 14-P-220 Suction1295604
    Gardner Denver PZ-7/8/9205PZL029DModule, WF400TSC-SP-WF400-01
    Gardner Denver PZ-10/11202PZL029BModule, WF700TSC-SP-WF700-01
    Ideco T-800 / 1000551-458Module, WF1300BTSC-SP-WF1300-01
    Ideco T-1000 / 1300551-122-01Module, WF1300CTSC-SP-WF1300-02
    Oilwell A-850-PT / A-1100-PT10300181Module, WF1300BHTSC-SP-WF1300-03
    Oilwell A-1400-PT / A-1700-PT10300181Module, WF1600ATSC-SP-WF700-01
    National 8-P-80 Discarge1291280Module, WF1600BTSC-SP-WF1600-01
    National 8-P-80 Suction1290338Module, WF1600BHTSC-SP-WF1600-02
    National 9-P-100 Discharge1293240Module, WF1600LTSC-SP-WF1600-03
    National 9-P-100 Suction1290338Module, WF1600LHTSC-SP-WF1600-05
    National 10-P-130 Discharge1290335Module, WF1600STSC-SP-WF1600-06
    National 10-P-130 Suction1290338Module, WF2000TSC-SP-WF2000-01
    Module, WF2200TSC-SP-WF2200-01

    TSC mud pump liners are designed and manufactured to meet or exceed original equipment specification and API standards for almost all types of mud pumps in use today.


    TSC Workforce (WF) series mud pumps are developed to offer superior performance for a variety of drilling operations and work environments. TSC Mud pump and parts for model:


    WF1300 triplex Pump,WF1300BH,WF1300,WF-1300C,WF1600A,WF1600B,WF1600BH,WF1600CH,WF1600L,WF1600LH,WF2000,WF2200.WF400,WF700.


    www.t-s-c.com

    TSC PZ7/8/9 mud pump fluid end module for GARDNER DENVER mud pump,PZ10 MUD PUMP, PZ11 MUD PUMP, PAH MUD PUMP


    All our fluid end parts are manufactured to API 7K quality standards.

    Parts are available for these popular pump models:

    BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

    LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


    Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


    National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


    Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

    Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT


    Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200


    Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32


    WEATHERFORD/Ellis Williams: E-447, E-2200


    Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800


    Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000


    And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.


    TSC PZ7/8/9 mud pump fluid end module for GARDNER DENVER mud pump,PZ10 MUD PUMP, PZ11 MUD PUMP, PAH MUD PUMP


    1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802
    Insert Part No. P107186 Spring
    2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180
    Insert Part No. P107182 Spring
    3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187
    Insert Part No. P107189 Spring4P102382
    SPM2000
    1,Plunger Size 3.75" Plunge Part No 3P103887
    2,Plunger Size 4.00" Plunge Part No 3P100339
    3,Plunger Size 4.50" Plunge Part No 3P100654
    4,Plunger Size" 5.00" Plunge Part No 3P100233
    5,Plunger Size" 5.50 Plunge Part No 3P107060
    6,Plunger Size" 5.75" Plunge Part No 3P107061
    7,Plunger Size 6.00 Plunge Part No 3P107062
    SPM
    TWS 250 Plunger Size 1.75"-3" 3.25"-4"
    TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”
    TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"
    TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"
    TWS 900 Plunger Size 3.50"-4"
    TWS 1250LW Plunger Size 4"
    OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”
    TWS1000LW,TWS1300
    Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”
    TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”
    TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”
    TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
    QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
    QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
    5.50” 5.75” 6.0”
    TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
    QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
    QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5


    TSC PZ7/8/9 mud pump fluid end module for GARDNER DENVER mud pump,PZ10 MUD PUMP, PZ11 MUD PUMP, PAH MUD PUMP


    Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
    Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
    Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
    Gardner Denver ® Mud Pumps
    PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
    Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
    Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
    Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
    Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
    Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
    National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
    National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
    National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
    Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
    Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
    Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
    OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
    Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
    Fluid End Modules
    National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
    Pulsation Dampener
    Hydril Type "K" Pulsation Dampener
    Popular Mud Pump Spare Parts


    TSC PZ7/8/9 mud pump fluid end module for GARDNER DENVER mud pump,PZ10 MUD PUMP, PZ11 MUD PUMP, PAH MUD PUMP


    NATIONAL9-P-1006-3/4 x 9-1/4
    LINERSLINER GASKETSPISTONSPISTON REPLACEMENT RUBBERS
    SIZECERAMICSUPREMERUBBERURETHANEWHITE LIGHTNINGSUPREMEGREEN DUOFLEXLIPWHITE LIGHTNINGSUPREME
    4"0746540005465400079232740121801701502052011102926015180102
    4 1/4"
    4 1/2"0746545005465450079232740121801970121801961502054011102928015180145015180144
    4 3/4"
    5"0746550005465500079232650121802540121802531502056011103033015180186015180185
    5 1/4"
    5 1/2"0746555005465550079232630121803380121803371502058011103132015180228015180227
    5 3/4"
    6"0746560005465600*079232610121803950121803941502060011103629015180269015180268
    6 1/4"05465625*0121804931502061011103322015180285015180284
    6 1/2"0746565005465650*079232830121805360121805351502062011103827015180301015180300
    6 3/4"
    7"
    7 1/4"
    7 1/2"
    7 3/4"
    8"
    * For HP style liner, add "HP" to end of part no.
    VALVES, SEATS, SPRINGS & INSERTSGASKETS
    ROUGHNECKROUGHNECK HPSUPREMEFKNOEMURETHANEL STYLEURETHANE
    VALVE-White Lightning Insert97003679700359060152809N/AValve Cover0791676807916468
    VALVE-Urethane Insert970028597003530601528081560995Cylinder Head
    VALVE-Rubber Insert9702601N/A0601227021560994Plug Seal
    SEAT970255597025550611026041561450HYDRA-LOKOEMMISSION L
    SPRING820168482016840554134211560701Complete Assembly8050010180500101
    SPRING-Stainless055402945
    INSERT-Urethane970509097003630624001061560587MODULESOEMMISSION L
    INSERT-Rubber9705155N/A0624000561560588Complete AssemblyFEMNAT9PCA
    SEAT PULLER ASSEMBLIESDischarge Module StuddedFEMNATDIS9P
    Puller Assembly 1M 1060M 1060M 1060M 1060Suction Module StuddedFEMNATSUC8P9P
    Puller Head84019778401977181235052M 1089One Piece OEM Style Studded
    Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods
    Crosshead RodQuick ConnectSelf Aligning Rod AssemblyPony Rod BafflePiston RodSub RodStudRod NutClampCovered Rod NutPony Rod Seal
    16814601095200129319412931471293146005402052005417779CRN-1

    TSC PZ7/8/9 mud pump fluid end module for GARDNER DENVER mud pump,PZ10 MUD PUMP, PZ11 MUD PUMP, PAH MUD PUMP


    SOUTHWEST “OLD STYLE” 8476-A FLUID END

    FOR NATIONAL 12-P-160


    FLUID END TYPEMODEL OF PUMPSIZE OF PUMP
    SOUTHWEST (OLD STYLE)NATIONAL 12-P-1607-1/2” X 12”

    ITEM .P/NDESCRIPTIONQTY. REQ’D
    8476-AFLUID END ASSEMBLY: (CONSISTS OF ITEMS 3,4,16,17,18,19, 20, 21,22,23,24,25,26,27,28,29,31,32,33,34,&47)
    11376YXXLINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX))3
    22930-XXLINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX))3
    38476-3WEARPLATE3
    42988WEARPLATE AND MODULE SEAL6
    5XX-BYYPISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY))3
    6568-225PISTON O-RING3
    71286-32PISTON ROD (WITH ELASTIC STOP NUT)3
    8API-4ESNPISTON ROD ELASTIC STOP NUT3
    91286-1SUB ROD3
    101286CWYROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C)6
    10A1200H30HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS)3
    10B1200140PIPE3
    10C4018-92ROD CLAMP BOLT (7/8 X 5” GRADE 8 BOLT WITH LOCK NUT AND WASHER)12
    111200G86PONY ROD3
    12VALVE6
    13VALVE INSERT (IF REQUIRED)6
    14VALVE SPRING6
    15VALVE SEAT6
    SWTM1700HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS)
    4476-2ASOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY (CONSISTS OF ITEMS 16-23)6
    164476THREADED FLANGE6
    174597SCREW GLAND6
    184676-2APLUG (COMPLETE WITH VALVE GUIDE, SCREWS, AND BUSHING)6
    19P107HP VALVE COVER PLUG SEAL6
    204776RVALVE GUIDE (COMPLETE WITH BUSHING #4700I)6
    214700IVALVE GUIDE BUSHING6
    224016-98VALVE GUIDE SCREW12
    234015-54VALVE COVER STUD (WITH SW PART# HHN1500-6 1-1/2-6” HEAVY HEX NUT)72
    244015-95POWER END STUD (WITH SW PART# HHN1375-6 1-3/8”6 HEAVY HEX NUT)30
    254017-65LINER RETAINER FERRY HEAD CAP SCREW18
    266476LINER RETAINER FLANGE3
    276576LINER RETAINER NUT3
    284018-17SUCTION MODULE STUD (WITH SW PART# HHN1750-6 1-3/4”-6 HEAVY HEX NUT)18
    294018-19SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER)24
    308576-50SUCTION MANIFOLD (FRONT OR SIDE INLET)1
    31AJO419RSUCTION MANIFOLD GASKET3
    328476-2SSUCTION MODULE (STUDDED ONLY)3
    338476-1DDISCHARGE MODULE (STUDDED ONLY)3
    348488-5DOWEL PIN6
    ITEMS NUMBERS 35 THRU 46 ARE NOT SHOWN INTENTIONALLY
    474018-18DISCHARGE CONNECTOR CAP SCREW (WITH LOCK WASHER)16
    484018-39DISCHARGE SPACER FLANGE SOCKET HEAD CAP SCREW16
    498376-1DISCHARGE CONNECTOR2
    508376-2DISCHARGE ADAPTER2
    518376-3BACK-UP RING4
    528376-4DISCHARGE SPACER FLANGE2
    532976-3DISCHARGE SPACER FLANGE SEAL2
    542976-1DISCHARGE CONNECTOR / ADAPTER PACKING2
    552976-2DISCHARGE CONNECTOR / ADAPTER PACKING4
    56R44DRING JOINT GASKET2
    574017-22DISCHARGE SPACER FLANGE STUD (WITH SW PART# HHN1500-6 1-1/2”-6 HEAVY HEX NUT)16

    TSC PZ7/8/9 mud pump fluid end module for GARDNER DENVER mud pump,PZ10 MUD PUMP, PZ11 MUD PUMP, PAH MUD PUMP


    NATIONAL8-P-806-1/4 x 8-1/2
    LINERSLINER GASKETSPISTONSPISTON REPLACEMENT RUBBERS
    SIZECERAMICSUPREMERUBBERURETHANEWHITE LIGHTNINGSUPREMEGREEN DUOFLEXLIPWHITE LIGHTNINGSUPREME
    4"0746440005464400079232720121801701502052011102926015180102
    4 1/4"
    4 1/2"0746445005464450079232740121801970121801961502054011102928015180145015180144
    4 3/4"
    5"0746450005464500079232760121802540121802531502056011103033015180186015180185
    5 1/4"
    5 1/2"0746455005464550079232780121803380121803371502058011103132015180228015180227
    5 3/4"
    6"0746460005464600079232800121803950121803941502060011103629015180269015180268
    6 1/4"0121804931502061011103322015180285015180284
    6 1/2"
    6 3/4"
    7"
    7 1/4"
    7 1/2"
    7 3/4"
    8"
    VALVES, SEATS, SPRINGS & INSERTSGASKETS
    ROUGHNECKROUGHNECK HPSUPREMEFKNOEMURETHANEL STYLEURETHANE
    VALVE-White Lightning Insert97003679700359060152809N/AValve Cover0791676807916468
    VALVE-Urethane Insert970028597003530601528081560995Cylinder Head
    VALVE-Rubber Insert9702601N/A0601227021560994Plug Seal
    SEAT970255597025550611026041561450HYDRA-LOKOEMMISSION L
    SPRING820168482016840554134211560701Complete Assembly
    SPRING-Stainless055402945
    INSERT-Urethane970509097003630624001061560587MODULESOEMMISSION L
    INSERT-Rubber9705155N/A0624000561560588Complete AssemblyFEMNAT8PCA
    SEAT PULLER ASSEMBLIESDischarge Module StuddedFEMNATDIS8P
    Puller Assembly 1M 1060M 1060M 1060M 1060Suction Module StuddedFEMNATSUC8P9P
    Puller Head84019778401977181235052M 1089One Piece OEM Style Studded
    Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods
    Crosshead RodQuick ConnectSelf Aligning Rod AssemblyPony Rod BafflePiston RodSub RodStudRod NutClampCovered Rod NutPony Rod Seal
    16025941095300129119412912771291276005402052005417753CRN-1

    TSC PZ7/8/9 mud pump fluid end module for GARDNER DENVER mud pump,PZ10 MUD PUMP, PZ11 MUD PUMP, PAH MUD PUMP


    NATIONAL 8-P-80
    FLUID END MODULE & ACCESSORIES
    ITEMOEM PARTMISSION PARTDESCRIPTIONQTY
    ###RETURN TO: NATIONAL INDEX
    FEMNAT8PCAFLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-10)
    11291280FEMNATDIS8PFLUID END MODULE DISCH. (STUDDED) -( INCLUDES ITEMS 1, 3-6, 31, 31A)3
    21290338FEMNATSUC8P9PFLUID END MODULE SUCT. (STUDDED) - (INCLUDES ITEMS 2-4 & 35)3
    324080198P80TRSSTUD, THREADED RING 1 3/8 X 7 1/4 TP TPR LK72
    463002208P80TRSNNUT 1 3/8-672
    524080268P80PFSSTUD, FRAME 1 1/8 X 5 3/424
    6630018012P160LCSNNUT (FOR ABOVE) 1 1/8 HEAVY HEX24
    724025608P80DMSSTUD,1 1/4-7 X 61/4 TOP TAPER LOCK16
    86300200PZ789LCSNNUT 1-1/4 HEAVY HEX16
    924080348P80DSUCSSTUD, DISCHARGE TO SUCTION 1 1/2X19 1/818
    106300241NUT, 1 1/2 8 UN-3A HEAVY HEX NUT18
    116511416PEP70PIN, DOWELL 7/8 X 2 (STANDARD DOWELL)6
    121292141NATVGBBUSHING,VALVE GUIDE6
    131292140NATVGBRRETAINER, VALVE GUIDE BUSHING6
    141540126077970076800GASKET, VALVE COVER6
    151290174NAT8PRETSEALSEAL, RETAINER6
    161290178NATAWSSCREW, ADJUSTING WEDGE6
    17G-12903768P80LWWEDGE ASSEMBLY6
    1812901818P80WSSPRING, WEDGE6
    191290308NAT8PFLGRING, THREADED6
    201290307NAT8PCAPCAP, VALVE COVER (THREADED)6
    2112903158PAWSWWASHER 7P THRU 10P6
    2263001608PAWSNNUT- 1 HEAVY HEX -8UNC6
    2324100314272410031427SEAL,DISCHARGE CONNECTOR4
    241290343NAT8PDSMAADAPTER, DISCHARGE CONNECTOR2
    2524100314272410031427SEAL,DISCHARGE CONN SEAL3
    261290342NATPDSMCCONNECTOR, DISCHARGE2
    2724100313482410031348SEAL, DISCHARGE CONNECTOR2
    28700030510CAPSCREW, 1/2 X 1/2 LG GR5 HX HD16
    291290357PP602000PLATE, WEAR3
    3012911658PLCALINER BUSHING3
    312408025STUD, 3/4X 5 TOP TAPER LOCK18
    31A63001208P80LCSN3/4-10UNC HEX NUT18
    3212911668PLCCLAMP, LINER3
    32A7000403115/8 X 3 1/2, GR 5 CAD PLT HX HD CAPSCREW6
    32B**** (OPTIONAL) LOCK WASHER 5/86
    32C6309100NUT, 5/8 LOCKNUT6
    32D1291169CONNECTOR PIN6
    32E1290168CONNECTOR6
    32F6571014PIN, 5/32x 7/8 STANDARD SPRING4
    331290344SEAL, MODULE6
    341590051SEAL, SUCTION MANIFOLD3

    Quality TSC PZ7/8/9 mud pump fluid end module for GARDNER DENVER mud pump,PZ10 MUD PUMP, PZ11 MUD PUMP, PAH MUD PUMP for sale

    TSC PZ7/8/9 mud pump fluid end module for GARDNER DENVER mud pump,PZ10 MUD PUMP, PZ11 MUD PUMP, PAH MUD PUMP

    Inquiry Cart 0
    Send your message to this supplier

    *From:
    *To: Qingdao National Premium Oilwell Machinery Co.,Ltd
    *Subject:
    *Message:
    Characters Remaining: (0/3000)

    Find Similar Products By Category:
    Textiles & Leather Products
    Hot Searches:

    Friendly Links: www.everychina.com

    Home| Products| Suppliers| Site Map |About Us |Contact Us |Help |关于我们 |联系我们

    Copyright © 2009 - 2025 himfr.com. All rights reserved.

    北京环球广贸软件技术有限责任公司
