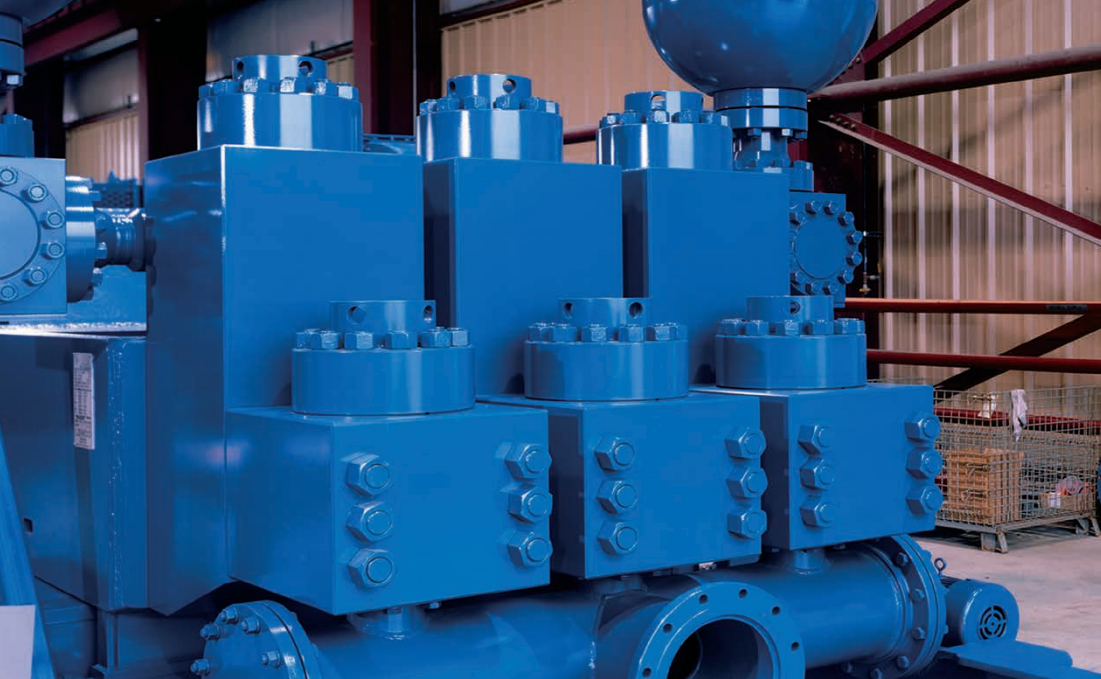

Cameron manufactures high-performance, robust LEWCO™ mud pumps for
onshore and offshore oil
and gas drilling applications. Each mud pump features a one-piece,
forged and fabricated alloy steel
crankshaft for smooth operation and enhanced longevity. In
addition, LEWCO mud pumps include
a welded steel power frame, forged alloy steel pinions and gears
and triple-redundant power end
lubrication. Prior to delivery, LEWCO mud pumps are tested in our
quality control facility to verify
performance expectations.
For maximized drilling performance and efficiency, LEWCO mud pumps
offer high discharge flow rates,
impressive power-to-weight ratios and small footprints. Cameron can
also furnish fluid end modules
to match the customer’s existing inventory. Cameron takes pride in
their ability to provide integrated
pump packages, including top or rear mount AC or DC electric
drives, controls, manifolds, piping and
accessories. Pumps are installed on a heavy-duty skid or trailer
mounted for portability
One-Piece Forged and Fabricated Alloy Steel Crankshaft
The power balanced crankshaft reduces noise and vibration and
extends the life of
the bearing and crankshaft life. Rather than using a multipiece
bolted component,
the LEWCO crankshaft is made of one-piece, forged and fabricated
alloy steel
construction. It is repairable to help reduce operating expense and
its bearings are
lubricated via drilled internal passageways for longevity.
Welded Steel Power Frame
The mud pump power frame is engineered for performance, reliability
and toughness.
Designed for discharge pressures as high as 7500 psi, it is an
independent,
precision-fabricated structure of double-wall welded steel, with
stiffeners and gussets
for added strength and durability. As opposed to pumps mounted on
an integral skid,
LEWCO mud pumps come mounted on a heavy-duty oilfield skid for
mobility and
increased alignment capability, reducing component wear caused by
internal stresses.
Triple-Redundant Power End Lubrication
The LEWCO triple-redundant, filtered lubrication system includes
internal
gravity/splash plus internal/external force-feeding of most of its
power end bearings
and upper/lower crosshead slides. For protection even at low
operating speeds, the
system includes a gear-driven mechanical pump off the main gear and
a second
pump driven by an electric motor.

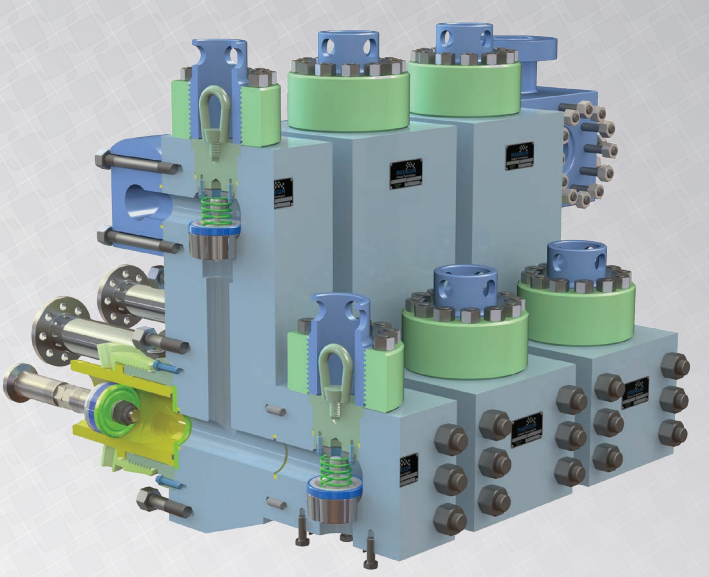

Fluid End Modules
LEWCO fluid end modules are available in one or two-piece
configurations using
quenched and tempered forged steel material. Cameron can furnish
fluid end
modules compatible with various mud pump brands already in use,
eliminating the
need to stock extra spares. Fluid end expendables are off-the-shelf
parts, readily
available from domestic and international Cameron facilities,
further minimizing the
need for additional stocking.
TSC Fluid end module of mud pumps:
| Mud Pump Models | Module with Stud | Mud Pump Models | Module with Stud |
| Continental Emsco F-800 / 1000 | 6999-0086-02 | National 12-P-160 Discharge | 1292240 |
| Continental Emsco FB-1300 / 1600 | 6316-0357-00 | National 12-P-160 Suction | 1292243 |
| Gardner Denver TEE | 200PJH029B | National 14-P-220 Discharge | 1295601 |
| Gardner Denver PAH | 200PJH029B | National 14-P-220 Suction | 1295604 |
| Gardner Denver PZ-7/8/9 | 205PZL029D | Module, WF400 | TSC-SP-WF400-01 |
| Gardner Denver PZ-10/11 | 202PZL029B | Module, WF700 | TSC-SP-WF700-01 |
| Ideco T-800 / 1000 | 551-458 | Module, WF1300B | TSC-SP-WF1300-01 |
| Ideco T-1000 / 1300 | 551-122-01 | Module, WF1300C | TSC-SP-WF1300-02 |
| Oilwell A-850-PT / A-1100-PT | 10300181 | Module, WF1300BH | TSC-SP-WF1300-03 |
| Oilwell A-1400-PT / A-1700-PT | 10300181 | Module, WF1600A | TSC-SP-WF700-01 |
| National 8-P-80 Discarge | 1291280 | Module, WF1600B | TSC-SP-WF1600-01 |
| National 8-P-80 Suction | 1290338 | Module, WF1600BH | TSC-SP-WF1600-02 |
| National 9-P-100 Discharge | 1293240 | Module, WF1600L | TSC-SP-WF1600-03 |
| National 9-P-100 Suction | 1290338 | Module, WF1600LH | TSC-SP-WF1600-05 |
| National 10-P-130 Discharge | 1290335 | Module, WF1600S | TSC-SP-WF1600-06 |
| National 10-P-130 Suction | 1290338 | Module, WF2000 | TSC-SP-WF2000-01 |
| | Module, WF2200 | TSC-SP-WF2200-01 |
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 •
F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651
• 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 •
TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T •
GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 •
J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 •
12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT •
A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT •
A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through
SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® -
Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000,
F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500,
D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220,
E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG,
KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L,
NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson,
Gaso, Skytop/Brewster.
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 •
F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651
• 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 •
TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T •
GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 •
J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 •
12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT •
A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT •
A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through
SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® -
Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD |
FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP
GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900
| | | QTY PER PUMP |
| | |
| OEM PART # | MISSION PART # | |
| 8476-A | FEM12PASSYSW | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1-23) | 3 |
| 8476-2S | FEM12PSUCSW | MODULE, SUCTION STUDDED (INCLUDES ITEMS: 1,13,14,& 22) | 3 |
| 8476-1D | FEM12PDISSW | MODULE, DISCHARGE STUDDED - (INCLUDES ITEMS: 2,3,4,5,6,7,8,13 & 14) | 3 |
| 4018-17 | 12P160DSUCS | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| PEP55 | NUT, DISCHARGE TO SUCTION STUD | 18 |
| 4015-95 | NAT12P160PFS | STUD, POWER END | 30 |
| 8P80TRSN | NUT, POWER END STUD | 30 |
| 8488-5 | PEP70 | PIN, DOWELL | 6 |
| 4017-65 | PEP75 | CAPSCREW,LINER RETAINER SOCKET HEAD | 18 |
| 8476-3 | PP6021260SW | PLATE, LINER WEAR | 3 |
| 2988 | 1290344 | GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT
MATLS) | 6 |
| 6476 | 12PLASW | FLANGE, LINER RETAINER (LINER BUSHING) | 3 |
| 6576 | 12PLANSW | NUT, LINER RETAINER | 3 |
| 4015-54 | 12PTRSSW | STUD, THREADED RING | 72 |
| 12P160TRSN | NUT, THREADED RING STUD | 72 |
| 4676-2A | 12PVCSW | PLUG, VALVE COVER (INCLUDES ITEMS 15,19,20,& 21) | 6 |
| 4476 | 12PFLGSW | RING, THREADED (THREADED FLANGE) | 6 |
| 4597 | 12PCAPSW | CAP, THREADED (SCREW GLAND) | 6 |
| P-107 | 07207107 | SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE
MATERIALS) | 6 |
| 4776R | 12PVGSWNS | GUIDE, VALVE (INCLUDES ITEMS 19,& 20) | 6 |
| 4700-I | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 4016-98 | PEP73 | SCREW, VALVE GUIDE | 12 |
| 4018-19 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 24 |
| AJO-419R | 1540851 | GASKET, SUCTION MANIFOLD | 3 |
| 8376-2 | NAT12PDSMA | ADAPTER, DISCHARGE | 2 |
| 2976-2 | 2410031437 | SEAL, DISCHARGE ADAPTER | 4 |
| 8376-1 | NAT12PDSMC | CONNECTOR, DISCHARGE | 2 |
| 2976-1 | 2410031433 | SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER | 2 |
| 4018-18 | 700030711 | CAPSCREW, DISCHARGE CONNECTOR (W /LOCKWASHER) | 16 |
| 8376-3 | 1292175 | RING, BACKUP (DISCHARGE CONNECTOR) | 4 |
| 4018-39 | 7006685 | CAPSCREW, SOCKET HEAD | 16 |
| 07924540 | KIT, MODULE SEAL: (KIT INCLUDES SUCTION MANIFOLD GASKET, TWO VALVE
COVER GASKETS, SUCTION TO DISCHARGE MODULE GASKET, TWO DISCHARGE
ADAPTING GASKETS, TWO DISCHARGE CONNECTING GASKETS, WEAR PLATE
GASKET) | 3 |
|
|
