| MISSION "L" MODULE FOR BOMCO F1600 7500 PSI SWOP VERSION | QTY PER PUMP |
| FLUID END MODULE & ACCESSORIES | |
| ITEM # | SW PART # | MISSION PART # | DESCRIPTION | |
| 8404-25A | | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS) | 3 |
| 1 | 8404-26 | | MODULE, SUCTION STUDDED (INCLUDES ITEMS 1, 7-8) | 3 |
| 2 | 8404-27 | | MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 2-9) | 3 |
| 3 | 4019-61 | | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | 1-3/4-8 HH | 6300281 | NUT, DISCHARGE TO SUCTION STUD | 18 |
| 5 | 4017-33 | | STUD, POWER END | 30 |
| 6 | 1-1/2-8 HH | 0-7601-0630-28 | NUT, POWER END STUD | 30 |
| 7 | Feb-15 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 8 | 1-1/4-7 HH | 6300200 | NUT, THREADED RING STUD | 72 |
| 9 | 8488/5/1- | 6511416 | PIN, DOWELL | 6 |
| 10 | 4019-51 | 7006444 | CAPSCREW, LINER RETAINER FLANGE 3/4-10X3 | 18 |
| 11 | 8490-28 | | PLATE, LINER WEAR | 3 |
| 12 | 2988 | 1290344 | GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT
MATLS) | 6 |
| 13 | 568-443 | 99609443 | O-RING, WEAR PLATE | 3 |
| 14 | 6490-25 | | FLANGE, LINER RETAINER (LINER BUSHING) | 3 |
| 15 | 6590-25 | | NUT, LINER RETAINER | 3 |
| 16 | 4690-25A | | ASSY, VALVE COVER PLUG (INCLUDES ITEMS 15,16, 20-22) | 6 |
| 17 | | | PLUG, VALVE COVER | 6 |
| 18 | 4488-25 | | RING, THREADED (THREADED FLANGE) | 6 |
| 19 | 4588-25 | | CAP, THREADED (SCREW GLAND) | 6 |
| 20 | P-115 | 7207115 | SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE
MATERIALS) | 6 |
| 21 | 4788R-25 | | ASSEMBLY, VALVE GUIDE (INCLUDES ITEMS 20 & 21) | 6 |
| 22 | 4700I | *20200004 | BUSHING, VALVE GUIDE (BUNA) | 6 |
| 23 | 4018-18 | 700030711 | SCREW, VALVE GUIDE | 12 |
| 24 | 4018-19 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 24 |
| 25 | 568-442 | 99609442 | GASKET, SUCTION MANIFOLD | 3 |
| 26 | 8376-25MOD | | MANIFOLD, DISCHARGE | 1 |
| 27 | 2988 | 1290344 | SEAL, DISCHARGE MANIFOLD | 3 |
| 28 | 8590/6/1- | | SUCTION MANIFOLD | 1 |

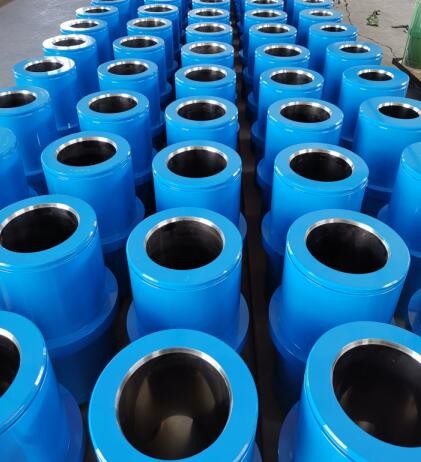

Premium can make and supply Hy-Chrome liners and Zicornia/Ceramic
Liners for Emsco, Brewster, National Oilwell, Ideco, Gardner Denver, Weatherford, Drillmec, Bomco, Honghua, RG, Rongsheng, TSC, LS
NOV, POT, Bentec, Wirth, Southwest, Ewco, Lewco, Baker Forum, Mud
King, OPI, Texma, Haihua Group and more. We also have extensive knowledge of older and obsolete
mud pumps and their parts. Our reach extends to customers around
the world.
| 4” | 4-1/2” | 5” | 5-1/2” | 6” | 6-1/2” | 7” |
| Emsco D375 | / | / | 05419500 | 05419550 | 05419600 | 05419650 | 05419700 |
| Emsco D300/500 | 05421400 | 05421450 | 05421500 | 05421550 | 05421600 | 05421650 | 05421700 |
| Gardner Denver FO-FXO | 7-1/2” FY45675 | 05441450 FZ45645 | 05441500 FZ45650 | 05441550 FX45655 | 05441600 FZ45660 | 05441650 FZ45665 | 05441700 FZ45670 |
| Gardner Denver FY-FXD | 7-1/2” FY45675 | 05441450 FZ45645 | 05441500 FZ45650 | 05441550 FX45655 | 05441600 FZ45660 | 05441650 FZ45665 | 05441700 FZ45670 |
| Gardner Denver FK-FXK | / | 05442450 | 05442500 | 05442550 | 05442600 | 05442650 | 05442700 |
| Gardner Denver FXN | 7-1/2” FK45675 | 05442450 FK45645 | 05442500 FK45650 | 05442550 FK45655 | 05442600 FK45660 | 05442650 FK45665 | 05442700 FK45670 |
| Gardner Denver FQ-FXQ | | 05443450 | 05443500 | 05443550 | 05443600 | 05443650 | 05443700 |
| Gardner Denver FG-FXG | FG45640 | FG45645 | FG45650 | / | / | / | / |
| Gardner Denver FD-FXD | FD45640 | FD45645 | FD45650 | FD45655 | FD45660 | / | / |
| Gardner Denver TEE | 306TEE456 | 302TEE456 | 301TEE456 | 300TEE456 | / | / | / |
| Gaso 1860 | 100134600 | 05483010 | / | / | / | / | / |
| Gaso 1753 | / | 05483060 | 05483059 | 05483057 | 05483055 | 05483051 | 05483052 |
| Gaso 1742 | 100133602 | 100133701 | 100133800 | 100133909 | / | / | / |
| Gaso 2652 | / | 1233580 | 1212737 | 1211145 | 1211153 | 1233629 | 1233637 |
| Emsco DB550 DC700 | / | / | 05422500 | 05422550 | 05422600 | 05422650 | 05422700 |
| Ideco MM-550-F/ MM-700-F | / | 05476450 | 05476500 | 05476550 | 05476600 | 05476650 | 05476700 |
| National C-150-B | / | / | 05452500 | 05452550 | 05452600 | 05452650 | 05452700 |
| National C-250 | 05453400 | 05453450 | 05453500 | 05453550 | 05453600 | 05453650 | 05453700 |
| Oilwell 214-P | / | 05303725 | 05303500 | 05303550 | 05303600 | 05303650 | 05303700 |
| Oilwell 218-P | / | 05302725 | 05302500 | 05302550 | 05302600 | 05302650 | 05302700 |
| OPI-350 | 05501400 | 05501450 | 05501500 | 05501550 | 05501600 | 05501650 | 05501700 |
| OPI-700-HDL | 05503400 | 05503450 | 05503500 | 05503550 | 05503600 | 05503650 | 05503700 |
| OPI-1000-HDL | 05514400 | 05514450 | 05514500 | 05514550 | 05514600 | 05514650 | 05514700 |
| Wirth TPK-1000 | / | 05542450 | 05542500 | 05542550 | 05542600 | 05542650 | / |
| Wirth TPK-1600 | / | / | 07529500 | 07529550 | 07529600 | 07529650 | 07529700 |
| Wirth TPK-2200 | / | / | 07557500 | 07557550 | 07557600 | 07557650 | 07557700 |
| Gardner Denver FD-FXX | FD45640 | FD45645 | FD45650 | FD45655 | FD45660 | / | / |
| Gardner Denver FC-FXD | 1EF45640 | 1EF45645 | 1EF45650 | 1EF45625 | 1EF45630 | 1EF45655 | / |
| Gardner Denver FY-FXX | 7-1/2” FY45675 | 05441450 FZ45645 | 05441500 FZ45650 | 05441550 FX45655 | 05441600 FZ45660 | 05441650 FZ45665 | 05441700 FZ45670 |
| Gardner Denver FZ-FXZ | 7-1/2” FY45675 | 05441450 FZ45645 | 05441500 FZ45650 | 05441550 FX45655 | 05441600 FZ45660 | 05441650 FZ45665 | 05441700 FZ45670 |
All our fluid end parts are manufactured to API 7K quality
standards.
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350,
DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220,
E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG,
KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L,
NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson,
Gaso, Skytop/Brewster.
| MISSION "L" MODULE FOR EMSCO FB-1300, FB-1600 | | | | QTY PER PUMP |
| FLUID END MODULE & ACCESSORIES | | | |
| ITEM # | OEM PART # | MISSION PART # | |
| | FEMFB13ASSYSW | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1 - 27) | 3 |
| 1 | 8490-1D | FEMFB13DISSW | MODULE, DISCHARGE STUDDED (INCLUDES ITEMS:1, 3-11) | 3 |
| 2 | 8490-2S | FEMFB13SUCSW | MODULE, SUCTION STUDDED (INCLUDES ITEMS: 2, 5, 6, & 27) | 3 |
| 3 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | EMSF1000PFSN | NUT, DISCHARGE TO SUCTION STUD | 18 |
| 5 | 4015-2 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 6 | | PZ789GPFSN | NUT, THREADED RING STUD | 72 |
| 7 | 4016-9 | EMSFB13PFSSW | STUD, POWER FRAME | 18 |
| 8 | | EMSF1000PFSN | NUT, POWER FRAME STUD | 18 |
| 9 | 4017-36 | PEP80 | CAPSCREW, LINER RETAINER FLANGE (SOCKET HEAD) | 24 |
| 10 | 4017-46 | FB1300DMSSW | STUD, DISCHARGE MANIFOLD | 12 |
| 11 | | IDT800TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 12 | 8488-5 | PEP70 | PIN, DOWELL | 6 |
| 13 | 2988 | 1290344 | SEAL, SUC TO DISCH MOD & WEAR PLATE - RUBBER (SEE DATASHEET FOR ALT
MATLS) | 6 |
| 14 | 8422-3 | EMSF1000ARSW | RING, LINER RETAINER PILOT | 3 |
| 15 | 8490-3 | EMSFB13WPSW | PLATE, LINER WEAR | 3 |
| 16 | 6490-3 | EMSFB13LRPSW | FLANGE, LINER RETAINER | 3 |
| 17 | 6590-1 | EMSFB13LLSW | NUT, LINER LOCK | 3 |
| 18 | P-129 | 07207129 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE
MATERIALS) | 6 |
| 19 | 4016-99 | PEP73 | CAPSCREW, VALVE GUIDE | 12 |
| 20 | 4700-I | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 21 | 4775-2R | EMSFB13VGASW | GUIDE, VALVE (INCLUDES ITEMS 20, 21) | 6 |
| 22 | 4675-2A | EMSFB13VCASW | PLUG, VALVE COVER (INCLUDES ITEMS 19-22) | 6 |
| 23 | 4475 | OWA17FLGSW | RING, THREADED | 6 |
| 24 | 4575 | OWA17CAPSW | CAP, THREADED | 6 |
| 25 | 568-343 | 99609343 | GASKET, DISCHARGE MANIFOLD | 3 |
| 26 | 568-442 | 99609442 | GASKET, SUCTION MANIFOLD | 3 |
| 27 | 4018-19 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 18 |
| 6278-25 | HT204A | ROD, PISTON (INCLUDES 10305203 STUD) NOT SHOWN | 3 |
| 6284-1 | 2145B | ROD, SUB (NOT SHOWN) | 3 |
| 1290-2 | 10305203 | STUD, CONNECTING (NOT SHOWN) | 3 |
| MISSION "L" MODULE FOR NATIONAL12-P-160 | | | | QTY PER PUMP |
| FLUID END MODULE & ACCESSORIES | | | |
| ITEM # | OEM PART # | MISSION PART # | |
| 8476-A | FEM12PASSYSW | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1-23) | 3 |
| 1 | 8476-2S | FEM12PSUCSW | MODULE, SUCTION STUDDED (INCLUDES ITEMS: 1,13,14,& 22) | 3 |
| 2 | 8476-1D | FEM12PDISSW | MODULE, DISCHARGE STUDDED - (INCLUDES ITEMS: 2,3,4,5,6,7,8,13 & 14) | 3 |
| 3 | 4018-17 | 12P160DSUCS | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | PEP55 | NUT, DISCHARGE TO SUCTION STUD | 18 |
| 5 | 4015-95 | NAT12P160PFS | STUD, POWER END | 30 |
| 6 | | 8P80TRSN | NUT, POWER END STUD | 30 |
| 7 | 8488-5 | PEP70 | PIN, DOWELL | 6 |
| 8 | 4017-65 | PEP75 | CAPSCREW,LINER RETAINER SOCKET HEAD | 18 |
| 9 | 8476-3 | PP6021260SW | PLATE, LINER WEAR | 3 |
| 10 | 2988 | 1290344 | GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT
MATLS) | 6 |
| 11 | 6476 | 12PLASW | FLANGE, LINER RETAINER (LINER BUSHING) | 3 |
| 12 | 6576 | 12PLANSW | NUT, LINER RETAINER | 3 |
| 13 | 4015-54 | 12PTRSSW | STUD, THREADED RING | 72 |
| 14 | | 12P160TRSN | NUT, THREADED RING STUD | 72 |
| 15 | 4676-2A | 12PVCSW | PLUG, VALVE COVER (INCLUDES ITEMS 15,19,20,& 21) | 6 |
| 16 | 4476 | 12PFLGSW | RING, THREADED (THREADED FLANGE) | 6 |
| 17 | 4597 | 12PCAPSW | CAP, THREADED (SCREW GLAND) | 6 |
| 18 | P-107 | 07207107 | SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE
MATERIALS) | 6 |
| 19 | 4776R | 12PVGSWNS | GUIDE, VALVE (INCLUDES ITEMS 19,& 20) | 6 |
| 20 | 4700-I | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 21 | 4016-98 | PEP73 | SCREW, VALVE GUIDE | 12 |
| 22 | 4018-19 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 24 |
| 23 | AJO-419R | 1540851 | GASKET, SUCTION MANIFOLD | 3 |
| 24 | 8376-2 | NAT12PDSMA | ADAPTER, DISCHARGE | 2 |
| 25 | 2976-2 | 2410031437 | SEAL, DISCHARGE ADAPTER | 4 |
| 26 | 8376-1 | NAT12PDSMC | CONNECTOR, DISCHARGE | 2 |
| 27 | 2976-1 | 2410031433 | SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER | 2 |
| 28 | 4018-18 | 700030711 | CAPSCREW, DISCHARGE CONNECTOR (W /LOCKWASHER) | 16 |
| GARDNER DENVER PZ-10, PZ-11 MISSION MODULE SERIES 7 VALVE SEAT
DECKS | | | | QTY PER PUMP |
| FLUID END MODULE & ACCESSORIES | | | |
| ITEM # | OEM PART # | MISSION PART # | |
| | FEMPZ1011WPCA | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-13, 15-22) | 3 |
| 1 | 202PZL029B | FEMPZ1011 | FLUID END MODULE STUDDED (INCLUDES 1-8 & 24) | 3 |
| 02 | 201PZL110 | PZ1011LCS | STUD, FRAME & LINER CLAMP LONG | 24 |
| 03 | 205PZL110 | PZ1011GPFS | STUD, SHORT | 24 |
| 04 | 50B36 | PZ789LCSN | NUT, FRAME & LINER CLAMP STUD | 72 |
| 05 | 204PZL110 | PZ1011TRS | STUD | 72 |
| 06 | 50B34 | PZ789TRSN | NUT (FOR ABOVE) | 72 |
| 07 | 202PZL110 | PZ789DMS | STUD, DISCHARGE MANIFOLD | 12 |
| 08 | 50B34 | PZ789TRSN | NUT (FOR ABOVE STUD) (SAME AS ITEM 6) | 12 |
| 09 | | | CAPSCREW, SUCTION MANIFOLD - NOT SHOWN | 24 |
| 10 | 200PZL387 | PZ1011FLG | RING, VALVE COVER THREADED | 6 |
| 11 | 204PZL715 | 07916780 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE
MATERIALS) | 6 |
| 12 | 2007674 | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 13 | 200PZL147 | PZ1011VC | COVER, VALVE | 6 |
| | | | |
| 15 | 200PZL587 | PZ1011CAP | CAP, VALVE COVER LOCK | 6 |
| 16 | 2011701 | PZ789PL | PLATE, RETAINER | 3 |
| 17 | 200PZL483 | PZ1011LVG | GUIDE, VALVE SUCTION | 3 |
| 18 | 95W2 | PZLVGAWASHER | WASHER, LOCK 1/2" 316SS | 6 |
| 19 | 655EE065 | PZLVGABOLT | SCREW 1/2" x 1 3/4" 316SS HX HD C/S | 6 |
| 20 | 25AL35 | 07916747 | GASKET, DISCHARGE MANIFOLD | 3 |
| 21 | 25G41 | 07923283 | GASKET, SUCTION MANIFOLD | 3 |
| 22 | 200PZL455 | PZ1011LC | CLAMP, LINER | 3 |
| 23 | 200PZL483A | PZ1011LVGA | ASSY., LOWER VALVE GUIDE ( INCLUDES ITEMS 12, 16-19.) | 3 |
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 •
F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651
• 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 •
TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T •
GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 •
J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 •
12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT •
A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT •
A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through
SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® -
Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD |
FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP
GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900
| Item | Description | Part No. |
| Complete Assembly | 8490-2A |
| 1 | Threaded Flange | 4475 |
| 2 | Liner Wear Plate | 8490-3 |
| 3 | Module and Wear Plate Gasket | 2988 |
| 4 | Screw Gland | 4575 |
| 5 | Plug Assembly w/Guide & Bushing | 4675-2A |
| 6 | Plug Seal | P-129 |
| 7 | Valve Guide | 4775-2 |
| 8 | Valve Guide Bushing | 4700-I |
| 9 | Valve Guide Stud w/Nut | 4016-99 |
| 10 | Valve Cover Stud w/Nut | 4015-2 |
| 11 | Power End Stud w/Nut | 4016-9 |
| 12 | Liner Retainer Capscrew | 4017-36 |
| 13 | Liner Retainer Flange | 6490-3 |
| 14 | Liner Retainer Pilot Ring | 8422-3 |
| 15 | Liner Retainer Nut | 6590-1 |
| 16 | Suction Module Stud w/Nut | 4016-97 |
| 17 | Suction Module Studded | 8490-2 |
| 18 | Discharge Module Studded | 8490-1 |
| 19 | Dowel Pin | 8488-5 |
| 20 | Discharge Manifold Stud w/Nut | 4017-46 |
| Item | Description | Part No. |
| Complete Assembly | 8490-2A |
| 1 | Threaded Flange | 4475 |
| 2 | Liner Wear Plate | 8490-3 |
| 3 | Module and Wear Plate Gasket | 2988 |
| 4 | Screw Gland | 4575 |
| 5 | Plug Assembly w/Guide & Bushing | 4675-2A |
| 6 | Plug Seal | P-129 |
| 7 | Valve Guide | 4775-2 |
| 8 | Valve Guide Bushing | 4700-I |
| 9 | Valve Guide Stud w/Nut | 4016-99 |
| 10 | Valve Cover Stud w/Nut | 4015-2 |
| 11 | Power End Stud w/Nut | 4016-9 |
| 12 | Liner Retainer Capscrew | 4017-36 |
| 13 | Liner Retainer Flange | 6490-3 |
| 14 | Liner Retainer Pilot Ring | 8422-3 |
| 15 | Liner Retainer Nut | 6590-1 |
| 16 | Suction Module Stud w/Nut | 4016-97 |
| 17 | Suction Module Studded | 8490-2 |
| 18 | Discharge Module Studded | 8490-1 |
| 19 | Dowel Pin | 8488-5 |
| 20 | Discharge Manifold Stud w/Nut | 4017-46 |
| Item | Description | Part No. |
| Complete Assembly | 8476-A |
| 1 | Threaded Flange | 4476 |
| 2 | Screw Gland | 4597 |
| 3 | Plug Assembly w/Guide & Bushing | 4676-2A |
| 4 | Valve Guide | 4776 |
| 5 | Valve Guide Bushing | 4700-I |
| 6 | Valve Guide Screw | 4016-98 |
| 7 | Valve Cover Stud w/Nut | 4015-54 |
| 8 | Power End Stud w/Nut | 4015-95 |
| 9 | Liner Retainer Capscrew | 4017-65 |
| 10 | Liner Retainer Flange | 6476 |
| 11 | Liner Retainer Nut | 6576 |
| 12 | Suction Module Stud w/Nut | 4018-17 |
| 13 | Suction Module (Studded) | 8476-2 |
| 14 | Discharge Module (Studded) | 8476-1 |
| 15 | Dowel Pin | 8488-5 |
| 16 | Wear Plate | 8476-3 |
| 17 | Valve Cover Plug Seal | P-107 |
| 18 | Module & Wear Plate Seal | 2988 |
| 19 | Piston Rod | 1286-32 |
| 20 | Sub Rod | 1286-1 |
| 21 | Rod Clamp w/Spray System | 1286-CW |
