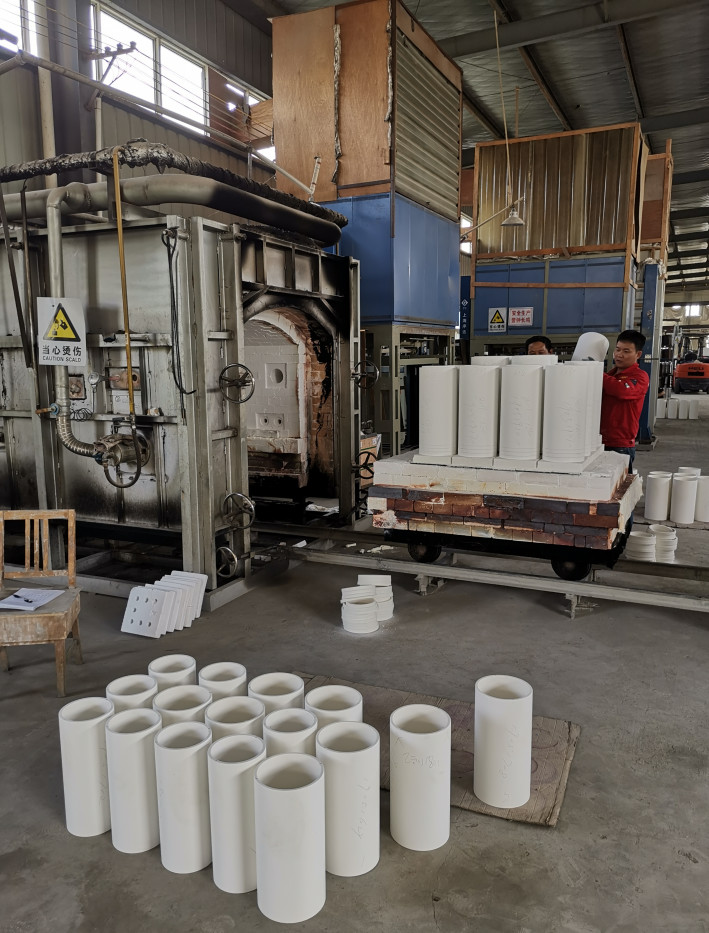

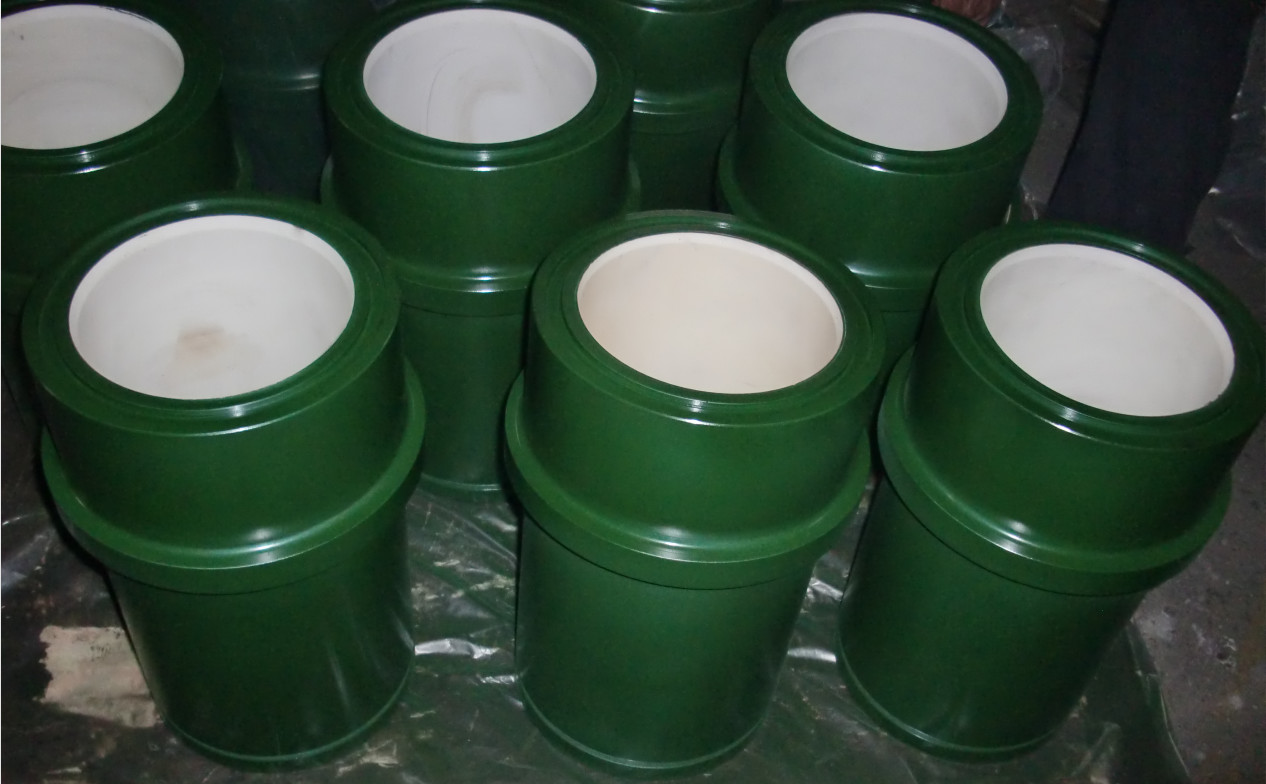

Premium's zirconia liner offers life time cost savings, significantly longer service, better performance and safer operation than those made of more commonly used alumina ceramic. Premium's zirconia liner is a proprietary Zirconium-based matrix that has significantly improved mechanical characteristics.
◎ Zirconia has three important property advantages compared to alumina.
◎ Zirconia exhibits better impact strength.
◎ Zirconia is harder than alumina.
◎ Zirconia can be honed to finer surface finishes than alumina. Finished to 4 RMS, ◎Zirconia liners - provide a surface finish that's three to four times finer than alumina.
All three of these property advantages translate to lower ownership costs. The improved wear directly extends the service life of the sleeve, while the improved impact strength cuts down on the significant costs of replacing broken liners in the field. The surface finish improvements, meanwhile, have an indirect effect. The finer surface finish means less friction with the elastomer-and-metal pump pistons, which in trun extends piston life and reduces pump-cooling requirements.
◎ HP design with shoulder-on-hull design to prevent sleeve slippage
◎ Reduced liner and piston wear
◎ Rated for all drilling operations up to 7500 PSI
◎ Bore hardness of 92-94 Rockwell
◎ ID tolerances of +.010”/ -.000”
◎ Surface finish of 4 - 8 RMS
◎ Hardness i s HV 0.3 kg/mm – 1100/1200 ( 92 - 94 Rc)
◎ High pressure design to prevent slippage
◎ Liner sizes are available from 4½” to 7” for all popular mud pumps
| Mud Pump Models | 4” | 4-1/2” | 5” | 5-1/2” | 6” | 6-1/2” | 7” |
| Continental Emsco F-800 / 1000 | / | 05495450 PREM | 05495500 PREM | 05495550 PREM | 05495600 PREM | 05495650 PREM | 05495700 PREM |
| Continental Emsco FB-1300 / 1600 | 05499400 PREM | 05499450 PREM | 05499500 PREM | 05499550 PREM | 05499600 PREM | 05499650 PREM | 05499700 PREM |
| Continental Emsco FC-2200 | / | / | 05551500 PREM | 05551550 PREM | 05551600 PREM | 05551650 PREM | 05551700 PREM |
| Gardner Denver PAH-275 | PA I3940 05519400 PREM | PA 13945 05445450 PREM | PA 13950 05445500 PREM | / | / | / | / |
| Gardner Denver PZ-7 | PY13940 | PY13945 | PY13950 05493087 PREM | PY13955 05493085 PREM | PY13960 05493083 PREM | PY13965 05493081PREM | PY13970 05493079 PREM |
| Gardner Denver PZ-8/9 | 206PZJ456 05493400 PREM | 205PZJ456 05493450 PREM | 204PZJ456 05493500 PREM | 203PZJ456 05493550 PREM | 202PZJ456 05493600 PREM | 200PZJ456 05493650 PREM | 207PZJ456 05493700 PREM |
| Gardner Denver PZ-10/11 | 206PZL456 05496400 PREM | 205PZL456 05496450 PREM | 204PZL456 05496500 PREM | 203PZL456 05496550 PREM | 202PZL456 05496600 PREM | 201PZL456 05496650 PREM | 200PZL456 05496700 PREM |
| Gardner Denver PZL | 206PZL456 05496400 PREM | 205PZL456 05496450 PREM | 204PZL456 05496500 PREM | 203PZL456 05496550 PREM | 202PZL456 05496600 PREM | 201PZL456 05496650 PREM | 200PZL456 05496700 PREM |
| Gardner Denver PZL-B-7500 PSI | / | / | 05561500HP | 05561550HP | 05561600HP | 05561650HP | 05561700HP |
| Gardner Denver PZL W/SWFE 7500 PSI | 05465400HP | 05465450HP | 05465500HP | 05465550HP | 05465600HP | 05465650HP | 05465700HP |
| Gardner Denver PX-11 7500 PSI | / | / | 05561500HP | 05561550HP | 05561600HP | 05561650HP | 05561700HP |
| Ideco T-500 | / | 05512450 PREM | 05512500 PREM | 05512550 PREM | 05512600 PREM | 05512650 PREM | 05512700 PREM |
| Ideco T-800 / 1000 | 05502400 PREM | 05502450 PREM | 05502500 PREM | 05502550 PREM | 05502600 PREM | 05502650 PREM | 05502700 PREM |
| Ideco T-1300 / 1600 | / | 05507450 PREM | 05507500 PREM | 05507550 PREM | 05507600 PREM | 05507650 PREM | 05507700 PREM |
| National 7P-50 | 05466040 PREM | 05466045 PREM | 05466050 PREM | 05466055 PREM | 05466060 PREM | / | / |
| National 8-P-80 | 05464400 PREM | 05464450 PREM | 05464500 PREM | 05464550 PREM | 05464600 PREM | 05464650 PREM | / |
| National 9-P-100 / 10-P-130 | 05465400 PREM | 05465450 PREM | 05465500 PREM | 05465550 PREM | 05465600 PREM | 05465650 PREM | / |
| National 12-P-160 | 05466400 PREM | 05466450 PREM | 05466500 PREM | 05466550 PREM | 05466600 PREM | 05466650 PREM | 05466700 PREM |
| National 14-P-220 | 05545400 PREM | 05545450 PREM | 05545500 PREM | 05545550 PREM | 05545600 PREM | 05545650 PREM | 05545700 PREM |
| National JWS-165/340 | 05531400 PREM | 05531450 PREM | / | / | / | / | / |
| National JWS-400 | 05524400 PREM | 05524450 PREM | 05524500 PREM | 05524550 PREM | 05524600 PREM | / | / |
| Oilwell HD-1700-PT | / | / | 05326500 PREM | 05326550 PREM | 05326600 PREM | 05326650 PREM | 05326700 PREM |
| Oilwell A-600-PT | 05329400 PREM | 05329450 PREM | 05329500 PREM | 05329550 PREM | 05329600 PREM | 05329650 PREM | 05329700 PREM |
| Oilwell A-850-PT / A-1100-PT | 05330400 PREM | 05330450 PREM | 05330500 PREM | 05330550 PREM | 05330600 PREM | 05330650 PREM | 05330700 PREM |
| Oilwell A-1400-PT / A-1700-PT | 05326400 PREM | 05326450 PREM | 05326500 PREM | 05326550 PREM | 05326600 PREM | 05326650 PREM | 05326700 PREM |
All our fluid end parts are manufactured to API 7K quality standards.
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
| EMSCO | | | FB-1600 | | | | 7 x 12 | |
| | LINERS | LINER GASKETS | PISTONS | PISTON REPLACEMENT RUBBERS |
| SIZE | CERAMIC | SUPREME | RUBBER | URETHANE | WHITE LIGHTNING | SUPREME | GREEN DUO | FLEXLIP | WHITE LIGHTNING | SUPREME |
| 4" | 07499400 | 05499400 | 07916800 | | | 012180170 | 1502052 | 011102926 | | 015180102 |
| 4 1/4" | | | | | | | | | | |
| 4 1/2" | 07499450 | 05499450 | 07916800 | | 012180197 | 012180196 | 1502054 | 011102928 | 015180145 | 015180144 |
| 4 3/4" | | | | | | | | | | |
| 5" | 07499500 | 05499500* | 07916800 | | 012180254 | 012180253 | 1502056 | 011103033 | 015180186 | 015180185 |
| 5 1/4" | | | | | | | | | | |
| 5 1/2" | 07499550 | 05499550* | 07916800 | | 012180338 | 012180337 | 1502058 | 011103132 | 015180228 | 015180227 |
| 5 3/4" | | | | | | | | | | |
| 6" | 07499600 | 05499600* | 07916800 | | 012180395 | 012180394 | 1502060 | 011103629 | 015180269 | 015180268 |
| 6 1/4" | | 05499625* | 07916800 | | | 012180493 | 1502061 | 011103322 | 015180285 | 015180284 |
| 6 1/2" | 07499650 | 05499650* | 07916800 | | 012180536 | 012180535 | 1502062 | 011103827 | 015180301 | 015180300 |
| 6 3/4" | | | | | | | | | | |
| 7" | 07499700 | 05499700* | 07916800 | | 012180619 | 012180618 | 1502064 | 011103926 | 015180343 | 015180342 |
| 7 1/4" | | | | | | | | | | |
| 7 1/2" | | | | | | | | | | |
| 7 3/4" | | | | | | | | | | |
| 8" | | | | | | | | | | |
| * For HP style liner, add "HP" to end of part no. | | | | | | | | | | |
| VALVES, SEATS, SPRINGS & INSERTS | | GASKETS | |
| | ROUGHNECK | ROUGHNECK HP | SUPREME | | | OEM | URETHANE | L STYLE | URETHANE | |
| VALVE-White Lightning Insert | 9700368 | 9700356 | 060155042 | | Valve Cover | 07916741 | | 07207129 | | |
| VALVE-Urethane Insert | 9700250 | 9700354 | 060155041 | | Cylinder Head | 07916801 | | | | |
| VALVE-Rubber Insert | 9700293 | N/A | 060155033 | | Plug Seal | | | | | |
| SEAT | 9702504 | 9702504 | 061101507 | | HYDRA-LOK | OEM | MISSION L |
| SPRING | 8201684 | 8201684 | 055413421 | | Complete Assembly | 80500105 | 80500106 |
| SPRING-Stainless | | | 8201820 | | | | |
| INSERT-Urethane | 9705228 | 9700360 | 062400338 | | MODULES | OEM | MISSION L |
| INSERT-Rubber | 9705244 | N/A | 062400239 | | Complete Assembly | EMSFEMFB1300CA | FEMFB13ASSYSW |
| EMSCO | | | FC-2200 | | | | | |
| | LINERS | LINER GASKETS | PISTONS | PISTON REPLACEMENT RUBBERS |
| SIZE | CERAMIC | SUPREME | RUBBER | URETHANE | WHITE LIGHTNING | SUPREME | GREEN DUO | FLEXLIP | WHITE LIGHTNING | SUPREME |
| 4" | | | | | | 012180170 | 1502052 | 011102926 | | 015180102 |
| 4 1/4" | | | | | | | | | | |
| 4 1/2" | | | | | 012180197 | 012180196 | 1502054 | 011102928 | 015180145 | 015180144 |
| 4 3/4" | | | | | | | | | | |
| 5" | | | | | 012180254 | 012180253 | 1502056 | 011103033 | 015180186 | 015180185 |
| 5 1/4" | | | | | | | | | | |
| 5 1/2" | 07551550 | 05551550* | 07916882 | | 012180338 | 012180337 | 1502058 | 011103132 | 015180228 | 015180227 |
| 5 3/4" | | | | | | | | | | |
| 6" | 07551600 | 05551600* | 07916882 | | 012180395 | 012180394 | 1502060 | 011103629 | 015180269 | 015180268 |
| 6 1/4" | | 05551625 | 07916882 | | | 012180493 | 1502061 | 011103322 | 015180285 | 015180284 |
| 6 1/2" | 07551650 | 05551650* | 07916882 | | 012180536 | 012180535 | 1502062 | 011103827 | 015180301 | 015180300 |
| 6 3/4" | | | | | | | | | | |
| 7" | 07551700 | 05551700* | 07916882 | | 012180619 | 012180618 | 1502064 | 011103926 | 015180343 | 015180342 |
| 7 1/4" | | | | | | | | | | |
| 7 1/2" | 07551750 | 05551750* | 07916882 | | 012180685 | 012180683 | | | 015180369 | 015180367 |
| 7 3/4" | | | | | | | | | | |
| 8" | | | | | | | | | | |
| * For HP style liner, add "HP" to end of part no. | | | | | | | | | | |
| VALVES, SEATS, SPRINGS & INSERTS | | GASKETS | |
| | ROUGHNECK | ROUGHNECK HP | SUPREME | | | OEM | URETHANE | L STYLE | URETHANE | |
| VALVE-White Lightning Insert | 9700369 | | | | Valve Cover | 07916850 | | | | |
| VALVE-Urethane Insert | 9700382 | | 060140100 | | Cylinder Head | | | | | |
| VALVE-Rubber Insert | N/A | | 060112059 | | Plug Seal | | | | | |
| SEAT | 9702652 | | 061100608 | | HYDRA-LOK | OEM | MISSION L |
| SPRING | 055413421 | | 055413690 | | Complete Assembly | | |
| SPRING-Stainless | 055402945 | | | | | | |
| INSERT-Urethane | 9705236 | | 062400536 | | MODULES | OEM | MISSION L |
| INSERT-Rubber | N/A | | 062400437 | | Complete Assembly | EMSFEMFC2200CA | |
| EWCO | | | W-2000 | | | | | |
| | LINERS | LINER GASKETS | PISTONS | PISTON REPLACEMENT RUBBERS |
| SIZE | CERAMIC | SUPREME | RUBBER | URETHANE | WHITE LIGHTNING | SUPREME | GREEN DUO | FLEXLIP | WHITE LIGHTNING | SUPREME |
| 4" | | | | | | 012180170 | 1502052 | 011102926 | | 015180102 |
| 4 1/4" | | | | | | | | | | |
| 4 1/2" | 07557450 | 05557450HP | | | 012180197 | 012180196 | 1502054 | 011102928 | 015180145 | 015180144 |
| 4 3/4" | | | | | | | | | | |
| 5" | 07557500 | 05557500HP | | | 012180254 | 012180253 | 1502056 | 011103033 | 015180186 | 015180185 |
| 5 1/4" | | | | | | | | | | |
| 5 1/2" | 07557550 | 05557550HP | | | 012180338 | 012180337 | 1502058 | 011103132 | 015180228 | 015180227 |
| 5 3/4" | | | | | | | | | | |
| 6" | 07557600 | 05557600HP | | | 012180395 | 012180394 | 1502060 | 011103629 | 015180269 | 015180268 |
| 6 1/4" | | 05557625HP | | | | 012180493 | 1502061 | 011103322 | 015180285 | 015180284 |
| 6 1/2" | 07557650 | 05557650HP | | | 012180536 | 012180535 | 1502062 | 011103827 | 015180301 | 015180300 |
| 6 3/4" | | | | | | | | | | |
| 7" | 07557700 | 05557700HP | | | 012180619 | 012180618 | 1502064 | 011103926 | 015180343 | 015180342 |
| 7 1/4" | | | | | | | | | | |
| 7 1/2" | | | | | | | | | | |
| 7 3/4" | | | | | | | | | | |
| 8" | | | | | | | | | | |
| | | | | | | | | | | |
| VALVES, SEATS, SPRINGS & INSERTS | | GASKETS | |
| | ROUGHNECK | ROUGHNECK HP | SUPREME | | | OEM | URETHANE | L STYLE | URETHANE | |
| VALVE-White Lightning Insert | 9700368 | 9700356 | 060155042 | | Valve Cover | | | | | |
| VALVE-Urethane Insert | 9700250 | 9700354 | 060155041 | | Cylinder Head | | | | | |
| VALVE-Rubber Insert | 9700293 | N/A | 060155033 | | Plug Seal | | | | | |
| SEAT | 9702504 | 9702504 | 061101507 | | HYDRA-LOK | OEM | MISSION L |
| SPRING | 8201650 | 8201650 | 055413371 | | Complete Assembly | | |
| SPRING-Stainless | | | 055402952 | | | | |
| INSERT-Urethane | 9705228 | 9700360 | 062400338 | | MODULES | OEM | MISSION L |
| INSERT-Rubber | 9705244 | N/A | 062400239 | | Complete Assembly | | |
| SEAT PULLER ASSEMBLIES | Discharge Module Studded | | |
| GARDNER DENVER | | PZ-9 | | | | 7 x 9 | |
| | LINERS | LINER GASKETS | PISTONS | PISTON REPLACEMENT RUBBERS |
| SIZE | CERAMIC | SUPREME | RUBBER | URETHANE | WHITE LIGHTNING | SUPREME | GREEN DUO | FLEXLIP | WHITE LIGHTNING | SUPREME |
| 4" | | | | | | 012180170 | 1502052 | 011102926 | | 015180102 |
| 4 1/4" | | | | | | | | | | |
| 4 1/2" | 07493450 | 05493450 | 07916692 | | 012180197 | 012180196 | 1502054 | 011102928 | 015180145 | 015180144 |
| 4 3/4" | | | | | | | | | | |
| 5" | 07493500 | 05493500 | 07916692 | | 012180254 | 012180253 | 1502056 | 011103033 | 015180186 | 015180185 |
| 5 1/4" | | | | | | | | | | |
| 5 1/2" | 07493550 | 05493550* | 07916692 | | 012180338 | 012180337 | 1502058 | 011103132 | 015180228 | 015180227 |
| 5 3/4" | | | | | | | | | | |
| 6" | 07493600 | 05493600* | 07916692 | | 012180395 | 012180394 | 1502060 | 011103629 | 015180269 | 015180268 |
| 6 1/4" | | 05493625* | 07916692 | | | 012180493 | 1502061 | 011103322 | 015180285 | 015180284 |
| 6 1/2" | 07493650 | 05493650* | 07916692 | | 012180536 | 012180535 | 1502062 | 011103827 | 015180301 | 015180300 |
| 6 3/4" | | | | | | | | | | |
| 7" | | 05493700* | 07916692 | | 012180619 | 012180618 | 1502064 | 011103926 | 015180343 | 015180342 |
| 7 1/4" | | | | | | | | | | |
| 7 1/2" | | | | | | | | | | |
| 7 3/4" | | | | | | | | | | |
| 8" | | | | | | | | | | |
| * For HP style liner, add "HP" to end of part no. | | | | | | | | | | |
| VALVES, SEATS, SPRINGS & INSERTS | | GASKETS | |
| | ROUGHNECK | ROUGHNECK HP | SUPREME | | | OEM | URETHANE | L STYLE | URETHANE | |
| VALVE-White Lightning Insert | 9700368 | 9700356 | 060155042 | | Valve Cover | 07916749 | 6309143 | | | |
| VALVE-Urethane Insert | 9700250 | 9700354 | 060155041 | | Cylinder Head | 07916749 | 6309143 | | | |
| VALVE-Rubber Insert | 9700293 | N/A | 060155033 | | Plug Seal | | | | | |
| SEAT | 9702504 | 9702504 | 061101507 | | HYDRA-LOK | OEM | MISSION L |
| SPRING | 8201650 | 8201650 | 055413371 | | Complete Assembly | | |
| SPRING-Stainless | | | 055402952 | | | | |
| INSERT-Urethane | 9705228 | 9700360 | 062400338 | | MODULES | OEM | MISSION L |
| INSERT-Rubber | 9705244 | N/A | 062400239 | | Complete Assembly | FEMPZ789CA | |
| GARDNER DENVER | | PZ-10 | | | | 7 x 10 | |
| | LINERS | LINER GASKETS | PISTONS | PISTON REPLACEMENT RUBBERS |
| SIZE | CERAMIC | SUPREME | RUBBER | URETHANE | WHITE LIGHTNING | SUPREME | GREEN DUO | FLEXLIP | WHITE LIGHTNING | SUPREME |
| 4" | 07496400 | 05496400 | 07916692 | | | 012180170 | 1502052 | 011102926 | | 015180102 |
| 4 1/4" | | | | | | | | | | |
| 4 1/2" | 07496450 | 05496450 | 07916692 | | 012180197 | 012180196 | 1502054 | 011102928 | 015180145 | 015180144 |
| 4 3/4" | | | | | | | | | | |
| 5" | 07496500 | 05496500 | 07916692 | | 012180254 | 012180253 | 1502056 | 011103033 | 015180186 | 015180185 |
| 5 1/4" | | | | | | | | | | |
| 5 1/2" | 07496550 | 05496550* | 07916692 | | 012180338 | 012180337 | 1502058 | 011103132 | 015180228 | 015180227 |
| 5 3/4" | | | | | | | | | | |
| 6" | 07496600 | 05496600* | 07916692 | | 012180395 | 012180394 | 1502060 | 011103629 | 015180269 | 015180268 |
| 6 1/4" | | 05496625 | 07916692 | | | 012180493 | 1502061 | 011103322 | 015180285 | 015180284 |
| 6 1/2" | 07496650 | 05496650* | 07916692 | | 012180536 | 012180535 | 1502062 | 011103827 | 015180301 | 015180300 |
| 6 3/4" | | | | | | | | | | |
| 7" | 07496700 | 05496700* | 07916692 | | 012180619 | 012180618 | 1502064 | 011103926 | 015180343 | 015180342 |
| 7 1/4" | | | | | | | | | | |
| 7 1/2" | | | | | | | | | | |
| 7 3/4" | | | | | | | | | | |
| 8" | | | | | | | | | | |
| * For HP style liner, add "HP" to end of part no. | | | | | | | | | | |
| VALVES, SEATS, SPRINGS & INSERTS | | GASKETS | |
| | ROUGHNECK | ROUGHNECK HP | SUPREME | | | OEM | URETHANE | L STYLE | URETHANE | |
| VALVE-White Lightning Insert | 9700368 | 9700356 | 060155042 | | Valve Cover | 07916780 | 07916498 | 07207129 | | |
| VALVE-Urethane Insert | 9700250 | 9700354 | 060155041 | | Cylinder Head | 07916780 | 07916498 | | | |
| VALVE-Rubber Insert | 9700293 | N/A | 060155033 | | Plug Seal | | | | | |
| SEAT | 9702504 | 9702504 | 061101507 | | HYDRA-LOK | OEM | MISSION L |
| SPRING | 8201650 | 8201650 | 055413371 | | Complete Assembly | 80500104 | 80500104 |
| SPRING-Stainless | | | 055402952 | | | | |
| INSERT-Urethane | 9705228 | 9700360 | 062400338 | | MODULES | OEM | MISSION L |
| INSERT-Rubber | 9705244 | N/A | 062400239 | | Complete Assembly | FEMPZ1011CA | FEMPZ1011ASSYSW |
| NATIONAL | | | 12-P-160 | | | | 7-1/4 x 12 | |
| | LINERS | LINER GASKETS | PISTONS | PISTON REPLACEMENT RUBBERS |
| SIZE | CERAMIC | SUPREME | RUBBER | URETHANE | WHITE LIGHTNING | SUPREME | GREEN DUO | FLEXLIP | WHITE LIGHTNING | SUPREME |
| 4" | | | | | | 012180170 | 1502052 | 011102926 | | 015180102 |
| 4 1/4" | | | | | | | | | | |
| 4 1/2" | | | | | 012180197 | 012180196 | 1502054 | 011102928 | 015180145 | 015180144 |
| 4 3/4" | | | | | | | | | | |
| 5" | 07466500 | 05466500* | 07923265 | | 012180254 | 012180253 | 1502056 | 011103033 | 015180186 | 015180185 |
| 5 1/4" | | | | | | | | | | |
| 5 1/2" | 07466550 | 05466550* | 07923263 | | 012180338 | 012180337 | 1502058 | 011103132 | 015180228 | 015180227 |
| 5 3/4" | | | | | | | | | | |
| 6" | 07466600 | 05466600* | 07923261 | | 012180395 | 012180394 | 1502060 | 011103629 | 015180269 | 015180268 |
| 6 1/4" | | 05466625* | 07923283 | | | 012180493 | 1502061 | 011103322 | 015180285 | 015180284 |
| 6 1/2" | 07466650 | 05466650* | 07923284 | | 012180536 | 012180535 | 1502062 | 011103827 | 015180301 | 015180300 |
| 6 3/4" | | | | | | | | | | |
| 7" | 07466700 | 05466700* | 07923285 | | 012180619 | 012180618 | 1502064 | 011103926 | 015180343 | 015180342 |
| 7 1/4" | | | | | | | | | | |
| 7 1/2" | | | | | | | | | | |
| 7 3/4" | | | | | | | | | | |
| 8" | | | | | | | | | | |
| * For HP style liner, add "HP" to end of part no. | | | | | | | | | | |
| VALVES, SEATS, SPRINGS & INSERTS | | GASKETS | |
| | ROUGHNECK | ROUGHNECK HP | SUPREME | FKN | | OEM | URETHANE | L STYLE | URETHANE | |
| VALVE-White Lightning Insert | 9700368 | 9700356 | 060155042 | N/A | Valve Cover | 07916771 | 07916467 | 07207119 | | |
| VALVE-Urethane Insert | 9700250 | 9700354 | 060155041 | 1560985 | Cylinder Head | | | | | |
| VALVE-Rubber Insert | 9700293 | N/A | 060155033 | 1560984 | Plug Seal | | | | | |
| SEAT | 9702539 | 9702539 | 061102505 | 1561440 | HYDRA-LOK | OEM | MISSION L |
| SPRING | 8201684 | 8201684 | 055413421 | 1560702 | Complete Assembly | 800500100 | 800500100 |
| SPRING-Stainless | | | 055402945 | | | | |
| INSERT-Urethane | 9705228 | 9700360 | 062400338 | 1560557 | MODULES | OEM | MISSION L |
| NATIONAL | | 14-P-200 /14-P-220 | | | 9 x 14 | |
| | LINERS | LINER GASKETS | PISTONS | PISTON REPLACEMENT RUBBERS |
| SIZE | CERAMIC | SUPREME | RUBBER | URETHANE | WHITE LIGHTNING | SUPREME | GREEN DUO | FLEXLIP | WHITE LIGHTNING | SUPREME |
| 4" | | | | | | 012180170 | 1502052 | 011102926 | | 015180102 |
| 4 1/4" | | | | | | | | | | |
| 4 1/2" | | | | | 012180197 | 012180196 | 1502054 | 011102928 | 015180145 | 015180144 |
| 4 3/4" | | | | | | | | | | |
| 5" | 07545500 | 05545500 | 07923265 | | 012180254 | 012180253 | 1502056 | 011103033 | 015180186 | 015180185 |
| 5 1/4" | | | | | | | | | | |
| 5 1/2" | 07545550 | 05545550HP | 07923263 | | 012180338 | 012180337 | 1502058 | 011103132 | 015180228 | 015180227 |
| 5 3/4" | | | | | | | | | | |
| 6" | 07545600 | 05545600HP | 07923261 | | 012180395 | 012180394 | 1502060 | 011103629 | 015180269 | 015180268 |
| 6 1/4" | | | | | | 012180493 | 1502061 | 011103322 | 015180285 | 015180284 |
| 6 1/2" | 07545650 | 05545650HP | 07923284 | | 012180536 | 012180535 | 1502062 | 011103827 | 015180301 | 015180300 |
| 6 3/4" | | | | | | | | | | |
| 7" | 07545700 | 05545700HP | 07923285 | | 012180619 | 012180618 | 1502064 | 011103926 | 015180343 | 015180342 |
| 7 1/4" | | | | | | | | | | |
| 7 1/2" | 07545750 | 05545750HP | 1540155 | | 012180685 | 012180683 | | | 015180369 | 015180367 |
| 7 3/4" | | | | | | | | | | |
| 8" | 07545800 | 05545800HP | 1540157 | | | 012180725 | | | | |
| | | | | | | | | | | |
| VALVES, SEATS, SPRINGS & INSERTS | | GASKETS | |
| | ROUGHNECK | ROUGHNECK HP | SUPREME | FKN | | OEM | URETHANE | L STYLE | URETHANE | |
| VALVE-White Lightning Insert | 9700369 | | | N/A | Valve Cover | 1540163 | | | | |
| VALVE-Urethane Insert | 9700382 | | 060135555 | 1560965 | Cylinder Head | | | | | |
| VALVE-Rubber Insert | N/A | | 060110053 | 1560964 | Plug Seal | | | | | |
| SEAT | | | 061100954 | 1561410 | HYDRA-LOK | OEM | MISSION L |
| SPRING | 055413256 | | 055409007 | 1560703 | Complete Assembly | 800500107 | |
| SPRING-Stainless | | | 8201617 | | | | |
| INSERT-Urethane | 9705236 | | 062400536 | 1560567 | MODULES | OEM | MISSION L |
| INSERT-Rubber | N/A | | 062400437 | 1560705 | Complete Assembly | | |
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900
