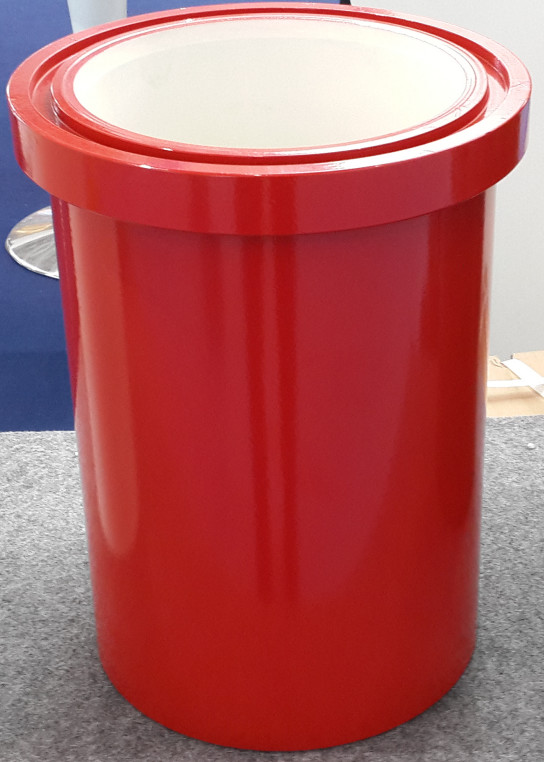

Premium's zirconia liner offers life time cost savings, significantly longer service, better performance and safer operation than those made of more commonly used alumina ceramic. Premium's zirconia liner is a proprietary Zirconium-based matrix that has significantly improved mechanical characteristics.

◎ Zirconia has three important property advantages compared to alumina.

◎ Zirconia exhibits better impact strength.

◎ Zirconia is harder than alumina.

◎ Zirconia can be honed to finer surface finishes than alumina. Finished to 4 RMS, ◎Zirconia liners - provide a surface finish that's three to four times finer than alumina.

All three of these property advantages translate to lower ownership costs. The improved wear directly extends the service life of the sleeve, while the improved impact strength cuts down on the significant costs of replacing broken liners in the field. The surface finish improvements, meanwhile, have an indirect effect. The finer surface finish means less friction with the elastomer-and-metal pump pistons, which in trun extends piston life and reduces pump-cooling requirements.

◎ HP design with shoulder-on-hull design to prevent sleeve slippage

◎ Reduced liner and piston wear

◎ Rated for all drilling operations up to 7500 PSI

◎ Bore hardness of 92-94 Rockwell

◎ ID tolerances of +.010”/ -.000”

◎ Surface finish of 4 - 8 RMS

◎ Hardness i s HV 0.3 kg/mm – 1100/1200 ( 92 - 94 Rc)

◎ High pressure design to prevent slippage

◎ Liner sizes are available from 4½” to 7” for all popular mud pumps

All our fluid end parts are manufactured to API 7K quality standards.

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600

Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,

National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,

Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32

WEATHERFORD/Ellis Williams: E-447, E-2200

Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800

Romania: 3PN-1000, 3PN-1600, 3PN-2000

And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts

Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL

Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000

National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A

National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160

Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P

Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT

Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT

OPI Mud Pumps

350-D | 700-HDL | 1000-HDL

Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036

Wilson Mud Pumps

600 | 900

    Premium Rig Parts is a leading manufacturer and supplier of mud pump parts, drilling rig expendables to the oil drilling industry. Our specialties include, but are not limited to, expendables for mud pump systems including Emsco, Brewster, National Oilwell, Ideco, Gardner Denver, Weatherford, Drillmec, Bomco, Honghua, RG, Rongsheng, TSC, LS NOV, POT, Bentec, Wirth, Southwest, Ewco, Lewco, Baker Forum, Mud King, OPI, Texma, Haihua Group and more. We also have extensive knowledge of older and obsolete mud pumps and their parts. Our reach extends to customers around the world.

From China to AMERICA, from South America to Middle East, our clients around the world rely on us for the daily mud pump operations.

Premium has a long tradition of industry leadership and innovation. We continue to expand our product line and services to meet emerging customer needs. Our broad range of capabilities includes creating new, more efficient parts to ensure our customers achieve the highest performance in the most demanding mud pump operations.

Our Product Lines
The extensive product lines of mud pump expendables we manufacture and supply include liners, modules and accessories, 7,500 PSI conversion kit, pistons and hubs, valves and seats, rods and clamps, gaskets and seals, crossheads, crosshead slides and crosshead pins, manifolds, pulsation dampeners and much more. All our products are fully exchangeable with OEM parts.

Our Technologies
Latest technologies and equipment are implemented to ensure the consistency of quality and efficiency of productions. Our testing labs are well equipped to conduct various Nondestructive Testing (NDT).

Our Qualities
The mud pump expendables and mud pump parts we manufacture and supply meet or exceed OEM specifications and API standards. Our manufacturing facility is ISO9001 registered and API-7K certified.

Our Values

Having the right parts in the right place, at the right time is critical to your success. We can and we are trying to do that.

At PREMIUM, we care about all the products and services we supply!

At PREMIUM, we don’t just build parts, we build long term relationships. Our relentless focus on quality, competitive pricing and customer service has won the trust of our customers.
