Premium's zirconia liner offers life time cost savings,
significantly longer service, better performance and safer
operation than those made of more commonly used alumina ceramic.
Premium's zirconia liner is a proprietary Zirconium-based matrix
that has significantly improved mechanical characteristics.
◎ Zirconia has three important property advantages compared to
alumina.
◎ Zirconia exhibits better impact strength.
◎ Zirconia is harder than alumina.
◎ Zirconia can be honed to finer surface finishes than alumina.
Finished to 4 RMS, ◎Zirconia liners - provide a surface finish
that's three to four times finer than alumina.
All three of these property advantages translate to lower ownership
costs. The improved wear directly extends the service life of the
sleeve, while the improved impact strength cuts down on the
significant costs of replacing broken liners in the field. The
surface finish improvements, meanwhile, have an indirect effect.
The finer surface finish means less friction with the
elastomer-and-metal pump pistons, which in trun extends piston life
and reduces pump-cooling requirements.
◎ HP design with shoulder-on-hull design to prevent sleeve slippage
◎ Reduced liner and piston wear
◎ Rated for all drilling operations up to 7500 PSI
◎ Bore hardness of 92-94 Rockwell
◎ ID tolerances of +.010”/ -.000”
◎ Surface finish of 4 - 8 RMS
◎ Hardness i s HV 0.3 kg/mm – 1100/1200 ( 92 - 94 Rc)
◎ High pressure design to prevent slippage
◎ Liner sizes are available from 4½” to 7” for all popular mud
pumps
Southwest mud pump zirconia liner part number:
| Southwest T1300/1600 | 6307G06 PREM | 6307G08 PREM | 6307G1 PREM | 6307G3 PREM | 6307G5 PREM | 6307G7 PREM | 6307G9 PREM |
| Southwest A1400/1700PT | 1388G06 PREM | 1388G08 PREM | 1388G1 PREM | 1388G3 PREM | 1388G5 PREM | 1388G7 PREM | 1388G9 PREM |
| Southwest LEWCO 12-P-WH 1612 | 1376G06 PREM | 1376G08 PREM | 1376G1 PREM | 1376G3 PREM | 1376G5 PREM | 1376G7 PREM | 1376G9 PREM |
SOUTHWEST 8407-7A FLUID END FOR IDECO T-1600 / T-1300

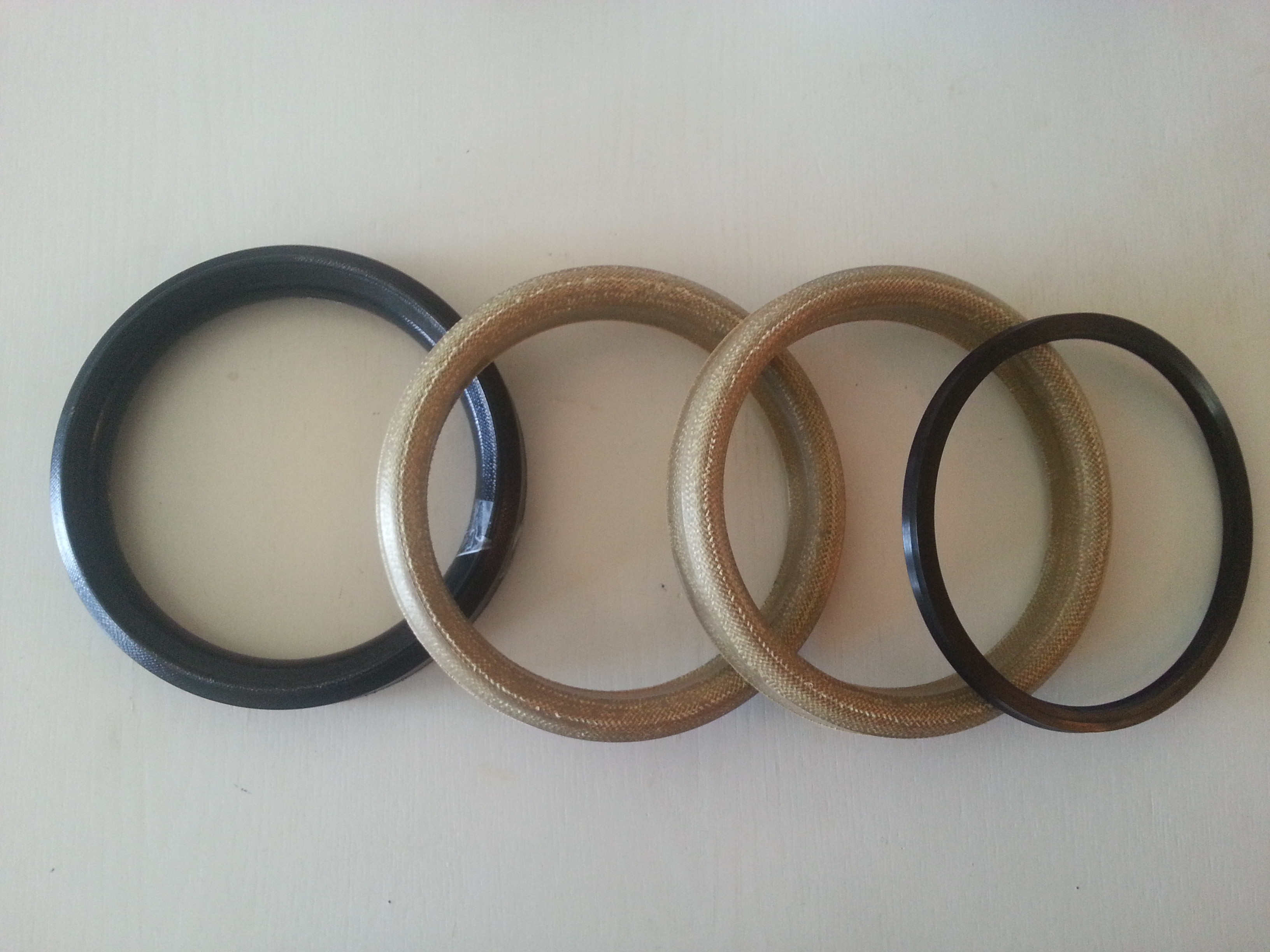

| ITEM NO. | PART NO. |
DESCRIPTION | QTY. REQ’D |
| 8407-7A | FLUID END ASSEMBLY: (CONSIST OF ITEMS: 3,4,17,18,19,20,21,
22,23,24,25,26,27,28,29,31,32,33,34,36,37) | |
| 1 | 6307YXX | LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX)) | 3 |
| 2 | AJO507U | LINER CYLINDER HEAD AND VALVE COVER SEAL (URETHANE) | 3 |
| 3 | 8407-10 | WEARPLATE | 3 |
| 3A | 4018-98 | WEARPLATE SOCKET HEAD CAP SCREW | 9 |
| 4 | 2988 | WEARPLATE AND MODULE SEAL | 6 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND SIZE (XX)) | 3 |
| 5A | 2932 | PISTON BUSHING (FROM 1-5/8” TO 1-1/2” STRAIGHT BORE) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 6278-25 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 1290-2 | PISTON ROD CONNECTING STUD | 3 |
| 10 | 6207-1 | SUB ROD | 3 |
| 11 | 6207CW | ROD CLAMP (CONSIST OF 11A, 11B, 11C) | 3 |
| 11A | 1200H30 | HOSE (1/2” X 30” WITH ½” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 11B | 1200140 | PIPE (3/8” X 14” GALVANIZED, AND THREADED ON ONE END) | 3 |
| 11C | 4018-92 | ROD CLAMP BOLT (5/8”-8” GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12 | 6200G07 | PONY ROD | 3 |
| 13 | SEE PAGE | VALVE | 6 |
| 14 | SEE PAGE | VALVE INSERT (IF REQUIRED) | 6 |
| 15 | SEE PAGE | VALVE SPRING | 6 |
| 16 | SEE PAGE | VALVE SEAT | 6 |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) | |
| 4475-2A | SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY: (CONSIST OF ITEM NO. 17-24) | 6 |
| 17 | 4475 | THREADED FLANGE | 6 |
| 18 | 4575 | SCREW GLAND | 6 |
| 19 | 4675-2A | PLUG (COMPLETE WITH VALVE GUIDE; SCREWS; AND BUSHING) | 6 |
| 20 | P129 | HP VALVE COVER PLUG SEAL | 6 |
| 21 | 4775-2R | VALVE GUIDE (COMPLETE WITH BUSHING PART# 4700I) | 6 |
| 22 | 4700I | VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU) | 6 |
| 23 | 4016-99 | VALVE GUIDE SCREW | 12 |
| 24 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1-1/4”-7” HEAVY HEX NUT) | 72 |
| 25 | 4018-68 | POWER END AND LINER RETAINER STUD (WITH SW PART# HHN1500-8 1-1/2” -8” HEAVY HEX NUT) | 24 |
| ITEM NO. | PART NO. |
DESCRIPTION | QTY. REQ’D |
| 26 | 6407 | LINER RETAINER FLANGE | 3 |
| 27 | 6507 | LINER RETAINER NUT | 3 |
| 28 | 4016-97 | SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1-1/2” -8” HEAVY HEX NUT) | 18 |
| 29 | 4017-59 | SUCTION MANIFOLD CAP SCREW | 24 |
| 30 | 8407-8 | SUCTION MANIFOLD | 1 |
| 31 | 568-447 | SUCTION MANIFOLD GASKET | 3 |
| 32 | 8407-11S | SUCTION MODULE | 3 |
| 33 | 8407-7D | DISCHARGE MODULE | 3 |
| 34 | 8488-5 | DOWEL PIN | 6 |
| 35 | 8407-9 | DISCHARGE MANIFOLD | 1 |
| 36 | 568-339 | DISCHARGE MANIFOLD SEAL | 3 |
| 37 | 4017-50 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN11250-8 1-1/4”-8” HEAVY HEX NUT) | 12 |
| 38 | 9070019 | PONY ROD SEAL | 3 |
| 39 | 9060012 | BAFFLE | 3 |
| SOUTHWEST 5000 PSI IDECO T-1600/T-1300 GUIDE TO ORDERING |
| PISTONS | LINERS | LINER GASKETS |
| SIZE | FAIL-SAFE | DUAL-DURO® | GRAYLOY® | ZIRCONIA | | RUBBER | URETHANE |
| 4" | 76BFS | 76BDD | 6307G06 | | | AJO507 | AJO507U |
| 4 1/4" | 77BFS | 77BDD | 6307G07 | | | AJO507 | AJO507U |
| 4 1/2" | 78BFS | 78BDD | 6307G08 | | | AJO507 | AJO507U |
| 4 3/4" | 79BFS | 79BDD | 6307G09 | | | AJO507 | AJO507U |
| 5" | 81BFS | 81BDD | 6307G1 | | | AJO507 | AJO507U |
| 5 1/4" | 82BFS | 82BDD | 6307G2 | | | AJO507 | AJO507U |
| 5 1/2" | 83BFS | 83BDD | 6307G3 | 6307ZIR3 | | AJO507 | AJO507U |
| 5 3/4" | 84BFS | 84BDD | 6307G4 | | | AJO507 | AJO507U |
| 6" | 85BFS | 85BDD | 6307G5 | 6307ZIR5 | | AJO507 | AJO507U |
| 6 1/4" | 86BFS | 86BDD | 6307G6 | | | AJO507 | AJO507U |
| 6 1/2" | 87BFS | 87BDD | 6307G7 | 6307ZIR7 | | AJO507 | AJO507U |
| 6 3/4" | 88BFS | 88BDD | 6307G8 | | | AJO507 | AJO507U |
| 7" | 89BFS | 89BDD | 6307GS9 | 6307ZIR9 | | AJO507 | AJO507U |
| 7 1/4" | 91BFS | 91BDD | | | | AJO507 | AJO507U |
| 7 1/2" | 92BFS | 92BDD | | | | AJO507 | AJO507U |
VALVES & SEATS SOUTHWEST 8407-7A IDECO T-1600 / T-1300
| VALVES & SEATS SOUTHWEST 8407-7A IDECO T-1600 / T-1300 |
| TYPE | VALVE | INSERT | SPRING | STAINLESS SPRING | SEAT | PULLER HEAD | PULLER HEAD STYLE |
| SOUTHWEST (Full Open) | 777-8B | N/A | 941 | N/A | 877-7 | SWTM4250 | SPLIT JAW |
| FULL OPEN-ROUGHNECK | SWND-7V2 | N/A | SW5710-115L | N/A | SWND-7S1 | SWTM40-SN SWND-7PH | SPLIT JAW PANCAKE |
FULL OPEN-ROUGHNECK (High Temp) | SWND-7V2H | N/A | SW5710-115L | N/A | SWND-7S1 | SWTM40-SN SWND-7PH | SPLIT JAW PANCAKE |
FULL OPEN-ROUGHNECK (w/Replaceable Urethane Insert) | SWND-7V1 | SWND-7I | SW5710-115L | N/A | SWND-7S1 | SWTM40-SN SWND-7PH | SPLIT JAW PANCAKE |
| 3 WEB DOUBLE ANGLE O-RING | SWR0500110 | SWR0514275 | SWR0513744 | SWR0514790 | SWR0509309 | SWTM3-7T |
3 J HOOK |
| 3 WEB (High Temp) | SWR0520502 | SWR0520501 | SWR0513744 | SWR0514790 | SWR0509309 | SWTM3-7T | |
| 3 WEB STANDARD PLATE | SWR0505062 | SWR0504893 | SWR0513937 | SWR0514423 | SWR0509309 | SWTM3-7T | |
| 4 WEB | SWU5C-EEF | SWUDD-7B | SW5710-115 | N/A | SW7DD-B1 | SWTM4-7 | 4 J HOOK |
| 4 WEB (High Temp) | SWU5C-EEFHT | SWUDD-7BHT | SW5710-115 | N/A | SW7DD-B1 | SWTM4-7 | |
| | | | | | | |
All our fluid end parts are manufactured to API 7K quality
standards.
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000,
F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500,
D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220,
E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG,
KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L,
NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson,
Gaso, Skytop/Brewster.
1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No.
P107802
Insert Part No. P107186 Spring
2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180
Insert Part No. P107182 Spring
3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No.
P107187
Insert Part No. P107189 Spring4P102382
SPM2000压裂泵的型号及规格
1,Plunger Size 3.75" Plunge Part No 3P103887
2,Plunger Size 4.00" Plunge Part No 3P100339
3,Plunger Size 4.50" Plunge Part No 3P100654
4,Plunger Size" 5.00" Plunge Part No 3P100233
5,Plunger Size" 5.50 Plunge Part No 3P107060
6,Plunger Size" 5.75" Plunge Part No 3P107061
7,Plunger Size 6.00 Plunge Part No 3P107062
SPM压裂泵的型号
TWS 250 Plunger Size 1.75"-3" 3.25"-4"
TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”
TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"
TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"
TWS 900 Plunger Size 3.50"-4"
TWS 1250LW Plunger Size 4"
OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”
TWS1000LW,TWS1300
Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”
TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”
TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 •
F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651
• 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 •
TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T •
GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 •
J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 •
12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT •
A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT •
A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through
SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® -
Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 •
F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651
• 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 •
TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T •
GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 •
J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 •
12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT •
A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT •
A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through
SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® -
Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD |
FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP
GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900
| Item | Description | Part Number | Type of pump |
| 1 | Discahrge Module | 01913275 | 9T1000/9T800 |
| 2 | Suction Module | 01913274 | 9T1000 |
| 6 | Plug | 01913304 | 9T1000 |
| 7 | Valve guide bushing | 01913305 | 9T1000 |
| 8 | Flange | 01913396 | 9T1000 |
| 9 | Valve kit | 40390796 | 9T1000 |
| 10 | Cross head | 01913260 | 9T1000 |
| 11 | Crosshead slipper guide | 01913261 | 9T1000 |
| 12 | Extension rod | 01913263 | 9T1000 |
| 13 | 2-half tie collar | 01913266 | 9T1000 |
| 14 | Counter rod | 01913267 | 9T1000 |
| 15 | Piston rod | 01913298 | 9T1000 |
| 16 | Hydraulic cylinder for extractor | 01913133 | 9T1000 |
| 17 | Complete valve | 40390797 | 9T1000 |
| 18 | Valve seat | 40390798 | 9T1000 |
| 19 | Spring | RI40390796-03 | 9T1000 |
| 20 | Valve insert | RI40390797-01 | 9T1000 |
| 21 | Pulsations damper | 40391524 - 1 | 9T1000 |
| 22 | 4-1/2" Liner | 01913505 | 9T1000 |
| 23 | 4-1/2" Piston | 01910970 | 9T1000 |
| 24 | 5" Liner | 01913503 | 9T1000 |
| 25 | 5" Piston | 01910862 | 9T1000 |
| 26 | 5-1/2" Liner | 01913288 | 9T1000 |
| 27 | 5-1/2" Piston | 01910938 | 9T1000 |
| 28 | 6" Liner | 01913293 | 9T1000 |
| 29 | 6" Piston | 01910863 | 9T1000 |
| 30 | 6-1/2" Liner | 01913290 | 9T1000 |
| 31 | 6-1/2" Piston | 01911061 | 9T1000 |
| 32 | 7" Liner | 01913294 | 9T1000 |
| 33 | 7" Piston | 01920592 | 9T1000 |
| Item | Description | Part Nmber |
| 1 | VALVE API 8" FULL-OPEN VALVE | 40392143 |
| 2 | SEAT API 8"FULL-OPEN VALVE | 40392144 |
| 3 | SPRING API 8"FULL-OPEN VALVE | 40392145 |
| 4 | 7"BI-METAL LINER | 01919525 |
| 5 | 7" LINER GASKET | 10913315 |
| 6 | 7"PISTON | 01912155 |
| 7 | 6 1/2"BI-METAL LINER | 01919511 |
| 8 | 6 1/2"LINER GASKET | 01913581 |
| 9 | 6 1/2"PISTON | 01912149 |
| 10 | 6"BI-METAL LINER | 01919524 |
| 11 | 6" LINER GASKET | 01913292 |
| 12 | 6"PISTON | 01912163 |
| 13 | 5 1/2"BI-METAL LINER | 01919523 |
| 14 | 5 1/2" LINER GASKET | 01913508 |
| 15 | 5 1/2" PISTON | 01912154 |
| 16 | 5"BI-METAL LINER | 01919522 |
| 17 | 5"LINER GASKET | 01913284 |
| 18 | 5"PISTON | 01912153 |
| ITEM NO. |
PART NO. |
DESCRIPTION | QTY. REQ’D |
| 8404-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS:
3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42) | |
| 1 | 1376YXX | LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND
FOR BORE SIZE (XX) | 3 |
| 2 | 2930-XX | LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) | 3 |
| 3 | 8490-28 | LINER WEARPLATE (WITH 568-443 O-RING) | 3 |
| 4 | 2988 | WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) | 6 |
| 5 | XX-BYY | PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR
TYPE (YY) | 3 |
| 6 | 568-225 | PISTON SEAL | 3 |
| 7 | 6278-25 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD NUT | 3 |
| 9 | 1290-2 | PISTON ROD CONNECTING STUD | 3 |
| 10 | 6284-1 | SUB ROD | 3 |
| 11 | 6274CWY | ROD CLAMP (WITH WATER JACKET) | 3 |
| 11A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 11B | 1286CWYFP | ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE | 3 |
| 11C | 4020-29 | BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12 | 1200G74 | PONY ROD | 3 |
| 13 | SEE PAGE | VALVE | 6 |
| 14 | SEE PAGE | VALVE INSERT | 6 |
| 15 | SEE PAGE | VALVE SPRING | 6 |
| 16 | SEE PAGE | VALVE SEAT | 6 |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 |
| 17 | 4488-25 | VALVE COVER FLANGE | 6 |
| 18 | 4588-25 | SCREW GLAND | 6 |
| 19 | 4690-25A | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20,
21, 22, &23 | 6 |
| 20 | P115 | HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) | 6 |
| 21 | 4788-25R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 22 | 4700I | VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) | 6 |
| 23 | 4018-18 | VALVE GUIDE SCREW | 12 |
| 24 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) | 72 |
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | BOMCO F-1600 | 7 ½” X 12” |
| ITEM NO. |
PART NO. |
DESCRIPTION | QTY. REQ’D |
| 25 | 4017-33 | POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) | 30 |
| 26 | 568-443 | WEARPLATE 'O' RING | 3 |
| 27 | 6490-25 | LINER RETAINER FLANGE | 3 |
| 28 | 4019-51 | LINER RETAINER CAPSCREW | 36 |
| 29 | 6590-25 | LINER RETAINER NUT | 3 |
| 30 | 4019-61 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) | 18 |
| 31 | 4018-19 | SUCTION MANIFOLD CAPSCREW | 18 |
| 32 | 8590-6 | SUCTION MANIFOLD | 1 |
| 33 | 568-442 | SUCTION MANIFOLD 'O' RING | 3 |
| 34 | 8404-26 | SUCTION MODULE | 3 |
| 35 | 8404-27 | DISCHARGE MODULE | 3 |
| 36 | 8488-5 | DOWEL PIN | 6 |
| 37 | 8376-25MOD | DISCHARGE MANIFOLD | 1 |
| 38 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) | 18 |
| 39 | 2988 | DISCHARGE MANIFOLD SEAL | 3 |
| 40 | 6490-25P | LINER RETAINER PULLER | 1 |
| 41 | LW875 | LOCKWASHER 7/8 | 18 |
| 42 | LW500 | LOCKWASHER ½ | 12 |
SOUTHWEST 8477-25A FLUID END FOR GARDNER DENVER PZ-11/PZ-10
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | GARDNER DENVER PZ11/10 | 6 ¾” X 11” |
| ITEM | P/N | DESCRIPTION | QTY. REQ’D |
| 8477-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS:
3,4,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39) | |
| 1 | 1367Y-XX 1367AY-XX | LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (Y); AND FOR BORE SIZE
(XX) LINER 6 ¼” THRU 6 ¾” | 3 |
| 2 | 2930-XXU** 2974-XXU** | LINER SEAL LINER SEAL FOR LINERS 6 ¼” THRU 6 ¾” | 3 |
| 3 | 8477-29 | ALIGNMENT RING | 3 |
| 4 | 8477-30 | WEARPLATE (REPLACES WEARPLATE NO. 8477-28) | 3 |
| 5 | 2988U** | WEARPLATE, MODULE, AND DISCHARGE MANIFOLD SEAL | 9 |
| 6 | XX-BYY | PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) | 3 |
| 7 | 568-225 | PISTON O-RING | 3 |
| 8 | 6278-25 | PISTON ROD (WITH 1 ½-8-UN ELASTIC STOP NUT) | 3 |
| 9 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 10 | 1290-2 | PISTON ROD CONNECTING STUD | 3 |
| 11 | 6279-1 | SUB ROD (CLAMP TYPE; SCREW TYPE SUB ROD IS PART NO. 6280-1) | 3 |
| 12 | 1277CW | ROD CLAMP (WITH WATER JACKET) (CONSIST OF 12A, 12B, 12C) | 3 |
| 12A | 1200120 | SPRAY PIPE (3/8” x 12” GALVANIZED AND THREADED ON ONE END) | 3 |
| 12B | 4018-96 | BOLT (5/8”-11UN GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12C | 1200H30 | HOSE (1/2” x 30” WITH 1/2” MALE AND 3/8” MALE CONNECTIONS) | 3 |
| 13 | 1200G77 | PONY ROD (CLAMP TYPE; SCREW TYPE PONY ROD IS PART NO. 1200G88) | 3 |
| 14 | | VALVE | 6 |
| 15 | | VALVE INSERT | 6 |
| 16 | | VALVE SPRING | 6 |
| 17 | | VALVE SEAT | 6 |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) | 1 |
| 18 | 4488-25 | VALVE COVER FLANGE | 6 |
| 19 | 4588-25 | SCREW GLAND | 6 |
| 20 | 4688-25 | PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 22,
23, & 24) | 6 |
| 21 | P115 | HP VALVE COVER PLUG NITRILE SEAL (P115U URETHANE SEAL AVAILABLE) | 6 |
| 22 | 4788-25R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 23 | 4700I | VALVE GUIDE BUSHING | 6 |
| 24 | 4018-18 | VALVE GUIDE SCREW | 12 |
| 25 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 72 |
| 26 | 4019-46 | POWER END STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 24 |
| 27 | 6477-25 | LINER RETAINER FLANGE | 3 |
| 28 | 4019-45 | LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 24 |
| 29 | 6577-25 | LINER RETAINER NUT | 3 |
| 30 | 4019-44 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) | 18 |
| 31 | 4017-77 | SUCTION MANIFOLD CAP SCREW | 24 |
| 32 | 8577-25 | SUCTION MANIFOLD | 1 |
| 33 | AJO245 | SUCTION MANIFOLD SEAL | 3 |
| 34 | 8477-26 | SUCTION MODULE | 3 |
| 35 | 8477-27 | DISCHARGE MODULE | 3 |
| 36 | 8488-5 | DOWEL PIN | 6 |
| 37 | 8377-27 | DISCHARGE MANIFOLD (For serial numbers 9222 & below, use 8377-25 to keep from
relocating discharge piping) | 1 |
| 38 | 4019-45 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 12 |
