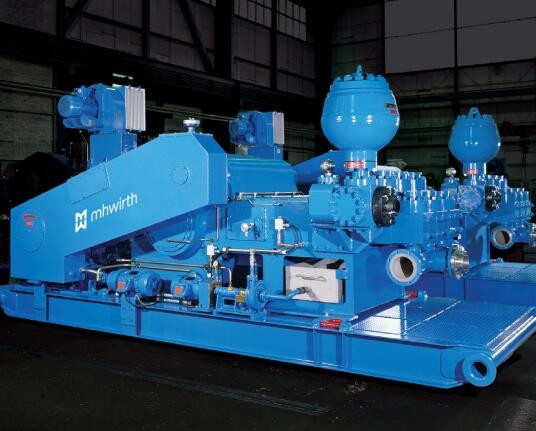

MHWirth’s mud pumps deliver pressure and fluid volumes to meet all your project requirements both on- and offshore.
With less noise and vibration, our mud pumps reduce service costs and increase operational efficiency.
Our gear driven drive has an extended lifetime of up to 50 000 hours and is more durable than traditional chain or belt driven drives. Our AC water jacket motor reduces noise to less than 85 dBA and the hydraulic quick release system allows fast and safe replacement of fluid end parts.
We deliver mud pumps with a maximum discharge pressure of 10 000 psi and with various skid arrangements for rear or top mounted motors, we have a configuration to meet every on- or offshore rig arrangements.
| Description | F500 | F800 | F1000 | F1300/1600 | F1600HL | F2200HL |
| Liner of Crosshead Upper | AH0501010402 | AH0801010402 | AH1001010402 | AH1301010402 | AH1301010402 | AH2202010402 |
| Liner of Crosshead Lower | | AH0801010408 | AH1001010409 | AH1301010412 | AH1301010412 | AH2202010403 |
| Pin of Crosshead | AH0501010404 | AH0801010407 | AH1001010408 | AH1301010410 | AH1301010410 | AH2202010410 |
| Extension Rod | AH0501010410 | AH0801010406 | AH1001010407 | AH1301010409 | AH1301010409 | AH2202010409 |
| Sub Rod | | | | | | |
| Crosshead | AH0501010401 | AH0801010401 | AH1001010401 | AH1301010401 | AH1301010401 | AH2202010401 |
| Pinion Shaft | AH0501010302 | AH0801010302 | AH1001010302 | AH1601010201 | AH1601010201 | |
| Wear Ring of Pinion shaft | AH0501010303 | AH0801010303 | AH1001010303 | AH1301010303 | AH1301010303 | AH2202010306 |
| Carrier, Bearing Left | AH0501010212 | AH0801010213 | AH1001010212 | AH1601010105 | AH1601010105 | AH2202010212 |
| Carrier, Bearing Right | AH0501010202 | AH0801010202 | AH1001010202 | AH1601010101 | AH1601010101 | AH2202010202 |
| Connecting Rod | AH0501010206 | AH0801010206 | AH1001010206 | AH1601010103 | AH1601010103 | AH2202010206 |
| Bull Gear | AH0501010210 | AH0801010210 | AH1001010219 | AH160101010400 | AH160101010400 | AH220201021000 |
| Bolt, Main Bearing | AH051020207 | AH0801020206 | AH1001010215 | AH1301010215 | AH1301010215 | AH2202010215 |
| Bearing, Crosshead | 5G354920Q | 4G254735Q | 5G254936Q | AH1301010414 | AH1301010414 | |
| Bearing, Pinion Shanft | 4G32828H | 4G32836H | 4G32840H | AH1301010312 | AH1301010312 | AH2202010315 |
| Bearing, Eccentric | 92984QU | 928/508QU | 929/558.8QU | AH160101010700 | AH160101010700 | AH2202010217 |
| Bearing, Main | 3053738U | 3053748H | 4053156H | AH160101010800 | AH160101010800 | AH2202010218 |
All our fluid end parts are manufactured to API 7K quality standards.
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
SOUTHWEST “NEW STYLE” 8476-4A
National 12-P-160
| ITEM | P/N | DESCRIPTION | QTY. |
| | 8476-4A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3,4,16,17,18,19, 20, 21,22,23,24,25,26,27,28,29,31,32,33,34,&47) | |
| 1 | 1376YXX | LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX)) | 3 |
| 2 | 2930-XX | LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) | 3 |
| 3 | 8476-3 | WEARPLATE | 3 |
| 4 | 2988 | WEARPLATE AND MODULE SEAL (2988U URETHANE AVAILABLE) | 6 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 1286-32 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 1286-1 | SUB ROD | 3 |
| 10 | 1286CWY | ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) | 6 |
| 10A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 10B | 1286CWYFP14 | DUAL SPRAY PIPE | 3 |
| 10C | 4020-29 | ROD CLAMP BOLT (7/8 X 5” GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 12 |
| 11 | 1200G86 | PONY ROD | 3 |
| 12 | | VALVE | 6 |
| 13 | | VALVE INSERT (IF REQUIRED) | 6 |
| 14 | | VALVE SPRING | 6 |
| 15 | | VALVE SEAT | 6 |
| | SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) | |
| | 4476-6A | SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY (CONSISTS OF ITEMS 16-23) | 6 |
| 16 | 4476 | THREADED FLANGE | 6 |
| 17 | 4597 | SCREW GLAND | 6 |
| 18 | 4676-6A | PLUG (COMPLETE WITH VALVE GUIDE, SCREWS, AND BUSHING) | 6 |
| 19 | P119 | HP VALVE COVER PLUG SEAL | 6 |
| 20 | 4776R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 21 | 4700I | VALVE GUIDE BUSHING (4700I URETHANE AVAILABLE) | 6 |
| 22 | 4016-98 | VALVE GUIDE SCREW | 12 |
| 23 | 4015-54 | VALVE COVER STUD (WITH SW PART# HHN1500-6 1-1/2-6” HEAVY HEX NUT) | 72 |
| 24 | 4015-95 | POWER END STUD (WITH SW PART# HHN1375-6 1-3/8”6 HEAVY HEX NUT) | 30 |
| 25 | 4017-65 | LINER RETAINER FERRY HEAD CAP SCREW | 18 |
| 26 | 6476 | LINER RETAINER FLANGE | 3 |
| 27 | 6576 | LINER RETAINER NUT | 3 |
| 28 | 4018-17 | SUCTION MODULE STUD (WITH SW PART# HHN1750-6 1-3/4”-6 HEAVY HEX NUT) | 18 |
| 29 | 4018-19 | SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) | 24 |
| 30 | 8576-50 | SUCTION MANIFOLD (FRONT OR SIDE INLET) | 1 |
| 31 | AJO419R | SUCTION MANIFOLD GASKET | 3 |
| 32 | 8476-6S | SUCTION MODULE (STUDDED ONLY) | 3 |
| 33 | 8476-5D | DISCHARGE MODULE (STUDDED ONLY) | 3 |
| 34 | 8488-5 | DOWEL PIN | 6 |
| | | ITEMS NUMBERS 35 THRU 46 ARE NOT SHOWN INTENTIONALLY | |
| 47 | 4018-18 | DISCHARGE CONNECTOR CAP SCREW (WITH LOCK WASHER) | 16 |
| 48 | 4018-39 | DISCHARGE SPACER FLANGE SOCKET HEAD CAP SCREW | 16 |
| 49 | 8376-1 | DISCHARGE CONNECTOR | 2 |
| 50 | 8376-2 | DISCHARGE ADAPTER | 2 |
| 51 | 8376-3 | BACK-UP RING | 4 |
| 52 | 8376-4 | DISCHARGE SPACER FLANGE | 2 |
| 53 | 2976-3 | DISCHARGE SPACER FLANGE SEAL | 2 |
| 54 | 2976-1 | DISCHARGE CONNECTOR / ADAPTER PACKING | 2 |
| 55 | 2976-2 | DISCHARGE CONNECTOR / ADAPTER PACKING | 4 |
| 56 | R44D | RING JOINT GASKET | 2 |
| 57 | 4017-22 | DISCHARGE SPACER FLANGE STUD (WITH SW PART# HHN1500-6 1-1/2”-6 HEAVY HEX NUT) | 16 |
| 58 | 5000-5BFLANGE | BLIND FLANGE 5" | 1 |
| 59 | 9070012 | PONY ROD SEAL | 12 |
| 60 | 80491292 | SPLASH GUARD | 3 |
| 61 | 8376-50A | COMPLETE STRAINER CROSS | 1 |
| 62 | 8376-50 | STUDDED STRAINER CROSS ONLY | 1 |
SOUTHWEST 8476-25A
National 12-P-160
| ITEM | P/N | DESCRIPTION | QTY |
| | 8476-25A | FLUID END ASSEMBLY (CONSISTS OF ITEMS 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,31,32,33,34,36,37,38) | |
| 1 | 1376YXX | LINER (REFER TO- GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 |
| 2 | 2930-XX | LINER SEAL (REFER TO- GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) | 3 |
| 3 | 8476-3 | WEARPLATE | 3 |
| 4 | 2988 | WEARPLATE, AND DISCHARGE MANIFOLD SEAL | 6 |
| 5 | XX-BYY | PISTON (REFER TO- GUIDE FOR ORDERING CHART FOR SIZE (XX) AND TYPE (YY)) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 1286-32 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 1286-1 | SUB ROD | 3 |
| 10 | 1286CWY | ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) | 6 |
| 10A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 10B | 1286CWYFP14 | PIPE (3/8” X 14” GALVANIZED AND THREADED ON ONE END) | 3 |
| 10C | 4020-29 | BOLT (7/8 - 9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 12 |
| 11 | 1200G86 | PONY ROD | 3 |
| 12 | | VALVE | 6 |
| 13 | | VALVE INSERT (IF REQUIRED) | 6 |
| 14 | | VALVE SPRING | 6 |
| 15 | | VALVE SEAT | 6 |
| | SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) | 1 |
| 16 | 4488-25 | THREADED FLANGE | 6 |
| 17 | 4588-25 | SCREW GLAND | 6 |
| 18 | 4690-25A | PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 20, 21, & 22) | 6 |
| 19 | P115 | HP VALVE COVER PLUG NITRILE SEAL | 6 |
| 20 | 4788-25R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 21 | 4700I | VALVE GUIDE BUSHING | 6 |
| 22 | 4018-88 | VALVE GUIDE SCREW | 12 |
| 23 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) | 72 |
| 24 | 4015-95 | POWER END STUD (WITH SW PART# HHN1375-6 1 3/8-6 HEAVY HEX NUT) | 30 |
| 25 | 6476 | LINER RETAINER FLANGE | 3 |
| 26 | 4017-65 | LINER RETAINER FERRY HEAD CAP SCREW | 18 |
| 27 | 6576 | LINER RETAINER NUT | 3 |
| 28 | 4019-54 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4-8 HEAVY HEX NUT) | 18 |
| 29 | 4018-19 | SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) | 24 |
| 30 | 8576-50 | SUCTION MANIFOLD (FRONT OR SIDE INLET) | 1 |
| 31 | AJO419R | SUCTION MANIFOLD GASKET | 3 |
| 32 | 8476-26S | SUCTION MODULE | 3 |
| 33 | 8476-27D | DISCHARGE MODULE | 3 |
| 34 | 8488-5 | DOWEL PIN | 6 |
| 35 | 8376-25MOD | DISCHARGE MANIFOLD | 1 |
| 36 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) | 18 |
| 37 | LW500 | LOCKWASHER | 12 |
| 38 | LW875 | LOCKWASHER | 24 |
| 39 | 9070012 | PONY ROD SEAL | 12 |
| 40 | 80491292 | SPLASH GUARD | 3 |
| 23 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) | 72 |
| 24 | 4015-95 | POWER END STUD (WITH SW PART# HHN1375-6 1 3/8-6 HEAVY HEX NUT) | 30 |
| 25 | 6476 | LINER RETAINER FLANGE | 3 |
| 26 | 4017-65 | LINER RETAINER FERRY HEAD CAP SCREW | 18 |
| 27 | 6576 | LINER RETAINER NUT | 3 |
| 28 | 4019-54 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4-8 HEAVY HEX NUT) | 18 |
SOUTHWEST “OLD STYLE” 8476-A
National 12-P-160
| ITEM | P/N | DESCRIPTION | QTY |
| | 8476-A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3,4,16,17,18,19, 20, 21,22,23,24,25,26,27,28,29,31,32,33,34,&47) | |
| 1 | 1376YXX | LINER (REFER TO GUIDE TO ORDERING CHART FOR TYPE (Y) AND FOR SIZE (XX)) | 3 |
| 2 | 2930-XX | LINER SEAL (REFER TO GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) | 3 |
| 3 | 8476-3 | WEARPLATE | 3 |
| 4 | 2988 | WEARPLATE AND MODULE SEAL | 6 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE TO ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 1286-32 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 1286-1 | SUB ROD | 3 |
| 10 | 1286CWY | ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) | 6 |
| 10A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 10B | 1200140 | PIPE | 3 |
| 10C | 4018-92 | ROD CLAMP BOLT (7/8 X 5” GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 12 |
| 11 | 1200G86 | PONY ROD | 3 |
| 12 | | VALVE | 6 |
| 13 | | VALVE INSERT (IF REQUIRED) | 6 |
| 14 | | VALVE SPRING | 6 |
| 15 | | VALVE SEAT | 6 |
| | SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) | |
| | 4476-2A | SOUTHWEST HP QUICK-CHANGE VALVE COVER ASSEMBLY (CONSISTS OF ITEMS 16-23) | 6 |
| 16 | 4476 | THREADED FLANGE | 6 |
| 17 | 4597 | SCREW GLAND | 6 |
| 18 | 4676-2A | PLUG (COMPLETE WITH VALVE GUIDE, SCREWS, AND BUSHING) | 6 |
| 19 | P107 | HP VALVE COVER PLUG SEAL | 6 |
| 20 | 4776R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 21 | 4700I | VALVE GUIDE BUSHING | 6 |
| 22 | 4016-98 | VALVE GUIDE SCREW | 12 |
| 23 | 4015-54 | VALVE COVER STUD (WITH SW PART# HHN1500-6 1-1/2-6” HEAVY HEX NUT) | 72 |
| 24 | 4015-95 | POWER END STUD (WITH SW PART# HHN1375-6 1-3/8”6 HEAVY HEX NUT) | 30 |
| 25 | 4017-65 | LINER RETAINER FERRY HEAD CAP SCREW | 18 |
| 26 | 6476 | LINER RETAINER FLANGE | 3 |
| 27 | 6576 | LINER RETAINER NUT | 3 |
| 28 | 4018-17 | SUCTION MODULE STUD (WITH SW PART# HHN1750-6 1-3/4”-6 HEAVY HEX NUT) | 18 |
| 29 | 4018-19 | SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) | 24 |
| 30 | 8576-50 | SUCTION MANIFOLD (FRONT OR SIDE INLET) | 1 |
| 31 | AJO419R | SUCTION MANIFOLD GASKET | 3 |
| 32 | 8476-2S | SUCTION MODULE (STUDDED ONLY) | 3 |
| 33 | 8476-1D | DISCHARGE MODULE (STUDDED ONLY) | 3 |
| 34 | 8488-5 | DOWEL PIN | 6 |
| | | ITEMS NUMBERS 35 THRU 46 ARE NOT SHOWN INTENTIONALLY | |
| 47 | 4018-18 | DISCHARGE CONNECTOR CAP SCREW (WITH LOCK WASHER) | 16 |
| 48 | 4018-39 | DISCHARGE SPACER FLANGE SOCKET HEAD CAP SCREW | 16 |
| 49 | 8376-1 | DISCHARGE CONNECTOR | 2 |
| 50 | 8376-2 | DISCHARGE ADAPTER | 2 |
| 51 | 8376-3 | BACK-UP RING | 4 |
| 52 | 8376-4 | DISCHARGE SPACER FLANGE | 2 |
| 53 | 2976-3 | DISCHARGE SPACER FLANGE SEAL | 2 |
| 54 | 2976-1 | DISCHARGE CONNECTOR / ADAPTER PACKING | 2 |
| 55 | 2976-2 | DISCHARGE CONNECTOR / ADAPTER PACKING | 4 |
| 56 | R44D | RING JOINT GASKET | 2 |
| 57 | 4017-22 | DISCHARGE SPACER FLANGE STUD (WITH SW PART# HHN1500-6 1-1/2”-6 HEAVY HEX NUT) | 16 |
| OILWELL A-1700PT-L |
| FLUID END MODULE & ACCESSORIES |
| |
| ITEM | PART# | DESCRIPTION | QTY |
| | TS-FEMA17DISSW | MODULE,STUDDED DISCHARGE(INCLUDES ITEMS 1,3-11) | 3 |
| 1 | TS-FEMA17DISSW | DISCHARGE MODULE ONLY | 3 |
| | TS-FEMA17SUCSW | MODULE,STUDDED SUCTION (INCLUDES ITEMS 2,9-10) | 3 |
| 2 | TS-FEMA17SUCSW | SUCTION MODULE ONLY | 3 |
| 3 | TS-OWA17DMSSW | STUD,DISCHARGE MANIFOLD | 12 |
| 4 | TS-0-7601-0630-28 | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 5 | TS-OWA17PFSSW | STUD,POWER FRAME | 12 |
| 6 | TS-75510126 | NUT,POWER FRAME STUD | 12 |
| 7 | TS-OWA17DSUCSSW | STUD,DISCHARGE TO SUCTION MODULE | 18 |
| 8 | TS-0-7601-0630-17 | NUT,FOR ABOVE STUDE | 18 |
| 9 | TS-OWA17TRSSW | STUD, THREADED RING | 72 |
| 10 | TS-6300200 | NUT, THREADED RING STUD | 72 |
| 11 | TS-6511416 | PIN,DOWELL | 6 |
| 12 | TS-OWA17LRPLATESW | PLATE,LINER RETAINER | 3 |
| 13 | TS-PEP68 | CAPSCREW,LINER RETAINER PLATE | 24 |
| 14 | TS-1290344 | SEAL,DISCHARGE TO SUCTION MODULE | 3 |
| 15 | TS-20100008 | SEAL,WEAR PLATE–RUBBER(SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
| 16 | TS-10300184 | PLATE WEAR | 3 |
| 17 | TS-OWA17LLNSW | NUT,LINER LOCK | 3 |
| 18 | TS-07207129 | SEAL,VALVE COVER-RUBBER(SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 19 | TS-PEP73 | SCREW,VALVE COVER RETAINER | 12 |
| 20 | TS-OWA17VGASW | GUIDE,VALVE(INCLUDES ITEMS 20 & 22) | 6 |
| 21 | TS-OWA17VCASSYSW | PLUG,VALVE COVER(INCLUDLES ITEMS 19-22) | 6 |
| 22 | TS-PZ789VGI* | BUSHING,VALVE GUIDE | 6 |
| 23 | TS-OWA17FLGSW | RING,THREADED | 6 |
| 24 | TS-OWA17CASW | CAP,THREADED | 6 |
| 25 | TS-10300201 | GASKET,SUCTION MANIFOLD | 3 |
| 26 | TS-99609345 | GASKET,DISCHARGE MANIFOLD | 3 |
| 27 | TS-75634382 | CAPSCREW,SUCTION MANIFOLD | 24 |
| 28 | TS-PEP90 | SETSCREW,LINER RETAINER | 9 |
| NATIONAL 10-P-130 |
| FLUID END MODULE & ACCESSORIES |
| | | | |
| ITEM | PART NUMBER | DESCRIPTION | QTY/PUMP |
| | | FLUID END MODULE COMPLETE ASSEMBLY | 3 |
| 1 | TS-1290335 | MODULE, STUDDED FLUID END DISCHARGE (INCLUDES ITEM 2-10) | 3 |
| 2 | TS-1290336 | DISCHARGE MODULE ONLY | 3 |
| 3 | TS-6300240 | NUT, POWER FRAME STUD | 24 |
| 4 | TS-2408020 | STUD, POWER FRAME | 24 |
| 5 | TS-6300160 | NUT, LINER BUSHING STUD | 18 |
| 6 | TS-2408018 | STUDS, 1" X 5-7/8" DISCHARGE TO LINER BUSHING | 18 |
| 7 | TS-6300241 | NUT, DISCHARGE TO SUCTION MODULE STUD | 18 |
| 8 | TS-2408034 | STUD, DISCHARGE MODULE TO SUCTION MODULE | 18 |
| 9 | TS-6300220 | NUT, THREADED RING STUD | 36 |
| 10 | TS-2408019 | STUD, THREADED RING | 36 |
| 11 | TS-1290338 | MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEM 12-14) | 3 |
| 12 | TS-1290339 | SUCTION MODULE ONLY | 3 |
| 13 | TS-6300220 | NUT, STUD (BLIND RING AND WELD NECK FLANGES) | 36 |
| 14 | TS-2408019 | STUD, THREADED RING | 36 |
| 15 | TS-1290165 | BUSHING, LINER | 3 |
| 16 | TS-1290174 | RETAINER, SEAL | 6 |
| 17 | TS-1290307 | CAP, VALVE COVER (THREADED) | 6 |
| 18 | TS-1290178 | SCREW, ADJUSTING WEDGE | 6 |
| 19 | TS-6300160 | NUT, WEDGE ADJUSTING SCREW | 6 |
| 20 | TS-1290315 | WASHER, WEDGE ADJUSTING SCREW | 6 |
| 21 | TS-1290308 | RING, THREADED | 6 |
| 22 | TS-G1290376 | ASSEMBLY, WEDGE | 6 |
| 23 | TS-1540126 | GASKET, VALVE COVER | 6 |
| 24 | TS-1292140 | RETAINER, VALVE GUIDE BUSHING | 6 |
| 25 | TS-1292141 | BUSHING, VALVE GUIDE | 6 |
| 26 | TS-6511416 | PIN, DOWELL | 6 |
| 27 | TS-1290357 | PLATE, WEAR | 3 |
| 28 | TS-1290342 | CONNECTOR, DISCHARGE | 2 |
| 29 | TS-700030511 | CAPSCREW, DISCHARGE CONNECTOR (WASHER INCLUDED) | 16 |
| 30 | TS-7619050 | WASHER, LOCK 1/2" | 16 |
| 31 | TS-1290343 | ADAPTER, DISCHARGE CONNECTOR | 2 |
| 32 | TS-2410031348 | SEAL, SUCTION CONNECTOR TO DISCHARGE ADAPTER | 2 |
| 33 | TS-2410031427 | SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER | 4 |
| 34 | TS-1290167 | ASSEMBLY, LINER CLAMP | 3 |
| 35 | TS-700044811 | CAPSCREW, LINER CLAMP | 6 |
| 36 | TS-6309120 | NUT, LINER CAPSCREW | 6 |
| 37 | TS-1290169 | PIN, CONNECTOR | 3 |
| 38 | TS-1290168 | CONNECTOR, LINER CLAMP | 3 |
| 39 | TS-2402560 | STUD, TOP TAPER LOCK | 16 |
| 40 | TS-6300200 | NUT, 1-1/4" HVY HEX | 16 |
| GARDNER DENVER PZ-7, PZ-8, PZ-9 |
| FLUID END MODULE & ACCESSORIES |
| | | | |
| ITEM | PART NUMBER | DESCRIPTION | QTY/PUMP |
| | | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEM 2-16, 21-24) | |
| 1 | TS-205PZL029D | FLUID END MODULE STUDDED (INCLUDES ITEM 2-10) | 3 |
| 2 | TS-205-6651-18 | FLUID END MODULE ONLY | 3 |
| 3 | TS-79L188 | STUD, FRAME & LINER CLAMP | 24 |
| 4 | TS-50B36 | NUT (FOR ABOVE) | 48 |
| 5 | TS-79L73 | STUD, FRAME | 12 |
| 6 | TS-50AQ30 | NUT (FOR ABOVE) | 12 |
| 7 | TS-79AL6 | STUD, VALVE COVER | 48 |
| 8 | TS-50B34 | NUT (FOR ABOVE) | 48 |
| 9 | TS-202PZL110 | STUD, DISCHARGE MANIFOLD | 12 |
| 10 | TS-50B34 | NUT (FOR ABOVE) | 12 |
| 11 | TS-2011861 | RING, VALVE COVER GASKET EXPANDER | 6 |
| 12 | TS-2011862 | GASKET, VALVE COVER (G-749) | 6 |
| 13 | TS-2007674 | BUSHING, VALVE GUIDE | 6 |
| 14 | TS-2011860 | COVER, VALVE | 6 |
| 15 | TS-2011699 | RING, VALVE COVER THREADED | 6 |
| 16 | TS-2011857 | CAP, VALVE COVER LOCK | 6 |
| 17 | TS-2011701 | PLATE, RETAINER | 6 |
| 18 | TS-2011700 | GUIDE, VALVE SUCTION | 3 |
| 19 | TS-95W2 | WASHER, LOCK 1/2" 316SS | 6 |
| 20 | TS-655EE06S | SCREW 1/2"x1-3/4" 316SS HX HD C/S | 6 |
| 21 | TS-25AL35 | GASKET, DISCHARGE MANIFOLD | 3 |
| 22 | TS-25G41 | GASKET, SUCTION MANIFOLD | 3 |
| 23 | TS-1PV14 | CLAMP, LINER | 3 |
| 24 | TS-2011706 | ASSEMBLY, LOWER VALVE GUIDE (INCLUDES ITEM 13, 17-20) | 3 |
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900
| CONTINENTAL EMSCO FB-1300, FB-1600 | | | |
| FLUID END MODULE & ACCESSORIES | | | |
| ITEM # | OEM PART # | MISSION PART # | |
| 1 | 0-6316-0325-00 | EMSFEMFB1300CA | FLUID END MODULE COMPLETE ASSY. (ITEMS 1-22, 24- 28) |
| 1A | 0-6316-0357-00 | EMSFEMFB1300 | FLUID END MODULE STUDDED * (ITEMS 1, 2, 3, 4, 4A, 5, 6, 7, & 28) |
| 2 | | EMSFB13LCS | STUD, MODULE TO LINER CLAMP |
| 3 | 0-7601-0610-18 | PEP53 | LINER CLAMP STUD NUT |
| 4 | 0-7507-2201-00 | EMSFB13PFS | POWER FRAME STUD |
| 4A | 0-7507-2210-00 | EMSFB13TRS | STUD, MODULE TO CYLINDER |
| 5 | 0-7601-0630-17 | EMSF1000PFSN | NUT (FOR ABOVE) |
| 6 | 0-7507-2108-00 | EMSF1000DMS | STUD, MODULE TO DISC. MANIFOLD |
| 7 | 0-7601-0630-24 | IDT800TRSN | NUT (FOR ABOVE) |
| 8 | 0-6316-0354-00 | EMSFB13LVGA | GUIDE, LOWER VALVE (WITH BUSHING) |
| 9 | 0-6316-0096-00 | EMSF1000LVGB | BUSHING, LOWER VALVE GUIDE |
| 10 | 0-6316-0360-00 | EMSFB13BOLT | LOCKBOLT, LOWER VALVE GUIDE |
| 11 | 0-6316-0363-00 | EMSFB13AR | ALIGNMENT RING |
| 12 | 0-6316-0369-00 | 07916801 | GASKET, HEAD SEAL |
| 13 | 0-6316-0364-90 | EMSFB13CYHPLG | PLUG, CYLINDER HEAD |
| 14 | 0-6316-0361-00 | EMSFB13CYHFLG | RING, THREADED CYLINDER HEAD |
| 15 | 0-6316-0362-00 | EMSFB13CYHCAP | CAP, THREADED CYLINDER HEAD |
| 16 | 0-6316-0092-00 | 07916741 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) |
| 17 | 0-7501-0051-00 | PEP79 | SCREW, RETAINER UPPER) |
| 18 | 0-6397-0603-00 | EMSRETAINER | PLATE, RETAINER (UPPER) |
| 19 | 0-6397-0575-00 | EMSF1000UVGB | GUIDE, UPPER VALVE |
| 20 | 0-6316-0039-00 | EMSFB13CAP | COVER, VALVE POT |
| 21 | 0-6316-0373-00 | 07916800 | GASKET, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) |
| 22 | 0-6316-0365-00 | EMSFB13WP | PLATE, WEAR |
| 23 | 0-6316-0373-00 | 07916800 | GASKET, LINER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) |
| 24 | 0-6316-0366-00 | EMSFB13LTR | RING, LINER THREADED |
| 25 | 0-6316-0367-20 | EMSFB13LL | LINER LOCK |
| 26 | 0-7602-1600-25 | 99609343 | GASKET, DISCHARGE MANIFOLD |
| 27 | 0-7602-1600-61 | 99609442 | GASKET, SUCTION MANIFOLD |
| 28 | 0-7601-0333-30 | | SUCTION MANIFOLD CAPSCREW (NOT SHOWN) |
