Drillmec is a global contractor in the design and construction of
drilling and work over rigs for the Onshore and Offshore Oil & Gas
industries. Drillmec manufacture 7T450 mud pump, 7TS600 mud pump, 9T1000 mud
pump, 12T1600 mud pump and 14T2200 mud pump.

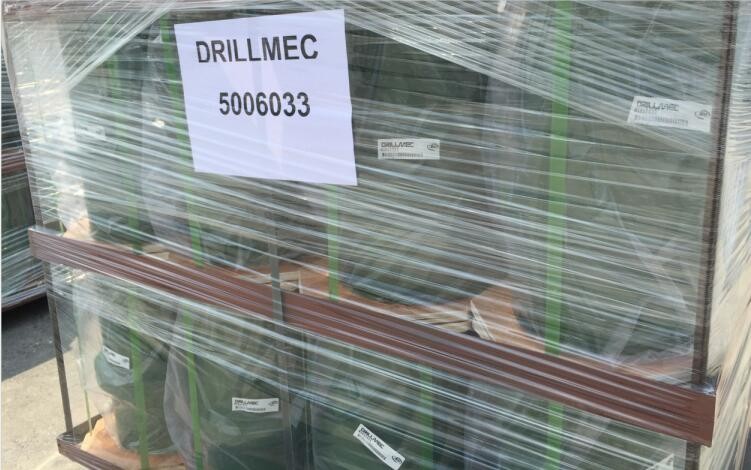

We can make following items for Drillmec 12T-1600 mud pump:
| Item | Description | Part Number | Type of pump |
| 1 | Suction Manifold | | 12T1600 mud pump |
| 2 | Crosshead | | 12T1600 mud pump |
| 3 | Crankshaft | | 12T1600 mud pump |
| 4 | Bull Gear | | 12T1600 mud pump |
| 5 | Pinion Shaft | | 12T1600 mud pump |
| 6 | Connecting Rods | | 12T1600 mud pump |
| 7 | Discharge Module | | 12T1600 mud pump |
| 8 | Suction Module | | 12T1600 mud pump |
| 9 | Connector, Discharge | | 12T1600 mud pump |
| 10 | Bushing, Discharge | | 12T1600 mud pump |
| 11 | Flange | | 12T1600 mud pump |
| 12 | Valve Cover | | 12T1600 mud pump |
| 13 | End Plate | | 12T1600 mud pump |
| 14 | Seal | | 12T1600 mud pump |
| 15 | Wear Plate | | 12T1600 mud pump |
| 16 | 10“-150# Blind Flange | | 12T1600 mud pump |

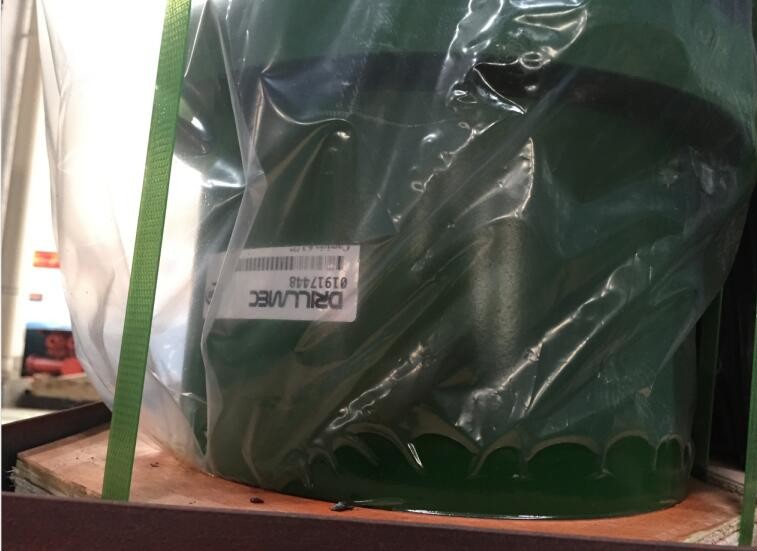

| 17 | Liner 7-1/2" | 01917452 | 12T1600 mud pump |
| 18 | Liner 7" | 01917450 | 12T1600 mud pump |
| 19 | Liner 6-3/4" | 01917449 | 12T1600 mud pump |
| 20 | Liner 6-1/2" | 01917448 | 12T1600 mud pump |
| 21 | Liner 6-1/4" | 01917447 | 12T1600 mud pump |
| 22 | Liner 5-1/2" | 01917446 | 12T1600 mud pump |
| 23 | Liner 5" | 01917639 | 12T1600 mud pump |
| 24 | Pistons | | 12T1600 mud pump |
| 25 | Valves & Seats | | 12T1600 mud pump |
| 26 | Liner Gaskets | | 12T1600 mud pump |
All our fluid end parts are manufactured to API 7K quality
standards.
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000,
F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500,
D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220,
E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG,
KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L,
NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson,
Gaso, Skytop/Brewster.
| Item | Qty | Unit | Part Number | Description | Availability | Unit Price(USD) | Total(USD) | Remark |
| | | | | | | | | | | | | | | | |
| Drillmec 14T2200 mud pump |
| 1. | | EA | 0 1919522 | Hy-Chrome liner 5" | | | 311.00 | | |
| 2. | | EA | 0 1919523 | Hy-Chrome liner 5-1/2" | | | 305.60 | | |
| 3. | | EA | 0 1919540 | Hy-Chrome liner 5-3/4" | | | 298.00 | | |
| 4. | | EA | 0 1919522 | Hy-Chrome liner 6" | | | 293.50 | | |
| 5. | | EA | 0 1919522 | Hy-Chrome liner 6-1/2" | | | 286.30 | | |
| 6. | | EA | 0 1919543 | Hy-Chrome liner 6-3/4" | | | 280.00 | | |
| 7. | | EA | 0 1919525 | Hy-Chrome liner 7" | | | 277.00 | | |
| 8. | | EA | 0 1912152 | Piston assy 4-1/2" | | | 52.00 | | |
| 9. | | EA | 0 1912153 | Piston assy 5" | | | 56.20 | | |
| 10. | | EA | 0 1912154 | Piston assy 5-1/2" | | | 60.40 | | |
| 11. | | EA | 0 1919143 | Piston assy 5-3/4" | | | 63.00 | | |
| 12. | | EA | 0 1912163 | Piston assy 6" | | | 67.74 | | |
| 13. | | EA | 0 1912149 | Piston assy 6-1/2" | | | 70.00 | | |
| 14. | | EA | 0 1917130 | Piston assy 6-3/4" | | | 74.30 | | |
| 15. | | EA | 0 1912155 | Piston assy 7" | | | 78.00 | | |
| 16. | | EA | 40392143 | Valve with insert Full Open | | | 71.30 | | |
| 17. | | EA | 40392144 | Seat, Valve | | 31.00 | - | |
| 18. | | EA | 40392145 | Spring, Valve | | 3.00 | - | |
| 19. | | EA | | Pulsation Dampener | | | 7,258.00 | | |
| 20. | | EA | | Hydraulic Seat Puller | | 806.00 | - | |
All items are manufactured to API 7K quality standards. Parts are
available for these popular pump models:
Emsco:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350,
DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
Ideco: T-500, T-800, T-1000, T-1300, T-1600,
National: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220,
E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG,
KG-KXG, FQ-FXQ, FF-FXF,FF-FXP,
Oilwell: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson,
Gaso, Skytop/Brewster.
OEM Style Modules Mission L Modules
Brewster B-1000-T/B-1100-T Mission L Brewster B-1300-T/B-1600-T
Brewster B-1300-T/B-1600-T Mission L Emsco F-800, F-1000
Ellis Williams 9-W-1000 Mission L Emsco FB-1300/FB-1600
Emsco F-350/F-500/F-650 Mission L Gardner Denver PZ-7
Emsco F-800/F-1000 Mission L Gardner Denver PZ-8
Emsco FB-1300/FB-1600 Mission L Gardner Denver PZ-9
Emsco FC-1600 Mission L Gardner Denver PZ-10/PZ-11
Emsco FC-2200 Mission L Ideco T-1300/T-1600
Gardner Denver PAH Mission L National 9-P-100
Gardner Denver TEE Mission L National 10-P-130
Gardner Denver PX-11(2000 HP) 7500 psi Mission L National 12-P-160
Gardner Denver PZ-7/PZ-8/PZ-9 Mission L National 12-P-160 "New
Style"
Gardner Denver PZ-7/PZ-8/PZ-9 w/ Wear Plate Mission L Oilwell
A-850-PT/A-1100-PT
Gardner Denver PZ-10/PZ-11 Mission L Oilwell A-1400-PT/A-1700-PT
Gardner Denver PZ-10/PZ-11 w/ Wear Plate Mission L Wirth
TPK-1300/TPK-1600
Ideco T-500
Ideco T-800/T-1000
Ideco T-1300/T-1600 Mission "L" 7500 PSI Asemblies
National 7-P-50 Mission L National 12-P-160 (7500 PSI Working
Pressure)
National 8-P-80 Tapr-Lok Mission L National 14-P-220 (7500 PSI
Working Pressure)
National 8-P-80 Fast Change Mission L Oilwell A/HD-1700-PT 7500 PSI
Working Pressure
National 9-P-100 Tapr-Lok
National 9-P-100 Fast Change
National 10-P-130 Tapr-Lok
National 10-P-130 Fast Change
National 12-P-160 Tapr-Lok
National 12-P-160 Fast Change
National 12-P-160 7500 PSI
National 14-P-220
Oilwell A-850/1100/1400/1700-PT
Premium offers wide range of modules parts. They are made of high quality
material for long life and are replaced when being washed out,
possibly saving costly fluid end repairs or replacement.
* Threaded Ring
* Valve Guide
* Wear Plate
* Cylinder Head Plug
* Valve Lock Cap
* Valve Cover
* Liner Lock
* Liner Cages
* Discharge Connector
* Discharge Adapter
* Wedge Assembly
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD |
FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP
GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900

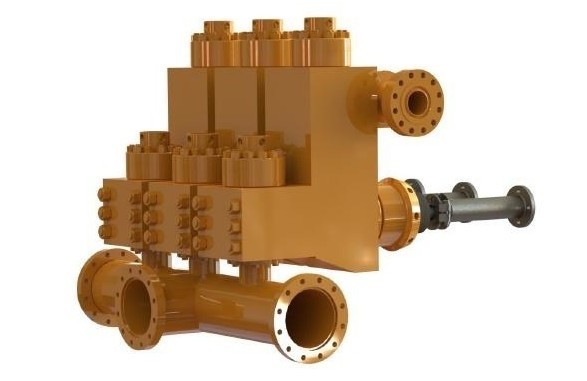

SOUTHWEST 8482-25A FLUID END
FOR NATIONAL 14-P-220
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | NATIONAL 14-P-220 | 9” X 14” |
| ITEM | P/N | DESCRIPTION | QTY. REQ’D |
| 8482-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS:
3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,32,33,34) | |
| 1 | 6382G-XX | LINER REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE
SIZE (XX) | 3 |
| 2 | 2930-XX | LINER SEAL | 3 |
| 3 | 8482-5 | WEARPLATE | 3 |
| 4 | 2988 | WEARPLATE & MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) | 6 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 6282W32 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 6282-1 | SUB ROD | 3 |
| 10 | 6282CWY | ROD CLAMP (CONSIST OF 10A, 10B, 10C)(FOR CLAMP ONLY, USE 6282C) | 6 |
| 10A | 1200H30 | HOSE | 3 |
| 10B | 1200160 | PIPE | 3 |
| 10C | 4019-77 | ROD CLAMP BOLT | 12 |
| 11 | 6200G82 | PONY ROD | 3 |
| 12 | SEE PAGE | VALVE | 6 |
| 13 | SEE PAGE | VALVE INSERT (IF REQUIRED) | 6 |
| 14 | SEE PAGE | VALVE SPRING | 6 |
| 15 | SEE PAGE | VALVE SEAT | 6 |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 |
| 16 | 4476 | THREADED FLANGE | 6 |
| 17 | 4597 | SCREW GLAND | 6 |
| 18 | 4609-25 | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20,
21, & 22 | 6 |
| 19 | P119 | HP VALVE COVER PLUG SEAL | 6 |
| 20 | 4776R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 21 | 4700I | VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU) | 6 |
| 22 | 4016-98 | VALVE GUIDE SCREW | 12 |
| 23 | 4015-54 | VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) | 84 |
| 24 | 4019-24 | POWER END STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) | 30 |
| 25 | 6482 | LINER RETAINER FLANGE | 3 |
| 26 | 4015-52 | LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 18 |
| 27 | 6582 | LINER RETAINER NUT | 3 |
| 28 | 4020-6 | SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) | 18 |
| 29 | 4018-19 | SUCTION MANIFOLD CAP SCREW | 24 |
| 30 | 8582 | SUCTION MANIFOLD | 1 |
| 31 | AJO326 | SUCTION MANIFOLD SEAL | 3 |
| 32 | 8482-26 | SUCTION MODULE | 3 |
| 33 | 8482-27 | DISCHARGE MODULE | 3 |
| 34 | 8488-5 | DOWEL PIN | 6 |
| 35 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 18 |
| 36 | 8382-25 | DISCHARGE MANIFOLD | 1 |
SOUTHWEST 8482-A FLUID END
FOR NATIONAL 14-P-220
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | NATIONAL 14-P-220 | 9” X 14” |
| ITEM | P/N | DESCRIPTION | QTY. REQ’D |
| 8482-A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS 3, 4, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25,
26, 27, 28, 32, 33, 34) | |
| 1 | 6382G-XX | LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE
SIZE (XX)) | 3 |
| 2 | 2930-XX | LINER SEAL | 3 |
| 3 | 8482-4 | WEARPLATE | 3 |
| 4 | 2930-09 | WEARPLATE & MODULE SEAL | 6 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY)) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 6282W32 | PISTON ROD (W/ ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 6282-1 | SUB ROD | 3 |
| 10 | 6282CWY | ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY USE 6282C) | 6 |
| 10A | 1200H30 | HOSE (1/2” X 30” WITH ½” MALE X 3/8” MALE CONNECTIONS) | 6 |
| 10B | 1200160 | PIPE (3/8” X 16” GALVANIZED AND THREADED ON ONE END) | 6 |
| 10C | 4019-77 | ROD CLAMP BOLT (3/4-10 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 12 |
| 11 | 6200G82 | PONY ROD | 3 |
| 12 | | VALVE | 6 |
| 13 | | VALVE INSERT (IF REQUIRED) | 6 |
| 14 | | VALVE SPRING | 6 |
| 15 | | VALVE SEAT | 6 |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 |
| 16 | 4482 | THREADED FLANGE | 6 |
| 17 | 4582 | SCREW GLAND | 6 |
| 18 | 4682A | PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS, AND BUSHING) | 6 |
| 19 | P113 | HP VALVE COVER PLUG NITRILE SEAL | 6 |
| 20 | 4782R | VALVE GUIDE (COMPLETE W/ BUSHING #4700I) | 6 |
| 21 | 4700I | VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART# 4700IU) | 6 |
| 22 | 4019-75 | VALVE GUIDE SCREW | 24 |
| 23 | 4015-54 | VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) | 84 |
| 24 | 4019-24 | POWER END STUD (WITH SW PART# HHN1500-6 1 1/2-6 HEAVY HEX NUT) | 30 |
| 25 | 6482 | LINER RETAINER FLANGE | 3 |
| 26 | 4015-52 | LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 18 |
| 27 | 6582 | LINER RETAINER NUT | 3 |
| 28 | 4019-74 | SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) | 18 |
| 29 | 4018-19 | SUCTION MANIFOLD CAP SCREW | 24 |
| 30 | 8582 | SUCTION MANIFOLD | 1 |
| 31 | AJO326 | SUCTION MANIFOLD SEAL | 3 |
| 32 | 8482-2S | SUCTION MODULE | 3 |
| 33 | 8482-1D | DISCHARGE MODULE | 3 |
| 34 | 8488-5 | DOWEL PIN | 6 |
| 35 | 2982-3 | DISCHARGE END ADAPTER SEAL | 2 |
| 36 | 4017-4 | DISCHARGE END ADAPTER CAP SCREW | 24 |
| 37 | BX169 | RING JOINT | 2 |
| 38 | 4020-21 | BLIND FLANGE STUDS (WITH SW PART# HHN1125-7 1-1/8”-7 HEAVY HEX NUTS) | 24 |
| 39 | 2982-2 | DISCHARGE CONNECTOR SEAL | 4 |
| 40 | 8382-1 | DISCHARGE CONNECTOR | 2 |
| 41 | 8382-3 | DISCHARGE CONNECTOR BACK-UP RING | 2 |
| 42 | 4018-18 | DISCHARGE CONNECTOR CAPSCREW | 16 |
| 43 | 2982-1 | DISCHARGE CONNECTOR END SEAL | 2 |
| 44 | 8382-2 | DISCHARGE CONNECTOR ADAPTER | 2 |
| 45 | 8382-4 | DISCHARGE END FLANGE ADAPTER | 2 |
