    F1600 mud pump, Southwest FB1600 mud pump, 14P220 mud pump, 12P160 mud pump, A-850PT A-1100PT, A-1400PT,& A-1700mud pump

    Ask Lasest Price
    Brand Name : LS-NATIONAL OILWELL, Southwest, NATIONAL OILWELL, MISSION
    Model Number : FB1600, FB1300 mud pump, 3NB1600, F1600L, PZ8, PZ9
    Certification : API
    Price : 1 to 3000 usd
    Payment Terms : L/C, T/T
    Supply Ability : 20000 sets per month
    Delivery Time : Quantity in stock
    • Product Details
    • Company Profile

    F1600 mud pump, Southwest FB1600 mud pump, 14P220 mud pump, 12P160 mud pump, A-850PT A-1100PT, A-1400PT,& A-1700mud pump

    F1600 mud pump, Southwest FB1600 mud pump, 14P220 mud pump, 12P160 mud pump, A-850PT A-1100PT, A-1400PT,& A-1700mud pump

    Qingdao National Premium Oilwell Machinery Co.,Ltd

    Wechat/Tel:0086-15376875239

    www.premiumrigparts.com www.premiummudpump.com

    OILWELL A-850PT A-1100PT, A-1400PT,& A-1700PT
    FLUID END MODULE & ACCESSORIES
    ITEM OEM PART MISSION PART DESCRIPTION QTY
    # # # Return To: Oilwell Index
    OWFEMA8517PTCA FLUID END MODULE COMPLETE ASSEMBLY 3
    1 10300181 OWFEMA8517PT FLUID END MODULE (STUDDED) -(INCLUDES ITEMS 1, 2-4, 5) 3
    2 4001892 OWA8517PTDMS STUD, DISCHARGE MANIFOLD 12
    3 75511754 OWA8517PTDMSN NUT 1 3/8-8 SF HVY HX 12
    4 49002837 OWA8517PTPFS STUD, FRAME 1 3/4-8 x 7 1/2 12
    5 75510126 PEP55 NUT 1 3/4 -8 12
    6 20100008 077170074203 GASKET, LINER 3
    7 10300184 PP602850 PLATE, WEAR 3
    8 10300183 OWA8517PTLA ADAPTER, LINER 3
    9 10300185 OWA8517PTLSR RING, LINER SPACER 3
    10 10303092 OWA8511PTLAN NUT, LINER ADAPTER - FLA850-PT,A-1100PT 3
    10A 10300182 OWA1417PTLAN NUT, LINER ADAPTER - FLA1400-PT, A-1700PT 3
    11 202000004 OWVGI BUSHING, VALVE GUIDE 6
    12 75632234 CAPSCREW 5/8-11X 1-1/4 SELF LOCKING HX HD HT 24
    13 10300004 OWLV GUIDE, VALVE 6
    14 10300011 077270076000 GASKET, VALVE COVER 6
    15 10300005 OWA8517PTCAP COVER, VALVE 6
    16 99-609-345 99609345 O RING (4 3/8 X 4 X 3/16 3
    17 10300201 10300201 GASKET 3
    10300186 OWA1417PTLCS SLEEVE, LINER CENTERING F/A-1400/1700 PUMPS
    10303091 OWA8511PTLCS SLEEVE, LINER CENTERING F/A-850/1100PT PUMPS
    18 CAPSCREW, SUCTION MANIFOLD

    F1600 mud pump, Southwest FB1600 mud pump, 14P220 mud pump, 12P160 mud pump, A-850PT A-1100PT, A-1400PT,& A-1700mud pump

    GARDNER DENVER PZ-7, PZ-8, PZ-9
    FLUID END MODULE & ACCESSORIES
    ITEM OEM PART MISSION PART DESCRIPTION QTY
    # # # RETURN TO GARDNER DENVER INDEX
    1 FEMPZ789CA FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-23) 3
    1A 200PZL029F FEMPZ789 FLUID END MODULE STUDDED - (INCLUDES 1-9 & 24) 3
    205PZL029D
    02 79L188 PZ789LCS STUD, FRAME & LINER CLAMP 24
    03 50B36 PZ789LCSN NUT (FOR ABOVE) 24
    04 79L73 PZ789GPFS STUD, FRAME 12
    05 50AQ30 PZ789GPFSN NUT (FOR ABOVE) 12
    06 79AL6 PZ789TRS STUD, VALVE COVER 48
    07 50B34 PZ789TRSN NUT (FOR ABOVE) 48
    08 202PZL110 PZ789DMS STUD, DISCHARGE MANIFOLD 12
    09 50B34 PZ789TRSN NUT (FOR ABOVE) 12
    10 2011861 PZ789EXPR RING, VALVE COVER GASKET EXPANDER 6
    11 2011862 077670074900 GASKET, VALVE COVER 6
    12 2007674 PZ789VGI BUSHING, VALVE GUIDE 6
    13 2011860 PZ789VC COVER, VALVE 6
    14 2011699 PZ789FLG RING, VALVE COVER THREADED 6
    15 2011857 PZ789CAP CAP, VALVE COVER LOCK 6
    16 2011701 PZ789PL PLATE, RETAINER 6
    17 2011700 PZ789LVG GUIDE, VALVE SUCTION 3
    19 95W2 PZLVGAWASHER WASHER, LOCK 1/2" 316SS 6
    19 655EE06S PZLVGABOLT SCREW 1/2"x1 3/4" 316SS HX HD C/S 6
    20 25AL35 077070074701 GASKET, DISCHARGE MANIFOLD 3
    21 25G41 078070028300 GASKET, SUCTION MANIFOLD 3
    22 1PV14 PZ789LC CLAMP, LINER 3
    23 2011706 PZ789LVGA ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19) 3
    24 CAPSCREW, SUCTION MANIFOLD - NOT SHOWN

    F1600 mud pump, Southwest FB1600 mud pump, 14P220 mud pump, 12P160 mud pump, A-850PT A-1100PT, A-1400PT,& A-1700mud pump

    MISSION "L" MODULE FOR PZ-10, PZ-11
    FLUID END MODULE & ACCESSORIES
    ITEM OEM PART MISSION PART DESCRIPTION QTY
    # # # RETURN TO GARDNER DENVER INDEX
    FEMPZ1011ASSYSW FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-26) 3
    1 8477-1D FEMPZ1011DISSW DISCHARGE MODULE, STUDDED (INCLUDES ITEMS 1, 3-11) 3
    2 8477-2S FEMPZ1011SUCSW SUCTION MODULE, STUDDED - (INCLUDES ITEMS 2, 5, 6, 12 & 24) 3
    3 4016-97 OWA17DSUCSSW STUD, DISCHARGE TO SUCTION MODULE 18
    4 EMSF1000PFSN NUT, DISCHARGE TO SUCTION STUD 18
    5 4015-2 OWA17TRSSW STUD, THREADED RING 72
    6 PZ789LCSN NUT, THREADED RING STUD 72
    7 4018-35 PZ1011GPFSSW STUD, POWER FRAME (SHORT) 24
    8 PZ789LCSN NUT, POWER FRAME STUD 48
    9 4018-34 PZ1011LCSSW STUD, LINER RETAINER (LONG) 24
    10 4017-5 PZ789DMSSW STUD, DISCHARGE MANIFOLD 12
    11 PZ789TRSN NUT, DISCHARGE MANIFOLD STUD 12
    12 8488-5 PEP70 DOWELL PIN 6
    13 2988 1290344 SEAL, SUCTION TO DISCHARGE MODULE 3
    14 2930-08 TOM JORDAN SEAL, WEAR PLATE 3
    15 8477-3 PZ1011WPSW WEAR PLATE 3
    16 6477 PZ1011LC LINER RETAINER FLANGE 3
    17 P-129 07207129 VALVE COVER SEAL 6
    18 4018-88 PEP73 VALVE GUIDE SCREW 12
    19 4775R OWA17VGASW VALVE GUIDE (INCLUDES ITEMS 19, 23) 6
    20 4675-1A OWA17VCASSYSW VALVE COVER PLUG (INCLUDES ITEM 18-20 & 23) 6
    21 4475 OWA17FLGSW THREADED FLANGE 6
    22 4575 OWA17CAPSW THREADED CAP 6
    23 4700-I PZ789VGI VALVE GUIDE BUSHING 6
    24 4017-77 SUCTION MANIFOLD CAPSCREW 24
    25 AJO-449R 077070074701 DISCHARGE MANIFOLD GASKET 3
    26 8014G520 078070028300 SUCTION MANIFOLD GASKET 3
    PPHT304 PISTON ROD ASSEMBLY 3 PIECE CLAMP STYLE 3
    PPHT204A PISTON ROD 3
    PPHT204E SUB ROD 3
    10305203 STEEL CONNECTING STUD 3

    MISSION "L" MODULE FOR T-1300/T-1600
    FLUID END MODULE & ACCESSORIES
    ITEM OEM PART MISSION PART DESCRIPTION QTY
    # # # RETURN TO IDECO INDEX
    8407-7A FEMT1316ASSYSW FLUID END MODULE COMPLETE ASSEMBLY 3
    1 8407-7D FEMT1316DISSW DISCHARGE MODULE, STUDDED 3
    2 8407-11S FEMT1316SUCSW SUCTION MODULE, STUDDED 3
    3 4016-97 OWA17DSUCSSW STUD, DISCHARGE TO SUCTION MODULE 18
    4 EMSF1000PFSN NUT, DISCHARGE TO SUCTION MODULE STUD 42
    5 4015-2 OWA17TRSSW STUD, THREADED RING 72
    6 PZ789LCSN NUT, THREADED RING STUD 72
    7 4018-68 T1316PFSSW STUD, POWER FRAME 24
    8 4017-50 T1316DMSSW STUD, DISCHARE MANIFOLD 12
    9 IDT800TRSN NUT, DISCHARGE MANIFOLD STUD 12
    10 8488-5 PEP70 DOWELL PIN 6
    11 2988 1290344 SEAL,SUCTION TO DISCHARGE MODULE & WEAR PLATE 6
    12 8407-10 T1316WPSW LINER WEAR PLATE 3
    13 6407 T1316LRFLGSW LINER RETAINER FLANGE 3
    14 6507 T1316LLNSW LINER LOCK NUT 3
    15 P-129 SWP129 VALVE COVER GASKET 6
    16 4016-99 PEP73 VALVE GUIDE CAPSCREW 12
    17 4700I PZ789VGI VALVE GUIDE BUSHING 6
    18 4775-2R EMSF1000VGASW VALVE GUIDE ASSEMBLY (INCLUDES ITEMS 16-18) 6
    19 4675-2A EMSF1000VCASSYSW VALVE PLUG ASSEMBLY (INCLUDES ITEMS 18, 19) 6
    20 4475 OWA17FLGSW THREADED RING 6
    21 4575 OWA17CAPSW THREADED CAP 6
    22 568-339 99609339 DISCHARGE MANIFOLD GASKET 3
    23 568-447 99609447 SUCTION MANIFOLD GASKET 3
    24 4017-59 PEP84 SUCTION MANIFOLD CAPSCREW 24
    25 PEP65 LOCK WASHER 24

    F1600 mud pump, Southwest FB1600 mud pump, 14P220 mud pump, 12P160 mud pump, A-850PT A-1100PT, A-1400PT,& A-1700mud pump

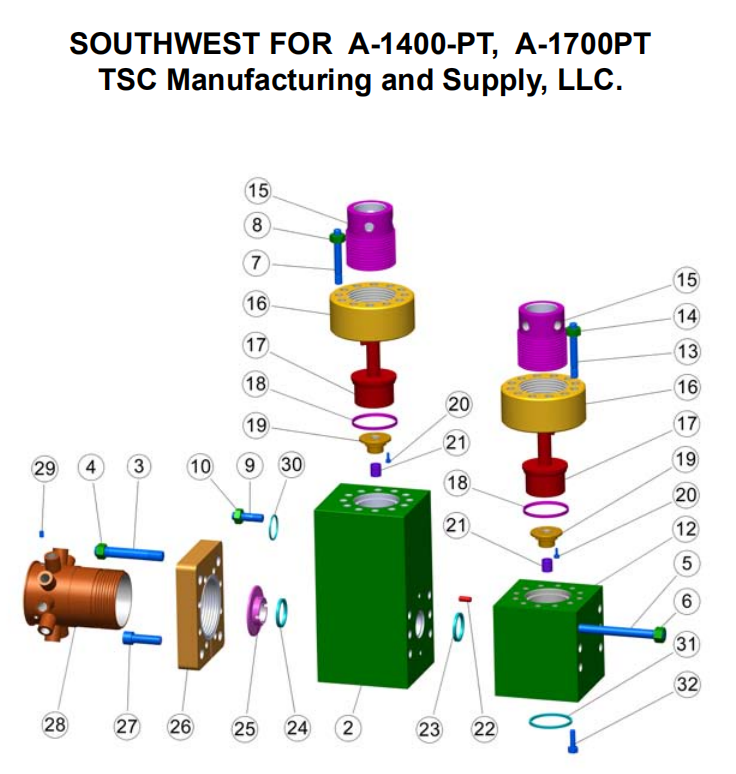

    MISSION "L" MODULE FOR A-1400-PT-A-1700PT
    FLUID END MODULE & ACCESSORIES
    ITEM OEM PART MISSION PART DESCRIPTION QTY
    # # # Return To: Oilwell Index
    8488-1A FEMA17ASSYSW FLUID END MODULE COMPLETE ASSY. (INCLUDES ITEMS 1-27)
    1 8488-1D FEMA17DISSW DISCHARGE MODULE - (INCLUDES ITEMS 1, 4-11, 12, 13) 3
    2 8488-2S FEMA17SUCSW SUCTION MODULE, (INCLUDES ITEMS 2, 11, 12, 13, 27) 3
    3 6488-1 OWA17LRPLATESW LINER RETAINER PLATE 3
    4 4017-4 PEP68 ALLEN HEAD CAPSCREW 1 1/4"-7X 3 1/2" 24
    5 4016-3 OWA17DMSSW DISCHARGE MANIFOLD STUD 12
    6 EMSF1000TRSN NUT, DISCHARGE MANIFOLD STUD 12
    7 4016-96 OWA17PFSSW STUD, POWER FRAME 12
    8 PEP55 NUT, POWER FRAME STUD 12
    9 4016-97 OWA17DSUCSSW STUD, DISCHARGE TO SUCTION MODULE 6
    10 EMSF1000PFSN NUT, FOR ABOVE STUD 6
    11 4015-2 OWA17TRSSW STUD, THREADED RING 24
    12 PZ789LCSN NUT, THREADED RING STUD 24
    13 8488-5 PEP70 DOWELL PIN 6
    14 2988 1290344 SEAL, DISCHARGE TO SUCTION MODULE 3
    15 2974-1 077170074203 SEAL, WEAR PLATE 3
    16 8488-4 PP602850 WEAR PLATE 3
    17 6588-1 OWA17LLNSW LINER LOCK NUT 3
    18 P-129 07207129 VALVE COVER SEAL 6
    19 4018-88 PEP73 RETAINER SCREW, VALVE COVER 12
    20 4775R OWA17VGSW VALVE GUIDE 6
    21 4675-1A OWA17VCASSYSW VALVE COVER PLUG - (INCLUDES ITEMS 19-22) 6
    22 4700-I PZ789VGI VALVE GUIDE BUSHING 6
    23 4475 OWA17FLGSW THREADED FLANGE 6
    24 4575 OWA17CAPSW THREADED CAP 6
    25 80102003 10300201 SUCTION MANIFOLD GASKET 3
    26 568-345 99609345 DISCHARGE MANIFOLD GASKET 3
    27 4018-70 75634382 SUCTION MANIFOLD CAPSCREW 24
    28 8488-7 PEP90 LINER RETAINER SETSCREW 9

    F1600 mud pump, Southwest FB1600 mud pump, 14P220 mud pump, 12P160 mud pump, A-850PT A-1100PT, A-1400PT,& A-1700mud pump

    NATIONAL 9-P-100
    FLUID END MODULE & ACCESSORIES
    ITEM OEM PART MISSION PART DESCRIPTION QTY
    # # # RETURN TO: NATIONAL INDEX
    FEMNAT9PCA FLUID END MODULE COMPLETE ASSEMBLY
    1 1293240 FEMNATDIS9P FLUID END MODULE DISCH. (STUDDED) (INCLUDES ITEMS 1, 3-6, 9, 10, 31, 31A) 3
    2 1290338 FEMNATSUC8P9P FLUID END MODULE SUCTION. (STUDDED) - (INCLUDES ITEMS 2-4 & 35) 3
    3 2408019 8P80TRS STUD, THREADED RING 1 3/8 X 7 1/4 TP TPR LK 72
    4 6300220 8P80TRSN NUT 1 3/8 72
    5 2408030 9P100PFS STUD, FRAME 1 1/4 X 6 TOP TAPER LK 24
    6 6300200 PZ789LCSN NUT (FOR ABOVE) 11/4 HEAVY HX 24
    7 2402560 8P80DMS STUD,1 1/4-7 X 6 1/4 TOP TAPER LK 16
    8 6300200 PZ789LCSN NUT 1 1/4-7 HEAVY HEX 16
    9 2408034 8P80DSUCS STUD, DISCHARGE TO SUCTION 1/2X19 1/8 18
    10 6300241 NUT, 1 1/2 8 UN-3A HEAVY HEX NUT 18
    11 6511416 PEP70 PIN, DOWELL 7/8 X 2 (STANDARD DOWELL) 6
    12 1292141 NATVGB BUSHING, VALVE GUIDE 6
    13 1292140 NATVGBR RETAINER, VALVE GUIDE BUSHING 6
    14 1540126 077970076800 GASKET, VALVE COVER
    15 1290174 NAT8PRETSEAL SEAL, RETAINER 6
    16 1290178 NATAWS SCREW, ADJUSTING WEDGE 6
    17 G-1290376 8P80LW WEDGE ASSEMBLY IND. WEDGES G-1290179-P 6
    18 1290181 8P80WS SPRING, WEDGE 6
    19 1290308 NAT8PFLG RING, THREADED 6
    20 1290307 NAT8PCAP CAP, VALVE COVER (THREADED0 6
    21 1290315 8PAWSW WASHER 6
    22 6300160 8PAWSN NUT- 1-8UNC HEAVY HEX 6
    23 2410031427 2410031427 SEAL, DISHARGE CONNECTOR & ADAPTER 4
    24 1290343 NAT8PDSMA ADAPTER, DISCHARGE CONNECTOR 2
    25 2410031348 2410031348 DISCHARGE CONNECTOR SEAL 2
    26 1290342 NAT8PDSMC CONNECTOR, DISCHARGE 2
    27 2410031427 2410031427 SEAL, DISCHARGE CONNECTOR 2
    28 700030510 CAPSCREW, 1/2 X 1/2 LG GR5 HX HD 16
    29 1290357 PP602000 PLATE, WEAR 3
    30 1293165 9PLCA LINER BUSHING 3
    31 2408018 STUD, LINER BUSHING 1 1/4 X 6 TOP TAPER LK 18
    31A 6300200 PZ789LCSN NUT, 1 1/4-7 HEAVY HEX FOR ABOVE 18
    32 1293166 9PLC CLAMP, LINER 3
    32A 7000448 9P100LCS 3/4 X 4 GR 5 CAD PLT HEX HD CAPSCREW 6
    32B** ** ** LOCK WASHER,(OPTIONAL) 3/4 LW 6
    32C 6309120 NUT (FOR ABOVE) 3/4 LOCKNUT 6
    32D 1290169 PIN, LINER CLAMP 6
    32E G-1290087-P PIN CONNECTER 6
    32F 6571420 PIN, 7/32 X 1-1/4 SPRING SLOT 12
    33 1290344 SEAL, MODULE 6
    34 1590051 SEAL, SUCTION MANIFOLD 3
    35 7000483-11 SCREW, 7/8 X 2-1/2 GR. 5 CAD PLATED HEX CAP 24

    F1600 mud pump, Southwest FB1600 mud pump, 14P220 mud pump, 12P160 mud pump, A-850PT A-1100PT, A-1400PT,& A-1700mud pump

    MISSION "L" MODULE FOR T-1300/T-1600
    FLUID END MODULE & ACCESSORIES
    ITEM OEM PART MISSION PART DESCRIPTION QTY
    # # # RETURN TO IDECO INDEX
    8407-7A FEMT1316ASSYSW FLUID END MODULE COMPLETE ASSEMBLY 3
    1 8407-7D FEMT1316DISSW DISCHARGE MODULE, STUDDED 3
    2 8407-11S FEMT1316SUCSW SUCTION MODULE, STUDDED 3
    3 4016-97 OWA17DSUCSSW STUD, DISCHARGE TO SUCTION MODULE 18
    4 EMSF1000PFSN NUT, DISCHARGE TO SUCTION MODULE STUD 42
    5 4015-2 OWA17TRSSW STUD, THREADED RING 72
    6 PZ789LCSN NUT, THREADED RING STUD 72
    7 4018-68 T1316PFSSW STUD, POWER FRAME 24
    8 4017-50 T1316DMSSW STUD, DISCHARE MANIFOLD 12
    9 IDT800TRSN NUT, DISCHARGE MANIFOLD STUD 12
    10 8488-5 PEP70 DOWELL PIN 6
    11 2988 1290344 SEAL,SUCTION TO DISCHARGE MODULE & WEAR PLATE 6
    12 8407-10 T1316WPSW LINER WEAR PLATE 3
    13 6407 T1316LRFLGSW LINER RETAINER FLANGE 3
    14 6507 T1316LLNSW LINER LOCK NUT 3
    15 P-129 SWP129 VALVE COVER GASKET 6
    16 4016-99 PEP73 VALVE GUIDE CAPSCREW 12
    17 4700I PZ789VGI VALVE GUIDE BUSHING 6
    18 4775-2R EMSF1000VGASW VALVE GUIDE ASSEMBLY (INCLUDES ITEMS 16-18) 6
    19 4675-2A EMSF1000VCASSYSW VALVE PLUG ASSEMBLY (INCLUDES ITEMS 18, 19) 6
    20 4475 OWA17FLGSW THREADED RING 6
    21 4575 OWA17CAPSW THREADED CAP 6
    22 568-339 99609339 DISCHARGE MANIFOLD GASKET 3
    23 568-447 99609447 SUCTION MANIFOLD GASKET 3
    24 4017-59 PEP84 SUCTION MANIFOLD CAPSCREW 24
    25 PEP65 LOCK WASHER 24

    F1600 mud pump, Southwest FB1600 mud pump, 14P220 mud pump, 12P160 mud pump, A-850PT A-1100PT, A-1400PT,& A-1700mud pump

    MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160
    FLUID END MODULE & ACCESSORIES
    ITEM OEM PART MISSION PART DESCRIPTION QTY
    # # # RETURN TO: NATIONAL INDEX
    FEM12PASSYSWNS FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1,-23) 3
    1 8476-6S FEM12PSUCSWNS SUCTION MODULE-STUDDED (ITEMS 1, 7,13,14, 22) 3
    2 8476-5D FEM12PDISSWNS DISCHARGE MODULE-STUDDED - (INCLUDES ITEMS 2-6, 8, 13, 14) 3
    3 4018-17 12P160DSUCS STUD, DISCHARGE TO SUCTION MODULE 18
    4 PEP55 NUT, DISCHARGE TO SUCTION STUD 1 3/4"-8 2H 18
    5 4015-95 NAT12P160PFS STUD, POWER END 30
    6 NAT8P80TRSN NUT, POWER END STUD (1 3/8"-6 2H) 30
    7 8488-5 PEP70 DOWELL PIN 6
    8 4017-65 PEP75 LINER RETAINER CAPSCREW, SOCKET HEAD 18
    9 8476-3 PP6021260SW LINER WEAR PLATE 3
    10 2988 1290344 WEAR PLATE AND MODULE GASKET 6
    11 6476 12PLASW LINER RETAINER FLANGE (LINER BUSHING) 3
    12 6576 12PLANSW LINER RETAINER NUT 3
    13 4015-54 12PTRSSW STUD, THREADED RING 72
    14 12P160TRSN NUT, THREADED RING STUD (1 1/2"-6 2H) 72
    15 4676-6A 12PVGASWNS PLUG (INCLUDES ITEMS 15, 19, 20, & 21) 6
    16 4476 12PFLGSW THREADED RING (THREADED FLANGE) 6
    17 4597 12PCAPSW THREADED CAP (SCREW GLAND) 6
    18 P-119 07207119 VALVE COVER PLUG SEAL 6
    19 4776R 12PVGSWNS VALVE GUIDE (INCLUDES ITEMS 19-21) 6
    20 4700-I PZ789VGI VALVE GUIDE BUSHING 6
    21 4016-98 PEP73 VALVE GUIDE SCREW 12
    22 4018-19 700048511 SUCTION MANIFOLD CAPSCREW W/LOCKWASHER 24
    23 AJO-419R 1540851 SUCTION MANIFOLD GASKET 3
    24 8376-2 NAT12PDSMA DISCHARGE ADAPTER 2
    25 2976-2 2410031437 DISCHARGE ADAPTER SEAL 4
    26 8376-1 NAT12PDSMC DISCHARGE CONNECTOR 2
    27 2976-1 2410031433 DISCHARGE CONNECTOR TO DISCHARGE ADAPTER SEAL 2
    28 80852292 1292258 DISCHARGE SPACER FLANGE SEAL 2
    29 4018-18 700030711 DISCHARGE CONNECTOR CAPSCREW (W /LOCKWASHER) 16
    30 8376-3 1292175 BACKUP RING-(DISCHARGE CONNECTOR) 4
    31 4018-39 7006685 CAPSCREW, SOCKET HEAD 1 1/2" X 3 16

    MISSION "L" MODULE FOR NATIONAL12-P-160
    FLUID END MODULE & ACCESSORIES
    ITEM OEM PART MISSION PART DESCRIPTION QTY
    # # # RETURN TO: NATIONAL INDEX
    8476-A FEM12PASSYSW FLUID END MODULE COMPLETE ASSEMBLY 3
    1 8476-2S FEM12PSUCSW SUCTION MODULE-STUDDED - (INCLUDES ITEMS 1, 7, 13, 14, 22) 3
    2 8476-1D FEM12PDISSW DISCHARGE MODULE (INCLUDES 2-6, 8, 13, 14) 3
    3 4018-17 12P160DSUCS STUD, DISCHARGE TO SUCTION MODULE 18
    4 PEP55 NUT, DISCHARGE TO SUCTION STUD (1 3/4"-8 2H) 18
    5 4015-95 NAT12P160PFS STUD, POWER END 30
    6 NAT8P80TRSN NUT, POWER END STUD (1 3/8"-6 2H) 30
    7 8488-5 PEP70 DOWELL PIN 6
    8 4017-65 PEP75 LINER RETAINER CAPSCREW, SOCKET HEAD 18
    9 8476-3 PP6021260SW LINER WEAR PLATE 3
    10 2988 1290344 WEAR PLATE AND MODULE GASKET 6
    11 6476 12PLASW LINER RETAINER FLANGE (LINER BUSHING) 3
    12 6576 12PLANSW LINER RETAINER NUT 3
    13 4015-54 12PTRSSW STUD, THREADED RING 72
    14 12P160TRSN NUT, THREADED RING STUD (1 1/2"-6 2H) 72
    15 4676-2A 12PVCSW PLUG (INCLUDES ITEMS 15, 19-21) 6
    16 4476 12PFLGSW THREADED RING (THREADED FLANGE) 6
    17 4597 12PCAPSW THREADED CAP (SCREW GLAND) 6
    18 P-107 07207107 VALVE COVER SEAL 6
    19 4776R 12PVGSWNS VALVE GUIDE (INCLUDES ITEMS 19-21) 6
    20 4700-I PZ789VGI VALVE GUIDE BUSHING 6
    21 4016-98 PEP73 VALVE GUIDE RETAINER SCREW 12
    22 4018-19 700048511 SUCTION MANIFOLD CAPSCREW W/LOCKWASHER 24
    23 AJO-419R 1540851 SUCTION MANIFOLD GASKET 3
    24 8376-2 NAT12PDSMA DISCHARGE ADAPTER 2
    25 2976-2 2410031437 DISCHARGE ADAPTER SEAL 4
    26 8376-1 NAT12PDSMC DISCHARGE CONNECTOR 2
    27 2976-1 2410031433 DISCHARGE CONNECTOR TO DISCHARGE ADAPTER SEAL 2
    28 2976-3 700030711 CAPSCREW, DISCHARGE CONNECTOR 16
    29 4018-18 1292175 BACKUP RING, DISCHARGE CONNECTOR 4
    30 8376-3 DISCHARGE FLANGE STUD 16
    32 4018-18 1292175 BACKUP RING, DISCHARGE CONNECTOR 4

    ITEM OEM PART MISSION PART DESCRIPTION QTY
    # # #
    1 EMSFEMF1000CA FLUID END MODULE COMPLETE ASSEMBLY** (INCLUDES ITEMS 1-23) 3
    1A 6999008602 EMSFEMF1000 FLUID END MODULE STUDDED * (INCLUDES ITEMS 1-7 & 23) 3
    2 7507220500 EMSF100PFS STUD FRAME 18
    3 7601063017 EMSF1000PFSN NUT (FOR ABOVE) 18
    4 7507215000 EMSF100TRS STUD, THREADED RING 30
    5 7601063028 EMSF1000TRSN NUT (FOR ABOVE) 30
    6 7507210800 EMSF1000DMS STUD, DISCHARGE MANIFOLD 12
    7 7601063024 IDT800TRSN NUT (FOR ABOVE) 12
    8 6319002600 EMSF1000LC CAGE, LINER 3
    9 6319008700 EMSF1000LVG GUIDE, LOWER VALVE (WITH BUSHING) 3
    10 6319008900 EMSF1000LVC CLIP, LOCKING (FOR LOWER VALVE GUIDE) 3
    11 7602220032 078070028200 GASKET, LINER 6
    12 6319003100 EMSF1000CYHPLG PLUG, CYLINDER HEAD 3
    13 6999008900 EMSF1000CYHFLG RING, THREADED CYLINDER HEAD 3
    14 6319009000 EMSF1000CYHCAP CAP, THREADED CYLINDER HEAD 3
    15 6319007600 077170074001 GASKET, VALVE COVER 3
    16 7501005100 PEP79 SCREW, RETAINER (UPPER) 12
    17 6397060300 EMSRETAINER RETAINER PLATE (UPPER) 3
    18 6397057500 EMSF1000UVGB GUIDE, UPPER VALVE 3
    19 6319002700 EMSF1000CAP COVER, VALVE POT 3
    20 7602161046 1902415 GASKET, DISCHARGE MANIFOLD 3
    21 7602160061 1904426 GASKET, SUCTION MANIFOLD 3
    22 6316009600 EMSF1000LVGB BUSHING, LOWER VALVE GUIDE 3
    23 CAPSCREW, SUCTION MANIFOLD - NOT SHOWN
    07924503 MODULE SEAL KIT: (KIT INCLUDES SUCTION MANIFOLD O-RING, DISCHARGE MANIFOLD O-RING, CYLINDER HEAD GASKET, VALVE COVER GASKET) 3

    CONTINENTAL EMSCO F-800, F-1000
    FLUID END MODULE & ACCESSORIES
    ITEM OEM PART MISSION PART DESCRIPTION QTY
    # # # RETURN TO: EMSCO INDEX
    1 EMSFEMF1000CA FLUID END MODULE COMPLETE ASSEMBLY** (INCLUDES ITEMS 1-23) 3
    1A 6999008602 EMSFEMF1000 FLUID END MODULE STUDDED * (INCLUDES ITEMS 1-7 & 23) 3
    2 7507220500 EMSF100PFS STUD FRAME 18
    3 7601063017 EMSF1000PFSN NUT (FOR ABOVE) 18
    4 7507215000 EMSF100TRS STUD, THREADED RING 30
    5 7601063028 EMSF1000TRSN NUT (FOR ABOVE) 30
    6 7507210800 EMSF1000DMS STUD, DISCHARGE MANIFOLD 12
    7 7601063024 IDT800TRSN NUT (FOR ABOVE) 12
    8 6319002600 EMSF1000LC CAGE, LINER 3
    9 6319008700 EMSF1000LVG GUIDE, LOWER VALVE (WITH BUSHING) 3
    10 6319008900 EMSF1000LVC CLIP, LOCKING (FOR LOWER VALVE GUIDE) 3
    11 7602220032 078070028200 GASKET, LINER 6
    12 6319003100 EMSF1000CYHPLG PLUG, CYLINDER HEAD 3
    13 6999008900 EMSF1000CYHFLG RING, THREADED CYLINDER HEAD 3
    14 6319009000 EMSF1000CYHCAP CAP, THREADED CYLINDER HEAD 3
    15 6319007600 077170074001 GASKET, VALVE COVER 3
    16 7501005100 PEP79 SCREW, RETAINER (UPPER) 12
    17 6397060300 EMSRETAINER RETAINER PLATE (UPPER) 3
    18 6397057500 EMSF1000UVGB GUIDE, UPPER VALVE 3
    19 6319002700 EMSF1000CAP COVER, VALVE POT 3
    20 7602161046 1902415 GASKET, DISCHARGE MANIFOLD 3
    21 7602160061 1904426 GASKET, SUCTION MANIFOLD 3
    22 6316009600 EMSF1000LVGB BUSHING, LOWER VALVE GUIDE 3
    23 CAPSCREW, SUCTION MANIFOLD - NOT SHOWN
    07924503 MODULE SEAL KIT: (KIT INCLUDES SUCTION MANIFOLD O-RING, DISCHARGE MANIFOLD O-RING, CYLINDER HEAD GASKET, VALVE COVER GASKET) 3

    F1600 mud pump, Southwest FB1600 mud pump, 14P220 mud pump, 12P160 mud pump, A-850PT A-1100PT, A-1400PT,& A-1700mud pump

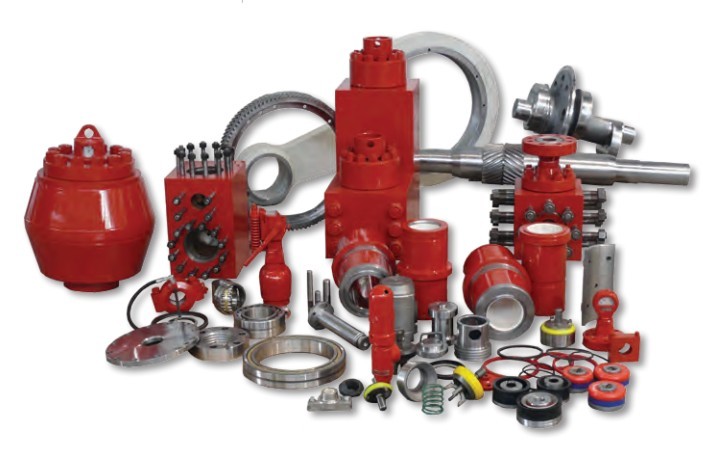

    Parts are available for these popular pump models:

    BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

    LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600


    Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,


    National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,


    Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

    Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

    Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

    Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32

    WEATHERFORD/Ellis Williams: E-447, E-2200

    Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800

    Romania: 3PN-1000, 3PN-1600, 3PN-2000

    And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

    F1600 mud pump, Southwest FB1600 mud pump, 14P220 mud pump, 12P160 mud pump, A-850PT A-1100PT, A-1400PT,& A-1700mud pump

    Parts are available for these popular pump models:

    BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

    LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600

    Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,

    National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,

    Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

    Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

    Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

    Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32

    WEATHERFORD/Ellis Williams: E-447, E-2200

    Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800

    Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000

    And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

    1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802

    Insert Part No. P107186 Spring

    2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180

    Insert Part No. P107182 Spring

    3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187

    Insert Part No. P107189 Spring4P102382

    SPM2000

    1,Plunger Size 3.75" Plunge Part No 3P103887

    2,Plunger Size 4.00" Plunge Part No 3P100339

    3,Plunger Size 4.50" Plunge Part No 3P100654

    4,Plunger Size" 5.00" Plunge Part No 3P100233

    5,Plunger Size" 5.50 Plunge Part No 3P107060

    6,Plunger Size" 5.75" Plunge Part No 3P107061

    7,Plunger Size 6.00 Plunge Part No 3P107062

    SPM

    TWS 250 Plunger Size 1.75"-3" 3.25"-4"

    TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”

    TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"

    TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"

    TWS 900 Plunger Size 3.50"-4"

    TWS 1250LW Plunger Size 4"

    OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”

    TWS1000LW,TWS1300

    Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”

    TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”

    TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”

    TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

    QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

    QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

    5.50” 5.75” 6.0”

    TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

    QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

    QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5

    Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

    Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

    Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

    Gardner Denver ® Mud Pumps

    PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

    Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

    Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

    Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

    Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

    Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

    National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

    National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

    National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

    Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

    Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

    Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

    OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

    Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

    Fluid End Modules

    National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

    Pulsation Dampener

    Hydril Type "K" Pulsation Dampener

    Popular Mud Pump Spare Parts

    Mud Pump Manufactures and Models include:

    Brewster Mud Pumps

    B-550 | B-750 | B-1000 | 1100T | B-1300

    Continental Emsco Mud Pumps

    FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

    Continental Emsco Mud Pumps

    GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

    Continental Emsco Mud Pumps

    PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

    Ellis Williams (Luko) Mud Pumps

    WW-440 | 14W-400 | 15W-600 | 9W-1000

    Gaso Mud Pump

    1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

    Gardner Denver Mud Pumps

    FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL

    Ideco Mud Pumps

    MM-200 | MM-300 | MM-500 | MM-500F | MM-550

    Ideco Mud Pumps

    MM-550F | MM-700 | MM-700F | T-500

    Ideco Mud Pumps

    T-800 | T-1000 | T-1300 | T-1600

    National Mud Pumps

    C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000

    National Mud Pumps

    K-280 | K-380 | K-500 | K-500A | K-700A

    National Mud Pumps

    7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160

    Oilwell Mud Pumps

    6P-HD | 610-P | 212-P | 214-P | 218-P

    Oilwell Mud Pumps

    350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT

    Oilwell Mud Pumps

    A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT

    OPI Mud Pumps

    350-D | 700-HDL | 1000-HDL

    Wheatley Mud Pumps

    1036 | 6070 | 7024 | 7036

    Wilson Mud Pumps

    600 | 900

    Quality F1600 mud pump, Southwest FB1600 mud pump, 14P220 mud pump, 12P160 mud pump, A-850PT A-1100PT, A-1400PT,& A-1700mud pump for sale

    F1600 mud pump, Southwest FB1600 mud pump, 14P220 mud pump, 12P160 mud pump, A-850PT A-1100PT, A-1400PT,& A-1700mud pump

    Inquiry Cart 0
    Send your message to this supplier

    *From:
    *To: Qingdao National Premium Oilwell Machinery Co.,Ltd
    *Subject:
    *Message:
    Characters Remaining: (0/3000)

    Find Similar Products By Category:
    Textiles & Leather Products
    Hot Searches:

    Friendly Links: www.everychina.com

    Home| Products| Suppliers| Site Map |About Us |Contact Us |Help |关于我们 |联系我们

    Copyright © 2009 - 2025 himfr.com. All rights reserved.

    北京环球广贸软件技术有限责任公司
