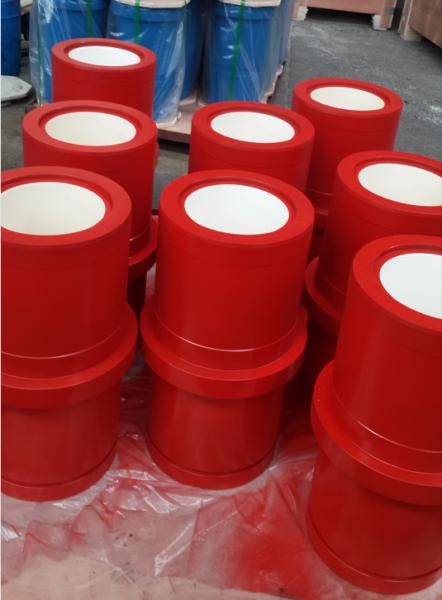

| MISSION "L" MODULE FOR PZ-10, PZ-11 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO GARDNER DENVER INDEX | |
| | | FEMPZ1011ASSYSW | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-26) | 3 |
| 1 | 8477-1D | FEMPZ1011DISSW | DISCHARGE MODULE, STUDDED (INCLUDES ITEMS 1, 3-11) | 3 |
| 2 | 8477-2S | FEMPZ1011SUCSW | SUCTION MODULE, STUDDED - (INCLUDES ITEMS 2, 5, 6, 12 & 24) | 3 |
| 3 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | EMSF1000PFSN | NUT, DISCHARGE TO SUCTION STUD | 18 |
| 5 | 4015-2 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 6 | | PZ789LCSN | NUT, THREADED RING STUD | 72 |
| 7 | 4018-35 | PZ1011GPFSSW | STUD, POWER FRAME (SHORT) | 24 |
| 8 | | PZ789LCSN | NUT, POWER FRAME STUD | 48 |
| 9 | 4018-34 | PZ1011LCSSW | STUD, LINER RETAINER (LONG) | 24 |
| 10 | 4017-5 | PZ789DMSSW | STUD, DISCHARGE MANIFOLD | 12 |
| 11 | | PZ789TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 12 | 8488-5 | PEP70 | DOWELL PIN | 6 |
| 13 | 2988 | 1290344 | SEAL, SUCTION TO DISCHARGE MODULE | 3 |
| 14 | 2930-08 | TOM JORDAN | SEAL, WEAR PLATE | 3 |
| 15 | 8477-3 | PZ1011WPSW | WEAR PLATE | 3 |
| 16 | 6477 | PZ1011LC | LINER RETAINER FLANGE | 3 |
| 17 | P-129 | 07207129 | VALVE COVER SEAL | 6 |
| 18 | 4018-88 | PEP73 | VALVE GUIDE SCREW | 12 |
| 19 | 4775R | OWA17VGASW | VALVE GUIDE (INCLUDES ITEMS 19, 23) | 6 |
| 20 | 4675-1A | OWA17VCASSYSW | VALVE COVER PLUG (INCLUDES ITEM 18-20 & 23) | 6 |
| 21 | 4475 | OWA17FLGSW | THREADED FLANGE | 6 |
| 22 | 4575 | OWA17CAPSW | THREADED CAP | 6 |
| 23 | 4700-I | PZ789VGI | VALVE GUIDE BUSHING | 6 |
| 24 | 4017-77 | | SUCTION MANIFOLD CAPSCREW | 24 |
| 25 | AJO-449R | 077070074701 | DISCHARGE MANIFOLD GASKET | 3 |
| 26 | 8014G520 | 078070028300 | SUCTION MANIFOLD GASKET | 3 |
| | | PPHT304 | PISTON ROD ASSEMBLY 3 PIECE CLAMP STYLE | 3 |
| | | PPHT204A | PISTON ROD | 3 |
| | | PPHT204E | SUB ROD | 3 |
| | | 10305203 | STEEL CONNECTING STUD | 3 |
| MISSION "L" MODULE FOR T-1300/T-1600 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO IDECO INDEX | |
| | 8407-7A | FEMT1316ASSYSW | FLUID END MODULE COMPLETE ASSEMBLY | 3 |
| 1 | 8407-7D | FEMT1316DISSW | DISCHARGE MODULE, STUDDED | 3 |
| 2 | 8407-11S | FEMT1316SUCSW | SUCTION MODULE, STUDDED | 3 |
| 3 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | EMSF1000PFSN | NUT, DISCHARGE TO SUCTION MODULE STUD | 42 |
| 5 | 4015-2 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 6 | | PZ789LCSN | NUT, THREADED RING STUD | 72 |
| 7 | 4018-68 | T1316PFSSW | STUD, POWER FRAME | 24 |
| 8 | 4017-50 | T1316DMSSW | STUD, DISCHARE MANIFOLD | 12 |
| 9 | | IDT800TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 10 | 8488-5 | PEP70 | DOWELL PIN | 6 |
| 11 | 2988 | 1290344 | SEAL,SUCTION TO DISCHARGE MODULE & WEAR PLATE | 6 |
| 12 | 8407-10 | T1316WPSW | LINER WEAR PLATE | 3 |
| 13 | 6407 | T1316LRFLGSW | LINER RETAINER FLANGE | 3 |
| 14 | 6507 | T1316LLNSW | LINER LOCK NUT | 3 |
| 15 | P-129 | SWP129 | VALVE COVER GASKET | 6 |
| 16 | 4016-99 | PEP73 | VALVE GUIDE CAPSCREW | 12 |
| 17 | 4700I | PZ789VGI | VALVE GUIDE BUSHING | 6 |
| 18 | 4775-2R | EMSF1000VGASW | VALVE GUIDE ASSEMBLY (INCLUDES ITEMS 16-18) | 6 |
| 19 | 4675-2A | EMSF1000VCASSYSW | VALVE PLUG ASSEMBLY (INCLUDES ITEMS 18, 19) | 6 |
| 20 | 4475 | OWA17FLGSW | THREADED RING | 6 |
| 21 | 4575 | OWA17CAPSW | THREADED CAP | 6 |
| 22 | 568-339 | 99609339 | DISCHARGE MANIFOLD GASKET | 3 |
| 23 | 568-447 | 99609447 | SUCTION MANIFOLD GASKET | 3 |
| 24 | 4017-59 | PEP84 | SUCTION MANIFOLD CAPSCREW | 24 |
| 25 | | PEP65 | LOCK WASHER | 24 |
| MISSION "L" MODULE FOR A-1400-PT-A-1700PT |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | Return To: Oilwell Index | |
| | 8488-1A | FEMA17ASSYSW | FLUID END MODULE COMPLETE ASSY. (INCLUDES ITEMS 1-27) | |
| 1 | 8488-1D | FEMA17DISSW | DISCHARGE MODULE - (INCLUDES ITEMS 1, 4-11, 12, 13) | 3 |
| 2 | 8488-2S | FEMA17SUCSW | SUCTION MODULE, (INCLUDES ITEMS 2, 11, 12, 13, 27) | 3 |
| 3 | 6488-1 | OWA17LRPLATESW | LINER RETAINER PLATE | 3 |
| 4 | 4017-4 | PEP68 | ALLEN HEAD CAPSCREW 1 1/4"-7X 3 1/2" | 24 |
| 5 | 4016-3 | OWA17DMSSW | DISCHARGE MANIFOLD STUD | 12 |
| 6 | | EMSF1000TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 7 | 4016-96 | OWA17PFSSW | STUD, POWER FRAME | 12 |
| 8 | | PEP55 | NUT, POWER FRAME STUD | 12 |
| 9 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 6 |
| 10 | | EMSF1000PFSN | NUT, FOR ABOVE STUD | 6 |
| 11 | 4015-2 | OWA17TRSSW | STUD, THREADED RING | 24 |
| 12 | | PZ789LCSN | NUT, THREADED RING STUD | 24 |
| 13 | 8488-5 | PEP70 | DOWELL PIN | 6 |
| 14 | 2988 | 1290344 | SEAL, DISCHARGE TO SUCTION MODULE | 3 |
| 15 | 2974-1 | 077170074203 | SEAL, WEAR PLATE | 3 |
| 16 | 8488-4 | PP602850 | WEAR PLATE | 3 |
| 17 | 6588-1 | OWA17LLNSW | LINER LOCK NUT | 3 |
| 18 | P-129 | 07207129 | VALVE COVER SEAL | 6 |
| 19 | 4018-88 | PEP73 | RETAINER SCREW, VALVE COVER | 12 |
| 20 | 4775R | OWA17VGSW | VALVE GUIDE | 6 |
| 21 | 4675-1A | OWA17VCASSYSW | VALVE COVER PLUG - (INCLUDES ITEMS 19-22) | 6 |
| 22 | 4700-I | PZ789VGI | VALVE GUIDE BUSHING | 6 |
| 23 | 4475 | OWA17FLGSW | THREADED FLANGE | 6 |
| 24 | 4575 | OWA17CAPSW | THREADED CAP | 6 |
| 25 | 80102003 | 10300201 | SUCTION MANIFOLD GASKET | 3 |
| 26 | 568-345 | 99609345 | DISCHARGE MANIFOLD GASKET | 3 |
| 27 | 4018-70 | 75634382 | SUCTION MANIFOLD CAPSCREW | 24 |
| 28 | 8488-7 | PEP90 | LINER RETAINER SETSCREW | 9 |
| NATIONAL 9-P-100 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO: NATIONAL INDEX | |
| | | FEMNAT9PCA | FLUID END MODULE COMPLETE ASSEMBLY | |
| 1 | 1293240 | FEMNATDIS9P | FLUID END MODULE DISCH. (STUDDED) (INCLUDES ITEMS 1, 3-6, 9, 10, 31, 31A) | 3 |
| 2 | 1290338 | FEMNATSUC8P9P | FLUID END MODULE SUCTION. (STUDDED) - (INCLUDES ITEMS 2-4 & 35) | 3 |
| 3 | 2408019 | 8P80TRS | STUD, THREADED RING 1 3/8 X 7 1/4 TP TPR LK | 72 |
| 4 | 6300220 | 8P80TRSN | NUT 1 3/8 | 72 |
| 5 | 2408030 | 9P100PFS | STUD, FRAME 1 1/4 X 6 TOP TAPER LK | 24 |
| 6 | 6300200 | PZ789LCSN | NUT (FOR ABOVE) 11/4 HEAVY HX | 24 |
| 7 | 2402560 | 8P80DMS | STUD,1 1/4-7 X 6 1/4 TOP TAPER LK | 16 |
| 8 | 6300200 | PZ789LCSN | NUT 1 1/4-7 HEAVY HEX | 16 |
| 9 | 2408034 | 8P80DSUCS | STUD, DISCHARGE TO SUCTION 1/2X19 1/8 | 18 |
| 10 | 6300241 | | NUT, 1 1/2 8 UN-3A HEAVY HEX NUT | 18 |
| 11 | 6511416 | PEP70 | PIN, DOWELL 7/8 X 2 (STANDARD DOWELL) | 6 |
| 12 | 1292141 | NATVGB | BUSHING, VALVE GUIDE | 6 |
| 13 | 1292140 | NATVGBR | RETAINER, VALVE GUIDE BUSHING | 6 |
| 14 | 1540126 | 077970076800 | GASKET, VALVE COVER | |
| 15 | 1290174 | NAT8PRETSEAL | SEAL, RETAINER | 6 |
| 16 | 1290178 | NATAWS | SCREW, ADJUSTING WEDGE | 6 |
| 17 | G-1290376 | 8P80LW | WEDGE ASSEMBLY IND. WEDGES G-1290179-P | 6 |
| 18 | 1290181 | 8P80WS | SPRING, WEDGE | 6 |
| 19 | 1290308 | NAT8PFLG | RING, THREADED | 6 |
| 20 | 1290307 | NAT8PCAP | CAP, VALVE COVER (THREADED0 | 6 |
| 21 | 1290315 | 8PAWSW | WASHER | 6 |
| 22 | 6300160 | 8PAWSN | NUT- 1-8UNC HEAVY HEX | 6 |
| 23 | 2410031427 | 2410031427 | SEAL, DISHARGE CONNECTOR & ADAPTER | 4 |
| 24 | 1290343 | NAT8PDSMA | ADAPTER, DISCHARGE CONNECTOR | 2 |
| 25 | 2410031348 | 2410031348 | DISCHARGE CONNECTOR SEAL | 2 |
| 26 | 1290342 | NAT8PDSMC | CONNECTOR, DISCHARGE | 2 |
| 27 | 2410031427 | 2410031427 | SEAL, DISCHARGE CONNECTOR | 2 |
| 28 | 700030510 | | CAPSCREW, 1/2 X 1/2 LG GR5 HX HD | 16 |
| 29 | 1290357 | PP602000 | PLATE, WEAR | 3 |
| 30 | 1293165 | 9PLCA | LINER BUSHING | 3 |
| 31 | 2408018 | | STUD, LINER BUSHING 1 1/4 X 6 TOP TAPER LK | 18 |
| 31A | 6300200 | PZ789LCSN | NUT, 1 1/4-7 HEAVY HEX FOR ABOVE | 18 |
| 32 | 1293166 | 9PLC | CLAMP, LINER | 3 |
| 32A | 7000448 | 9P100LCS | 3/4 X 4 GR 5 CAD PLT HEX HD CAPSCREW | 6 |
| 32B** | ** | | ** LOCK WASHER,(OPTIONAL) 3/4 LW | 6 |
| 32C | 6309120 | | NUT (FOR ABOVE) 3/4 LOCKNUT | 6 |
| 32D | 1290169 | | PIN, LINER CLAMP | 6 |
| 32E | G-1290087-P | | PIN CONNECTER | 6 |
| 32F | 6571420 | | PIN, 7/32 X 1-1/4 SPRING SLOT | 12 |
| 33 | 1290344 | | SEAL, MODULE | 6 |
| 34 | 1590051 | | SEAL, SUCTION MANIFOLD | 3 |
| 35 | 7000483-11 | | SCREW, 7/8 X 2-1/2 GR. 5 CAD PLATED HEX CAP | 24 |
| MISSION "L" MODULE FOR T-1300/T-1600 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO IDECO INDEX | |
| | 8407-7A | FEMT1316ASSYSW | FLUID END MODULE COMPLETE ASSEMBLY | 3 |
| 1 | 8407-7D | FEMT1316DISSW | DISCHARGE MODULE, STUDDED | 3 |
| 2 | 8407-11S | FEMT1316SUCSW | SUCTION MODULE, STUDDED | 3 |
| 3 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | EMSF1000PFSN | NUT, DISCHARGE TO SUCTION MODULE STUD | 42 |
| 5 | 4015-2 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 6 | | PZ789LCSN | NUT, THREADED RING STUD | 72 |
| 7 | 4018-68 | T1316PFSSW | STUD, POWER FRAME | 24 |
| 8 | 4017-50 | T1316DMSSW | STUD, DISCHARE MANIFOLD | 12 |
| 9 | | IDT800TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 10 | 8488-5 | PEP70 | DOWELL PIN | 6 |
| 11 | 2988 | 1290344 | SEAL,SUCTION TO DISCHARGE MODULE & WEAR PLATE | 6 |
| 12 | 8407-10 | T1316WPSW | LINER WEAR PLATE | 3 |
| 13 | 6407 | T1316LRFLGSW | LINER RETAINER FLANGE | 3 |
| 14 | 6507 | T1316LLNSW | LINER LOCK NUT | 3 |
| 15 | P-129 | SWP129 | VALVE COVER GASKET | 6 |
| 16 | 4016-99 | PEP73 | VALVE GUIDE CAPSCREW | 12 |
| 17 | 4700I | PZ789VGI | VALVE GUIDE BUSHING | 6 |
| 18 | 4775-2R | EMSF1000VGASW | VALVE GUIDE ASSEMBLY (INCLUDES ITEMS 16-18) | 6 |
| 19 | 4675-2A | EMSF1000VCASSYSW | VALVE PLUG ASSEMBLY (INCLUDES ITEMS 18, 19) | 6 |
| 20 | 4475 | OWA17FLGSW | THREADED RING | 6 |
| 21 | 4575 | OWA17CAPSW | THREADED CAP | 6 |
| 22 | 568-339 | 99609339 | DISCHARGE MANIFOLD GASKET | 3 |
| 23 | 568-447 | 99609447 | SUCTION MANIFOLD GASKET | 3 |
| 24 | 4017-59 | PEP84 | SUCTION MANIFOLD CAPSCREW | 24 |
| 25 | | PEP65 | LOCK WASHER | 24 |
| MISSION "L" NEW STYLE MODULE FOR NATIONAL 12-P-160 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO: NATIONAL INDEX | |
| | | FEM12PASSYSWNS | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1,-23) | 3 |
| 1 | 8476-6S | FEM12PSUCSWNS | SUCTION MODULE-STUDDED (ITEMS 1, 7,13,14, 22) | 3 |
| 2 | 8476-5D | FEM12PDISSWNS | DISCHARGE MODULE-STUDDED - (INCLUDES ITEMS 2-6, 8, 13, 14) | 3 |
| 3 | 4018-17 | 12P160DSUCS | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | PEP55 | NUT, DISCHARGE TO SUCTION STUD 1 3/4"-8 2H | 18 |
| 5 | 4015-95 | NAT12P160PFS | STUD, POWER END | 30 |
| 6 | | NAT8P80TRSN | NUT, POWER END STUD (1 3/8"-6 2H) | 30 |
| 7 | 8488-5 | PEP70 | DOWELL PIN | 6 |
| 8 | 4017-65 | PEP75 | LINER RETAINER CAPSCREW, SOCKET HEAD | 18 |
| 9 | 8476-3 | PP6021260SW | LINER WEAR PLATE | 3 |
| 10 | 2988 | 1290344 | WEAR PLATE AND MODULE GASKET | 6 |
| 11 | 6476 | 12PLASW | LINER RETAINER FLANGE (LINER BUSHING) | 3 |
| 12 | 6576 | 12PLANSW | LINER RETAINER NUT | 3 |
| 13 | 4015-54 | 12PTRSSW | STUD, THREADED RING | 72 |
| 14 | | 12P160TRSN | NUT, THREADED RING STUD (1 1/2"-6 2H) | 72 |
| 15 | 4676-6A | 12PVGASWNS | PLUG (INCLUDES ITEMS 15, 19, 20, & 21) | 6 |
| 16 | 4476 | 12PFLGSW | THREADED RING (THREADED FLANGE) | 6 |
| 17 | 4597 | 12PCAPSW | THREADED CAP (SCREW GLAND) | 6 |
| 18 | P-119 | 07207119 | VALVE COVER PLUG SEAL | 6 |
| 19 | 4776R | 12PVGSWNS | VALVE GUIDE (INCLUDES ITEMS 19-21) | 6 |
| 20 | 4700-I | PZ789VGI | VALVE GUIDE BUSHING | 6 |
| 21 | 4016-98 | PEP73 | VALVE GUIDE SCREW | 12 |
| 22 | 4018-19 | 700048511 | SUCTION MANIFOLD CAPSCREW W/LOCKWASHER | 24 |
| 23 | AJO-419R | 1540851 | SUCTION MANIFOLD GASKET | 3 |
| 24 | 8376-2 | NAT12PDSMA | DISCHARGE ADAPTER | 2 |
| 25 | 2976-2 | 2410031437 | DISCHARGE ADAPTER SEAL | 4 |
| 26 | 8376-1 | NAT12PDSMC | DISCHARGE CONNECTOR | 2 |
| 27 | 2976-1 | 2410031433 | DISCHARGE CONNECTOR TO DISCHARGE ADAPTER SEAL | 2 |
| 28 | 80852292 | 1292258 | DISCHARGE SPACER FLANGE SEAL | 2 |
| 29 | 4018-18 | 700030711 | DISCHARGE CONNECTOR CAPSCREW (W /LOCKWASHER) | 16 |
| 30 | 8376-3 | 1292175 | BACKUP RING-(DISCHARGE CONNECTOR) | 4 |
| 31 | 4018-39 | 7006685 | CAPSCREW, SOCKET HEAD 1 1/2" X 3 | 16 |
| MISSION "L" MODULE FOR NATIONAL12-P-160 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO: NATIONAL INDEX | |
| | 8476-A | FEM12PASSYSW | FLUID END MODULE COMPLETE ASSEMBLY | 3 |
| 1 | 8476-2S | FEM12PSUCSW | SUCTION MODULE-STUDDED - (INCLUDES ITEMS 1, 7, 13, 14, 22) | 3 |
| 2 | 8476-1D | FEM12PDISSW | DISCHARGE MODULE (INCLUDES 2-6, 8, 13, 14) | 3 |
| 3 | 4018-17 | 12P160DSUCS | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | PEP55 | NUT, DISCHARGE TO SUCTION STUD (1 3/4"-8 2H) | 18 |
| 5 | 4015-95 | NAT12P160PFS | STUD, POWER END | 30 |
| 6 | | NAT8P80TRSN | NUT, POWER END STUD (1 3/8"-6 2H) | 30 |
| 7 | 8488-5 | PEP70 | DOWELL PIN | 6 |
| 8 | 4017-65 | PEP75 | LINER RETAINER CAPSCREW, SOCKET HEAD | 18 |
| 9 | 8476-3 | PP6021260SW | LINER WEAR PLATE | 3 |
| 10 | 2988 | 1290344 | WEAR PLATE AND MODULE GASKET | 6 |
| 11 | 6476 | 12PLASW | LINER RETAINER FLANGE (LINER BUSHING) | 3 |
| 12 | 6576 | 12PLANSW | LINER RETAINER NUT | 3 |
| 13 | 4015-54 | 12PTRSSW | STUD, THREADED RING | 72 |
| 14 | | 12P160TRSN | NUT, THREADED RING STUD (1 1/2"-6 2H) | 72 |
| 15 | 4676-2A | 12PVCSW | PLUG (INCLUDES ITEMS 15, 19-21) | 6 |
| 16 | 4476 | 12PFLGSW | THREADED RING (THREADED FLANGE) | 6 |
| 17 | 4597 | 12PCAPSW | THREADED CAP (SCREW GLAND) | 6 |
| 18 | P-107 | 07207107 | VALVE COVER SEAL | 6 |
| 19 | 4776R | 12PVGSWNS | VALVE GUIDE (INCLUDES ITEMS 19-21) | 6 |
| 20 | 4700-I | PZ789VGI | VALVE GUIDE BUSHING | 6 |
| 21 | 4016-98 | PEP73 | VALVE GUIDE RETAINER SCREW | 12 |
| 22 | 4018-19 | 700048511 | SUCTION MANIFOLD CAPSCREW W/LOCKWASHER | 24 |
| 23 | AJO-419R | 1540851 | SUCTION MANIFOLD GASKET | 3 |
| 24 | 8376-2 | NAT12PDSMA | DISCHARGE ADAPTER | 2 |
| 25 | 2976-2 | 2410031437 | DISCHARGE ADAPTER SEAL | 4 |
| 26 | 8376-1 | NAT12PDSMC | DISCHARGE CONNECTOR | 2 |
| 27 | 2976-1 | 2410031433 | DISCHARGE CONNECTOR TO DISCHARGE ADAPTER SEAL | 2 |
| 28 | 2976-3 | 700030711 | CAPSCREW, DISCHARGE CONNECTOR | 16 |
| 29 | 4018-18 | 1292175 | BACKUP RING, DISCHARGE CONNECTOR | 4 |
| 30 | 8376-3 | | DISCHARGE FLANGE STUD | 16 |
| 32 | 4018-18 | 1292175 | BACKUP RING, DISCHARGE CONNECTOR | 4 |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | | |
| 1 | | EMSFEMF1000CA | FLUID END MODULE COMPLETE ASSEMBLY** (INCLUDES ITEMS 1-23) | 3 |
| 1A | 6999008602 | EMSFEMF1000 | FLUID END MODULE STUDDED * (INCLUDES ITEMS 1-7 & 23) | 3 |
| 2 | 7507220500 | EMSF100PFS | STUD FRAME | 18 |
| 3 | 7601063017 | EMSF1000PFSN | NUT (FOR ABOVE) | 18 |
| 4 | 7507215000 | EMSF100TRS | STUD, THREADED RING | 30 |
| 5 | 7601063028 | EMSF1000TRSN | NUT (FOR ABOVE) | 30 |
| 6 | 7507210800 | EMSF1000DMS | STUD, DISCHARGE MANIFOLD | 12 |
| 7 | 7601063024 | IDT800TRSN | NUT (FOR ABOVE) | 12 |
| 8 | 6319002600 | EMSF1000LC | CAGE, LINER | 3 |
| 9 | 6319008700 | EMSF1000LVG | GUIDE, LOWER VALVE (WITH BUSHING) | 3 |
| 10 | 6319008900 | EMSF1000LVC | CLIP, LOCKING (FOR LOWER VALVE GUIDE) | 3 |
| 11 | 7602220032 | 078070028200 | GASKET, LINER | 6 |
| 12 | 6319003100 | EMSF1000CYHPLG | PLUG, CYLINDER HEAD | 3 |
| 13 | 6999008900 | EMSF1000CYHFLG | RING, THREADED CYLINDER HEAD | 3 |
| 14 | 6319009000 | EMSF1000CYHCAP | CAP, THREADED CYLINDER HEAD | 3 |
| 15 | 6319007600 | 077170074001 | GASKET, VALVE COVER | 3 |
| 16 | 7501005100 | PEP79 | SCREW, RETAINER (UPPER) | 12 |
| 17 | 6397060300 | EMSRETAINER | RETAINER PLATE (UPPER) | 3 |
| 18 | 6397057500 | EMSF1000UVGB | GUIDE, UPPER VALVE | 3 |
| 19 | 6319002700 | EMSF1000CAP | COVER, VALVE POT | 3 |
| 20 | 7602161046 | 1902415 | GASKET, DISCHARGE MANIFOLD | 3 |
| 21 | 7602160061 | 1904426 | GASKET, SUCTION MANIFOLD | 3 |
| 22 | 6316009600 | EMSF1000LVGB | BUSHING, LOWER VALVE GUIDE | 3 |
| 23 | | | CAPSCREW, SUCTION MANIFOLD - NOT SHOWN | |
| | | 07924503 | MODULE SEAL KIT: (KIT INCLUDES SUCTION MANIFOLD O-RING, DISCHARGE MANIFOLD O-RING, CYLINDER HEAD GASKET, VALVE COVER GASKET) | 3 |
| | |
| CONTINENTAL EMSCO F-800, F-1000 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO: EMSCO INDEX | |
| 1 | | EMSFEMF1000CA | FLUID END MODULE COMPLETE ASSEMBLY** (INCLUDES ITEMS 1-23) | 3 |
| 1A | 6999008602 | EMSFEMF1000 | FLUID END MODULE STUDDED * (INCLUDES ITEMS 1-7 & 23) | 3 |
| 2 | 7507220500 | EMSF100PFS | STUD FRAME | 18 |
| 3 | 7601063017 | EMSF1000PFSN | NUT (FOR ABOVE) | 18 |
| 4 | 7507215000 | EMSF100TRS | STUD, THREADED RING | 30 |
| 5 | 7601063028 | EMSF1000TRSN | NUT (FOR ABOVE) | 30 |
| 6 | 7507210800 | EMSF1000DMS | STUD, DISCHARGE MANIFOLD | 12 |
| 7 | 7601063024 | IDT800TRSN | NUT (FOR ABOVE) | 12 |
| 8 | 6319002600 | EMSF1000LC | CAGE, LINER | 3 |
| 9 | 6319008700 | EMSF1000LVG | GUIDE, LOWER VALVE (WITH BUSHING) | 3 |
| 10 | 6319008900 | EMSF1000LVC | CLIP, LOCKING (FOR LOWER VALVE GUIDE) | 3 |
| 11 | 7602220032 | 078070028200 | GASKET, LINER | 6 |
| 12 | 6319003100 | EMSF1000CYHPLG | PLUG, CYLINDER HEAD | 3 |
| 13 | 6999008900 | EMSF1000CYHFLG | RING, THREADED CYLINDER HEAD | 3 |
| 14 | 6319009000 | EMSF1000CYHCAP | CAP, THREADED CYLINDER HEAD | 3 |
| 15 | 6319007600 | 077170074001 | GASKET, VALVE COVER | 3 |
| 16 | 7501005100 | PEP79 | SCREW, RETAINER (UPPER) | 12 |
| 17 | 6397060300 | EMSRETAINER | RETAINER PLATE (UPPER) | 3 |
| 18 | 6397057500 | EMSF1000UVGB | GUIDE, UPPER VALVE | 3 |
| 19 | 6319002700 | EMSF1000CAP | COVER, VALVE POT | 3 |
| 20 | 7602161046 | 1902415 | GASKET, DISCHARGE MANIFOLD | 3 |
| 21 | 7602160061 | 1904426 | GASKET, SUCTION MANIFOLD | 3 |
| 22 | 6316009600 | EMSF1000LVGB | BUSHING, LOWER VALVE GUIDE | 3 |
| 23 | | | CAPSCREW, SUCTION MANIFOLD - NOT SHOWN | |
| | | 07924503 | MODULE SEAL KIT: (KIT INCLUDES SUCTION MANIFOLD O-RING, DISCHARGE MANIFOLD O-RING, CYLINDER HEAD GASKET, VALVE COVER GASKET) | 3 |
| | |
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900
| Item | Description | Part No. |
| | Complete Assembly | 8476-A |
| 1 | Threaded Flange | 4476 |
| 2 | Screw Gland | 4597 |
| 3 | Plug Assembly w/Guide & Bushing | 4676-2A |
| 4 | Valve Guide | 4776 |
| 5 | Valve Guide Bushing | 4700-I |
| 6 | Valve Guide Screw | 4016-98 |
| 7 | Valve Cover Stud w/Nut | 4015-54 |
| 8 | Power End Stud w/Nut | 4015-95 |
| 9 | Liner Retainer Capscrew | 4017-65 |
| 10 | Liner Retainer Flange | 6476 |
| 11 | Liner Retainer Nut | 6576 |
| 12 | Suction Module Stud w/Nut | 4018-17 |
| 13 | Suction Module (Studded) | 8476-2 |
| 14 | Discharge Module (Studded) | 8476-1 |
| 15 | Dowel Pin | 8488-5 |
| 16 | Wear Plate | 8476-3 |
| 17 | Valve Cover Plug Seal | P-107 |
| 18 | Module & Wear Plate Seal | 2988 |
| 19 | Piston Rod | 1286-32 |
| 20 | Sub Rod | 1286-1 |
| 21 | Rod Clamp w/Spray System | 1286-CW |
| MISSION "L" MODULE FOR BOMCO F1600 7500 PSI SWOP VERSION | QTY PER PUMP |
| FLUID END MODULE & ACCESSORIES | |
| ITEM # | SW PART # | MISSION PART # | DESCRIPTION | |
| | 8404-25A | | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS) | 3 |
| 1 | 8404-26 | | MODULE, SUCTION STUDDED (INCLUDES ITEMS 1, 7-8) | 3 |
| 2 | 8404-27 | | MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 2-9) | 3 |
| 3 | 4019-61 | | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | 1-3/4-8 HH | 6300281 | NUT, DISCHARGE TO SUCTION STUD | 18 |
| 5 | 4017-33 | | STUD, POWER END | 30 |
| 6 | 1-1/2-8 HH | 0-7601-0630-28 | NUT, POWER END STUD | 30 |
| 7 | Feb-15 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 8 | 1-1/4-7 HH | 6300200 | NUT, THREADED RING STUD | 72 |
| 9 | 8488/5/1- | 6511416 | PIN, DOWELL | 6 |
| 10 | 4019-51 | 7006444 | CAPSCREW, LINER RETAINER FLANGE 3/4-10X3 | 18 |
| 11 | 8490-28 | | PLATE, LINER WEAR | 3 |
| 12 | 2988 | 1290344 | GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT MATLS) | 6 |
| 13 | 568-443 | 99609443 | O-RING, WEAR PLATE | 3 |
| 14 | 6490-25 | | FLANGE, LINER RETAINER (LINER BUSHING) | 3 |
| 15 | 6590-25 | | NUT, LINER RETAINER | 3 |
| 16 | 4690-25A | | ASSY, VALVE COVER PLUG (INCLUDES ITEMS 15,16, 20-22) | 6 |
| 17 | | | PLUG, VALVE COVER | 6 |
| 18 | 4488-25 | | RING, THREADED (THREADED FLANGE) | 6 |
| 19 | 4588-25 | | CAP, THREADED (SCREW GLAND) | 6 |
| 20 | P-115 | 7207115 | SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 21 | 4788R-25 | | ASSEMBLY, VALVE GUIDE (INCLUDES ITEMS 20 & 21) | 6 |
| 22 | 4700I | *20200004 | BUSHING, VALVE GUIDE (BUNA) | 6 |
| 23 | 4018-18 | 700030711 | SCREW, VALVE GUIDE | 12 |
| 24 | 4018-19 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 24 |
| 25 | 568-442 | 99609442 | GASKET, SUCTION MANIFOLD | 3 |
| 26 | 8376-25MOD | | MANIFOLD, DISCHARGE | 1 |
| 27 | 2988 | 1290344 | SEAL, DISCHARGE MANIFOLD | 3 |
| 28 | 8590/6/1- | | SUCTION MANIFOLD | 1 |
| Item | Description | Part No. |
| | Complete Assembly | 8490-2A |
| 1 | Threaded Flange | 4475 |
| 2 | Liner Wear Plate | 8490-3 |
| 3 | Module and Wear Plate Gasket | 2988 |
| 4 | Screw Gland | 4575 |
| 5 | Plug Assembly w/Guide & Bushing | 4675-2A |
| 6 | Plug Seal | P-129 |
| 7 | Valve Guide | 4775-2 |
| 8 | Valve Guide Bushing | 4700-I |
| 9 | Valve Guide Stud w/Nut | 4016-99 |
| 10 | Valve Cover Stud w/Nut | 4015-2 |
| 11 | Power End Stud w/Nut | 4016-9 |
| 12 | Liner Retainer Capscrew | 4017-36 |
| 13 | Liner Retainer Flange | 6490-3 |
| 14 | Liner Retainer Pilot Ring | 8422-3 |
| 15 | Liner Retainer Nut | 6590-1 |
| 16 | Suction Module Stud w/Nut | 4016-97 |
| 17 | Suction Module Studded | 8490-2 |
| 18 | Discharge Module Studded | 8490-1 |
| 19 | Dowel Pin | 8488-5 |
| 20 | Discharge Manifold Stud w/Nut | 4017-46 |
