Specification
Specification | Model |
| RS-F1300 | RS-F1600 |
| Rated Input Power | 956kw(1300HP) | 1180kw(1600HP) |
| Rated Stroke per minute | 120 冲/分(120SPM) | 120 冲/分(120SPM) |
| Stroke | 304.8mm(12″) | 304.8mm(12″) |
| Gear Ratio | 4.206:1 | 4.206:1 |
| Max. Operation Pressure | 34.5MPa | 34.5MPa |
| Valve Chamber | API #7 | API #7 |
| Max. Liner Dia. | 7″ | 7 1/4″ |
Max. Liner Mud Pressure | 18.5MPa | 23.3MPa |
Dia. Of Suction Manifold | 305mm(12″) | 305mm(12″) |
Dia. Of Discharge Manifold | 5 1/8″ flange(5000psi) | 5 1/8″ flange(5000psi) |
| Dia. Of Pinion Shaft | 215.9mm(8.5″) | 215.9mm(8.5″) |
| Key | 50.8x50.8mm(2x2″) | 50.8x50.8mm(2x2″) |
| Overall Dimension | 4684x2413x2063mm | 4684x2413x2063mm |
| Weight(Main body) | 24572kg | 24751 kg |
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350,
DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220,
E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG,
KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L,
NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-2200, E1600
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800,14T2200
Romania: 3PN-1000, 3PN-1600, 3PN-2000
序号 № | 代号 Обозначение | 名称 Наименование | 数量Ко-во |
| 1 | RS11309A.04.001 | 十字头 Ползун | 1 |
| 2 | RS11309.04.002 | 上导板 Верхняя направляющая | 1 |
| 3 | RS11309.04.003 | 垫片组 Группа шайбы | 8 |
| 4 | RS11309.04.004 | 调节垫片 Регулирующие шайбы | 2 |
| 5 | RS11309.04.005 | 填料盒 Сальниковая коробка | 1 |
| 6 | RS11309.04.006 | 油封环 Сальникоаое кольцо | 1 |
| 7 | RS11309.04.007 | 双唇密封圈 5X6.25X0.625” Уплотнительное кольцо | 2 |
| 8 | RS11309.04.008 | 锁紧弹簧 Запорная прцужина | 1 |
| 9 | RS11309.04.009 | 挡泥板 Грязьотбойный щит | 1 |
| 10 | RS11309.04.010 | 中间拉杆 Контрошток | 1 |
| 11 | RS11309A.04.011 | 十字头销 Полец ползуна | 1 |
| 12 | RS11309.04.012 | 密封垫 Уплотнительная прокладка | 1 |
| 13 | RS11309.04.013 | 下导板 нижняя направляющая | 1 |
| 14 | RS11309.04.014 | 十字头销挡板 Отбойный щит пальца ползуна | 1 |
| 15 | RS11309.04.015 | 十字头轴承 Подшипник ползуна | |
| 16 | RS11306.04.004 | 管接头 NPT 3/8 Штуцер | 2 |
| 17 | RS11309A.04.016 | 螺栓 M24X60 Болт | 2 |
| 18 | RS11309A.04.017 | 螺栓 M24X70 Болт | 6 |
| 19 | RS11306A.04.009 | 固定板 Фиксарующий щит | 8 |
| 20 | RS11309A.04.018 | 螺栓 M24X65 Болт | 8 |
| 21 | | 不锈钢丝 φ1.6 Нержевающая проволока | 按需 |
| 22 | GB/T 3452.1 | O型圈 125X7 О-кольцо | 1 |
| 23 | GB/T 3452.1 | O型圈 160X7 О-кольцо | 1 |
| 24 | GB/T 3452.1 | O型圈 190X3.55 О-кольцо | 1 |
| 25 | GB/T 5783 | 螺栓 M10X25 Болт | 4 |
| 26 | GB/T 93 | 弹性垫圈 10 Пружиная шайба 10 | 4 |
| 27 | GB/T 70.1 | 螺钉 M20X65 Винт | 8 |
| 28 | 242 | 螺纹厌氧锁固胶 Клей для крепления | 按需 |
注:本表中数量仅为一套十字头总成的数量,整台泵的数量需将表中数量乘3.
Количество в таблице для одного ползуна, на один буровой насос
количество на три.

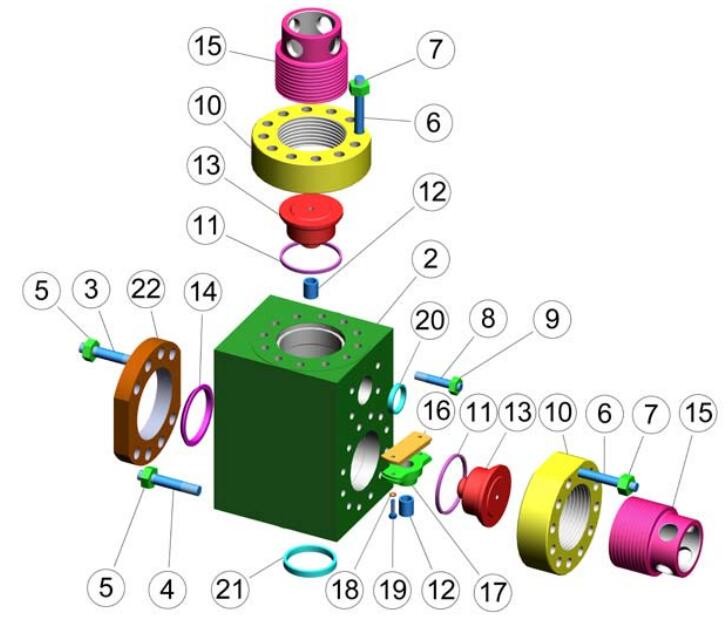

| MISSION "L" MODULE FOR NATIONAL12-P-160 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO: NATIONAL INDEX | |
| 8476-A | FEM12PASSYSW | FLUID END MODULE COMPLETE ASSEMBLY | 3 |
| 1 | 8476-2S | FEM12PSUCSW | SUCTION MODULE-STUDDED - (INCLUDES ITEMS 1, 7, 13, 14, 22) | 3 |
| 2 | 8476-1D | FEM12PDISSW | DISCHARGE MODULE (INCLUDES 2-6, 8, 13, 14) | 3 |
| 3 | 4018-17 | 12P160DSUCS | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | PEP55 | NUT, DISCHARGE TO SUCTION STUD (1 3/4"-8 2H) | 18 |
| 5 | 4015-95 | NAT12P160PFS | STUD, POWER END | 30 |
| 6 | | NAT8P80TRSN | NUT, POWER END STUD (1 3/8"-6 2H) | 30 |
| 7 | 8488-5 | PEP70 | DOWELL PIN | 6 |
| 8 | 4017-65 | PEP75 | LINER RETAINER CAPSCREW, SOCKET HEAD | 18 |
| 9 | 8476-3 | PP6021260SW | LINER WEAR PLATE | 3 |
| 10 | 2988 | 1290344 | WEAR PLATE AND MODULE GASKET | 6 |
| 11 | 6476 | 12PLASW | LINER RETAINER FLANGE (LINER BUSHING) | 3 |
| 12 | 6576 | 12PLANSW | LINER RETAINER NUT | 3 |
| 13 | 4015-54 | 12PTRSSW | STUD, THREADED RING | 72 |
| 14 | | 12P160TRSN | NUT, THREADED RING STUD (1 1/2"-6 2H) | 72 |
| 15 | 4676-2A | 12PVCSW | PLUG (INCLUDES ITEMS 15, 19-21) | 6 |
| 16 | 4476 | 12PFLGSW | THREADED RING (THREADED FLANGE) | 6 |
| 17 | 4597 | 12PCAPSW | THREADED CAP (SCREW GLAND) | 6 |
| 18 | P-107 | 07207107 | VALVE COVER SEAL | 6 |
| 19 | 4776R | 12PVGSWNS | VALVE GUIDE (INCLUDES ITEMS 19-21) | 6 |
| 20 | 4700-I | PZ789VGI | VALVE GUIDE BUSHING | 6 |
| 21 | 4016-98 | PEP73 | VALVE GUIDE RETAINER SCREW | 12 |
| 22 | 4018-19 | 700048511 | SUCTION MANIFOLD CAPSCREW W/LOCKWASHER | 24 |
| 23 | AJO-419R | 1540851 | SUCTION MANIFOLD GASKET | 3 |
| 24 | 8376-2 | NAT12PDSMA | DISCHARGE ADAPTER | 2 |
| 25 | 2976-2 | 2410031437 | DISCHARGE ADAPTER SEAL | 4 |
| 26 | 8376-1 | NAT12PDSMC | DISCHARGE CONNECTOR | 2 |
| 27 | 2976-1 | 2410031433 | DISCHARGE CONNECTOR TO DISCHARGE ADAPTER SEAL | 2 |
| 28 | 2976-3 | 700030711 | CAPSCREW, DISCHARGE CONNECTOR | 16 |
| 29 | 4018-18 | 1292175 | BACKUP RING, DISCHARGE CONNECTOR | 4 |
| 30 | 8376-3 | | DISCHARGE FLANGE STUD | 16 |
| 32 | 4018-18 | 1292175 | BACKUP RING, DISCHARGE CONNECTOR | 4 |
| GARDNER DENVER PZ-7, PZ-8, PZ-9 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO GARDNER DENVER INDEX | |
| 1 | | FEMPZ789CA | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-23) | 3 |
| 1A | 200PZL029F | FEMPZ789 | FLUID END MODULE STUDDED - (INCLUDES 1-9 & 24) | 3 |
| 205PZL029D | | | |
| 02 | 79L188 | PZ789LCS | STUD, FRAME & LINER CLAMP | 24 |
| 03 | 50B36 | PZ789LCSN | NUT (FOR ABOVE) | 24 |
| 04 | 79L73 | PZ789GPFS | STUD, FRAME | 12 |
| 05 | 50AQ30 | PZ789GPFSN | NUT (FOR ABOVE) | 12 |
| 06 | 79AL6 | PZ789TRS | STUD, VALVE COVER | 48 |
| 07 | 50B34 | PZ789TRSN | NUT (FOR ABOVE) | 48 |
| 08 | 202PZL110 | PZ789DMS | STUD, DISCHARGE MANIFOLD | 12 |
| 09 | 50B34 | PZ789TRSN | NUT (FOR ABOVE) | 12 |
| 10 | 2011861 | PZ789EXPR | RING, VALVE COVER GASKET EXPANDER | 6 |
| 11 | 2011862 | 077670074900 | GASKET, VALVE COVER | 6 |
| 12 | 2007674 | PZ789VGI | BUSHING, VALVE GUIDE | 6 |
| 13 | 2011860 | PZ789VC | COVER, VALVE | 6 |
| 14 | 2011699 | PZ789FLG | RING, VALVE COVER THREADED | 6 |
| 15 | 2011857 | PZ789CAP | CAP, VALVE COVER LOCK | 6 |
| 16 | 2011701 | PZ789PL | PLATE, RETAINER | 6 |
| 17 | 2011700 | PZ789LVG | GUIDE, VALVE SUCTION | 3 |
| 19 | 95W2 | PZLVGAWASHER | WASHER, LOCK 1/2" 316SS | 6 |
| 19 | 655EE06S | PZLVGABOLT | SCREW 1/2"x1 3/4" 316SS HX HD C/S | 6 |
| 20 | 25AL35 | 077070074701 | GASKET, DISCHARGE MANIFOLD | 3 |
| 21 | 25G41 | 078070028300 | GASKET, SUCTION MANIFOLD | 3 |
| 22 | 1PV14 | PZ789LC | CLAMP, LINER | 3 |
| 23 | 2011706 | PZ789LVGA | ASSY., LOWER VALVE GUIDE (INCLUDES 12, 16 -19) | 3 |
| NATIONAL 10-P-130 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO: NATIONAL INDEX | |
| | FEMNAT10PCA | FLUID END MODULE COMPLETE ASSEMBLY | |
| 01 | | FEMNATDIS10P | FLUID END MODULE DISCHARGE (STUDDED) - (INCLUDES ITEMS 1, 3-6, 9.
10, 31, 31A) | 3 |
| 02 | 1290338 | FEMNATSUC8P9P | FLUID END MODULE SUCTION (STUDDED) - (INCLUDES ITEMS 2-4, 35) | 3 |
| 03 | 2408019 | 8P80TRS | STUD, THREADED RING | 72 |
| 04 | 6300220 | 8P80TRSN | NUT (FOR ABOVE) 1 3/8 HVY HX | 72 |
| 05 | 2408020 | 10P130PFS | STUD, FRAME 1 1/2X 6 7/8 LG TOP TAPER LK | 24 |
| 06 | 6300240 | 12P160TRSN | NUT 1 1/2-6 HVY HX | 24 |
| 07 | 2402560 | 8P80DMS | STUD, 1/4 X 61/4 TOP TAPER LOCK | 16 |
| 08 | 6300220 | PZ789LCSN | NUT 1/4 HEAVY HEX | 16 |
| 09 | 2408034 | 8P80DSUCS | STUD, DISCHARGE TO SUCTION 1/2X19 1/8 | 18 |
| 10 | 6300241 | | NUT, 1 1/2 8 UN-3A HEAVY HEX NUT | 18 |
| 11 | 6511416 | PEP70 | PIN, DOWELL 7/8 X 2 (STANDARD DOWELL) | 6 |
| 12 | 1292141 | NATVGB | BUSHING, VALVE GUIDE | 6 |
| 13 | 1292140 | NATVGBR | RETAINER, VALVE GUIDE BUSHING | 6 |
| 14 | 1540126 | 077970076800 | GASKET, VALVE COVER | |
| 15 | 1290174 | NAT8PRETSEAL | SEAL, RETAINER | 6 |
| 16 | 1290178 | NATAWS | SCREW, ADJUSTING WEDGE 7P THRU 10P | 6 |
| 17 | G-1290376 | 8P80LW | WEDGE ASSEMBLY IND. WEDGES G-1290179-P | 6 |
| 18 | 1290181 | 8P80WS | SPRING, WEDGE | 6 |
| 19 | 1290308 | NAT8PFLG | RING, THREADED | 6 |
| 20 | 1290307 | NAT8PCAP | CAP, VALVE COVER (THREADED0 | 6 |
| 21 | 1290315 | 8PAWSW | WASHER | 6 |
| 22 | 6300160 | 8PAWSN | NUT- 1 -8 UNC HEAVY HEX | 6 |
| 23 | 2410031427 | 2410031427 | SEAL, DISHARGE CONNECTOR & ADAPTER | 4 |
| 24 | 1290343 | NAT8PDSMA | ADAPTER, DISCHARGE CONNECTOR | 2 |
| 25 | 2410031348 | 2410031348 | DISCHARGE CONNECTOR SEAL | 3 |
| 26 | 1290342 | NATPDSMC | CONNECTOR, DISCHARGE | 2 |
| 27 | 2410031348 | 2410031348 | SEAL, DISCHARGE CONNECTOR | 2 |
| 28 | 700030510 | | CAPSCREW, 1/2 X 1/2 LG GR5 HX HD | 16 |
| 29 | 1290357 | PP602000 | PLATE, WEAR | 3 |
| 30 | 1290165 | 10PLCA | LINER BUSHING | 3 |
| 31 | 2408018 | | STUD, LINER BUSHING 1X 5 7/8 LG TOP TPR LK | 18 |
| 31A | 6300160 | | NUT, 1" HEAVY HEX FOR ABOVE | 18 |
| 32 | 1290166 | 10P130LC | LINER CLAMP | 6 |
| 32A | 700044811 | | 3/4 X 4 LG HX HD CAPSCREW | 2 |
| 32B | ** | | LOCK WASHER,**(OPTIONAL) 3/4 | 6 |
| 32C | 6309120 | | NUT, 3/4 TWO WAY LOCK NUT | 6 |
| 32D | 1290169 | | PIN | 6 |
| 32E | G-1290168 | | LINER CLAMP CONNECTOR | 6 |
| 32F | 6571420 | | 7/32X 1 1/4 LG SPRING SLOT PIN | 12 |
| 33 | 1290344 | | SEAL, MODULE | 6 |
| 34 | 1590051 | | SEAL, SUCTION MANIFOLD | 3 |
PZ7/8/9/10/11
| DESCRIPTION | PZ-7 | PZ-8 | PZ-9 | PZ-10 & PZ-11 |
| Fluid Cylinder, Studded | 205PZL029D | 205PZL029D | 205PZL029D | 202PZL029B |
| Valve Cover | 2011860 | 2011860 | 2011860 | 200PZL147 |
| Valve Cover Ring | 2011699 | 2011699 | 2011699 | 200PZL387 |
| Valve Cover Lock | 2011857 | 2011857 | 2011857 | 200PZL587 |
| Valve Guide Assembly | 2011706 | 2011706 | 2011706 | 200PZL483A |
| Valve Guide Retaining Plate | 2011701 | 2011701 | 2011701 | 2011701 |
| Valve Cover Gasket | 2011862 | 2011862 | 2011862 | 204PZL715 |
| Valve Cover Gasket Retaining Ring | 2011861 | 2011861 | 2011861 | ----- |
| Valve Guide Busing | 2007674 | 2007674 | 2007674 | 2007674 |
| Piston Rod-Clamp Type | 201PZG060 | 1PZ183 | 1PZ183 | 200PZL060 |
| Extension Rod-Clamp Type | 200PZG839 | 1PO183 | PZ183 | 200PZL839 |
| Piston Rod Clamp | 2012240 | 2012240 | 2012240 | 200PZL092A |
| Oil Stop Head Seal | 2011872 | 2011872 | 2011872 | 2011872 |
| Suction Manifold to Cylinder Gasket | 25G41 | 25G41 | 25G41 | 25G41 |
| Discharge manifold to Cylinder Gasket | 25AL35 | 25AL35 | 25AL35 | 25AL35 |
| Liner to Cylinder Gasket | 25AT37 | 25AT37 | 25AT37 | 25AT37 |
| Valve Guide Washer | 95W2 | 95W2 | 95W2 | 95W2 |
| Valve Guide Capscrew | 75AA178 | 75AA178 | 75AA178 | 75AA178 |
FB1300/1600
| DESCRIPTION | PART NO. | DESCRIPTION | PART NO. |
| Fluid End, Studded | 6316-0357-00 | Cylinder Head Seal | 6316-0369-00 |
| Crosshead Extension Rod | 6316-0028-00 | Liner Seal | 6316-0373-00 |
| Valve Pot Cover | 6316-0039-00 | Stuffing Box | 6397-0544-00 |
| Discharge Manifold | 6316-0043-00 | Stuffing Box Lock Spring | 6397-0546-00 |
| Valve Cover Seal | 6316-0092-00 | Stuffing Box Spring | 6397-0548-00 |
| Baffle | 6316-0093-00 | Upper Valve Guide | 6397-0575-00 |
| Lower Valve Guide Bushing | 6316-0096-00 | Upper Valve Guide Retainer Plate | 6397-0603-00 |
| Liner End Cover | 6316-0164-00 | Retainer Plate Screw | 7501-0051-00 |
| Liner Lock Ring | 6316-0333-00 | Ring Joint Gasket | 7601-0661-11 |
| Lower Valve Guide | 6316-0354-00 | Discharge Manifold O-ring | 7602-1600-25 |
| Piston Rod | 6316-0359-00 | Liner Lock Ring O-ring | 7602-1600-44 |
| Lock Bolt | 6316-0360-00 | Suction Manifold O-ring | 7602-1600-61 |
| Cylinder Threaded Ring | 6316-0361-00 | Single Lip Oil Seal | 7602-2131-47 |
| Cylinder Head | 6316-0362-00 | Double Lip Oil Seal | 7602-2132-76 |
| Alignment Ring | 6316-0363-00 | Soft Wire, 1/16" X 6’ | 7602-5280-72 |
| Cylinder Head Plug | 6316-0364-00 | Crosshead | 6316-0022-00 |
| Wear Plate | 6316-0365-00 | Crosshead Guide (Lower) | 6316-0081-00 |
| Liner Threaded Ring | 6316-0366-00 | Crosshead Pin | 6316-0087-00 |
| Liner Lock | 6316-0367-00 | Crosshead Guide (Upper) | 6316-0182-00 |
F800/1000
| DESCRIPTION | F-800 PART NO. | F-1000 PART NO. |
| Fluid End Module, Studded | 6999-0086-02 | 6999-0086-02 |
| Threaded Ring | 6999-0089-00 | 6999-0089-00 |
| Crosshead Extension Rod | 6320-0041-00 | 6319-0020-00 |
| Liner Cage | 6319-0026-00 | 6319-0026-00 |
| Valve Pot Cover | 6319-0027-00 | 6319-0027-00 |
| Cylinder Head Plug | 6319-0031-00 | 6319-0031-00 |
| Baffle | 6320-0028-00 | 6319-0070-00 |
| Piston Rod Clamp | 6320-0072-00 | 6319-0071-10 |
| Piston Rod | 6320-0030-00 | 6319-0075-00 |
| Valve Cover Seal | 6319-0076-00 | 6319-0076-00 |
| Lower Valve Guide | 6319-0087-00 | 6319-0087-00 |
| Lower Valve Guide Locking Clip | 6319-0089-00 | 6319-0089-00 |
| Cylinder Head | 6319-0090-00 | 6319-0090-00 |
| Liner End Cover | 6319-0121-00 | 6319-0121-00 |
| Stuffing Box Spring | 6397-0564-00 | 6397-0539-00 |
| Stuffing Box Lock Spring | 6397-0565-00 | 6397-0540-00 |
| Stuffing Box | 6397-0560-00 | 6397-0543-00 |
| Upper Valve Guide | 6397-0575-00 | 6397-0575-00 |
| Upper Valve Guide Retainer Plate | 6397-0603-00 | 6397-0603-00 |
| Lower Valve Guide Bushing | 6316-0096-00 | 6316-0096-00 |
| Retainer Plate Screw | 7501-0051-00 | 7501-0051-00 |
| Ring Joint Gasket | 7602-0661-11 | 7602-0661-11 |
| Suction Manifold O-ring | 7602-1600-61 | 7602-1600-61 |
| Discharge Manifold O-ring | 7602-1610-46 | 7602-1610-46 |
| Single Lip Oil Seal | 7602-2131-97 | 7602-2132-05 |
| Double Lip Oil Seal | 7602-2132-74 | 7602-2132-75 |
| Liner Seal | 7602-2200-32 | 7602-2200-032 |
Our plants are specialized in producing wide range of replacement
parts and liners for brand name mud pumps, including Emsco, National, Ideco, Gardner
Denver, etc. and other brand liners.
All items are manufactured to API 7K quality standards. Parts are
available for these popular pump models:
Emsco:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350,
DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
Ideco: T-500, T-800, T-1000, T-1300, T-1600,
National: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220,
E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG,
KG-KXG, FQ-FXQ, FF-FXF,FF-FXP,
Oilwell: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson,
Gaso, Skytop/Brewster.
OEM Style Modules Mission L Modules
Brewster B-1000-T/B-1100-T Mission L Brewster B-1300-T/B-1600-T
Brewster B-1300-T/B-1600-T Mission L Emsco F-800, F-1000
Ellis Williams 9-W-1000 Mission L Emsco FB-1300/FB-1600
Emsco F-350/F-500/F-650 Mission L Gardner Denver PZ-7
Emsco F-800/F-1000 Mission L Gardner Denver PZ-8
Emsco FB-1300/FB-1600 Mission L Gardner Denver PZ-9
Emsco FC-1600 Mission L Gardner Denver PZ-10/PZ-11
Emsco FC-2200 Mission L Ideco T-1300/T-1600
Gardner Denver PAH Mission L National 9-P-100
Gardner Denver TEE Mission L National 10-P-130
Gardner Denver PX-11(2000 HP) 7500 psi Mission L National 12-P-160
Gardner Denver PZ-7/PZ-8/PZ-9 Mission L National 12-P-160 "New
Style"
Gardner Denver PZ-7/PZ-8/PZ-9 w/ Wear Plate Mission L Oilwell
A-850-PT/A-1100-PT
Gardner Denver PZ-10/PZ-11 Mission L Oilwell A-1400-PT/A-1700-PT
Gardner Denver PZ-10/PZ-11 w/ Wear Plate Mission L Wirth
TPK-1300/TPK-1600
Ideco T-500
Ideco T-800/T-1000
Ideco T-1300/T-1600 Mission "L" 7500 PSI Asemblies
National 7-P-50 Mission L National 12-P-160 (7500 PSI Working
Pressure)
National 8-P-80 Tapr-Lok Mission L National 14-P-220 (7500 PSI
Working Pressure)
National 8-P-80 Fast Change Mission L Oilwell A/HD-1700-PT 7500 PSI
Working Pressure
National 9-P-100 Tapr-Lok
National 9-P-100 Fast Change
National 10-P-130 Tapr-Lok
National 10-P-130 Fast Change
National 12-P-160 Tapr-Lok
National 12-P-160 Fast Change
National 12-P-160 7500 PSI
National 14-P-220
Oilwell A-850/1100/1400/1700-PT
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD |
FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP
GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900
FLUID END MODULES INDEX OEM Style Modules Mission L Modules
Brewster B-1000-T/B-1100-T Mission L Brewster B-1300-T/B-1600-T
Brewster B-1300-T/B-1600-T Mission L Emsco F-800, F-1000 Ellis
Williams 9-W-1000 Mission L Emsco FB-1300/FB-1600 Emsco
F-350/F-500/F-650 Mission L Gardner Denver PZ-7 Emsco F-800/F-1000
Mission L Gardner Denver PZ-8 Emsco FB-1300/FB-1600 Mission L
Gardner Denver PZ-9 Emsco FC-1600 Mission L Gardner Denver
PZ-10/PZ-11 Emsco FC-2200 Mission L Ideco T-1300/T-1600 Gardner
Denver PAH Mission L National 9-P-100 Gardner Denver TEE Mission L
National 10-P-130 Gardner Denver PX-11 (2000 HP) 7500 psi Mission L
National 12-P-160 Gardner Denver PZ-7/PZ-8/PZ-9 Mission L National
12-P-160 "New Style" Gardner Denver PZ-7/PZ-8/PZ-9 w/ Wear Plate
Mission L Oilwell A-850-PT/A-1100-PT Gardner Denver PZ-10/PZ-11
Mission L Oilwell A-1400-PT/A-1700-PT Gardner Denver PZ-10/PZ-11 w/
Wear Plate Mission L Wirth TPK-1300/TPK-1600 Ideco T-500 Ideco
T-800/T-1000 Ideco T-1300/T-1600 Mission "L" 7500 PSI Asemblies
National 7-P-50 Mission L National 12-P-160 (7500 PSI Working
Pressure) National 8-P-80 Tapr-Lok Mission L National 14-P-220
(7500 PSI Working Pressure) National 8-P-80 Fast Change Mission L
Oilwell A/HD-1700-PT 7500 PSI Working Pressure National 9-P-100
Tapr-Lok National 9-P-100 Fast Change National 10-P-130 Tapr-Lok
National 10-P-130 Fast Change National 12-P-160 Tapr-Lok National
12-P-160 Fast Change National 12-P-160 7500 PSI National 14-P-220
