阀盖密封圈 Уплотнительное кольцо крышки клапана
| 6 | 22 | RS11314.05.022 | 缸套φ5 1/2-7 1/4 Цилиндровая втулка | 3 |
名称 Наименование | 数量 Ко-во | 序号 № п/п | 代号Условное обозначение | 名称 Наименование | 数量 Ко-во |
缸套卡箍 Хомут цилиндровой втулки | 3 | 34 | RS11314.05.030 | 排出密封圈 Выпускной у | 2 |
阀盖缸套座 Гнездо цилиндровой втулки | 3 | 35 | RS11314.05.031 | 衬套密封圈 Уплотнительное кольцо втулки | 4 |
缸套密封圈 Уплотнительное кольцо для цилиндровой втулки | 3 | 36 | RS11317.05.011 | 连接法兰 Соединительный фланец | 2 |
定位销 Палец фиксации | 6 | 37 | RS11314.05.033 | 连接法兰密封圈 Уплотнительное кольцо соединительного фланца | 2 |
吸入缸总成 Всасывающий цилиндр в сборе | 3 | 38 | RS11314.05.034 | 衬套 Втулка | 2 |
| 螺栓болт 22X60 | 24 | 39 | GB/T 5782 | 螺栓болтM12X50 | 16 |
O型密封圈φ185X7 O-образное уплотнительное кольцо | 3 | 40 | GB/T93 | 弹垫 12 Пружинная прокладка | 16 |
| 盲板 глухой щит | 1 | 41 | RS11314.05.035 | 衬环кольцевая прокладка | 4 |
| 垫环R44 прокладка | 2 | 42 | RS11309.16.002 | 排出法兰 выпускной фланец | 1 |
连接法兰总成 Соединительный фланец в сборе | 2 | 43 | RS11317.05.12.00 | 吸入管路 Всасывающая труба | 1 |
内六角螺钉 M39X3X75 Внутренний шестиуголный винт | 16 | 44 | T05.05 | 吸入法兰Ⅲ Всасывающий фланец | 1 |
| O型密封圈φ345X7 O-образное уплотнительное кольцо | 3 | 49 | GB/T 93 | 弹簧垫圈 20 Пружинная прокладка | 4 |
| 螺栓болт M27X90 | 36 | 50 | GB/T 6170 | 螺母 гайкаM20 | 4 |
| 螺母гайка M27 | 36 | 51 | RS11306.05.28.00 | 吸入空气包 Всасывающий пнемокомпенсатор | 2 |
| 螺栓болт M20X65 | 4 | | | | |

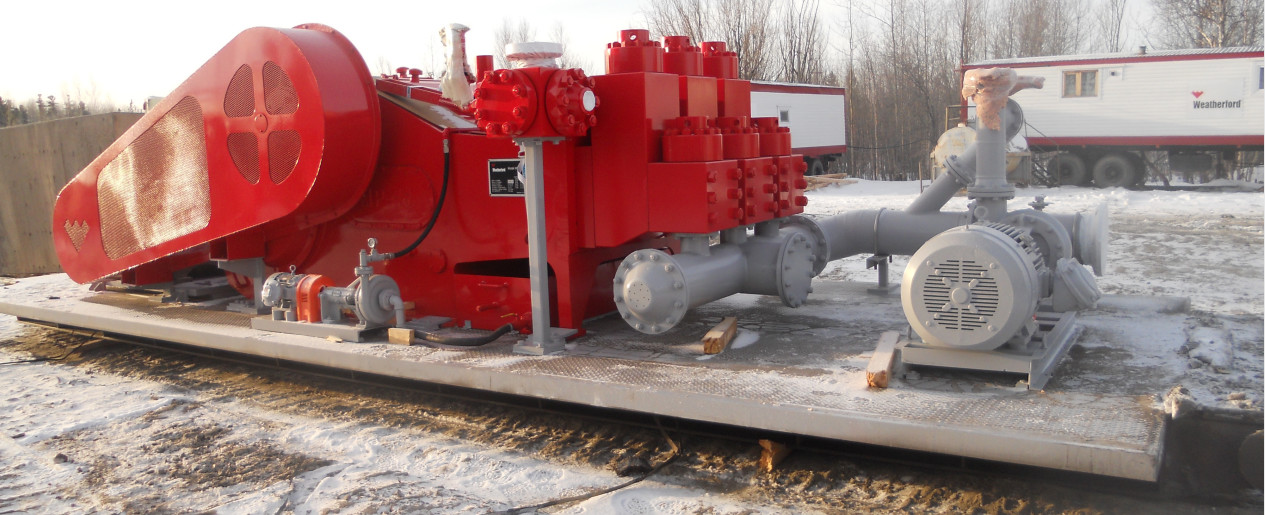

Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350,
DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220,
E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG,
KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L,
NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-2200, E1600
Drillmec: 9T1000, 12T1600, 7TS600, 7TS500, 9T800,14T2200
Romania: 3PN-1000, 3PN-1600, 3PN-2000
序号 № п/п | 代号Условное обозначение | 名称 Наименование | 数量 Количество |
| F-1300L | | |
| 1 | RS11309.02.001 | 主轴承端盖 Крышка конца главного подшипника | 2 |
| 2 | RS11310A.01.002 | 主轴承套(左) Футляр главного подшипника (левый) | 1 |
| 3 | RS11309.02.003 | 密封垫圈 уплотнительная прокладка | 2 |
| 4 | RS11309.02.004 | 内挡圈 Внутренний борткольцо | 2 |
| 5 | RS11309.02.05.00 | 外挡圈 Наружный борткольцо | 3 |
| 6 | RS11310A.01.006 | 连杆 Соединительный рычаг | 3 |
| 7 | RS11309A.02.007 | 定位环(I)кольцо фиксации | 1 |
| 8 | RS11309A.02.08.00 | 空心曲轴 полый коленчатый вал | 1 |
| 9 | RS11309A.02.009 | 定位环(II) кольцо фиксации | 1 |
| 10 | RS11310A.01.010 | 大齿圈 большее зубчатое кольцо | 1 |
| 11 | RS11309A.02.019 | 螺栓болт M39X3-6g X140 | 12 |
| 12 | RS11309.02.011 | 隔环 экранированное кольцо | 2 |
| 13 | RS11310A.01.012 | 主轴承套(右) Футляр главного подшипника (правой) | 1 |
| 14 | RS11310.01.006 | 挡圈борткольцо | 2 |
| 15 | RS11309.02.014 | 挡板 бортовой щит | 2 |
| 16 | RS11309A.02.015 | 主轴承螺栓 болт главного подшипника | 4 |
| 17 | RS11309.02.017 | 垫片组 Группа прокладок | 4 |
| 18 | RS11309 A.02.020 | 螺钉болт M16X120 | 2 |
| 19 | RS11306 A.05.15.00 | 活塞螺母 гайка поршня M39X3 | 12 |
| 20 | RS11309A.02.021 | 螺栓болт M16X40 | 70 |
| 21 | RS11310.01.007 | 偏心轮轴承 Подшипник эксценрического колеса | 3 |
| 22 | RS11310.01.008 | 主轴承 главный подшипник | 2 |
| 23 | RS11309A.02.022 | 螺钉болт M16X100 | 2 |
| 24 | GB/5783 | 螺栓болт M16X45 | 28 |
| 25 | GB/T848 | 垫圈16 прокладка | 28 |
| 26 | GB343 | 锁紧钢丝φ1.5 Запирающая стальная проволока | 1 |
| 27 | GB343 | 锁紧钢丝φ3 Запирающая стальная проволока | 1 |
| 28 | 242 | 螺纹厌氧锁固胶Анаэробный запирающий клей резьбы | 1 |
技术参数 технический параметр | 泵型号тип |
| F-1300L |
额定输入功率 Номинальная входная мощность | 956kw(1300HP) |
| 额定冲次Номинальное число хода | 120冲/分 |
| 冲程Длина хода | 304.8mm |
| 齿轮传动比Передаточное соотношение шестерни | 4.206:1 |
| 最大缸套直径Наибольший диаметр цилиндровой втулки | 最大缸径 7 1/4″(φ184.15mm) |
| 重量(主机) вес(ведущая машина) | 22751kg |
| 最大压力Наиболее рабочее давление | 34.5MPa |
| 最大排量 максимальная величина производительности | 45.41升/秒 л/с |
吸入口法兰 фланец всасывающего хода | 305mm |
排出口法兰 Фланец выходной ход | 侧出口 боковой выход 5-1/8"(5000psi) 下出口низкий выход 4 1/16"(5000psi) |
总宽度(包括空气包,安全阀) Общая высота (включает пневкомпенсатор и предохранительный клапан) | 2853mm |
总高度(至排出空气包) Общая высота( до выходного пневмокомпенсатор ) | 2447mm |
| 不包括五通空气包,安全阀的外形尺寸габаритный размер ( не включает пятиход,
пневмокомпенсатор и предохранительный клапан) | 4805X2413X1850mm |
| Mud Pump Models | 4” | 4-1/2” | 5” | 5-1/2” | 6” | 6-1/2” | 7” | 7-1/2” |
| Continental Emsco F-800 / 1000 | | 05495450 | 05495500 | 05495550 | 05495600 | 05495650 | 05495700 | |
| Continental Emsco FB-1300 / 1600 | 05499400 | 05499450 | 05499500 | 05499550 | 05499600 | 05499650 | 05499700 | |
| Gardner Denver PZ-7 | PY13940 | PY13945 | PY13950 | PY13955 | PY13960 | PY13965 | PY13970 | |
| Gardner Denver PZ-8/9 | 05493400 | 05493450 | 05493500 | 05493550 | 05493600 | 05493650 | 05493700 | |
| Gardner Denver PZ-10/11 | 05496400 | 05496450 | 05496500 | 05496550 | 05496600 | 05496650 | 05496700 | |
| Ideco T-800 / 1000 | 05502400 | 05502450 | 05502500 | 05502550 | 05502600 | 05502650 | 05502700 | |
| Ideco T-1300 / 1600 | | 05507450 | 05507500 | 05507550 | 05507600 | 05507650 | 05507700 | |
| National 8-P-80 | 05464400 | 05464450 | 05464500 | 05464550 | 05464600 | 05464650 | | |
| National 9-P-100 / 10-P-130 | 05465400 | 05465450 | 05465500 | 05465550 | 05465600 | 05465650 | | |
| National 12-P-160 | 05466400 | 05466450 | 05466500 | 05466550 | 05466600 | 05466650 | 05466700 | |
| National 14-P-220 | 05545400 | 05545450 | 05545500 | 05545550 | 05545600 | 05545650 | 05545700 | |
| Oilwell A-850-PT / A-1100-PT | 05330400 | 05330450 | 05330500 | 05330550 | 05330600 | 05330650 | 05330700 | 05330750 |
| Oilwell A-1400-PT / A-1700-PT | 05326400 | 05326450 | 05326500 | 05326550 | 05326600 | 05326650 | 05326700 | 05326750 |
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD |
FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP
GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900
| ITEM | PART NUMBER | DESCRIPTION | QTY/PUMP |
| | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEM 2-23) | 3 |
| 1 | TS-6999-0086-02 | FLUID END MODULE STUDDED (INCLUDES ITEM 2-8) | 3 |
| 2 | TS-6999-0087-02 | FLUID END MODULE (UNSTUDDED) | 3 |
| 3 | TS-7507-2205-00 | STUD FRAME | 18 |
| 4 | TS-7601-0630-17 | NUT (FOR ABOVE) | 18 |
| 5 | TS-7507-2150-00 | STUD, THREADED RING | 30 |
| 6 | TS-7601-0630-28 | NUT (FOR ABOVE) | 30 |
| 7 | TS-7507-2108-00 | STUD, DISCHARGE MANIFOLD | 12 |
| 8 | TS-7601-0630-24 | NUT (FOR ABOVE) | 12 |
| 9 | TS-6319-0026-00 | CAGE, LINER | 3 |
| 10 | TS-6319-0087-00 | GUIDE, LOWER VALVE (WITH BUSHING) | 3 |
| 11 | TS-6319-0089-00 | CLIP, LOCKING (FOR LOWER VALVE GUIDE) | 3 |
| 12 | TS-7602-2200-32 | GASKET, LINER/ CYLINDER HEAD (G-282) | 6 |
| 13 | TS-6319-0031-00 | PLUG, CYLINDER HEAD | 3 |
| 14 | TS-6999-0089-00 | RING, THREADED CYLINDER HEAD | 3 |
| 15 | TS-6319-0090-00 | CAP, THREADED CYLINDER HEAD | 3 |
| 16 | TS-6319-0076-00 | GASKET, VALVE COVER (G-740) | 3 |
| 17 | TS-7501-0051-00 | SCREW, RETAINER (UPPER) | 12 |
| 18 | TS-6397-0603-00 | RETAINER PLATE (UPPER) | 3 |
| 19 | TS-6397-0575-00 | GUIDE, UPPER VALVE | 3 |
| 20 | TS-6319-0027-00 | COVER, VALVE POT | 3 |
| 21 | TS-7602-1610-46 | GASKET, DISCHARGE MANIFOLD | 3 |
| 22 | TS-7602-1600-61 | GASKET, SUCTION MANIFOLD | 3 |
| 23 | TS-6316-0096-00 | BUSHING, LOWER VALVE GUIDE | 3 |
| 24 | TMF08-STUDSSET | F-800/1000 STUDS AND NUTS SET (INCLUDES 6 PCS TS-7507-2205-00, 6
PCS TS-7601-0630-17, 10 PCS TS-7507-2150-00, 10 PCS
TS-7601-0630-28, 4 PCS TS-7507-2108-00, 4 PCS TS-7601-0630-24) | 3 |
| 25 | TMF08-SEALKIT (07924503) | F-800/1000 MODULE SEAL KIT (INCLUDES ONE G-282, ONE G-740, ONE
TS-7602-1610-46, ONE TS-7602-1600-61) | 3 |
| CONTINENTAL EMSCO F-800, F-1000 FLUID END MODULE & ACCESSORIES |
| | | | |
| ITEM # | OEM PART # | MISSION PART # | DESCRIPTION | QTY PER PUMP |
| 1 | | EMSFEMF1000CA | ASSY, COMPLETE FLUID END MODULE (INCLUDES ITEMS 1A-22) | 3 |
| 1A | 0-6999-0086-02 | EMSFEMF1000 | MODULE, STUDDED FLUID END (INCLUDES ITEMS 1A-7) | 3 |
| 1B | | 80723010 | MODULE, STUDDED FLUID END MADE FROM 4135 MATERIAL (INCLUDES ITEMS
1B-7) | |
| 2 | 0-7507-2205-00 | EMSF1000PFS | STUD, POWER FRAME | 18 |
| 3 | 0-7601-0630-17 | EMSF1000PFSN | NUT, POWER FRAME STUD | 18 |
| 4 | 0-7507-2150-00 | EMSF1000TRS | STUD, THREADED RING | 30 |
| 5 | 0-7601-0630-28 | EMSF1000TRSN | NUT, THREADED RING STUD | 30 |
| 6 | 0-7507-2108-00 | EMSF1000DMS | STUD, DISCHARGE MANIFOLD | 12 |
| 7 | 0-7601-0630-24 | IDT800TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 8 | 0-6319-0026-00 | EMSF1000LC | CAGE, LINER | 3 |
| 9 | 0-6319-0087-00 | EMSF1000LVG | GUIDE, LOWER VALVE (WITH BUSHING) | 3 |
| 10 | 0-6319-0089-00 | EMSF1000LVC | CLIP, LOCKING (FOR LOWER VALVE GUIDE) | 3 |
| 11 | 0-7602-2200-32 | 7918282 | GASKET, LINER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 12 | 0-6319-0031-00 | EMSF1000CYHPLG | PLUG, CYLINDER HEAD | 3 |
| 13 | 0-6999-0089-00 | EMSF1000CYHFLG | RING, THREADED CYLINDER HEAD | 3 |
| 14 | 0-6319-0090-00 | EMSF1000CYHCAP | CAP, THREADED CYLINDER HEAD | 3 |
| 15 | 7916740 | 7916740 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE
MATERIALS) | 3 |
| 16 | 0-7501-0051-00 | PEP79 | SCREW, RETAINER (UPPER) | 12 |
| 17 | 0-6397-0603-00 | EMSRETAINER | RETAINER PLATE (UPPER) | 3 |
| 18 | 0-6397-0575-00 | EMSF1000UVGB | GUIDE, UPPER VALVE | 3 |
| 19 | 0-6319-0027-00 | EMSF1000CAP | COVER, VALVE POT | 3 |
| 20 | 0-7602-1610-46 | 0-7602-1610-46 | GASKET, DISCHARGE MANIFOLD | 3 |
| 21 | 0-7602-1600-61 | 0-7602-1600-61 | GASKET, SUCTION MANIFOLD | 3 |
| 22 | 0-6316-0096-00 | EMSF1000LVGB | BUSHING, LOWER VALVE GUIDE | 3 |
| MISSION "L" MODULE FOR EMSCO FC1600 7500 PSI SWOP VERSION PRESSURE
FLUID END MODULE & ACCESSORIES |
| | | | |
| ITEM # | SW PART # | MISSION PART # | DESCRIPTION | QTY PER PUMP |
| 8490-25ALEW | | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-22) | 3 |
| 1 | 8490-26LEW | | MODULE, SUCTION STUDDED (INCLUDES ITEMS 1, 7-8) | 3 |
| 2 | 8490-27LEW | | MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 2-9) | 3 |
| 3 | 4019-54 | | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | 1-3/4-8 HH | 6300281 | NUT, DISCHARGE TO SUCTION STUD | 18 |
| 5 | 4019-52 | | STUD, POWER END | 30 |
| 6 | 1-1/2-8 HH | 0-7601-0630-28 | NUT, POWER END STUD | 30 |
| 7 | Feb-15 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 8 | 1-1/4-7 HH | 6300200 | NUT, THREADED RING STUD | 72 |
| 9 | May-88 | 6511416 | PIN, DOWELL | 6 |
| 10 | 4019-51 | 7006444 | CAPSCREW, LINER RETAINER FLANGE 3/4-10X3 | 18 |
| 11 | 8490-28 | | PLATE, LINER WEAR | 3 |
| 12 | 2988 | 1290344 | GASKET, WEAR PLATE AND MODULE - RUBBER (SEE DATASHEET FOR ALT
MATLS) | 6 |
| 13 | 568-443 | 99609443 | O-RING, WEAR PLATE | 3 |
| 14 | 6490-25 | | FLANGE, LINER RETAINER (LINER BUSHING) | 3 |
| 15 | 6590-25 | | NUT, LINER RETAINER | 3 |
| 16 | 4690-25A | | ASSY, VALVE COVER PLUG (INCLUDES ITEMS 15,16, 20-22) | 6 |
| 17 | | | PLUG, VALVE COVER | 6 |
| 18 | 4488-25 | | RING, THREADED (THREADED FLANGE) | 6 |
| 19 | 4588-25 | | CAP, THREADED (SCREW GLAND) | 6 |
| 20 | P-115 | 7207115 | SEAL, VALVE COVER PLUG - RUBBER (SEE DATASHEET FOR ALTERNATE
MATERIALS) | 6 |
| 21 | 4788R-25 | | ASSEMBLY, VALVE GUIDE (INCLUDES ITEMS 20 & 21) | 6 |
| 22 | 4700I | *20200004 | BUSHING, VALVE GUIDE (BUNA) | 6 |
| 23 | 4018-18 | 700030711 | SCREW, VALVE GUIDE | 12 |
| 24 | 4018-19 | 700048511 | CAPSCREW, SUCTION MANIFOLD | 24 |
| 25 | 568-442 | 99609442 | GASKET, SUCTION MANIFOLD | 3 |
| 26 | | | MANIFOLD, DISCHARGE | 1 |
| IDECO T-1300, T-1600 FLUID END MODULE & ACCESSORIES |
| | | | |
| ITEM # | OEM PART # | MISSION PART # | DESCRIPTION | QTY PER PUMP |
| | FEMIDT1316CA | ASSY, COMPLETE FLUID END MODULE (INCLUDES ITEMS 1-19) | 3 |
| 1 | 551-122-01 | FEMIDT1316 | MODULE, FLUID END STUDDED (INCLUDES ITEMS 1-7, 19) | 3 |
| 2 | 551-110-01 | IDT1316PFS | STUD, POWER FRAME | 24 |
| 3 | IN-415 | 0-7601-0630-17 | NUT,POWER FRAME STUD | 24 |
| 4 | 551-110-02 | IDT1316DMS | STUD, DISCHARGE MANIFOLD | 12 |
| 5 | IN-416 | 0-7601-0630-24 | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 6 | 551-110-03 | IDT1316TRS | STUD, THREADED RING | 48 |
| 7 | IN-415 | 0-7601-0630-17 | NUT, THREADED RING STUD | 48 |
| 8 | 551-105-07 | IDT1316LVG | ASSEMBLY, LOWER VALVE GUIDE (INCLUDES # 18 VALVE GUIDE BUSHING) | 3 |
| 9 | 551-105-08 | IDT1316VGR | RETAINER, LOWER VALVE GUIDE | 3 |
| *10 | BMT-1669-63-08 | 7916782 | GASKET, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE
MATERIALS) | 9 |
| 11 | 551-122-02 | IDT1316CYHPLG | PLUG, CYLINDER HEAD | 3 |
| 12 | 551-122-02 | IDT1316VC | COVER, VALVE (INCLUDES # 18 VALVE GUIDE BUSHING) | 3 |
| 13 | 551-105-03 | IDT1316FLG | RING, THREADED | 9 |
| 14 | 551-105-04 | IDT1316CAP | CAP, THREADED | 6 |
| 15 | 551-105-05 | IDT1316LAN | NUT, LINER ADAPTER | 3 |
| 16 | IO-548 | 99609339 | GASKET, DISCHARGE MANIFOLD | 3 |
| 17 | IO-507 | 99609447 | GASKET, SUCTION MANIFOLD | 3 |
| 18 | 551-105-09 | IDVGI | BUSHING, VALVE GUIDE | 6 |
| 19 | IC-1872 | 75635692 | CAPSCREW, SUCTION MANIFOLD (NOT SHOWN IN DRAWING) | 24 |
| MISSION "L" MODULE FOR GARDNER DENVER PZ-10/PZ-11 FLUID END MODULE
& ACCESSORIES |
| | | | |
| ITEM # | SW PART # | MISSION PART # | DESCRIPTION | QTY PER PUMP |
| | FEMPZ1011ASSYSW | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS: 1-26) | 3 |
| 1 | 8477-1D | FEMPZ1011DISSW | MODULE, DISCHARGE STUDDED (INCLUDES ITEMS 1, 3-13) | 3 |
| 2 | 8477-2S | FEMPZ1011SUCSW | MODULE, SUCTION STUDDED - (INCLUDES ITEMS 2, 5-6) | 3 |
| 3 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | 0-7601-0630-17 | NUT, DISCHARGE TO SUCTION STUD | 18 |
| 5 | Feb-15 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 6 | | 6300200 | NUT, THREADED RING STUD | 72 |
| 7 | 4018-35 | PZ1011GPFSSW | STUD, POWER FRAME (SHORT) | 24 |
| 8 | | 6300200 | NUT, POWER FRAME STUD AND LINER RETAINER STUD | 24 |
| 9 | 4018-34 | PZ1011LCSSW | STUD, LINER RETAINER (LONG) | 24 |
| 10 | /4017-5 | PZ1011DMSSW | STUD, DISCHARGE MANIFOLD | 12 |
| 11 | | PZ789TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 12 | /8488-5 | 6511416 | PIN, DOWELL | 6 |
| 13 | 2988 | 1290344 | SEAL, SUCTION TO DISCHARGE MODULE | 3 |
| 14 | /2930-08 | 7932009 | SEAL, WEAR PLATE - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 3 |
| 15 | Mar-77 | PZ1011WPSW | PLATE, WEAR | 3 |
| 16 | 6477 | PZ1011LC | FLANGE, LINER RETAINER | 3 |
| 17 | P-129 | 7207129 | SEAL, VALVE COVER - RUBBER (SEE DATASHEET FOR ALTERNATE MATERIALS) | 6 |
| 18 | 4018-88 | PEP73 | SCREW, VALVE GUIDE | 12 |
| 19 | 4775R | OWA17VGASW | GUIDE, VALVE (INCLUDES ITEMS 20, & 24) | 6 |
| 20 | 4675-1A | OWA17VCASSYSW | PLUG, VALVE COVER (INCLUDES ITEM 19, 20, 21, & 24) | 6 |
| 21 | 4475 | OWA17FLGSW | FLANGE, THREADED | 6 |
| 22 | 4575 | OWA17CAPSW | CAP, THREADED | 6 |
| 23 | 4700-I | PZ789VGI* | BUSHING, VALVE GUIDE | 6 |
| 24 | 4017-77 | 700044111 | CAPSCREW, SUCTION MANIFOLD | 24 |
| 25 | AJO-449R | 7916747 | GASKET, DISCHARGE MANIFOLD | 3 |
| 26 | 8014G520 | 7923283 | GASKET, SUCTION MANIFOLD | 3 |
| 27 | 8014G520 | 7619066 | WASHER, SUCTION MANIFOLD CAPSCREW LOCK-NOT SHOWN | 24 |
