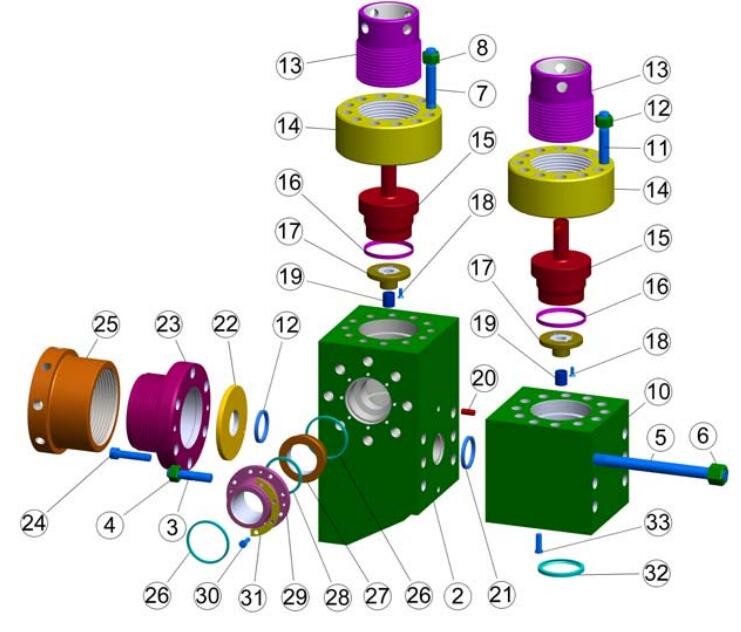

| SOUTHWEST 8482-25A FLUID END FOR NATIONAL 14-P-220 | FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP | | SOUTHWEST 7500 P.S.I. | NATIONAL 14-P-220 | 9” X 14” | | ITEM | P/N | DESCRIPTION | QTY. REQ’D | | | 8482-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,32,33,34) | | | 1 | 6382G-XX | LINER REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 | | 2 | 2930-XX | LINER SEAL | 3 | | 3 | 8482-5 | WEARPLATE | 3 | | 4 | 2988 | WEARPLATE & MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) | 6 | | 5 | XX-BYY | PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) | 3 | | 6 | 568-225 | PISTON O-RING | 3 | | 7 | 6282W32 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 | | 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 | | 9 | 6282-1 | SUB ROD | 3 | | 10 | 6282CWY | ROD CLAMP (CONSIST OF 10A, 10B, 10C)(FOR CLAMP ONLY, USE 6282C) | 6 | | 10A | 1200H30 | HOSE | 3 | | 10B | 1200160 | PIPE | 3 | | 10C | 4019-77 | ROD CLAMP BOLT | 12 | | 11 | 6200G82 | PONY ROD | 3 | | 12 | SEE PAGE | VALVE | 6 | | 13 | SEE PAGE | VALVE INSERT (IF REQUIRED) | 6 | | 14 | SEE PAGE | VALVE SPRING | 6 | | 15 | SEE PAGE | VALVE SEAT | 6 | | | SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 | | 16 | 4476 | THREADED FLANGE | 6 | | 17 | 4597 | SCREW GLAND | 6 | | 18 | 4609-25 | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, & 22 | 6 | | 19 | P119 | HP VALVE COVER PLUG SEAL | 6 | | 20 | 4776R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 | | 21 | 4700I | VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU) | 6 | | 22 | 4016-98 | VALVE GUIDE SCREW | 12 | | 23 | 4015-54 | VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) | 84 | | 24 | 4019-24 | POWER END STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) | 30 | | 25 | 6482 | LINER RETAINER FLANGE | 3 | | 26 | 4015-52 | LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 18 | | 27 | 6582 | LINER RETAINER NUT | 3 | | 28 | 4020-6 | SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) | 18 | | 29 | 4018-19 | SUCTION MANIFOLD CAP SCREW | 24 | | 30 | 8582 | SUCTION MANIFOLD | 1 | | 31 | AJO326 | SUCTION MANIFOLD SEAL | 3 | | 32 | 8482-26 | SUCTION MODULE | 3 | | 33 | 8482-27 | DISCHARGE MODULE | 3 | | 34 | 8488-5 | DOWEL PIN | 6 | | 35 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 18 | | 36 | 8382-25 | DISCHARGE MANIFOLD | 1 | FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | BOMCO F-1600 | 7 ½” X 12” |
| ITEM NO. | PART NO. | DESCRIPTION | QTY. REQ’D |
| | 8404-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42) | |
| 1 | 1376YXX | LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 |
| 2 | 2930-XX | LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) | 3 |
| 3 | 8490-28 | LINER WEARPLATE (WITH 568-443 O-RING) | 3 |
| 4 | 2988 | WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) | 6 |
| 5 | XX-BYY | PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 6 | 568-225 | PISTON SEAL | 3 |
| 7 | 6278-25 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD NUT | 3 |
| 9 | 1290-2 | PISTON ROD CONNECTING STUD | 3 |
| 10 | 6284-1 | SUB ROD | 3 |
| 11 | 6274CWY | ROD CLAMP (WITH WATER JACKET) | 3 |
| 11A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 11B | 1286CWYFP | ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE | 3 |
| 11C | 4020-29 | BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12 | 1200G74 | PONY ROD | 3 |
| 13 | SEE PAGE | VALVE | 6 |
| 14 | SEE PAGE | VALVE INSERT | 6 |
| 15 | SEE PAGE | VALVE SPRING | 6 |
| 16 | SEE PAGE | VALVE SEAT | 6 |
| | SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 |
| 17 | 4488-25 | VALVE COVER FLANGE | 6 |
| 18 | 4588-25 | SCREW GLAND | 6 |
| 19 | 4690-25A | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, &23 | 6 |
| 20 | P115 | HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) | 6 |
| 21 | 4788-25R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 22 | 4700I | VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) | 6 |
| 23 | 4018-18 | VALVE GUIDE SCREW | 12 |
| 24 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) | 72 |
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | BOMCO F-1600 | 7 ½” X 12” |
| ITEM NO. | PART NO. | DESCRIPTION | QTY. REQ’D |
| 25 | 4017-33 | POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) | 30 |
| 26 | 568-443 | WEARPLATE 'O' RING | 3 |
| 27 | 6490-25 | LINER RETAINER FLANGE | 3 |
| 28 | 4019-51 | LINER RETAINER CAPSCREW | 36 |
| 29 | 6590-25 | LINER RETAINER NUT | 3 |
| 30 | 4019-61 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) | 18 |
| 31 | 4018-19 | SUCTION MANIFOLD CAPSCREW | 18 |
| 32 | 8590-6 | SUCTION MANIFOLD | 1 |
| 33 | 568-442 | SUCTION MANIFOLD 'O' RING | 3 |
| 34 | 8404-26 | SUCTION MODULE | 3 |
| 35 | 8404-27 | DISCHARGE MODULE | 3 |
| 36 | 8488-5 | DOWEL PIN | 6 |
| 37 | 8376-25MOD | DISCHARGE MANIFOLD | 1 |
| 38 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) | 18 |
| 39 | 2988 | DISCHARGE MANIFOLD SEAL | 3 |
| 40 | 6490-25P | LINER RETAINER PULLER | 1 |
| 41 | LW875 | LOCKWASHER 7/8 | 18 |
| 42 | LW500 | LOCKWASHER ½ | 12 |
| | | | |
| | 8590-6BFA | BLIND FLANGE IS AVAILABLE FOR CAPPING UNUSED FLANGES ON 8590-6 SUCTION MANIFOLD – (8590-6BFA INCLUDES 8590-6BF BLIND FLANGE AND 568-456 O-RING) SEE SEPARATE PG. FOR DETAILS | |
| | |
| | | | |
| | | | |
| SOUTHWEST 7500 P.S.I. BOMCO F-1600 GUIDE TO ORDERING |
| PISTONS LINERS | LINER SEALS |
| SIZE | FAIL-SAFE | DUAL-DURO® | BLACK CAT | GRAYLOY® | ZIRCONIA | RUBBER | URETHANE |
| 4" | 76BFS | 76BDD | 76BBC | 1376G06 | | 2930-06 | 2930-06U |
| 4 1/4" | 77BFS | 77BDD | 77BBC | 1376G07 | | 2930-07 | 2930-07U |
| 4 1/2" | 78BFS | 78BDD | 78BBC | 1376G08 | 1376ZIR08 | 2930-08 | 2930-08U |
| 4 3/4" | 79BFS | 79BDD | 79BBC | 1376G09 | 1376ZIR09 | 2930-09 | 2930-09U |
| 5" | 81BFS | 81BDD | 81BBC | 1376G1 | 1376ZIR1 | 2930-1 | 2930-1U |
| 5 1/4" | 82BFS | 82BDD | 82BBC | 1376G2 | | 2930-2 | 2930-2U |
| 5 1/2" | 83BFS | 83BDD | 83BBC | 1376G3 | 1376ZIR3 | 2930-3 | 2930-3U |
| 5 3/4" | 84BFS | 84BDD | 84BBC | 1376G4 | 1376ZIR4 | 2930-4 | 2930-4U |
| 6" | 85BFS | 85BDD | 85BBC | 1376G5 | 1376ZIR5 | 2930-5 | 2930-5U |
| 6 1/4" | 86BFS | 86BDD | 86BBC | 1376G6 | 1376ZIR6 | 2930-6 | 2930-6U |
| 6 1/2" | 87BFS | 87BDD | 87BBC | 1376G7 | 1376ZIR7 | 2930-7 | 2930-7U |
| 6 3/4" | 88BFS | 88BDD | 88BBC | 1376G8 | | 2930-8 | 2930-8U |
| 7" | 89BFS | 89BDD | 89BBC | 1376G9 | 1376ZIR9 | 2930-9 | 2930-9U |
| 7 1/4" | 91BFS | 91BDD | 91BBC | 1376G10 | 1376ZIR10 | 2974-11 | 2974-11U |
| 7 1/2" | 92BFS | 92BDD | 92BBC | 1376G11 | | 2974-11 | 2974-11U |
Premium can produce the spare parts of Drillmec 7TS-500 MUD PUMP , 7TS600 MUD PUMP, 9T800 MUD PUMP, 9T1000 MUD PUMP, 12T1600 MUD PUMP, 14T2200 MUD PUMP.
| DRILLMEC 12T1600 FLUID END MODULE & ACCESSORIES | |
| | | | | | |
| ITEM # | DRILLMEC PART # | MISSION PART # | DESCRIPTION | QTY PER PUMP | AVAILABLE |
| 1 | 40390797 | DRILLMEC OEM DRAIWINGS | VALVE HEAD | 6 | OK |
| 2 | 40390798 | DRILLMEC OEM DRAIWINGS | VALVE SEAT | 6 | OK |
| 3 | RI40390796-03 | DRILLMEC OEM DRAIWINGS | SPRING | 6 | OK |
| 4 | 40390797-01 | DRILLMEC OEM DRAIWINGS | INSERT | 6 | OK |
| 5 | 01917638 | DRILLMEC OEM DRAIWINGS | LINER 4-1/2" | 3 | OK |
| 6 | 01917639 | DRILLMEC OEM DRAIWINGS | LINER 5" | 3 | OK |
| 7 | 01917446 | DRILLMEC OEM DRAIWINGS | LINER 5-1/2" | 3 | OK |
| 8 | 01917431 | DRILLMEC OEM DRAIWINGS | LINER 6" | 3 | OK |
| 9 | 01917447 | DRILLMEC OEM DRAIWINGS | LINER 6-1/4" | 3 | OK |
| 10 | 01917448 | DRILLMEC OEM DRAIWINGS | LINER 6-1/2" | 3 | OK |
| 11 | 01917449 | DRILLMEC OEM DRAIWINGS | LINER 6-3/4" | 3 | OK |
| 12 | 01917450 | DRILLMEC OEM DRAIWINGS | LINER 7" | 3 | OK |
| 13 | 01917451 | DRILLMEC OEM DRAIWINGS | LINER 7-1/4" | 3 | OK |
| 14 | 01917452 | DRILLMEC OEM DRAIWINGS | LINER 7-1/2" | 3 | OK |
| 15 | 01912152 | DRILLMEC OEM DRAIWINGS | 4-1/2" PISTON | 3 | OK |
| 16 | 01912153 | DRILLMEC OEM DRAIWINGS | 5" PISTON | 3 | OK |
| 17 | 01912154 | DRILLMEC OEM DRAIWINGS | 5-1/2' PISTON | 3 | OK |
| 18 | 01912163 | DRILLMEC OEM DRAIWINGS | 6" PISTON | 3 | OK |
| 19 | 01912278 | DRILLMEC OEM DRAIWINGS | 6-1/4" PISTON | 3 | OK |
| 20 | 01912149 | DRILLMEC OEM DRAIWINGS | 6-1/2" PISTON | 3 | OK |
| 21 | 01917130 | DRILLMEC OEM DRAIWINGS | 6-3/4" PISTON | 3 | OK |
| 22 | 01912155 | DRILLMEC OEM DRAIWINGS | 7" PISTON | 3 | OK |
| 23 | 01912164 | DRILLMEC OEM DRAIWINGS | 7-1/4" PISTON | 3 | OK |
| 24 | 01912148 | DRILLMEC OEM DRAIWINGS | 7-1/2" PISTON | 3 | OK |
| 25 | 01917364 | DRILLMEC OEM DRAIWINGS | SUCTION MODULE | 3 | OK |
| 26 | 01917365 | DRILLMEC OEM DRAIWINGS | DELIVERY MODULE | 3 | OK |
| DRILLMEC 12T1600 POWER END & ACCESSORIES | |
| 27 | 01917366 | DRILLMEC OEM DRAIWINGS | SUCTION MANIFOLD | 3 | OK |
| 28 | 01917351 | DRILLMEC OEM DRAIWINGS | CROSSHEAD | 3 | OK |
| 29 | 01917341 | DRILLMEC OEM DRAIWINGS | CONNECTION ROD | 3 | OK |
| 30 | 01917331 | DRILLMEC OEM DRAIWINGS | PINION SHAFT | 1 | OK |

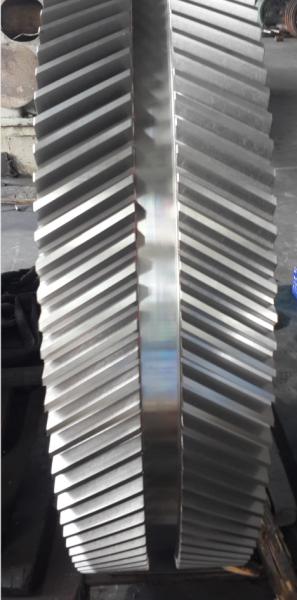

| 31 | 01917340 | DRILLMEC OEM DRAIWINGS | GEAR, BULL | 1 | OK |
| 32 | 01917339 | DRILLMEC OEM DRAIWINGS | CRANKSHAFT | 1 | OK |
| DRILLMEC | 12T1600 5000 PSI SWFE | | 7-1/2 x 12 |
| | LINERS | LINER GASKETS | PISTONS | PISTON REPLACEMENT RUBBERS |
| SIZE | CERAMIC | SUPREME | RUBBER | URETHANE | BLUE LIGHTNING | GREEN DUO | WHITE LIGHTNING | SUPREME | WHITE LIGHTNING | SUPREME |
| 4" | | | | | | | | | | |
| 4 1/4" | | | | | | | | | | |
| 4 1/2" | | | 1540120 | | MB44-15 | 1502054 | 12180197 | 12180196 | 15180145 | 15180144 |
| 4 3/4" | | | 1504121 | | | | | | | |
| 5" | 7466500 | 05466500* | 7923264 | | MB50-15 | 1502056 | 12180254 | 12180253 | 15180186 | 15180185 |
| 5 1/4" | | | | | | | | | | |
| 5 1/2" | 7466550 | 05466550* | 7923263 | 7211005 | MB54-15 | 1502058 | 12180338 | 12180337 | 15180228 | 15180227 |
| 5 3/4" | | | | | | | | | | |
| 6" | 7466600 | 05466600* | 7923261 | 7211004 | MB60-15 | 1502060 | 12180395 | 12180394 | 15180269 | 15180268 |
| 6 1/4" | | 05466625* | 7923283 | | | 1502061 | | 12180493 | 15180285 | 15180284 |
| 6 1/2" | 7466650 | 05466650* | 7923284 | 7211003 | MB64-15 | 1502062 | 12180536 | 12180535 | 15180301 | 15180300 |
| 6 3/4" | | | | | | | | | | |
| 7" | 7466700 | 05466700* | 7923285 | 7211002 | MB70-15 | 1502064 | 12180619 | 12180618 | 15180343 | 15180342 |
| 7 1/4" | | | | | | | | | | |
| 7 1/2" | | | | | | | | | | |
| 7 3/4" | | | | | | | | | | |
| 8" | | | | | For Bonded White Lightning Pistons add "XT" to Green Duo Part # |
| * For HP style liner, add "HP" to end of part no. | | | | | | | |
| VALVES, SEATS, SPRINGS & INSERTS | | GASKETS | |
| Series 7 | ROUGHNECK | ROUGHNECK HP | SUPREME | FKN | | OEM | OEM URETHANE | L STYLE | L STYLE URETHANE | L STYLE W.L. |
| VALVE-White Lightning Insert | 9700368 | 9700356 | 60155042 | N/A | Valve Cover | NA | NA | 7207119 | 7211013 | 7213013 |
| VALVE-Urethane Insert | 9700250 | 9700354 | 60155041 | 1560985 | Wear Plate | NA | | 1290344 | 7211023 | 7213023 |
| VALVE-Rubber Insert | 9700293 | N/A | 60155033 | 1560984 | Liner Retention Systems | OEM | MISSION L |
| SEAT | 9702539 | 9702539 | 61102505 | 1561440 | Blak-JAK LOK-CEL | 80501100 | 80501100 |
| SPRING | 8201684 | 8201684 | 55413421 | 1560702 | Blak-JAK Hydra-Cell | 80502100 | 80502100 |
| SPRING-Stainless | | | 55402945 | | Hydra-LOK | 80500100 | 80500100 |
| INSERT-Urethane | 9705228 | PFO7I | 62400338 | 1560557 | MODULES | OEM | MISSION L |
| INSERT-Rubber | 9705244 | N/A | 62400239 | 1560558 | Complete Assembly | NA | FEM12PASSYSWNS |
| SEAT PULLER ASSEMBLIES | Discharge Module Studded | NA | FEM12PDISSWNS |
| Puller Assembly 1 | M 1060 | M 1060 | M 1060 | M 1060 | Suction Module Studded | NA | FEM12PSUCSWNS |
| Puller Head | 8401985 | 8401985 | 181235300 | M 1098 | One Piece OEM Style Studded | | |
| | | | | | | | | | | |
| Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods |
| Crosshead Rod | Quick Connect | Self Aligning Rod Assembly | Rod Nut | Piston Rod | Sub Rod | Pony Rod Baffle | Piston Rod Clamp | Covered Rod Nut | Pony Rod Seal |
| XM-296 | | 2095220 | 5402052 | 1292147 | 1292146 | 1292194 | W/SPRAY | 80701024 | CRN-1 | 1292182 |
| | | | | | | | WO/SPRAY | 5417357 | | |
Drillmec is a global contractor in the design and construction of drilling and work over rigs for the Onshore and Offshore Oil & Gas industries. Drillmec manufacture 7T450 mud pump, 7TS600 mud pump, 9T1000 mud pump, 12T1600 mud pump and 14T2200 mud pump.
| GARDNER DENVER | | PZ-9 | | | | 7 x 9 | |
| | LINERS | LINER GASKETS | PISTONS | PISTON REPLACEMENT RUBBERS |
| SIZE | CERAMIC | SUPREME | RUBBER | URETHANE | WHITE LIGHTNING | SUPREME | GREEN DUO | FLEXLIP | WHITE LIGHTNING | SUPREME |
| 4" | | | | | | 012180170 | 1502052 | 011102926 | | 015180102 |
| 4 1/4" | | | | | | | | | | |
| 4 1/2" | 07493450 | 05493450 | 07916692 | | 012180197 | 012180196 | 1502054 | 011102928 | 015180145 | 015180144 |
| 4 3/4" | | | | | | | | | | |
| 5" | 07493500 | 05493500 | 07916692 | | 012180254 | 012180253 | 1502056 | 011103033 | 015180186 | 015180185 |
| 5 1/4" | | | | | | | | | | |
| 5 1/2" | 07493550 | 05493550* | 07916692 | | 012180338 | 012180337 | 1502058 | 011103132 | 015180228 | 015180227 |
| 5 3/4" | | | | | | | | | | |
| 6" | 07493600 | 05493600* | 07916692 | | 012180395 | 012180394 | 1502060 | 011103629 | 015180269 | 015180268 |
| 6 1/4" | | 05493625* | 07916692 | | | 012180493 | 1502061 | 011103322 | 015180285 | 015180284 |
| 6 1/2" | 07493650 | 05493650* | 07916692 | | 012180536 | 012180535 | 1502062 | 011103827 | 015180301 | 015180300 |
| 6 3/4" | | | | | | | | | | |
| 7" | | 05493700* | 07916692 | | 012180619 | 012180618 | 1502064 | 011103926 | 015180343 | 015180342 |
| 7 1/4" | | | | | | | | | | |
| 7 1/2" | | | | | | | | | | |
| 7 3/4" | | | | | | | | | | |
| 8" | | | | | | | | | | |
| * For HP style liner, add "HP" to end of part no. | | | | | | | | | | |
| VALVES, SEATS, SPRINGS & INSERTS | | GASKETS | |
| | ROUGHNECK | ROUGHNECK HP | SUPREME | | | OEM | URETHANE | L STYLE | URETHANE | |
| VALVE-White Lightning Insert | 9700368 | 9700356 | 060155042 | | Valve Cover | 07916749 | 6309143 | | | |
| VALVE-Urethane Insert | 9700250 | 9700354 | 060155041 | | Cylinder Head | 07916749 | 6309143 | | | |
| VALVE-Rubber Insert | 9700293 | N/A | 060155033 | | Plug Seal | | | | | |
| SEAT | 9702504 | 9702504 | 061101507 | | HYDRA-LOK | OEM | MISSION L |
| SPRING | 8201650 | 8201650 | 055413371 | | Complete Assembly | | |
| SPRING-Stainless | | | 055402952 | | | | |
| INSERT-Urethane | 9705228 | 9700360 | 062400338 | | MODULES | OEM | MISSION L |
| INSERT-Rubber | 9705244 | N/A | 062400239 | | Complete Assembly | FEMPZ789CA | |
| SEAT PULLER ASSEMBLIES | Discharge Module Studded | | |
| Puller Assembly 1 | M 1060 | M 1060 | M 1060 | | Suction Module Studded | | |
| Puller Head | 8401985 | 8401985 | 181235300 | | One Piece OEM Style Studded | FEMPZ789 | |
| | | | | | | | | | | |
| Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods |
| Crosshead Rod | Quick Connect | Self Aligning Rod Assembly | | Piston Rod | Sub Rod | Pony Rod Baffle | Rod Nut | Clamp | Covered Rod Nut | Pony Rod Seal |
| 07913056 | | 1095035 | CLAMP | 1551510 | | 07208503 | 005402052 | PP601022 | CRN-1 | 07931171 |
| IDECO | | | T-1600 | | | | 7-1/2 x 12 | |
| | LINERS | LINER GASKETS | PISTONS | PISTON REPLACEMENT RUBBERS |
| SIZE | CERAMIC | SUPREME | RUBBER | URETHANE | WHITE LIGHTNING | SUPREME | GREEN DUO | FLEXLIP | WHITE LIGHTNING | SUPREME |
| 4" | | | | | | 012180170 | 1502052 | 011102926 | | 015180102 |
| 4 1/4" | | | | | | | | | | |
| 4 1/2" | 07507450 | 05507450 | 07916782 | 07916082 | 012180197 | 012180196 | 1502054 | 011102928 | 015180145 | 015180144 |
| 4 3/4" | | | | | | | | | | |
| 5" | 07507500 | 05507500 | 07916782 | 07916082 | 012180254 | 012180253 | 1502056 | 011103033 | 015180186 | 015180185 |
| 5 1/4" | | | | | | | | | | |
| 5 1/2" | 07507550 | 05507550 | 07916782 | 07916082 | 012180338 | 012180337 | 1502058 | 011103132 | 015180228 | 015180227 |
| 5 3/4" | | | | | | | | | | |
| 6" | 07507600 | 05507600 | 07916782 | 07916082 | 012180395 | 012180394 | 1502060 | 011103629 | 015180269 | 015180268 |
| 6 1/4" | | 05507625 | 07916782 | 07916082 | | 012180493 | 1502061 | 011103322 | 015180285 | 015180284 |
| 6 1/2" | 07507650 | 05507650 | 07916782 | 07916082 | 012180536 | 012180535 | 1502062 | 011103827 | 015180301 | 015180300 |
| 6 3/4" | | | | | | | | | | |
| 7" | 07507700 | 05507700 | 07916782 | 07916082 | 012180619 | 012180618 | 1502064 | 011103926 | 015180343 | 015180342 |
| 7 1/4" | | | | | | | | | | |
| 7 1/2" | 07507750 | 05507750 | 07916782 | 07916082 | 012180685 | 012180683 | | | 015180369 | 015180367 |
| 7 3/4" | | | | | | | | | | |
| 8" | | | | | | | | | | |
| | | | | | | | | | | |
| VALVES, SEATS, SPRINGS & INSERTS | | GASKETS | |
| | ROUGHNECK | ROUGHNECK HP | SUPREME | | | OEM | URETHANE | L STYLE | URETHANE | |
| VALVE-White Lightning Insert | 9700368 | 9700356 | 060155042 | | Valve Cover | 07916782 | 07916082 | 07207129 | | |
| VALVE-Urethane Insert | 9700250 | 9700354 | 060155041 | | Cylinder Head | 07916782 | 07916082 | | | |
| VALVE-Rubber Insert | 9700293 | N/A | 060155033 | | Plug Seal | | | | | |
| SEAT | 9702504 | 9702504 | 061101507 | | HYDRA-LOK | OEM | MISSION L |
| SPRING | 8201684 | 8201684 | 055413421 | | Complete Assembly | | |
| SPRING-Stainless | | | 055402945 | | | | |
| INSERT-Urethane | 9705228 | 9700360 | 062400338 | | MODULES | OEM | MISSION L |
| INSERT-Rubber | 9705244 | N/A | 062400239 | | Complete Assembly | FEMIDT1316CA | FEMT1316ASSYSW |
| SEAT PULLER ASSEMBLIES | Discharge Module Studded | | FEMT1316DISSW |
| Puller Assembly 1 | M 1060 | M 1060 | M 1060 | | Suction Module Studded | | FEMT1316SUCSW |
| Puller Head | 8401985 | 8401985 | 181235300 | | One Piece OEM Style Studded | FEMIDT1316 | |
| | | | | | | | | | | |
| Crosshead Extension Rods, Quick Connect Rods, Self Aligning Rod Assemblies & Piston Rods |
| Crosshead Rod | Rod Type | Self Aligning Rod Assembly | Pony Rod Baffle | Piston Rod | Sub Rod | Stud | Rod Nut | Clamp | Covered Rod Nut | Pony Rod Seal |
| 07913081 | 1 Piece | | 07208502 | 1551715 | | | 005402052 | PP604130 | CRN-1 | |
| 07913081 | 2 Piece | 1093560 | 07208502 | PPHT204A* | PPHT213 | 10305203 | 005402052 | PP604130 | CRN-1 | |
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
Mud Pump Manufactures and Models include:
Brewster Mud Pumps
B-550 | B-750 | B-1000 | 1100T | B-1300
Continental Emsco Mud Pumps
FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD
Continental Emsco Mud Pumps
GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH
Continental Emsco Mud Pumps
PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL
Ellis Williams (Luko) Mud Pumps
WW-440 | 14W-400 | 15W-600 | 9W-1000
Gaso Mud Pump
1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652
Gardner Denver Mud Pumps
FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL
Ideco Mud Pumps
MM-200 | MM-300 | MM-500 | MM-500F | MM-550
Ideco Mud Pumps
MM-550F | MM-700 | MM-700F | T-500
Ideco Mud Pumps
T-800 | T-1000 | T-1300 | T-1600
National Mud Pumps
C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000
National Mud Pumps
K-280 | K-380 | K-500 | K-500A | K-700A
National Mud Pumps
7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160
Oilwell Mud Pumps
6P-HD | 610-P | 212-P | 214-P | 218-P
Oilwell Mud Pumps
350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT
Oilwell Mud Pumps
A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT
OPI Mud Pumps
350-D | 700-HDL | 1000-HDL
Wheatley Mud Pumps
1036 | 6070 | 7024 | 7036
Wilson Mud Pumps
600 | 900
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.
SOUTHWEST 8482-25A FLUID END
FOR NATIONAL 14-P-220
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | NATIONAL 14-P-220 | 9” X 14” |
| ITEM | P/N | DESCRIPTION | QTY. REQ’D |
| | 8482-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,32,33,34) | |
| 1 | 6382G-XX | LINER REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | 3 |
| 2 | 2930-XX | LINER SEAL | 3 |
| 3 | 8482-5 | WEARPLATE | 3 |
| 4 | 2988 | WEARPLATE & MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) | 6 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 6282W32 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 6282-1 | SUB ROD | 3 |
| 10 | 6282CWY | ROD CLAMP (CONSIST OF 10A, 10B, 10C)(FOR CLAMP ONLY, USE 6282C) | 6 |
| 10A | 1200H30 | HOSE | 3 |
| 10B | 1200160 | PIPE | 3 |
| 10C | 4019-77 | ROD CLAMP BOLT | 12 |
| 11 | 6200G82 | PONY ROD | 3 |
| 12 | SEE PAGE | VALVE | 6 |
| 13 | SEE PAGE | VALVE INSERT (IF REQUIRED) | 6 |
| 14 | SEE PAGE | VALVE SPRING | 6 |
| 15 | SEE PAGE | VALVE SEAT | 6 |
| | SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 |
| 16 | 4476 | THREADED FLANGE | 6 |
| 17 | 4597 | SCREW GLAND | 6 |
| 18 | 4609-25 | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, & 22 | 6 |
| 19 | P119 | HP VALVE COVER PLUG SEAL | 6 |
| 20 | 4776R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 21 | 4700I | VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART# 4700IU) | 6 |
| 22 | 4016-98 | VALVE GUIDE SCREW | 12 |
| 23 | 4015-54 | VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) | 84 |
| 24 | 4019-24 | POWER END STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) | 30 |
| 25 | 6482 | LINER RETAINER FLANGE | 3 |
| 26 | 4015-52 | LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 18 |
| 27 | 6582 | LINER RETAINER NUT | 3 |
| 28 | 4020-6 | SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) | 18 |
| 29 | 4018-19 | SUCTION MANIFOLD CAP SCREW | 24 |
| 30 | 8582 | SUCTION MANIFOLD | 1 |
| 31 | AJO326 | SUCTION MANIFOLD SEAL | 3 |
| 32 | 8482-26 | SUCTION MODULE | 3 |
| 33 | 8482-27 | DISCHARGE MODULE | 3 |
| 34 | 8488-5 | DOWEL PIN | 6 |
| 35 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 18 |
| 36 | 8382-25 | DISCHARGE MANIFOLD | 1 |
