SOUTHWEST 8482-A

National 14P-220

Southwest Oilfield Products is a premier oil and gas equipment manufacturer that provides Their global customer base with best-in-class mud and well servicing pump solutions. They manufacture rugged and reliable equipment for your specific needs including Mud Pump Fluid Ends, Frac Pump Fluid Ends, Liners, Pistons and other consumable items.

Their Mud Pump solutions team has been an industry leader since 1947 and is renowned for providing high quality mud pump fluid ends and consumable parts such as pistons, liners, valves and seats to drilling companies across the globe. With over 65 years of manufacturing experience, Their mission is to provide you with simply the best well servicing equipment and mud pump products.

Southwest Oilfield Products, Inc. is committed to delivering the highest quality products, on time, and creating positive significant impacts on their customers’ projects. They strive to maintain their innovative stance in the industry while partnering with our customers to share the focus on generating solutions.

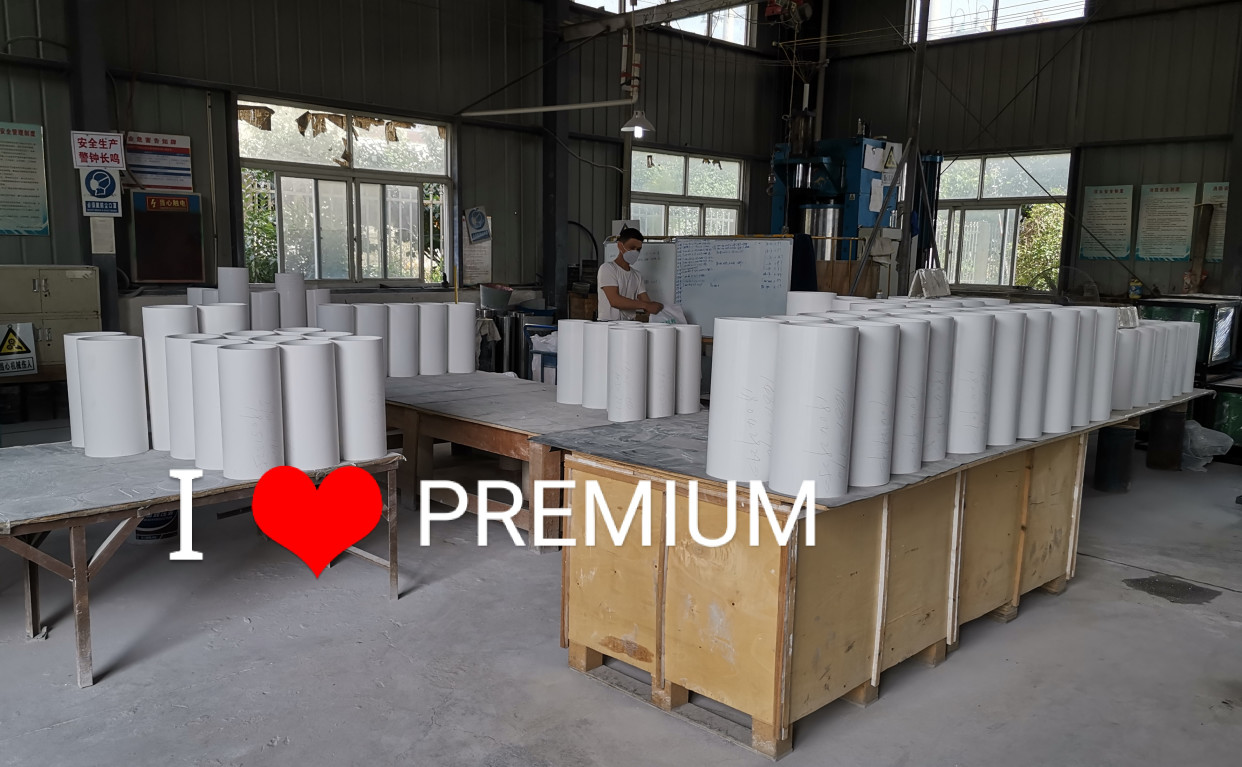

Premium's zirconia liner offers life time cost savings, significantly longer service, better performance and safer operation than those made of more commonly used alumina ceramic. Premium's zirconia liner is a proprietary Zirconium-based matrix that has significantly improved mechanical characteristics.

◎ Zirconia has three important property advantages compared to alumina.

◎ Zirconia exhibits better impact strength.

◎ Zirconia is harder than alumina.

◎ Zirconia can be honed to finer surface finishes than alumina. Finished to 4 RMS, ◎Zirconia liners - provide a surface finish that's three to four times finer than alumina.

All three of these property advantages translate to lower ownership costs. The improved wear directly extends the service life of the sleeve, while the improved impact strength cuts down on the significant costs of replacing broken liners in the field. The surface finish improvements, meanwhile, have an indirect effect. The finer surface finish means less friction with the elastomer-and-metal pump pistons, which in trun extends piston life and reduces pump-cooling requirements.

◎ HP design with shoulder-on-hull design to prevent sleeve slippage

◎ Reduced liner and piston wear

◎ Rated for all drilling operations up to 7500 PSI

◎ Bore hardness of 92-94 Rockwell

◎ ID tolerances of +.010”/ -.000”

◎ Surface finish of 4 - 8 RMS

◎ Hardness i s HV 0.3 kg/mm – 1100/1200 ( 92 - 94 Rc)

◎ High pressure design to prevent slippage

◎ Liner sizes are available from 4½” to 7” for all popular mud pumps

Parts are available for these popular pump models:

BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000, F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500, D-375, D-700,

LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600

Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,

National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220, E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,

Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG, KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,

Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT

Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200

Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L, NB125, NB80, NB50, NB32

WEATHERFORD/Ellis Williams: E-447, E-2200

Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800

Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000

And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson, Gaso, Skytop/Brewster.

1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No. P107802

Insert Part No. P107186 Spring

2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180

Insert Part No. P107182 Spring

3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No. P107187

Insert Part No. P107189 Spring4P102382

SPM2000

1,Plunger Size 3.75" Plunge Part No 3P103887

2,Plunger Size 4.00" Plunge Part No 3P100339

3,Plunger Size 4.50" Plunge Part No 3P100654

4,Plunger Size" 5.00" Plunge Part No 3P100233

5,Plunger Size" 5.50 Plunge Part No 3P107060

6,Plunger Size" 5.75" Plunge Part No 3P107061

7,Plunger Size 6.00 Plunge Part No 3P107062

SPM

TWS 250 Plunger Size 1.75"-3" 3.25"-4"

TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”

TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"

TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"

TWS 900 Plunger Size 3.50"-4"

TWS 1250LW Plunger Size 4"

OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”

TWS1000LW,TWS1300

Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”

TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”

TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”

TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

5.50” 5.75” 6.0”

TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”

QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5

Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300

Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 • F-1000 • FA-1300 • FB-1600 FB1600

Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651 • 2652

Gardner Denver ® Mud Pumps

PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL

Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 • TGF-225

Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T • GD-125T • GD-150T • GD-180T • GD-200T

Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550

Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500

Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600

National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 • J-375 • J-625 • JWS-340 • JWS-400

National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A

National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 • 12-P-160 / 12P-160 / 12P160

Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT • A-850-PT • 1100-PT

Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT • A-1700-PT / A1700-PT

Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through SB-644-B

OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL

Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036

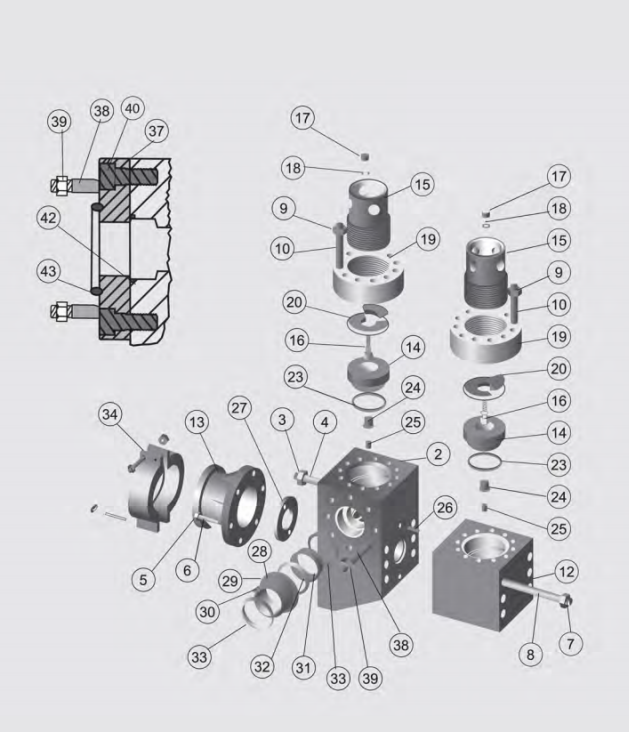

Fluid End Modules

National® - Oilwell® - Continental Emsco® - Gardner Denver® - Ideco® - Skytop Brewster®

Pulsation Dampener

Hydril Type "K" Pulsation Dampener

Popular Mud Pump Spare Parts

Mud Pump Manufactures and Models include:

Brewster Mud Pumps

B-550 | B-750 | B-1000 | 1100T | B-1300

Continental Emsco Mud Pumps

FF-FXF | FG-FXG (A thrugh L) | FD-FXX | FC-FXX | FD-FXD | FC-FXD | FY-FXD

Continental Emsco Mud Pumps

GP-GXP | GR-GXP | GP-GXR | GR-GXR |PA-8 | PAH

Continental Emsco Mud Pumps

PJ8 | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PXL

Ellis Williams (Luko) Mud Pumps

WW-440 | 14W-400 | 15W-600 | 9W-1000

Gaso Mud Pump

1563 | 1740-55 | 1844-60 | 2010-50 | 2200-49 | 2651 | 2652

Gardner Denver Mud Pumps

FF-FXF;FG-FXG;A thru L FD-FXX FC-FXX FD-FXD FC-FXD FY-FXD GP-GXP GR-GXP GP-GXR GR-GXR PA-8 PJ8 PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 PXL

Ideco Mud Pumps

MM-200 | MM-300 | MM-500 | MM-500F | MM-550

Ideco Mud Pumps

MM-550F | MM-700 | MM-700F | T-500

Ideco Mud Pumps

T-800 | T-1000 | T-1300 | T-1600

National Mud Pumps

C-150 | C-250 | C-350 | E-500 | E-700 | G-700 | G-1000

National Mud Pumps

K-280 | K-380 | K-500 | K-500A | K-700A

National Mud Pumps

7P-50 | 8P-80 | 9P-100 | 10P-130 | 12P-160

Oilwell Mud Pumps

6P-HD | 610-P | 212-P | 214-P | 218-P

Oilwell Mud Pumps

350-PT | 560-PT | A-560-PT | 850-PT | A-850-PT | 1100-PT

Oilwell Mud Pumps

A-1100-PT | 1400-PT | A-1400-PT | 1700-PT | A-1700-PT

OPI Mud Pumps

350-D | 700-HDL | 1000-HDL

Wheatley Mud Pumps

1036 | 6070 | 7024 | 7036

Wilson Mud Pumps

600 | 900

    Premium Rig Parts is a leading manufacturer and supplier of mud pump parts, drilling rig expendables to the oil drilling industry. Our specialties include, but are not limited to, expendables for mud pump systems including Emsco, Brewster, National Oilwell, Ideco, Gardner Denver, Weatherford, Drillmec, Bomco, Honghua, RG, Rongsheng, TSC, LS NOV, POT, Bentec, Wirth, Southwest, Ewco, Lewco, Baker Forum, Mud King, OPI, Texma, Haihua Group and more. We also have extensive knowledge of older and obsolete mud pumps and their parts. Our reach extends to customers around the world.

From China to AMERICA, from South America to Middle East, our clients around the world rely on us for the daily mud pump operations.

Premium has a long tradition of industry leadership and innovation. We continue to expand our product line and services to meet emerging customer needs. Our broad range of capabilities includes creating new, more efficient parts to ensure our customers achieve the highest performance in the most demanding mud pump operations.

Our Product Lines
The extensive product lines of mud pump expendables we manufacture and supply include liners, modules and accessories, 7,500 PSI conversion kit, pistons and hubs, valves and seats, rods and clamps, gaskets and seals, crossheads, crosshead slides and crosshead pins, manifolds, pulsation dampeners and much more. All our products are fully exchangeable with OEM parts.

Our Technologies
Latest technologies and equipment are implemented to ensure the consistency of quality and efficiency of productions. Our testing labs are well equipped to conduct various Nondestructive Testing (NDT).

Our Qualities
The mud pump expendables and mud pump parts we manufacture and supply meet or exceed OEM specifications and API standards. Our manufacturing facility is ISO9001 registered and API-7K certified.

Our Values

Having the right parts in the right place, at the right time is critical to your success. We can and we are trying to do that.

At PREMIUM, we care about all the products and services we supply!

At PREMIUM, we don’t just build parts, we build long term relationships. Our relentless focus on quality, competitive pricing and customer service has won the trust of our customers.
