SOUTHWEST 8488-25A FLUID END FOR
OILWELL A-1700-PT/A-1400-PT

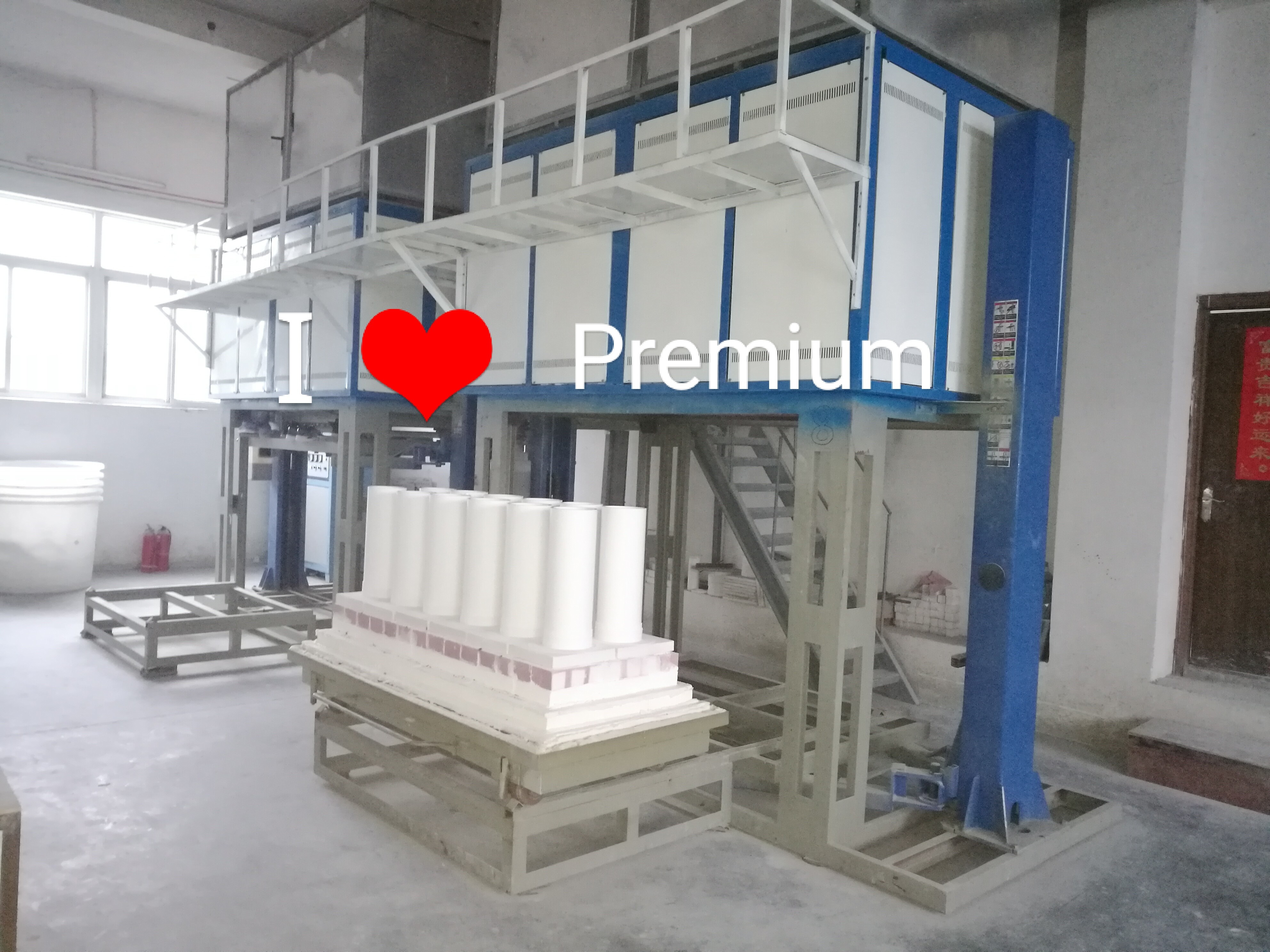

| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 PSI | A-1700-PT / A-1400-PT | 7-1/2” X 12” |
| ITEM | P/ N | DESCRIPTION | QTY. REQ’D |
| 8488-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3, 4, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26,
27, 28, 29, 30, 31, 34, 35, & 36) | |
| 1 | 1388-XX | LINER (REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE
SIZE (XX) | 3 |
| 2 | 2974-XX | LINER SEAL (ALSO AVAILABLE IN URETHANE) | 3 |
| 3 | 8488-28 | WEARPLATE | 3 |
| 4 | 2988 | WEARPLATE AND MODULE SEAL | 9 |
| 5 | XX-BYY | PISTON (REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 1290HW25 | PISTON ROD (WITH 1 ½-8 ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 1290W2 | PISTON ROD CONNECTING STUD | 3 |
| 10 | 1290HW1 | SUB ROD | 3 |
| 11 | 1290CW | ROD CLAMP (CONSIST OF 11A, 11B, 11C) (FOR CLAMP ONLY, USE 1290C) | 3 |
| 11A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 11B | 1200120 | PIPE (3/8” X 12” GALVANIZED AND THREADED ON ONE END) | 3 |
| 11C | 4018-94 | ROD CLAMP BOLT (5/8-11 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12 | 1200G90 | PONY ROD | 3 |
| 13 | SEE PAGE | VALVE | 6 |
| 14 | SEE PAGE | VALVE INSERT (IF REQUIRED) | 6 |
| 15 | SEE PAGE | VALVE SPRING | 6 |
| 16 | SEE PAGE | VALVE SEAT | 6 |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 |
| 17 | 4488-25 | THREADED FLANGE | 6 |
| 18 | 4588-25 | SCREW GLAND | 6 |
| 19 | 4690-25A | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 21,
22, & 23 | 6 |
| 20 | P115 | HP VALVE COVER PLUG SEAL (ALSO AVAILABLE IN URETHANE PART# P115U) | 6 |
| 21 | 4788R-25 | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 22 | 4700I | VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE PART # 4700IU) | 6 |
| 23 | 4018-18 | VALVE GUIDE SCREW | 12 |
| 24 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 72 |
| 25 | 4020-5 | POWER END STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) | 12 |
| 26 | 6588-1 | LINER RETAINER NUT | 3 |
| 27 | 8488-7 | LINER RETAINER CAPSCREW | 9 |
| 28 | 6488-25 | LINER RETAINER FLANGE | 3 |
| 29 | 4016-80 | LINER RETAINER SOCKET HEAD CAP SCREW | 24 |
| 30 | 4020-4 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 ¾-8 HEAVY HEX NUT) | 18 |
| 31 | 4018-70 | SUCTION MANIFOLD CAP SCREW | 24 |
| 32 | 8588-50A | SUCTION MANIFOLD | 1 |
| 33 | 80102003 | SUCTION MANIFOLD SEAL | 3 |
| 34 | 8488-26 | SUCTION MODULE | 3 |
| 35 | 8488-27 | DISCHARGE MODULE | 3 |
| 36 | 8488-5 | DOWEL PIN | 6 |
| 37 | 8388-25A | DISCHARGE MANIFOLD | 1 |
| 38 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) | 18 |
| 39 | 568-445 | “O” RING – WEAR PLATE O.D. RETAINER | 3 |
| 40 | 2932 | PISTON BUSHING (1 5/8 TO 1 ½ DIA.) | 3 |
| SOUTHWEST 7500 P.S.I. | NATIONAL 12P-160 | 7-1/2” X 12” |
| ITEM | P/N | DESCRIPTION | QTY. REQ’D |
| 8476-25A | FLUID END ASSEMBLY (CONSISTS OF ITEMS
3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,31,32,33,34,36,37,38) | |
| 1 | 1376YXX | LINER (REFER TO- GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE
SIZE (XX) | 3 |
| 2 | 2930-XX | LINER SEAL (REFER TO- GUIDE TO ORDERING CHART FOR TYPE AND SIZE (XX)) | 3 |
| 3 | 8476-3 | WEARPLATE | 3 |
| 4 | 2988 | WEARPLATE, AND DISCHARGE MANIFOLD SEAL | 6 |
| 5 | XX-BYY | PISTON (REFER TO- GUIDE FOR ORDERING CHART FOR SIZE (XX) AND TYPE (YY)) | 3 |
| 6 | 568-225 | PISTON O-RING | 3 |
| 7 | 1286-32 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD ELASTIC STOP NUT | 3 |
| 9 | 1286-1 | SUB ROD | 3 |
| 10 | 1286CWY | ROD CLAMP (CONSIST OF 10A, 10B, 10C) (FOR CLAMP ONLY, USE 1286C) | 6 |
| 10A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 10B | 1286CWYFP14 | PIPE (3/8” X 14” GALVANIZED AND THREADED ON ONE END) | 3 |
| 10C | 4020-29 | BOLT (7/8 - 9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 12 |
| 11 | 1200G86 | PONY ROD | 3 |
| 12 | SEE PAGE | VALVE | 6 |
| 13 | SEE PAGE | VALVE INSERT (IF REQUIRED) | 6 |
| 14 | SEE PAGE | VALVE SPRING | 6 |
| 15 | SEE PAGE | VALVE SEAT | 6 |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS PAGE OF CATALOG FOR DETAILS) | 1 |
| 16 | 4488-25 | THREADED FLANGE | 6 |
| 17 | 4588-25 | SCREW GLAND | 6 |
| 18 | 4690-25A | PLUG (COMPLETE WITH VALVE GUIDE, BUSHING, AND SCREWS; INCLUDES ITEMS 20,
21, & 22) | 6 |
| 19 | P115 | HP VALVE COVER PLUG NITRILE SEAL | 6 |
| 20 | 4788-25R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 21 | 4700I | VALVE GUIDE BUSHING | 6 |
| 22 | 4018-88 | VALVE GUIDE SCREW | 12 |
| 23 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) | 72 |
| 24 | 4015-95 | POWER END STUD (WITH SW PART# HHN1375-6 1 3/8-6 HEAVY HEX NUT) | 30 |
| 25 | 6476 | LINER RETAINER FLANGE | 3 |
| 26 | 4017-65 | LINER RETAINER FERRY HEAD CAP SCREW | 18 |
| 27 | 6576 | LINER RETAINER NUT | 3 |
| 28 | 4019-54 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4-8 HEAVY HEX NUT) | 18 |
| 29 | 4018-19 | SUCTION MANIFOLD CAP SCREW (WITH LOCK WASHER) | 24 |
| 30 | 8576-50 | SUCTION MANIFOLD (FRONT OR SIDE INLET) | 1 |
| 31 | AJO419R | SUCTION MANIFOLD GASKET | 3 |
| 32 | 8476-26S | SUCTION MODULE | 3 |
| 33 | 8476-27D | DISCHARGE MODULE | 3 |
| 34 | 8488-5 | DOWEL PIN | 6 |
| 35 | 8376-25MOD | DISCHARGE MANIFOLD | 1 |
| 36 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) | 18 |
| 37 | LW500 | LOCKWASHER | 12 |
| 38 | LW875 | LOCKWASHER | 24 |
| 39 | 9070012 | PONY ROD SEAL | 12 |
| 40 | 80491292 | SPLASH GUARD | 3 |
| 23 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) | 72 |
| 24 | 4015-95 | POWER END STUD (WITH SW PART# HHN1375-6 1 3/8-6 HEAVY HEX NUT) | 30 |
| 25 | 6476 | LINER RETAINER FLANGE | 3 |
| 26 | 4017-65 | LINER RETAINER FERRY HEAD CAP SCREW | 18 |
| 27 | 6576 | LINER RETAINER NUT | 3 |
| 28 | 4019-54 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4-8 HEAVY HEX NUT) | 18 |
| SOUTHWEST 7500 P.S.I. | BOMCO F-1600 | 7 ½” X 12” |
| ITEM NO. |
PART NO. |
DESCRIPTION | QTY. REQ’D |
| 8404-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS:
3,4,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,34,35,36,38,39,41,42) | |
| 1 | 1376YXX | LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND
FOR BORE SIZE (XX) | 3 |
| 2 | 2930-XX | LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) | 3 |
| 3 | 8490-28 | LINER WEARPLATE (WITH 568-443 O-RING) | 3 |
| 4 | 2988 | WEARPLATE AND MODULE SEAL (ALSO AVAILABLE IN URETHANE PART# 2988U) | 6 |
| 5 | XX-BYY | PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR
TYPE (YY) | 3 |
| 6 | 568-225 | PISTON SEAL | 3 |
| 7 | 6278-25 | PISTON ROD (WITH ELASTIC STOP NUT) | 3 |
| 8 | API-4ESN | PISTON ROD NUT | 3 |
| 9 | 1290-2 | PISTON ROD CONNECTING STUD | 3 |
| 10 | 6284-1 | SUB ROD | 3 |
| 11 | 6274CWY | ROD CLAMP (WITH WATER JACKET) | 3 |
| 11A | 1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | 3 |
| 11B | 1286CWYFP | ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE | 3 |
| 11C | 4020-29 | BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | 6 |
| 12 | 1200G74 | PONY ROD | 3 |
| 13 | SEE PAGE | VALVE | 6 |
| 14 | SEE PAGE | VALVE INSERT | 6 |
| 15 | SEE PAGE | VALVE SPRING | 6 |
| 16 | SEE PAGE | VALVE SEAT | 6 |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) | 1 |
| 17 | 4488-25 | VALVE COVER FLANGE | 6 |
| 18 | 4588-25 | SCREW GLAND | 6 |
| 19 | 4690-25A | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20,
21, 22, &23 | 6 |
| 20 | P115 | HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE PART # P115U) | 6 |
| 21 | 4788-25R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | 6 |
| 22 | 4700I | VALVE GUIDE INSERT (ALSO AVAILABLE IN URETHANE PART # 4700IU) | 6 |
| 23 | 4018-18 | VALVE GUIDE SCREW | 12 |
| 24 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) | 72 |
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP |
| SOUTHWEST 7500 P.S.I. | BOMCO F-1600 | 7 ½” X 12” |
| ITEM NO. |
PART NO. |
DESCRIPTION | QTY. REQ’D |
| 25 | 4017-33 | POWER END STUD (WITH SW PART# HHN1500-8 1 1/2"-8 HEAVY HEX NUT) | 30 |
| 26 | 568-443 | WEARPLATE 'O' RING | 3 |
| 27 | 6490-25 | LINER RETAINER FLANGE | 3 |
| 28 | 4019-51 | LINER RETAINER CAPSCREW | 36 |
| 29 | 6590-25 | LINER RETAINER NUT | 3 |
| 30 | 4019-61 | SUCTION MODULE STUD (WITH SW PART# HHN1750-8 1 3/4"-8 HEAVY HEX NUT) | 18 |
| 31 | 4018-19 | SUCTION MANIFOLD CAPSCREW | 18 |
| 32 | 8590-6 | SUCTION MANIFOLD | 1 |
| 33 | 568-442 | SUCTION MANIFOLD 'O' RING | 3 |
| 34 | 8404-26 | SUCTION MODULE | 3 |
| 35 | 8404-27 | DISCHARGE MODULE | 3 |
| 36 | 8488-5 | DOWEL PIN | 6 |
| 37 | 8376-25MOD | DISCHARGE MANIFOLD | 1 |
| 38 | 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 1/4"-7 HEAVY HEX NUT) | 18 |
| 39 | 2988 | DISCHARGE MANIFOLD SEAL | 3 |
| 40 | 6490-25P | LINER RETAINER PULLER | 1 |
| 41 | LW875 | LOCKWASHER 7/8 | 18 |
| 42 | LW500 | LOCKWASHER ½ | 12 |
All our fluid end parts are manufactured to API 7K quality
standards.
Parts are available for these popular pump models:
BOMCO/Emsco Mud Pumps:F2200HL, F1600HL, F-1300, F-1600, FB1300, FB1600, F-800, F-1000,
F-500, F-350, DB-550, DA-700, FA-1600/1300, FC-2200, D-300/500,
D-375, D-700,
LS National Mud Pumps: 3NB-500C, 3NB1000C, 3NB1300C, 3NB1600
Ideco Mud Pumps: T-500, T-800, T-1000, T-1300, T-1600,
National Mud Pumps: 7P50, 8P80, 9P100, 10P130, 12P160, N1300, C-250, K-700, 14-P-220,
E-700/G-1000, K-500, K-380, K-500A/700A, C-250/350, JWS-400,
Gardner Denver Mud Pumps: PZ7, PZ8/9, PZ10/11, FK-FXK, FY-FXD, FD-FXX, FG-GXG, FG-FXG,
KG-KXG, FQ-FXQ, FF-FXF, FF-FXP,
Oilwell Mud Pumps: A-560/600-PT, A-850-PT/A-1100-PT, A-1700-PT/A-1400-PT
Wirth Mud Pump: TPK1000, TPK1600, TPK 2000,TPK2200
Russian Mud Pumps: UNBT-950, UNB-600, 8T-650, UNBT650, NBT600, UNB1180, UNB1180L,
NB125, NB80, NB50, NB32
WEATHERFORD/Ellis Williams: E-447, E-2200
Drillmec Mud Pump: 9T1000, 12T1600, 7TS600, 7TS500, 9T800
Romania Mud Pump: 3PN-1000, 3PN-1600, 3PN-2000
And other brand spare parts for WIRTH, OPI, Ellis Williams, Wilson,
Gaso, Skytop/Brewster.
1,Plunger Size 3.38” - 4.00” Valve Part No. P107185 Seat Part No.
P107802
Insert Part No. P107186 Spring
2,Plunger Size 4.50” Valve Part No. P107181 Seat Part No. P107180
Insert Part No. P107182 Spring
3,Plunger Size 5.00” - 6.00” Valve Part No. P107188 Seat Part No.
P107187
Insert Part No. P107189 Spring4P102382
SPM2000
1,Plunger Size 3.75" Plunge Part No 3P103887
2,Plunger Size 4.00" Plunge Part No 3P100339
3,Plunger Size 4.50" Plunge Part No 3P100654
4,Plunger Size" 5.00" Plunge Part No 3P100233
5,Plunger Size" 5.50 Plunge Part No 3P107060
6,Plunger Size" 5.75" Plunge Part No 3P107061
7,Plunger Size 6.00 Plunge Part No 3P107062
SPM
TWS 250 Plunger Size 1.75"-3" 3.25"-4"
TWS 400 Plunger Size 2 .50"-3" 3 .50"-4 .50”
TWS 500LW-600 Plunger Size 2 .75" 3"-4 .75"
TWS 600S Plunger Size 2 .50"-3" 3.50"-4 .50"
TWS 900 Plunger Size 3.50"-4"
TWS 1250LW Plunger Size 4"
OPI880 Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0”
TWS1000LW,TWS1300
Plunger Size 3.75" 4.00” 4.5” 5.0:” 5.50” 5.75” 6.0” 6.5 “ 6.75”
TWS1600 Plunger Size 3.5” 3.75” 4.0” 4.50” 5.0” 5.5” 5.75 “6.0”
TWS1800 Plunger Size 3.5” 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
5.50” 5.75” 6.0”
TWS2250 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2000 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5”
QWS 2500 Plunger Size 3.75” 4.0” 4.5” 5.0” 5.50” 5.75” 6.0” 6.5
| MISSION "L" MODULE FOR EMSCO FB-1300, FB-1600 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO: EMSCO INDEX | |
| | FEMFB13ASSYSW | FLUID END MODULE COMPLETE ASSEMBLY | 3 |
| 1 | 8490-1D | FEMFB13DISSW | DISCHARGE MODULE, STUDDED (INCLUDES ITEMS 1, 3-11) | 3 |
| 2 | 8490-2S | FEMFB13SUCSW | SUCTION MODULE, STUDDED (INCLUDES ITEM 2, 5, 6,12, 27) | 3 |
| 3 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | EMSF1000PFSN | NUT, DISCHARGE TO SUCTION STUD | 18 |
| 5 | 4015-2 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 6 | | PZ789GPFSN | NUT, THREADED RING STUD | 72 |
| 7 | 4016-9 | FB1300PPFSSW | STUD, POWER FRAME | 18 |
| 8 | | EMSF1000PFSN | NUT, POWER FRAME STUD | 18 |
| 9 | 4017-36 | PEP80 | LINER RETAINER FLANGE CAPSCREW (SOCKET HEAD) | 24 |
| 10 | 4017-46 | FB1300DMSSW | STUD, DISCHARGE MANIFOLD | 12 |
| 11 | | EMSF1000DMSN | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 12 | 8488-5 | PEP70 | DOWELL PIN | 6 |
| 13 | 2988 | 1290344 | SEAL, SUCTION TO DISCHARGE MODULE & WEAR PLATE SEAL | 6 |
| 14 | 8422-3 | TOM JORDAN | LINER RETAINER PILOT RING | 3 |
| 15 | 8490-3 | EMSFB13WPSW | LINER WEAR PLATE | 3 |
| 16 | 6490-3 | EMSFB13ARSW | LINER RETAINER FLANGE | 3 |
| 17 | 6590-1 | EMSFB13LLSW | LINER LOCK NUT | 3 |
| 18 | P-129 | 07207129 | VALVE COVER GASKET | 6 |
| 19 | 4016-99 | PEP73 | VALVE GUIDE CAPSCREW | 12 |
| 20 | 4700-I | PZ789VGI | VALVE GUIDE BUSHING | 6 |
| 21 | 4775-2R | EMSFB13VGASW | VALVE GUIDE (INCLUDES ITEMS 20, 21) | 6 |
| 22 | 4675-2A | EMSFB13VCASW | VALVE PLUG ASSEMBLY (INCLUDES ITEMS 19-22) | 6 |
| 23 | 4475 | OWA17FLGSW | THREADED RING | 6 |
| 24 | 4575 | OWA17CAPSW | THREADED CAP | 6 |
| 25 | 568-343 | | DISCHARGE MANIFOLD GASKET | 3 |
| 26 | 568-442 | | SUCTION MANIFOLD GASKET | 3 |
Brewster ® Mud Pumps B-550 • B-750 • B-1000 • 1100T • B-1300
Continental Emsco ® Mud Pumps F-350 • F-500 • F-650 • F-800 •
F-1000 • FA-1300 • FB-1600 FB1600
Gaso ® Mud Pump 1563 • 1740-55 • 1844-60 • 2010-50 • 2200-49 • 2651
• 2652
Gardner Denver ® Mud Pumps
PAH • PZ-7 PZG • PZ-8 PZH • PZ-9 PZJ • PZ-10 PZK • PZ-11 PZL
Gardner Denver ® Well Service TEE • PE-5 • PA-8 • PAH • PJ-8 •
TGF-225
Gardner Denver ® Continuous Duty GD-55T • GD-60T • GD-100T •
GD-125T • GD-150T • GD-180T • GD-200T
Ideco ® Mud Pumps MM-200 • MM-300 • MM-500 • MM-500F • MM-550
Ideco ® Mud Pumps MM-550F • MM-700 • MM-700F • T-500
Ideco ® Mud Pumps T-500 • T-800 • T-1000 • T-1300 • T-1600
National ® J Series Mud Pumps J-30 • J-60 • J-100 • J-165 • J-275 •
J-375 • J-625 • JWS-340 • JWS-400
National ® Mud Pumps K-280 • K-380 • K-500 • K-500A • K-700A
National ® P Series Mud Pumps 7P-50 • 8P-80 • 9P-100 • 10P-130 •
12-P-160 / 12P-160 / 12P160
Oilwell ® Mud Pumps A-350-PT • 560-PT • A-560-PT • 850-PT •
A-850-PT • 1100-PT
Oilwell ® Mud Pumps A-1100-PT • 1400-PT • A-1400-PT • 1700-PT •
A-1700-PT / A1700-PT
Oilwell ® Plunger Pumps C-323 through B-558 • SA-640-50 through
SB-644-B
OPI ® Mud Pumps 350-D • 00-DL • 700-HDL • 1000-HDL
Wheatley ® Mud Pumps 1036 • 6070 • 7024 • 7036
Fluid End Modules
National® - Oilwell® - Continental Emsco® - Gardner Denver® -
Ideco® - Skytop Brewster®
Pulsation Dampener
Hydril Type "K" Pulsation Dampener
Popular Mud Pump Spare Parts
| MISSION "L" MODULE FOR PZ-10, PZ-11 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO GARDNER DENVER INDEX | |
| | FEMPZ1011ASSYSW | FLUID END MODULE COMPLETE ASSEMBLY (INCLUDES ITEMS 1-26) | 3 |
| 1 | 8477-1D | FEMPZ1011DISSW | DISCHARGE MODULE, STUDDED (INCLUDES ITEMS 1, 3-11) | 3 |
| 2 | 8477-2S | FEMPZ1011SUCSW | SUCTION MODULE, STUDDED - (INCLUDES ITEMS 2, 5, 6, 12 & 24) | 3 |
| 3 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | EMSF1000PFSN | NUT, DISCHARGE TO SUCTION STUD | 18 |
| 5 | 4015-2 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 6 | | PZ789LCSN | NUT, THREADED RING STUD | 72 |
| 7 | 4018-35 | PZ1011GPFSSW | STUD, POWER FRAME (SHORT) | 24 |
| 8 | | PZ789LCSN | NUT, POWER FRAME STUD | 48 |
| 9 | 4018-34 | PZ1011LCSSW | STUD, LINER RETAINER (LONG) | 24 |
| 10 | 4017-5 | PZ789DMSSW | STUD, DISCHARGE MANIFOLD | 12 |
| 11 | | PZ789TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 12 | 8488-5 | PEP70 | DOWELL PIN | 6 |
| 13 | 2988 | 1290344 | SEAL, SUCTION TO DISCHARGE MODULE | 3 |
| 14 | 2930-08 | TOM JORDAN | SEAL, WEAR PLATE | 3 |
| 15 | 8477-3 | PZ1011WPSW | WEAR PLATE | 3 |
| 16 | 6477 | PZ1011LC | LINER RETAINER FLANGE | 3 |
| 17 | P-129 | 07207129 | VALVE COVER SEAL | 6 |
| 18 | 4018-88 | PEP73 | VALVE GUIDE SCREW | 12 |
| 19 | 4775R | OWA17VGASW | VALVE GUIDE (INCLUDES ITEMS 19, 23) | 6 |
| 20 | 4675-1A | OWA17VCASSYSW | VALVE COVER PLUG (INCLUDES ITEM 18-20 & 23) | 6 |
| 21 | 4475 | OWA17FLGSW | THREADED FLANGE | 6 |
| 22 | 4575 | OWA17CAPSW | THREADED CAP | 6 |
| 23 | 4700-I | PZ789VGI | VALVE GUIDE BUSHING | 6 |
| 24 | 4017-77 | | SUCTION MANIFOLD CAPSCREW | 24 |
| 25 | AJO-449R | 077070074701 | DISCHARGE MANIFOLD GASKET | 3 |
| 26 | 8014G520 | 078070028300 | SUCTION MANIFOLD GASKET | 3 |
| MISSION "L" MODULE FOR T-1300/T-1600 |
| FLUID END MODULE & ACCESSORIES |
| ITEM | OEM PART | MISSION PART | DESCRIPTION | QTY |
| # | # | # | RETURN TO IDECO INDEX | |
| 8407-7A | FEMT1316ASSYSW | FLUID END MODULE COMPLETE ASSEMBLY | 3 |
| 1 | 8407-7D | FEMT1316DISSW | DISCHARGE MODULE, STUDDED | 3 |
| 2 | 8407-11S | FEMT1316SUCSW | SUCTION MODULE, STUDDED | 3 |
| 3 | 4016-97 | OWA17DSUCSSW | STUD, DISCHARGE TO SUCTION MODULE | 18 |
| 4 | | EMSF1000PFSN | NUT, DISCHARGE TO SUCTION MODULE STUD | 42 |
| 5 | 4015-2 | OWA17TRSSW | STUD, THREADED RING | 72 |
| 6 | | PZ789LCSN | NUT, THREADED RING STUD | 72 |
| 7 | 4018-68 | T1316PFSSW | STUD, POWER FRAME | 24 |
| 8 | 4017-50 | T1316DMSSW | STUD, DISCHARE MANIFOLD | 12 |
| 9 | | IDT800TRSN | NUT, DISCHARGE MANIFOLD STUD | 12 |
| 10 | 8488-5 | PEP70 | DOWELL PIN | 6 |
| 11 | 2988 | 1290344 | SEAL,SUCTION TO DISCHARGE MODULE & WEAR PLATE | 6 |
| 12 | 8407-10 | T1316WPSW | LINER WEAR PLATE | 3 |
| 13 | 6407 | T1316LRFLGSW | LINER RETAINER FLANGE | 3 |
| 14 | 6507 | T1316LLNSW | LINER LOCK NUT | 3 |
| 15 | P-129 | SWP129 | VALVE COVER GASKET | 6 |
| 16 | 4016-99 | PEP73 | VALVE GUIDE CAPSCREW | 12 |
| 17 | 4700I | PZ789VGI | VALVE GUIDE BUSHING | 6 |
| 18 | 4775-2R | EMSF1000VGASW | VALVE GUIDE ASSEMBLY (INCLUDES ITEMS 16-18) | 6 |
| 19 | 4675-2A | EMSF1000VCASSYSW | VALVE PLUG ASSEMBLY (INCLUDES ITEMS 18, 19) | 6 |
| 20 | 4475 | OWA17FLGSW | THREADED RING | 6 |
| 21 | 4575 | OWA17CAPSW | THREADED CAP | 6 |
| 22 | 568-339 | 99609339 | DISCHARGE MANIFOLD GASKET | 3 |
| 23 | 568-447 | 99609447 | SUCTION MANIFOLD GASKET | 3 |
| 24 | 4017-59 | PEP84 | SUCTION MANIFOLD CAPSCREW | 24 |
| 25 | | PEP65 | LOCK WASHER | 24 |
